Battery Tray: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the air cleaner. Refer to: Air Cleaner - 2.0L EcoBoost . Refer to: Air Cleaner - 2.7L EcoBoost
- Remove the battery. Refer to: Battery
-
NOTE: Typical battery cable and tray shown, other battery cables and trays similar.

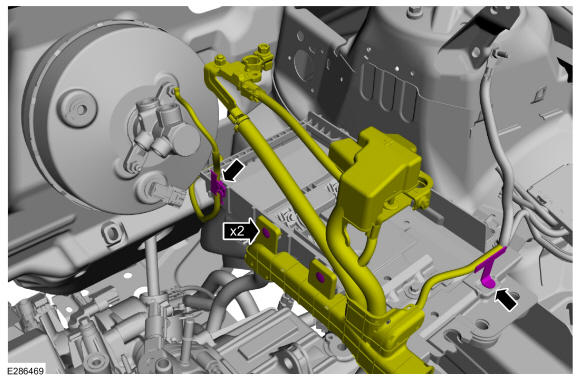

Disconnect the battery cable and engine wire harness retainers from the battery tray.
-

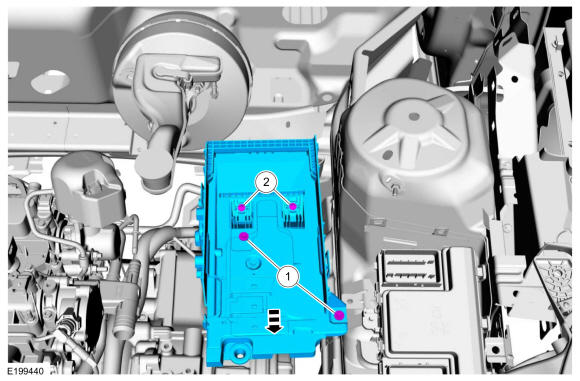

- Remove the M6 x 18mm bolts.
Torque
: 55 lb.in (6.2 Nm)
- Remove the M6 x 30mm bolts and the battery tray.
Torque
: 55 lb.in (6.2 Nm)
- Remove the M6 x 18mm bolts.
