Main Track Assembly: Removal

  1. Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass
  2. Remove the acoustic seal.
    GFD598195Courtesy of FORD MOTOR COMPANY
  3. Remove the air deflector. Refer to: Air Deflector
  4. Remove the roof opening panel shield. Refer to: Roof Opening Panel Shield
  5. Remove the roof opening panel sliding glass and shield motors. Refer to: Roof Opening Panel Motor
  6. NOTE: LH side shown, RH side similar.

    On both sides. Push the roof opening panel shield drive cable mechanism to the front of the track.

    GFD598184Courtesy of FORD MOTOR COMPANY

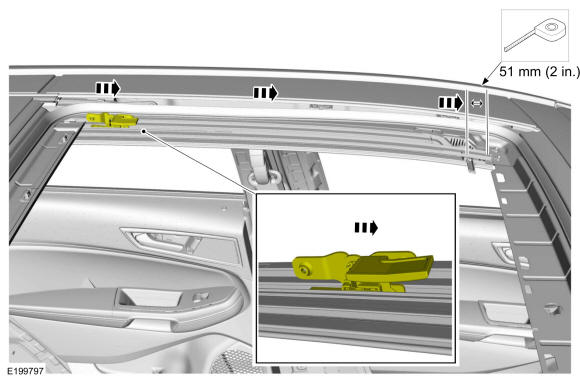

  7. NOTE: LH side shown, RH side similar.

    On both sides. Push the roof opening panel glass drive cable mechanism forward, stopping 51 mm (2 in.) from the front of the track.

    GFD598196Courtesy of FORD MOTOR COMPANY

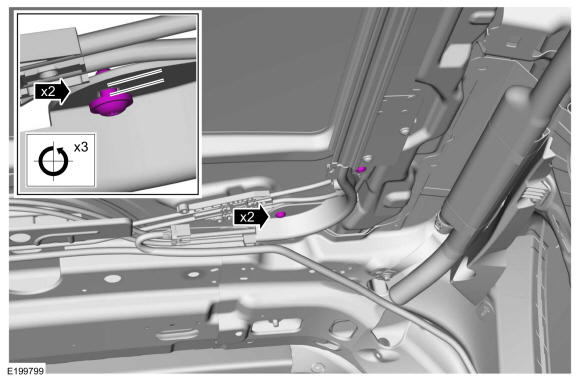

  8. NOTE: LH side shown, RH side similar.

    Loosen the roof opening panel motor block and drive tube retainers 3 turns.

    GFD598197Courtesy of FORD MOTOR COMPANY

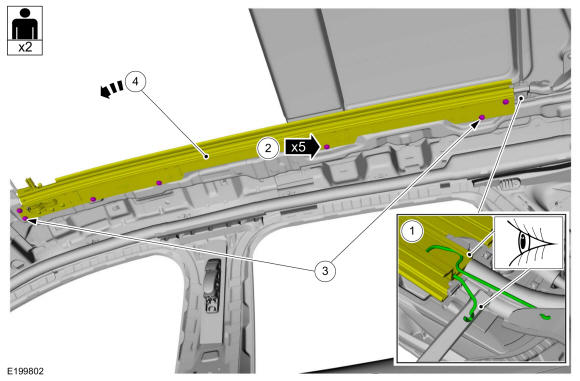

  9. NOTE: The RH side must be removed for access to service the LH side.

    RH side only. With the help of an assistant, disconnect the main track assembly from the roof opening panel motor block and drive tube assembly.

    1. NOTE: Inset view is from above the vehicle for clarity.

      Note the position of the Electrostatic Discharge (ESD) wire for proper installation.

    2. Remove the 5 main track assembly retainers.
    3. Remove the 2 main track assembly alignment retainers.
    4. Pull the main track assembly from the roof opening panel motor block and tube assembly exposing the drive cables.

    GFD598198Courtesy of FORD MOTOR COMPANY

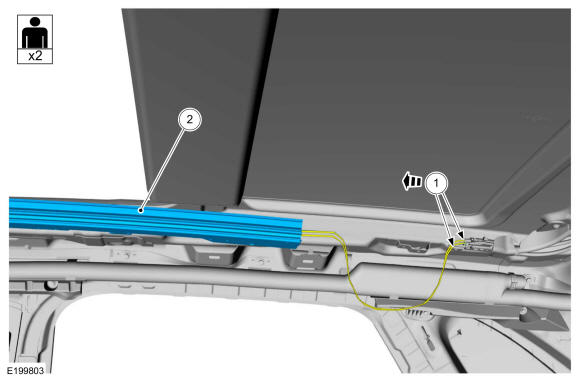

  10. RH side only. With the help of an assistant, remove the main track assembly.

    1. Flex the drive cables as necessary and pull out of the roof opening panel motor block and drive tube assembly.
    2. Remove the main track assembly.

    GFD598199Courtesy of FORD MOTOR COMPANY

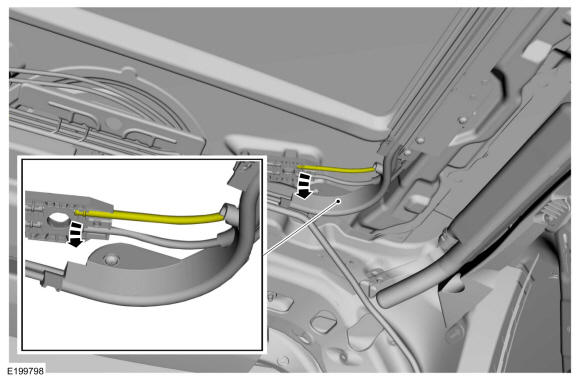

  11. NOTE: Lower the cable return tube from the motor block only enough to fully release from the motor block.

    The cable return tube remains clipped in the main track when removing. A new LH main track assembly is serviced with a new cable return tube attached.

    LH side only. Disconnect the cable return tube from the roof opening panel motor block and drive tube assembly.

    GFD598200Courtesy of FORD MOTOR COMPANY

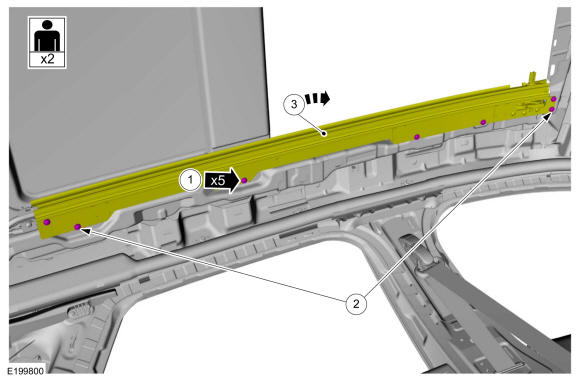

  12. LH side only. With the help of an assistant, disconnect the main track assembly from the roof opening panel motor block and tube assembly.

    1. Remove the 5 main track assembly retainers.
    2. Remove the 2 main track assembly alignment retainers.
    3. Pull the main track assembly from the roof opening panel motor block and tube assembly exposing the drive cables.

    GFD598201Courtesy of FORD MOTOR COMPANY

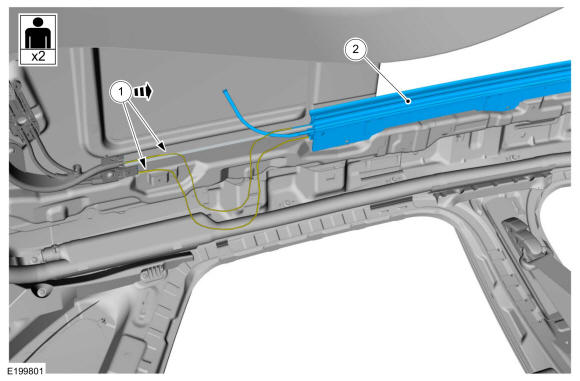

  13. NOTE: The drive cables and mechanisms should not be removed from the main track assembly. A new main track assembly is serviced with the drive cables and mechanisms installed.

    LH side only. With the help of an assistant, remove the main track assembly.

    1. Flex the drive cables as necessary and pull out of the roof opening panel motor block and drive tube assembly.
    2. Remove the main track assembly.

    GFD598202Courtesy of FORD MOTOR COMPANY

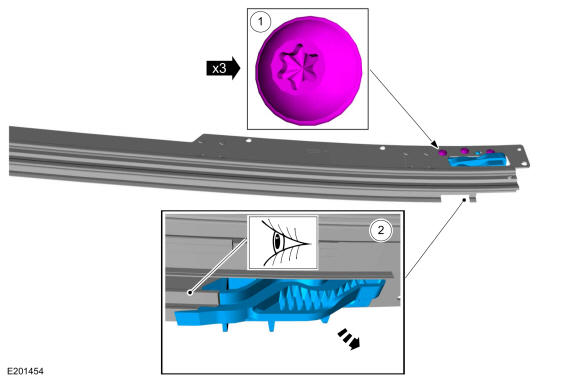

  14. NOTE: LH shown, RH side similar.

    If servicing the front cam. Remove the main track assembly front cam.

    1. Remove the main track assembly front cam retainers.
    2. Note the position of the main track assembly front cam on the underside of the main track assembly and remove the main track assembly front cam.

GFD598203Courtesy of FORD MOTOR COMPANY
