Front Bumper Cover: Disassembly

All vehicles

1. Remove the front bumper cover. Refer to: Front Bumper Cover

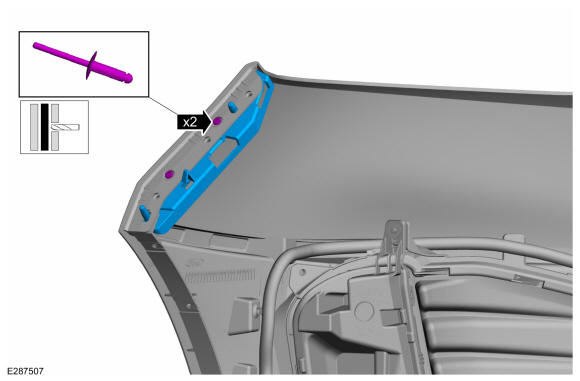

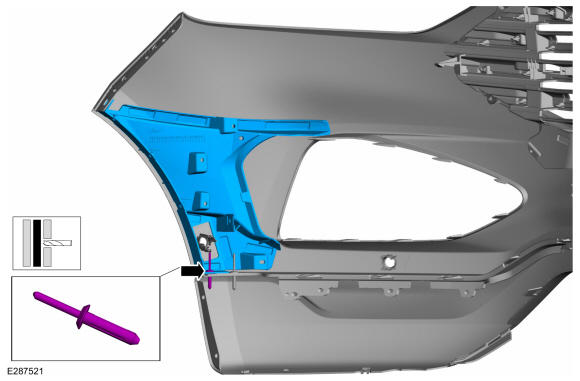

2. On both sides. Drill the rivets and remove the front bumper cover bracket.

   Courtesy of FORD MOTOR COMPANY

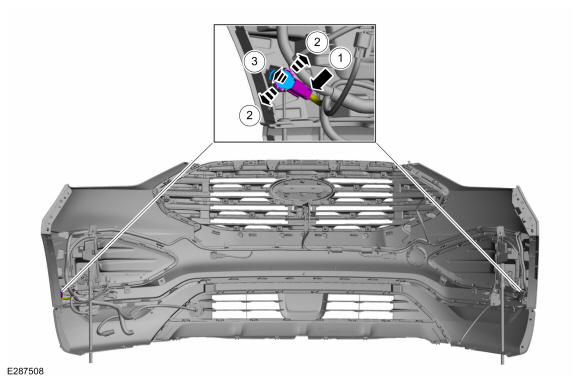

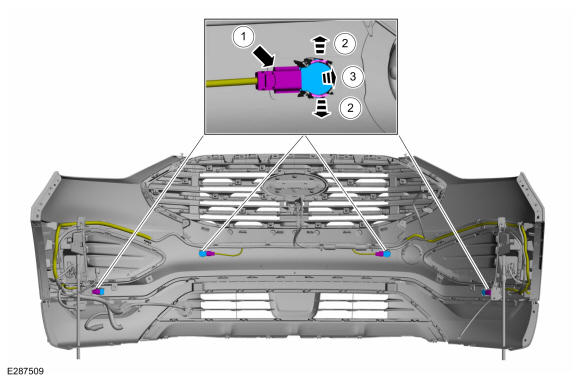

3. If equipped. Remove the front active park assist sensors.
   1. Disconnect the active park assist sensor electrical connectors.
   2. Release the tabs.
   3. Remove the front active park assist sensors.

   Courtesy of FORD MOTOR COMPANY

4. If equipped. Remove the front parking aid sensors.
   1. Disconnect the front parking aid sensor electrical connectors.
   2. Release the tabs.
   3. Remove the front parking aid sensors.

   Courtesy of FORD MOTOR COMPANY

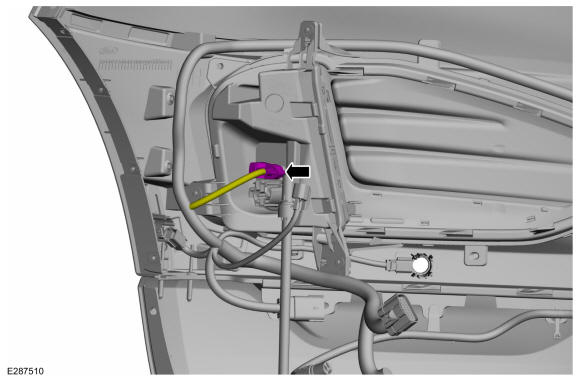

5. On both sides. Disconnect the fog lamp assembly electrical connector.

   Courtesy of FORD MOTOR COMPANY

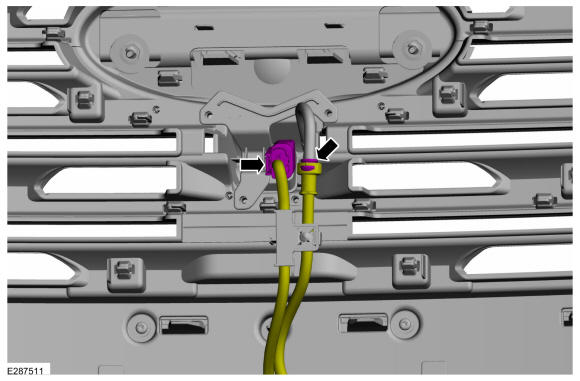

6. If equipped. Disconnect the front camera electrical connector and the washer hose.

   Courtesy of FORD MOTOR COMPANY

7. If equipped. Disconnect the electrical connector, the retainers and position the engine block heater wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

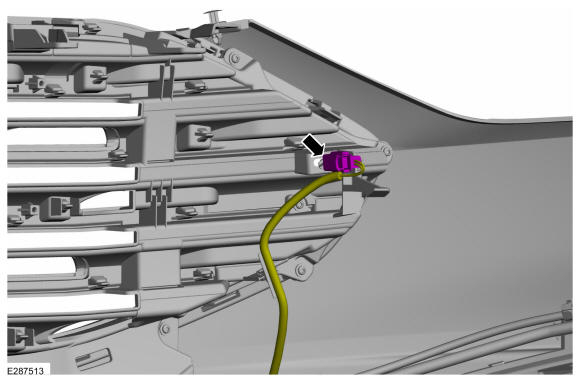

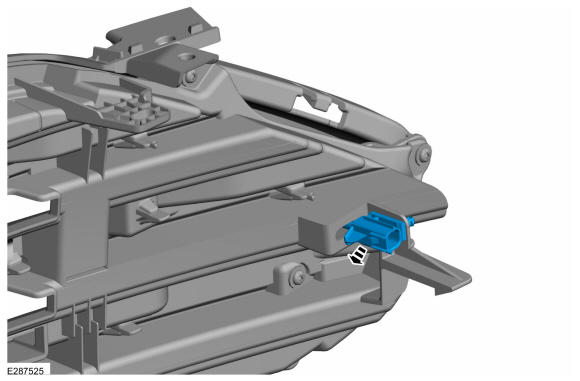

8. Disconnect the ambient air temperature sensor electrical connector.

   Courtesy of FORD MOTOR COMPANY

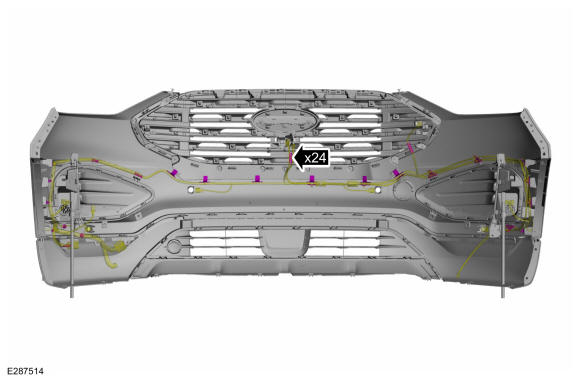

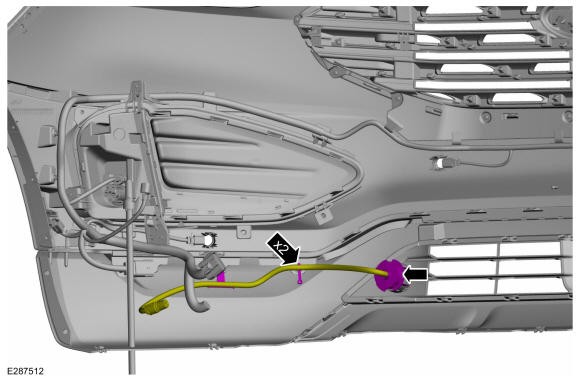

9. Separate the harness guides and remove the front bumper cover harness.

   Courtesy of FORD MOTOR COMPANY

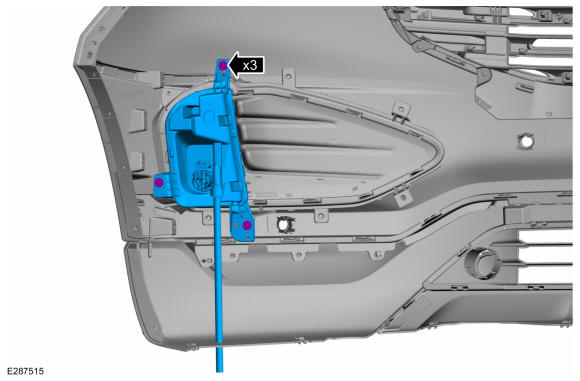

10. On both sides. Remove the screws and the foglamp assembly.

    Courtesy of FORD MOTOR COMPANY

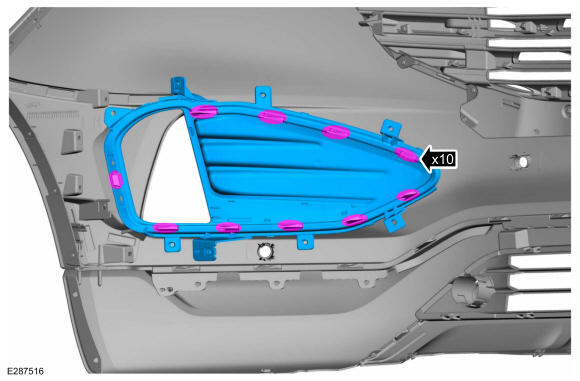

11. On both sides. Release the tabs and remove the fog lamp bezel.

    Courtesy of FORD MOTOR COMPANY

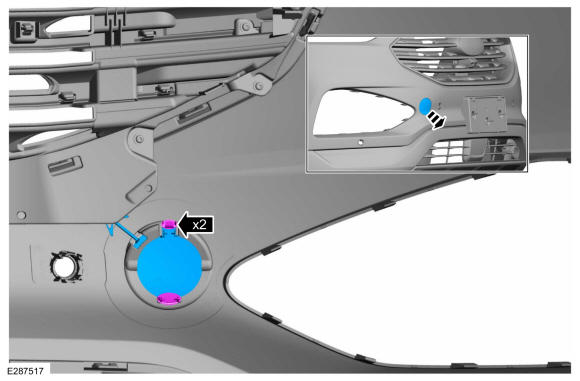

12. If equipped. Release the tabs and remove the front tow hook cover.

    Courtesy of FORD MOTOR COMPANY

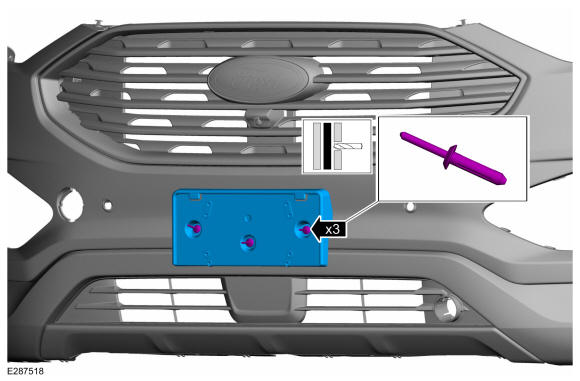

13. If equipped. Drill the rivets and remove the licence plate bracket.

    Courtesy of FORD MOTOR COMPANY

14. On both sides. Drill the rivet and remove the front bumper cover air duct.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with base trim package

15. Release the tabs and remove the front bumper cover protective shield.

    Courtesy of FORD MOTOR COMPANY

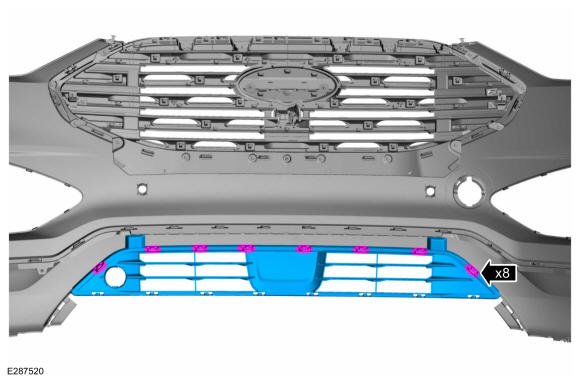

16. Release the tabs and remove air intake lower grille.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with premium trim package

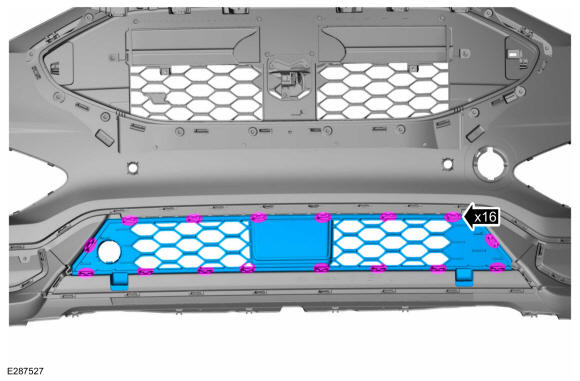

17. Release the tabs and remove air intake lower grille.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with base trim package

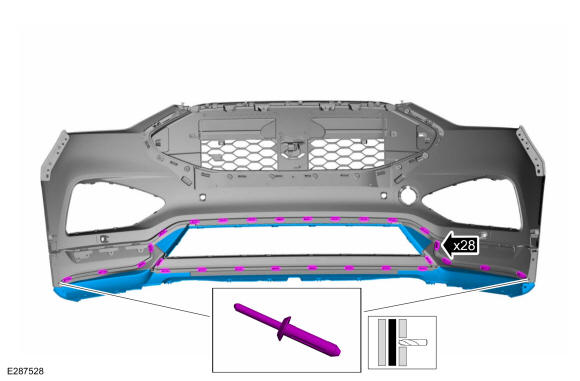

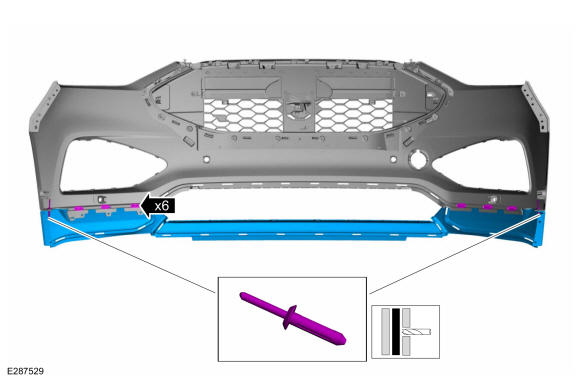

18. Drill the rivets, release the tabs and remove the center bumper cover panel.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with premium trim package

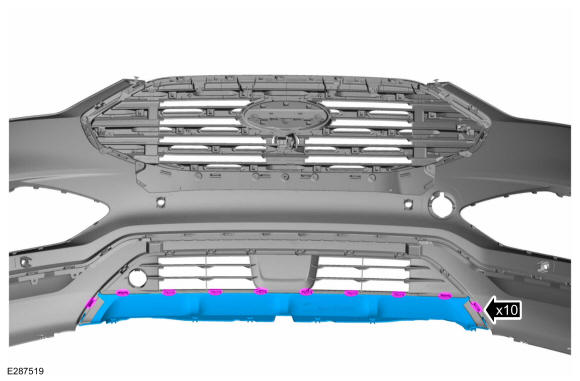

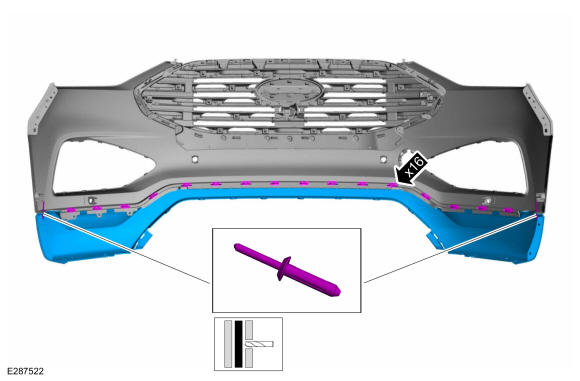

19. Drill the rivets, release the tabs and remove the lower bumper cover panel.

    Courtesy of FORD MOTOR COMPANY

20. Drill the rivets, release the tabs and remove the center bumper cover panel.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

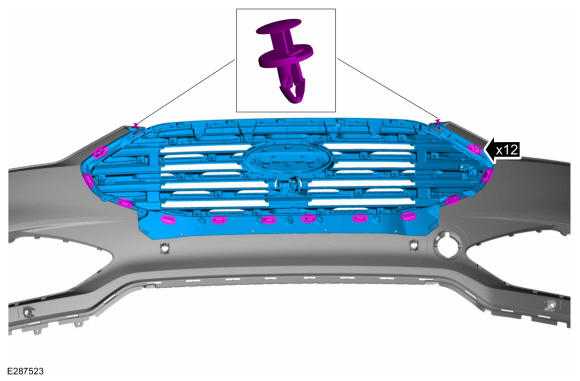

21. Remove the push pins, release the tabs and remove the radiator grille assembly.

    Courtesy of FORD MOTOR COMPANY

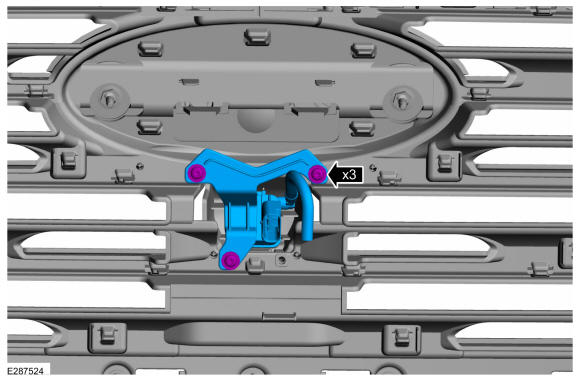

22. If equipped. Remove the screws, the front parking aid camera and the washer nozzle hose bracket assembly.

    Courtesy of FORD MOTOR COMPANY

23. Remove the ambient air temperature sensor.

    Courtesy of FORD MOTOR COMPANY

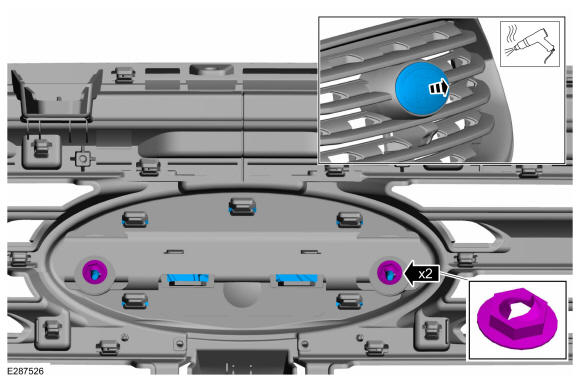

24. Remove the push nuts and the front bumper cover emblem. Use the General Equipment: Hot Air Gun

Courtesy of FORD MOTOR COMPANY
