Front Door Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Inspection

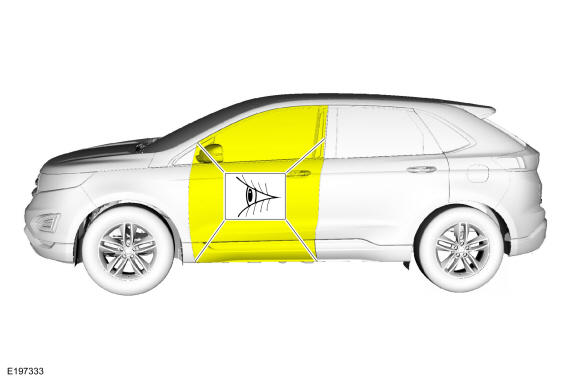

1. Inspect the front door-to-body dimensions. Refer to: BODY AND FRAME

Adjustment

All alignments

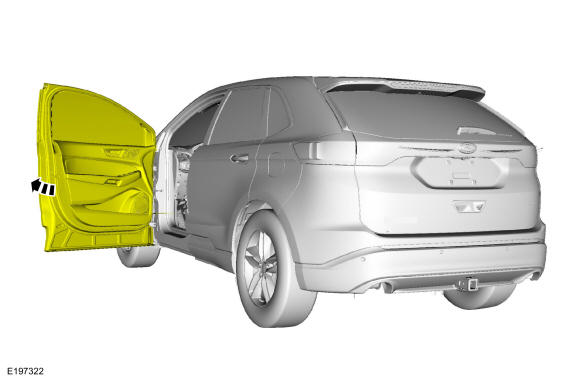

1. Open the door.

   Courtesy of FORD MOTOR COMPANY

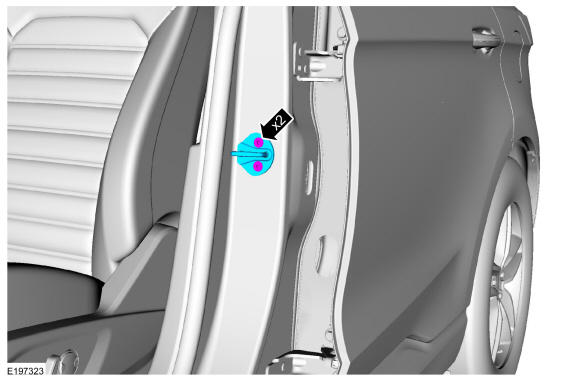

2. Remove the bolts and the striker assembly.

   Torque

   : 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

   Front door in and out, up and down alignment

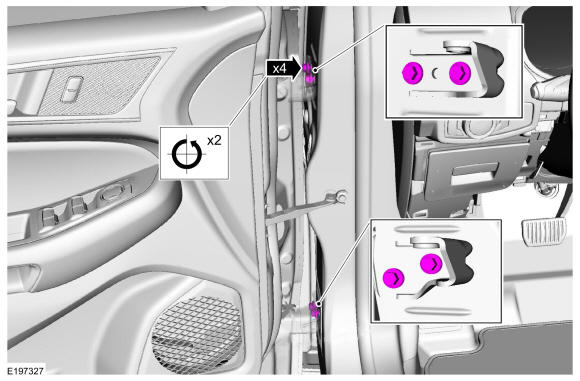

3. Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

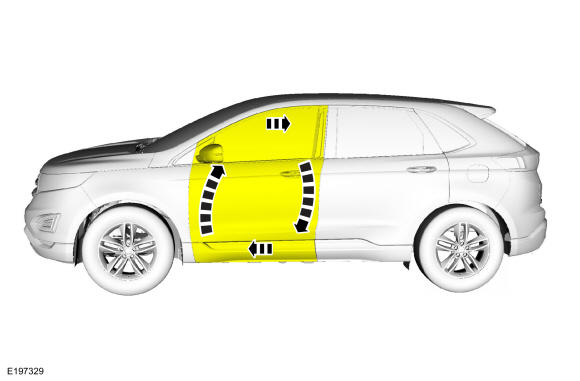

4. Adjust the door to specification. Refer to: BODY AND FRAME

   Courtesy of FORD MOTOR COMPANY

5. Tighten the bolts.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

   Front door fore, aft and tilt alignment

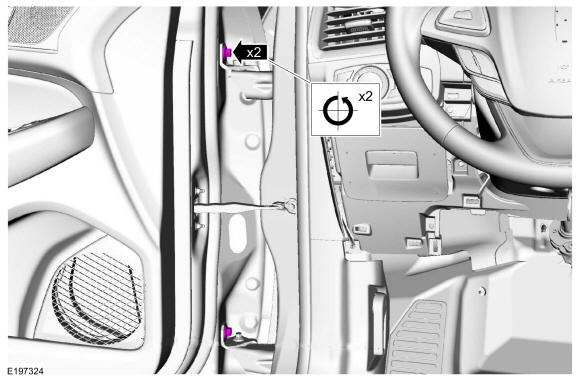

6. Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

7. Carefully close the door.

   Courtesy of FORD MOTOR COMPANY

8. Adjust the door to specification. Refer to: BODY AND FRAME

   Courtesy of FORD MOTOR COMPANY

9. Carefully open the door.

   Courtesy of FORD MOTOR COMPANY

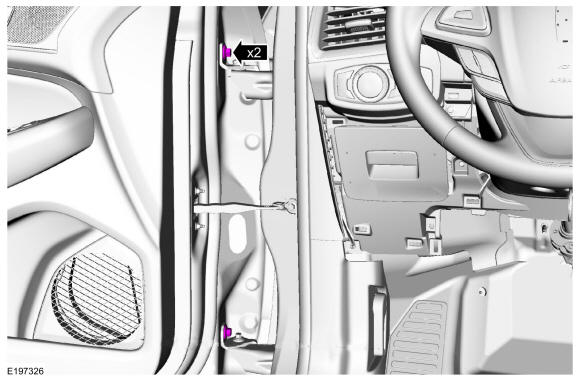

10. Tighten the bolts.

    Torque

    : 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

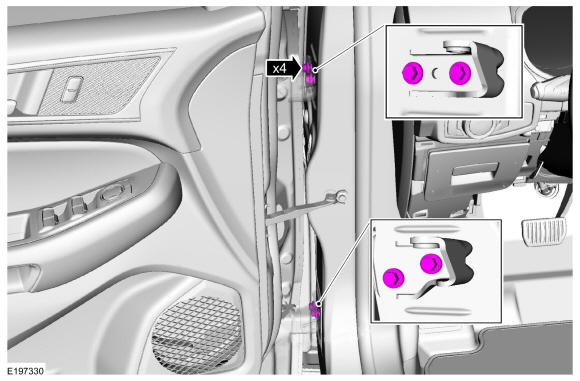

    All alignments

11. Install the striker assembly.

    Torque

    : 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Inspect the body-to-front door dimensions. Refer to: BODY AND FRAME

Courtesy of FORD MOTOR COMPANY
