Image Processing Module A (IPMA): Removal

1. If a new IPMA is being installed, using a diagnostic scan tool, begin the PMI process for the IPMA following the on-screen instructions.

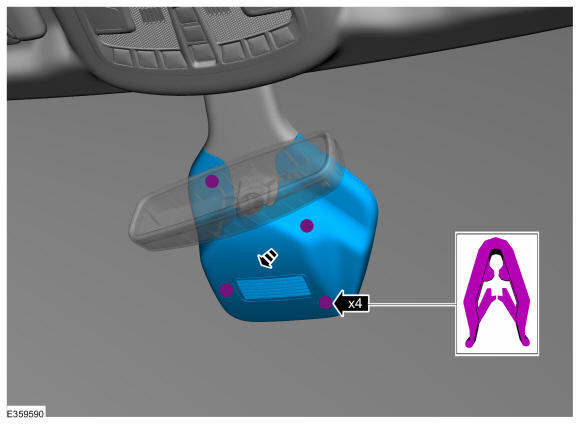

2. Release the clips and remove the lower rain sensor cover.

   Courtesy of FORD MOTOR COMPANY

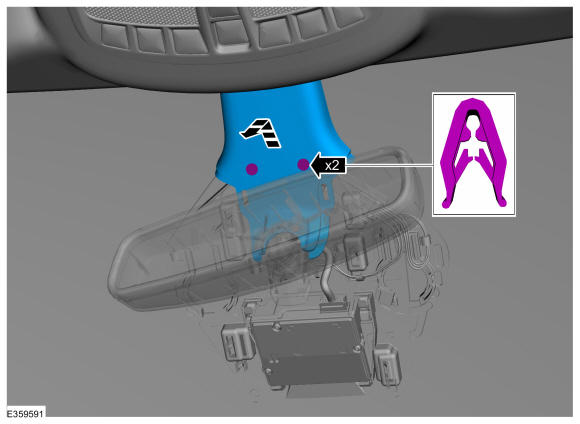

3. Release the clips and remove the upper rain sensor cover.

   Courtesy of FORD MOTOR COMPANY

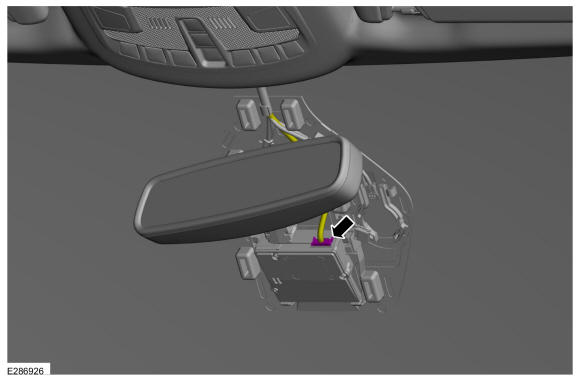

4. Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

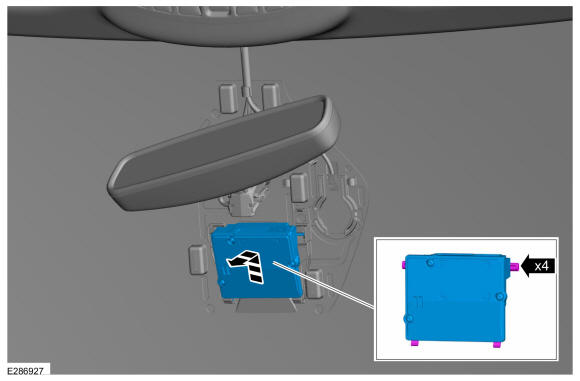

5. Release the tabs and remove the IPMA.

Courtesy of FORD MOTOR COMPANY
