Front Strut and Spring Assembly: Assembly

To assemble, reverse the disassembly procedure.

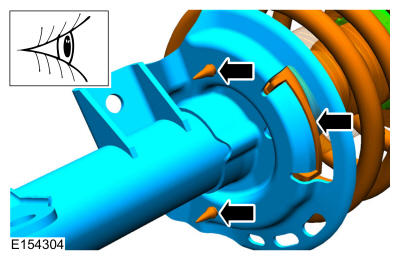

Make sure that the lower spring seat is properly installed.

Courtesy of FORD MOTOR COMPANY

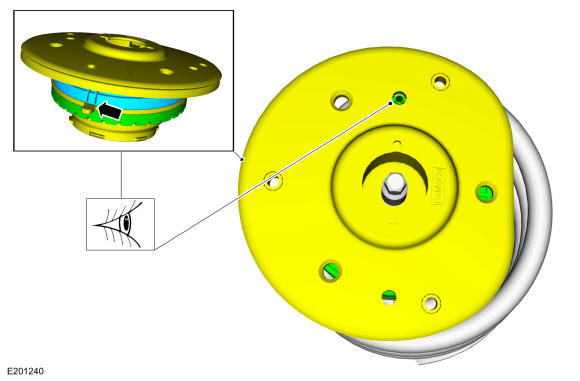

NOTE: Make sure the strut bearing tabs are aligned before compressing the spring.

Align the strut bearing tabs.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care not to damage the spring coating.

NOTE: Typical strut and spring assembly shown.

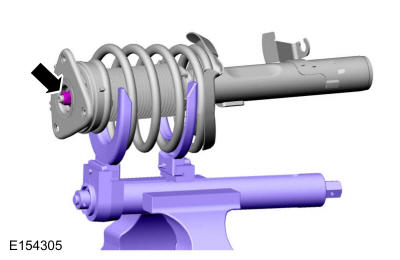

Install the new strut rod nut. Use the General Equipment: Spring CompressorUse the General Equipment: Vise

Torque: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY
