Downshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the RH steering wheel multifunction switch. Refer to: Steering Wheel Multifunction Switch .

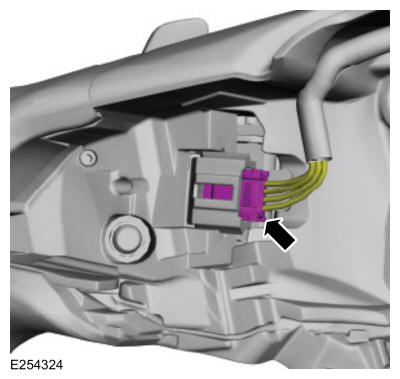

  2. Disconnect the downshift paddle switch electrical connector.
    GFD327475Courtesy of FORD MOTOR COMPANY

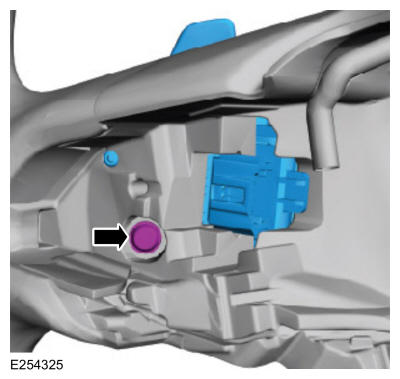

  3. Remove the bolt and the downshift paddle switch.
GFD327476Courtesy of FORD MOTOR COMPANY
