Brake Shift Interlock Actuator Manual Override

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Interior Trim Remover

Activation

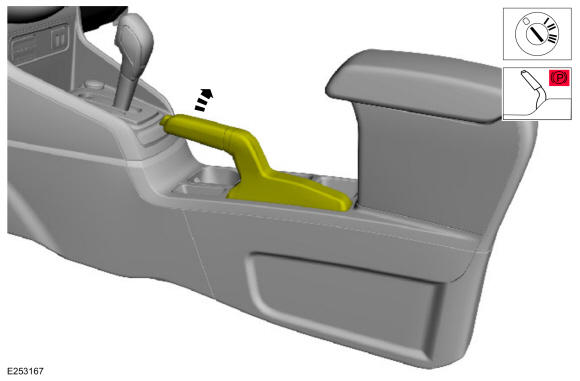

Set the ignition switch to the OFF position and apply the parking brake.

Courtesy of FORD MOTOR COMPANY

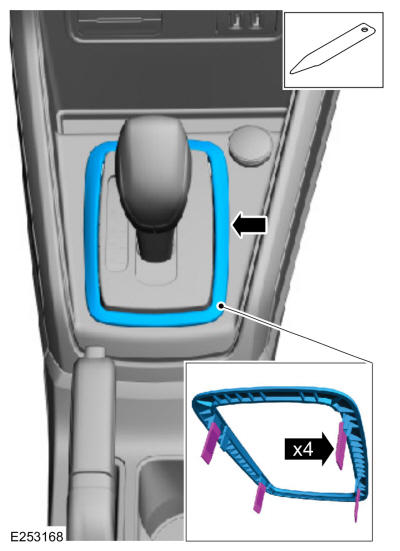

Remove the selector lever bezel trim ring. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

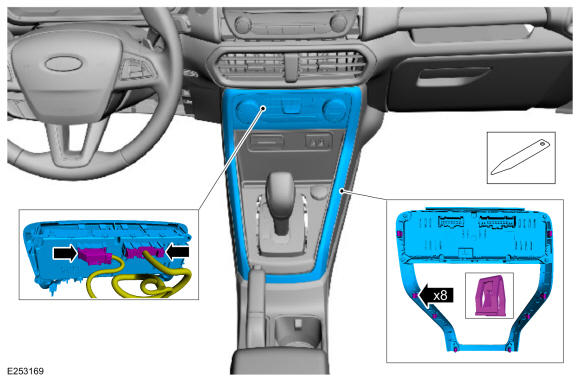

Detach the trim ring and the HVAC control module, disconnect the HVAC control module electrical connectors and remove the trim ring and the HVAC control module as an assembly. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

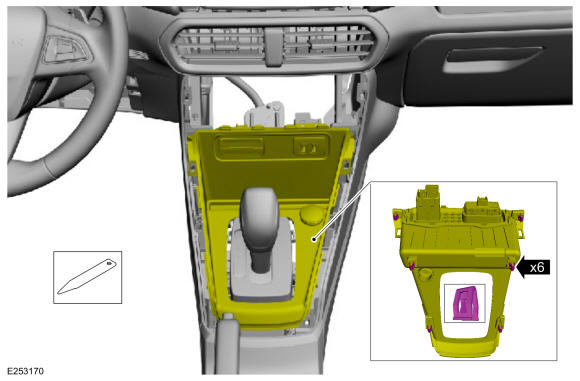

Position the selector lever trim panel aside. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

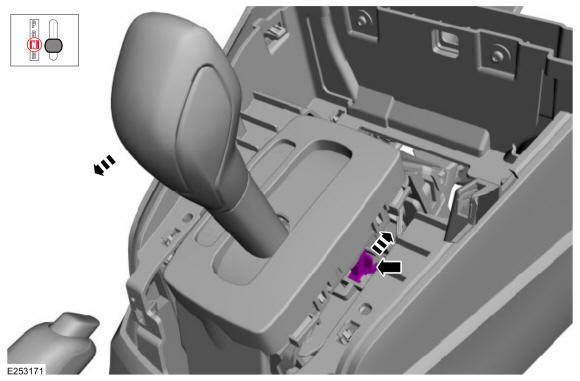

Move the brake shift interlock actuator forward, apply the brake pedal and position the selector lever into N.

Courtesy of FORD MOTOR COMPANY
