OEM Ground Distribution: Grounds

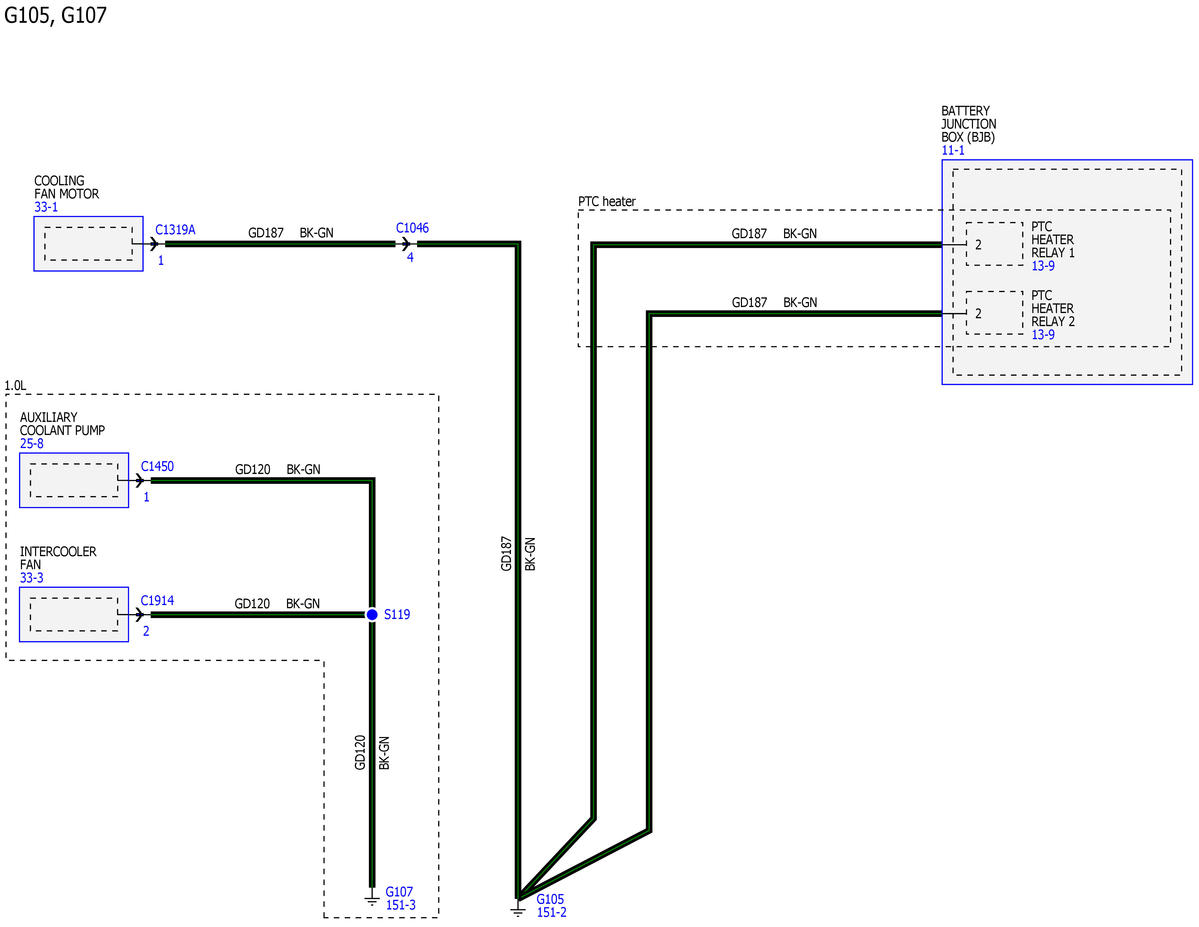

Fig 1: Ground Distribution (1 Of 15)

GFDWR26924

Courtesy of FORD MOTOR COMPANY

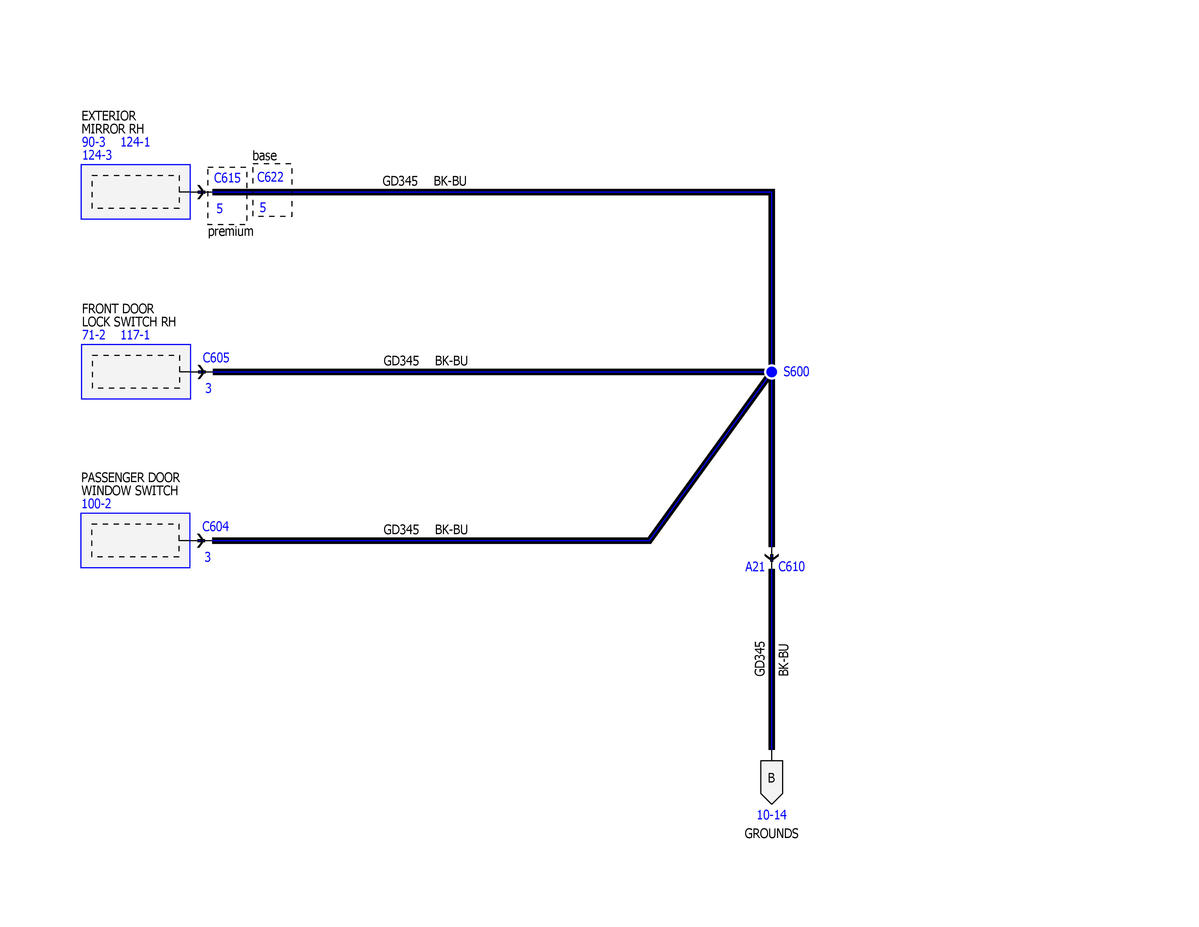

Fig 2: Ground Distribution (2 Of 15)

GFDWR26925

Courtesy of FORD MOTOR COMPANY

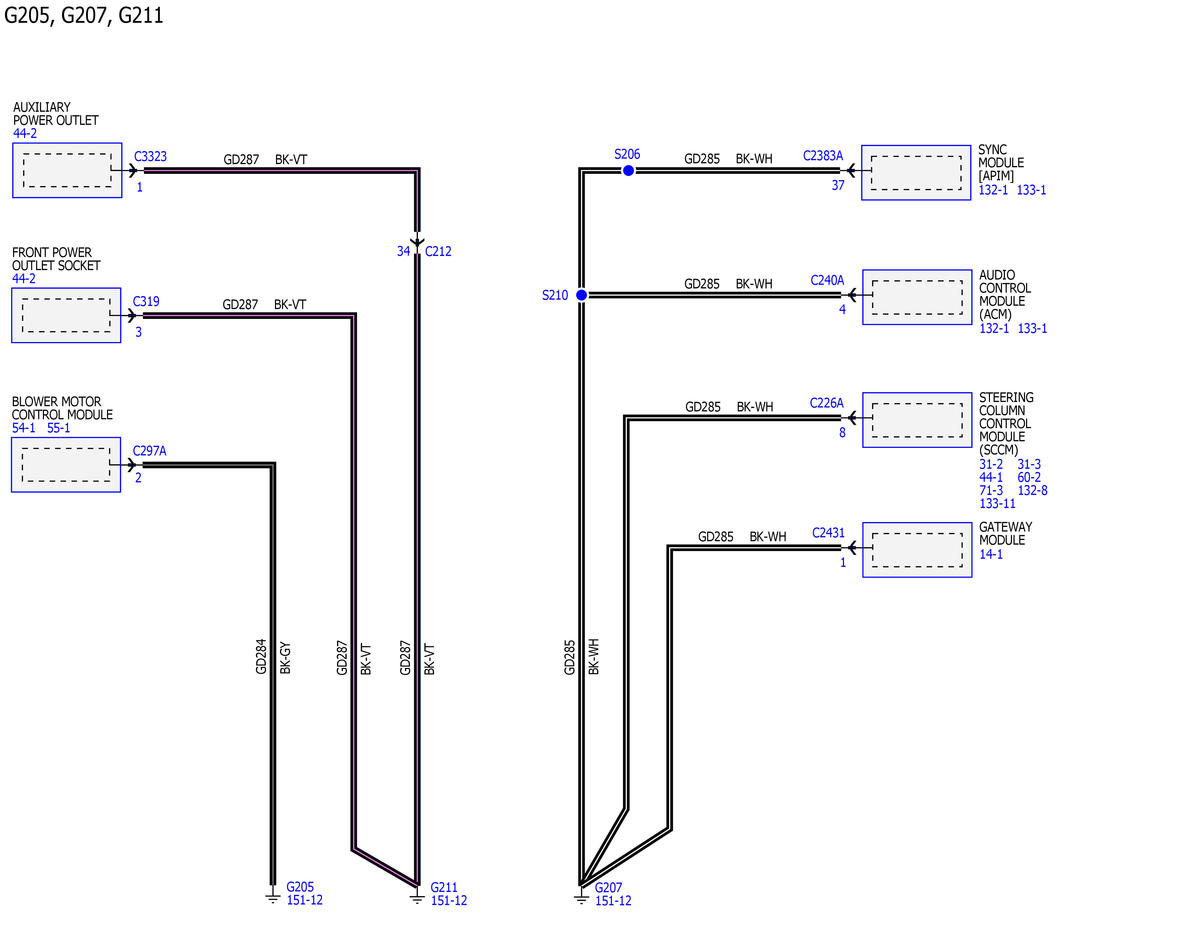

Fig 3: Ground Distribution (3 Of 15)

GFDWR26926

Courtesy of FORD MOTOR COMPANY

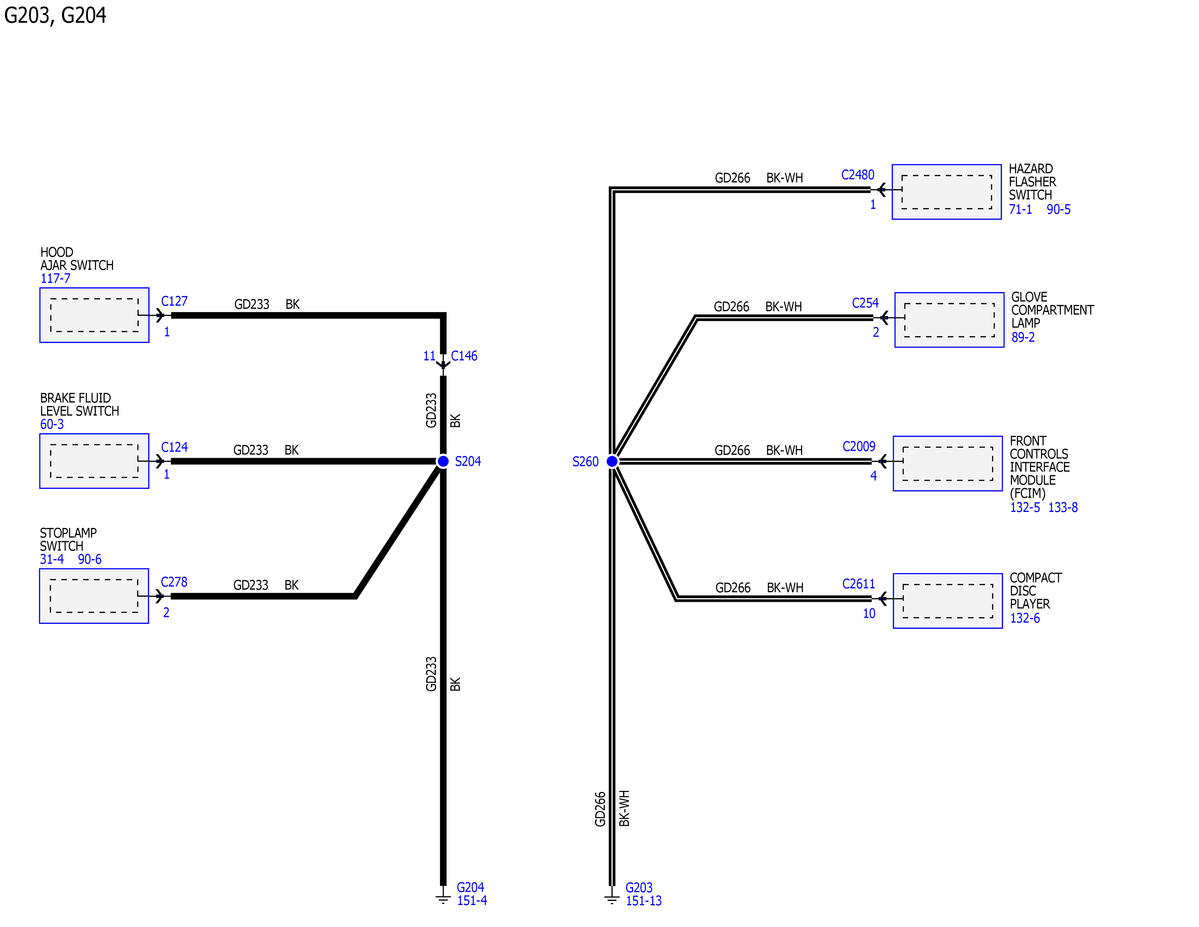

Fig 4: Ground Distribution (4 Of 15)

GFDWR26927

Courtesy of FORD MOTOR COMPANY

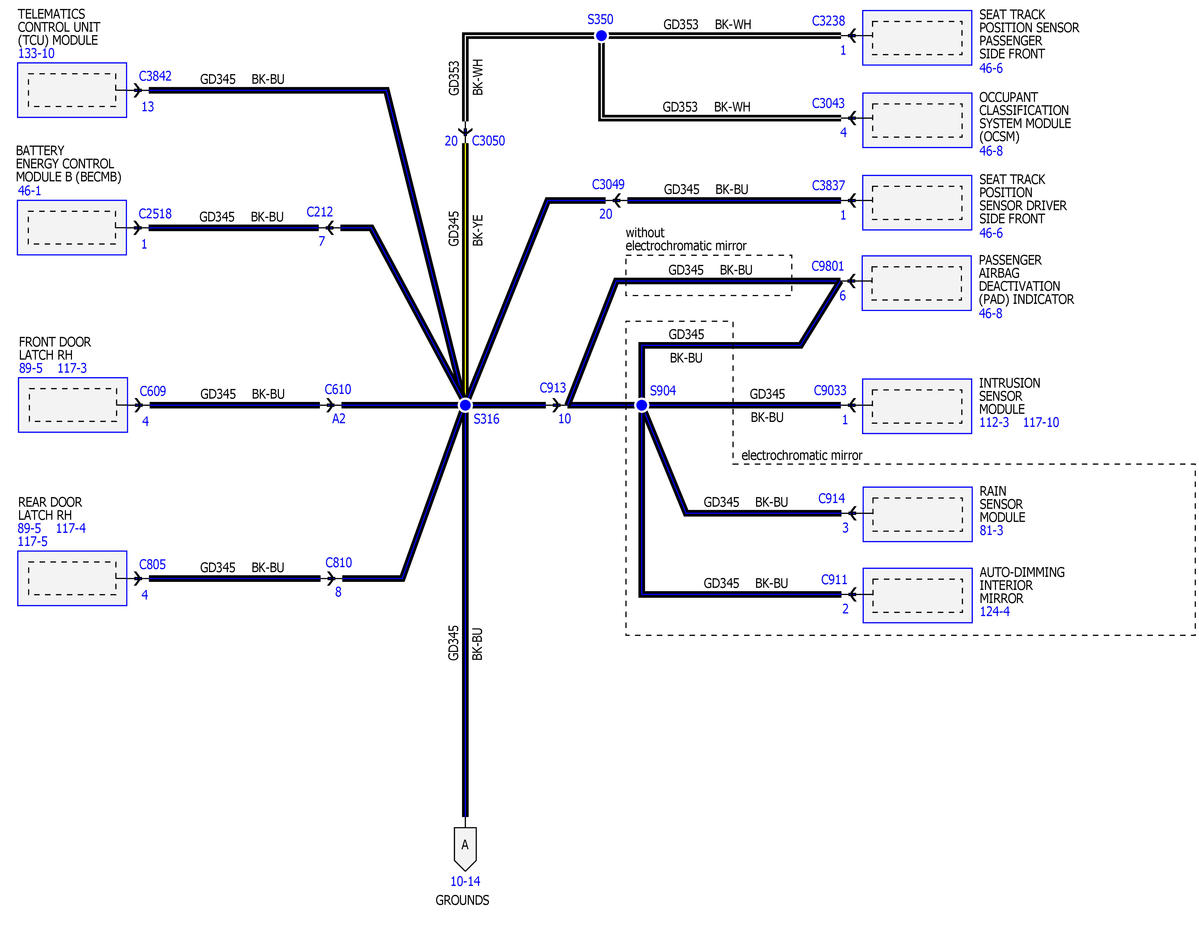

Fig 5: Ground Distribution (5 Of 15)

GFDWR26928

Courtesy of FORD MOTOR COMPANY

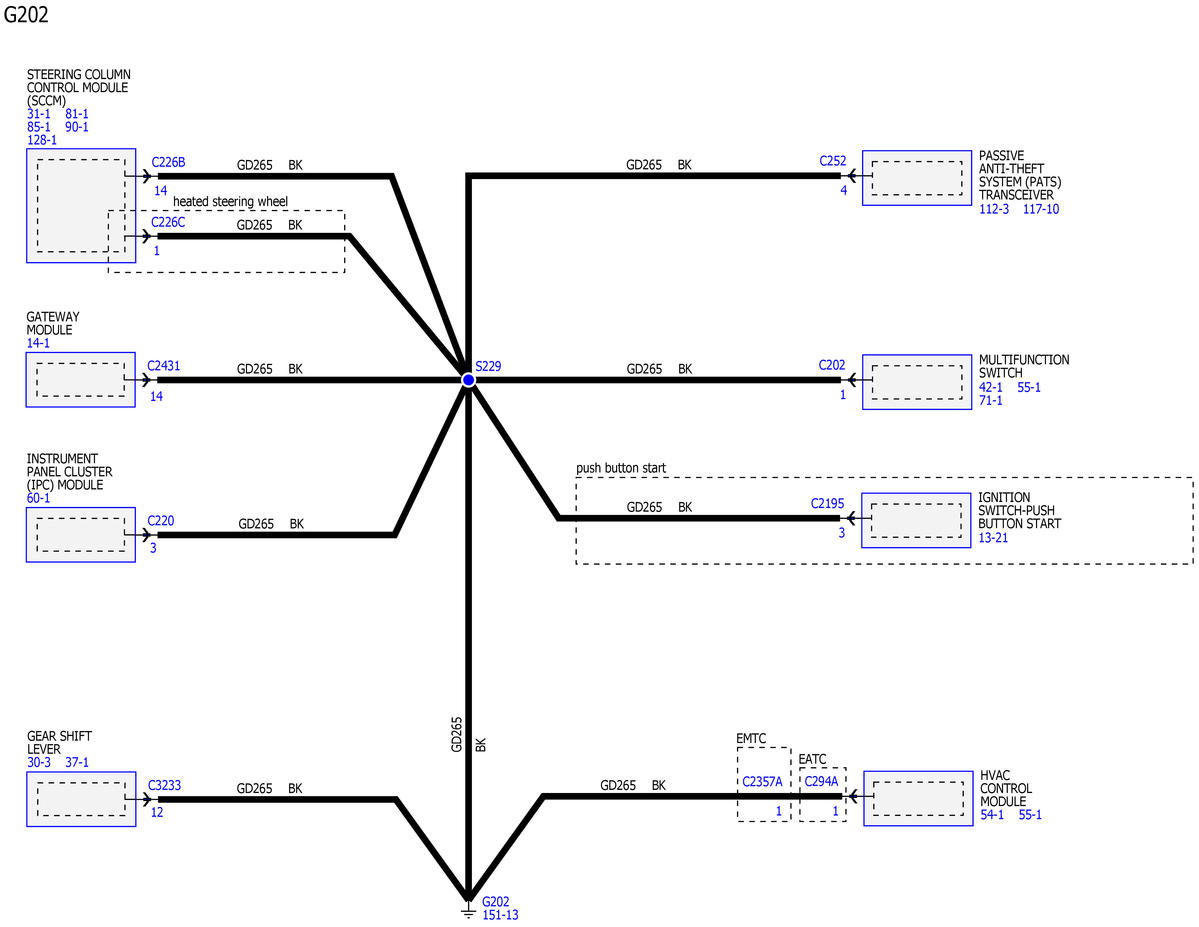

Fig 6: Ground Distribution (6 Of 15)

GFDWR26929

Courtesy of FORD MOTOR COMPANY

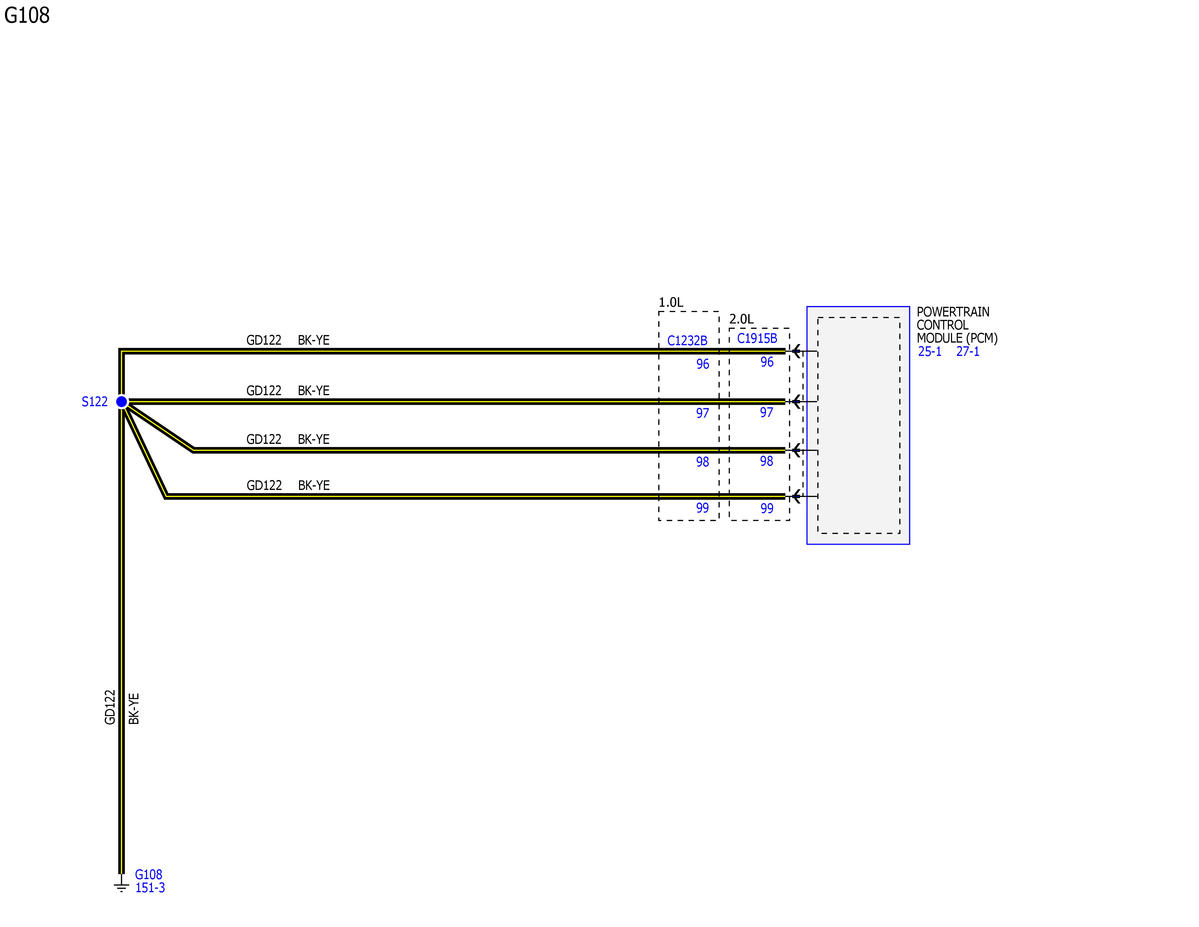

Fig 7: Ground Distribution (7 Of 15)

GFDWR26930

Courtesy of FORD MOTOR COMPANY

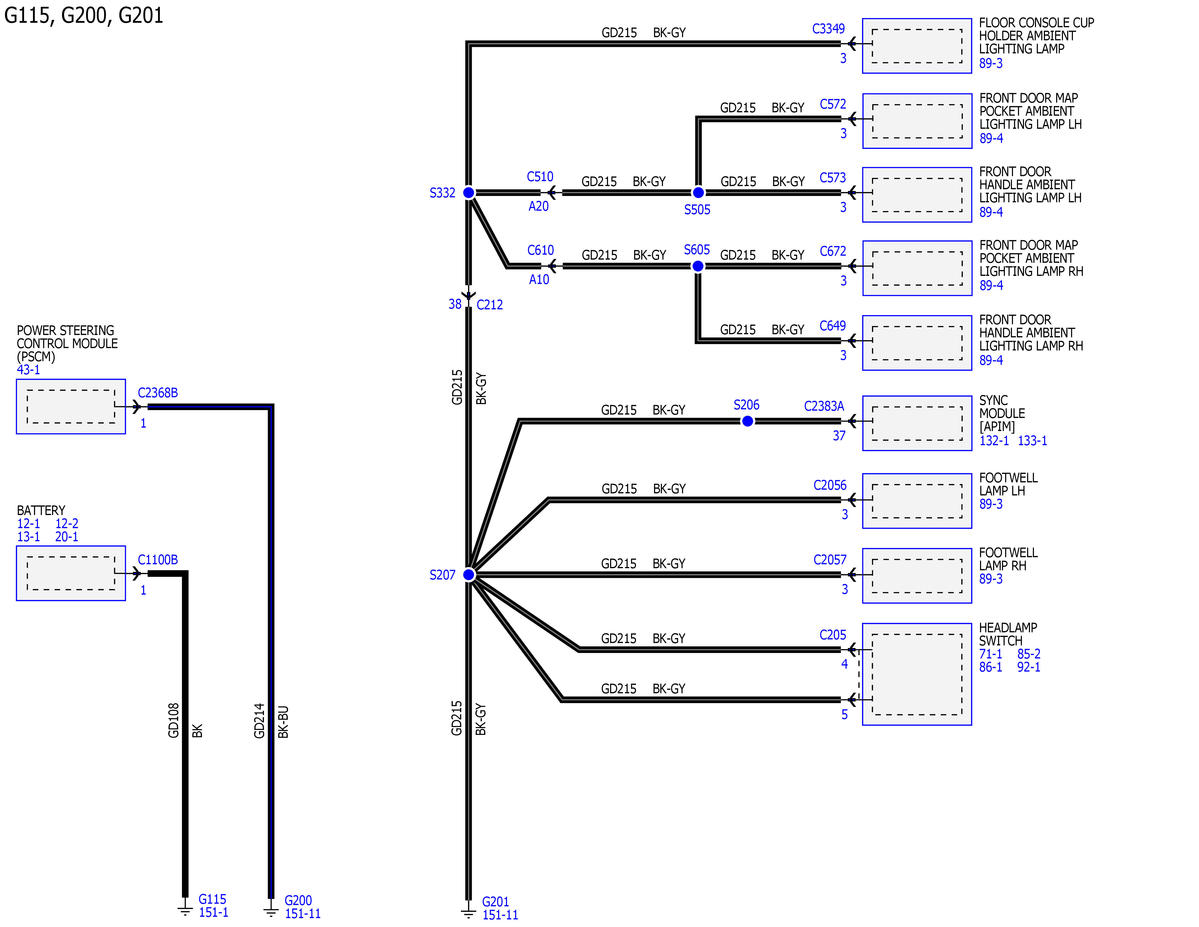

Fig 8: Ground Distribution (8 Of 15)

GFDWR26931

Courtesy of FORD MOTOR COMPANY

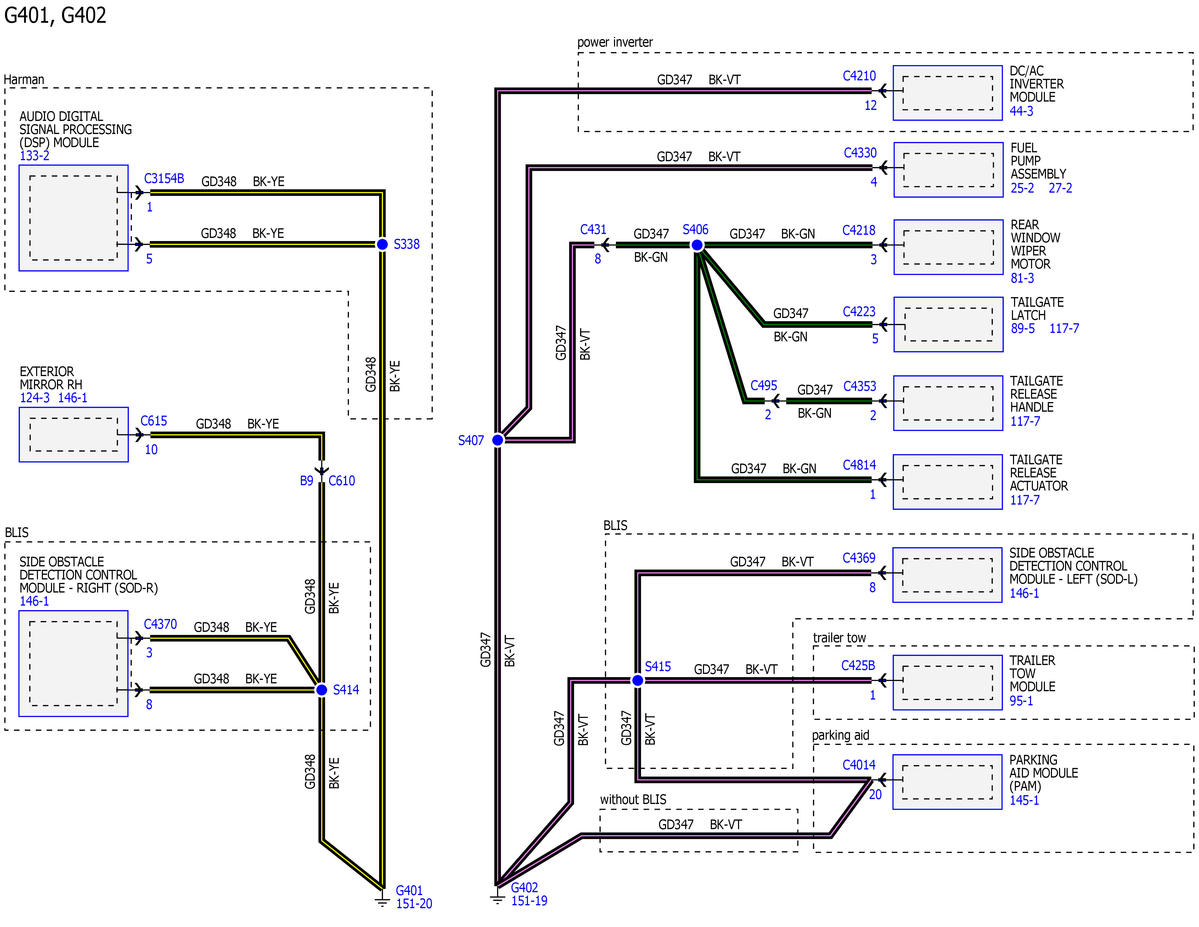

Fig 9: Ground Distribution (9 Of 15)

GFDWR26932

Courtesy of FORD MOTOR COMPANY

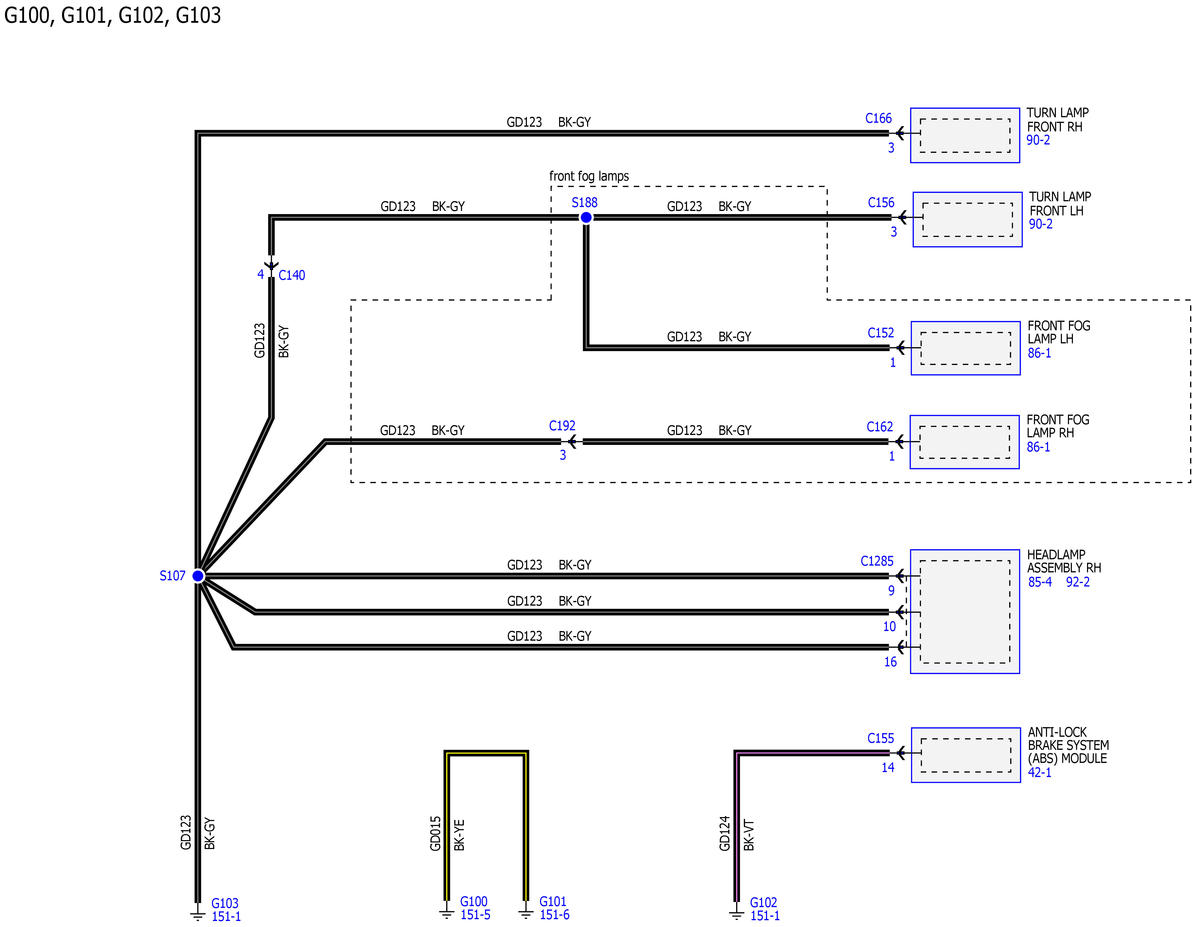

Fig 10: Ground Distribution (10 Of 15)

GFDWR26933

Courtesy of FORD MOTOR COMPANY

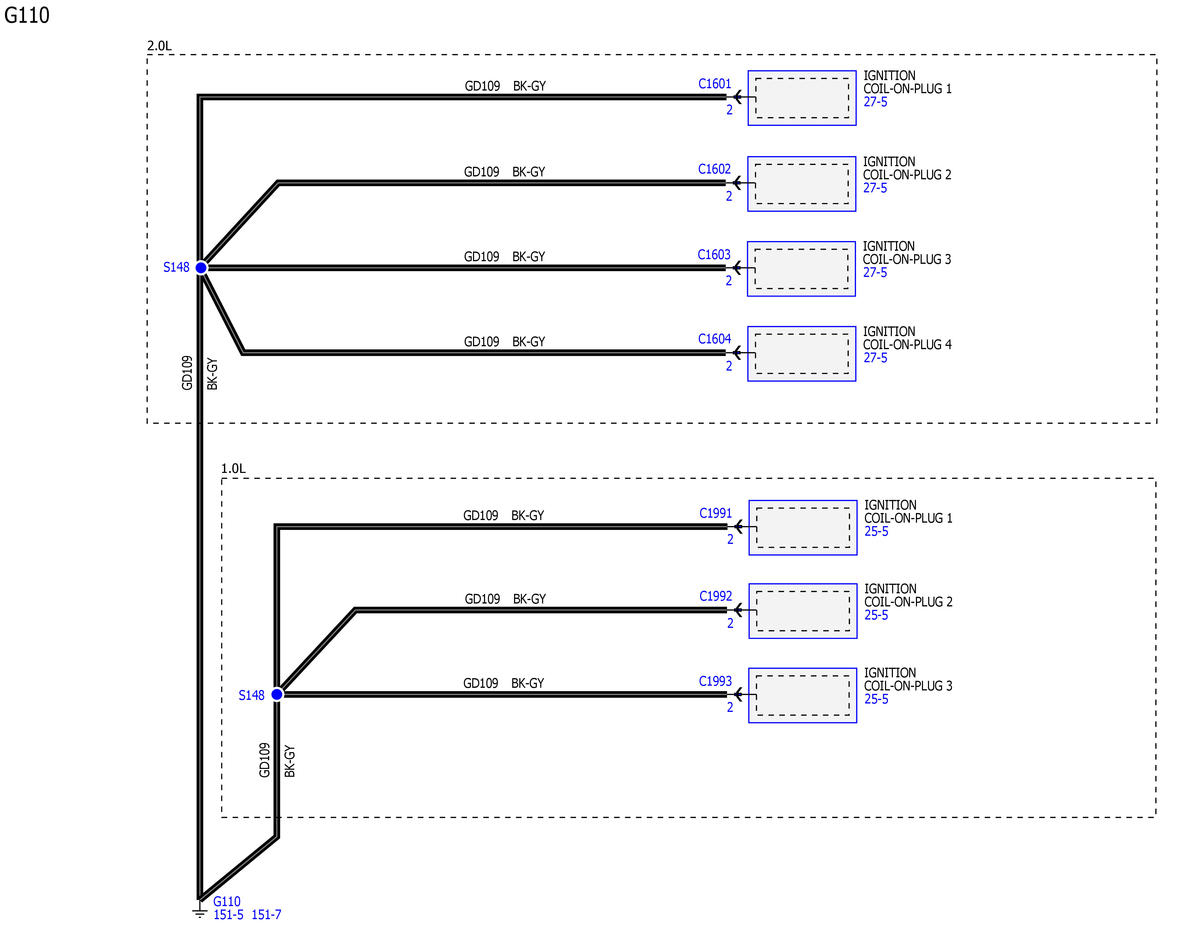

Fig 11: Ground Distribution (11 Of 15)

GFDWR26934

Courtesy of FORD MOTOR COMPANY

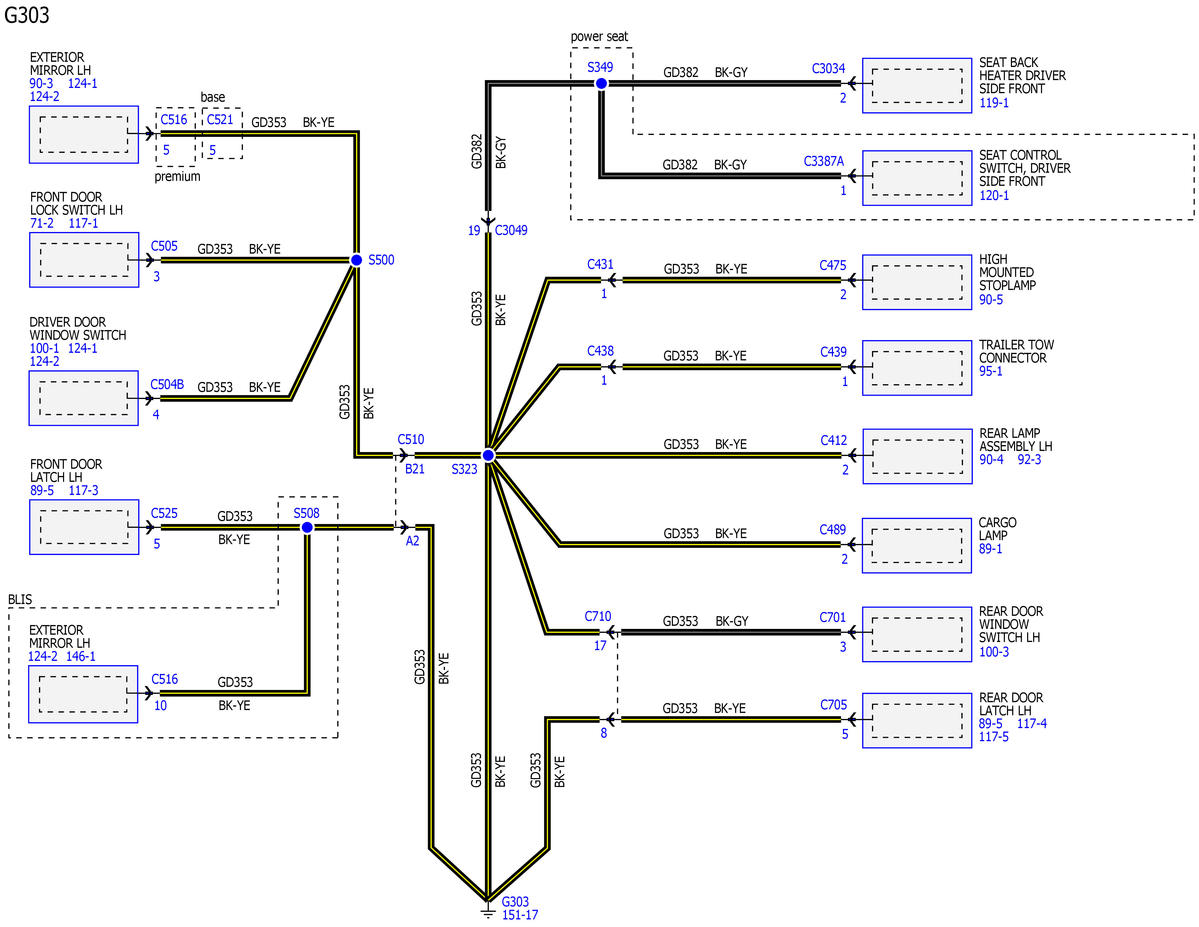

Fig 12: Ground Distribution (12 Of 15)

GFDWR26935

Courtesy of FORD MOTOR COMPANY

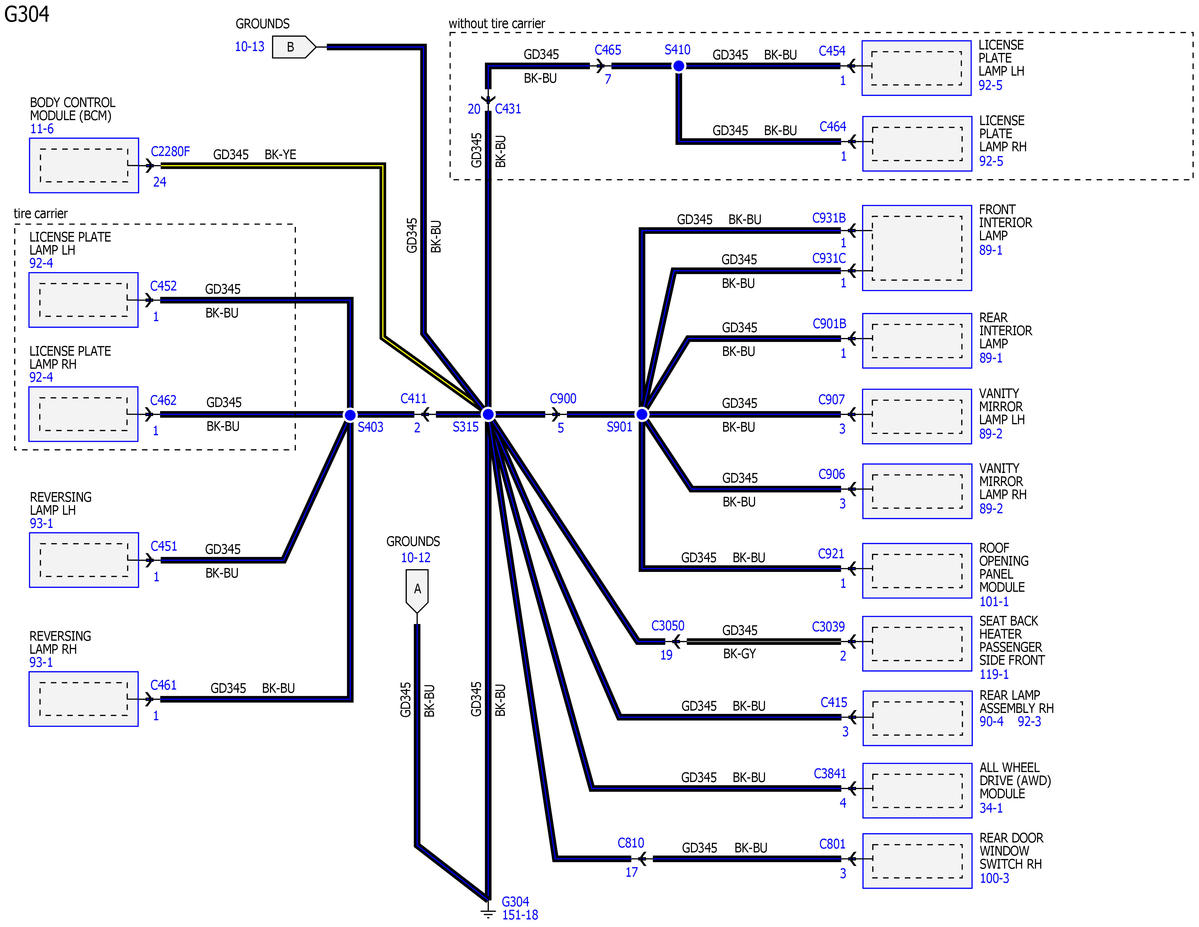

Fig 13: Ground Distribution (13 Of 15)

GFDWR26936

Courtesy of FORD MOTOR COMPANY

Fig 14: Ground Distribution (14 Of 15)

GFDWR26937

Courtesy of FORD MOTOR COMPANY

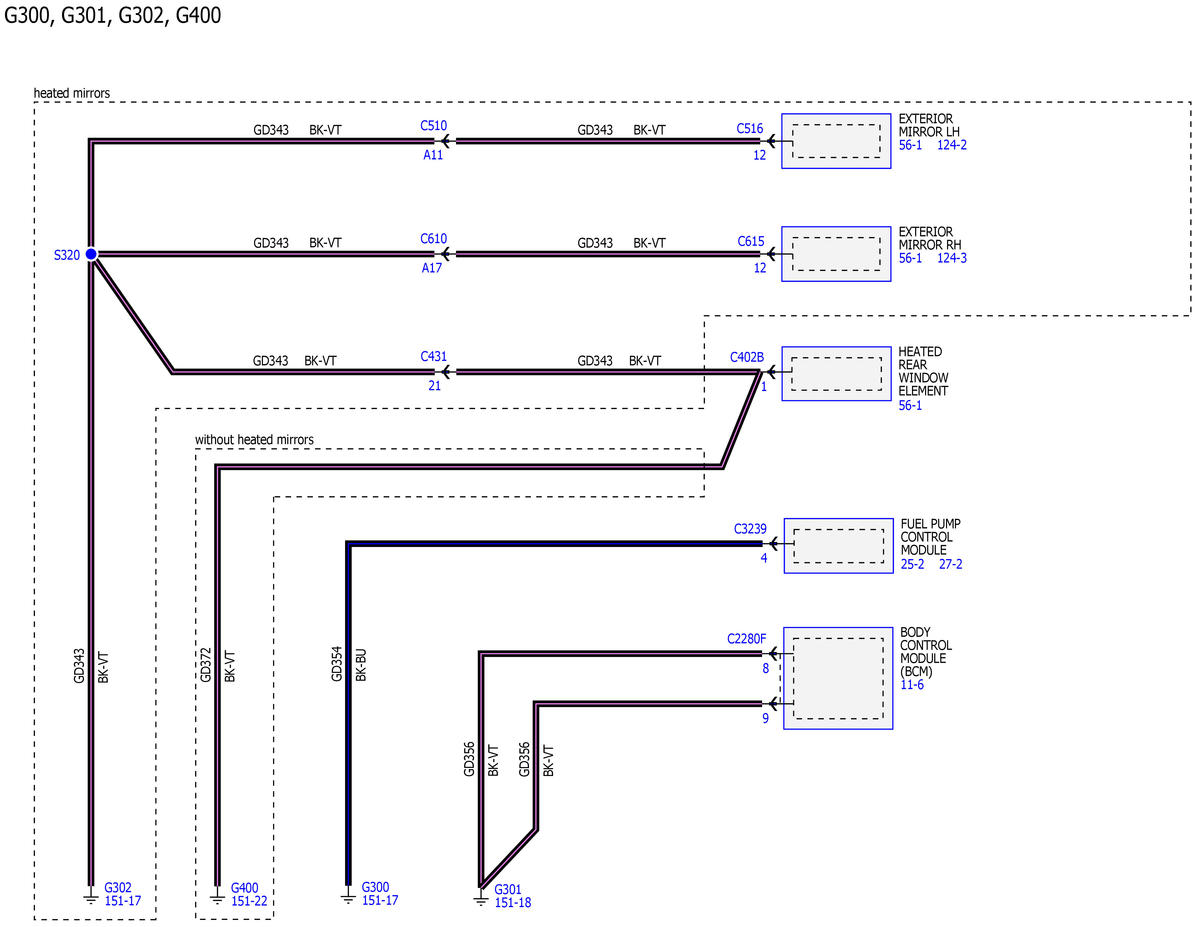

Fig 15: Ground Distribution (15 Of 15)

GFDWR26938

Courtesy of FORD MOTOR COMPANY
