Steering Column Control Module (SCCM): Removal

WARNING: This page is about a different car, the 2021 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LHD shown in illustration, RHD similar.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
Remove the steering wheel. Refer to: Steering Wheel
Remove the steering column shrouds. Refer to: Steering Column Shrouds

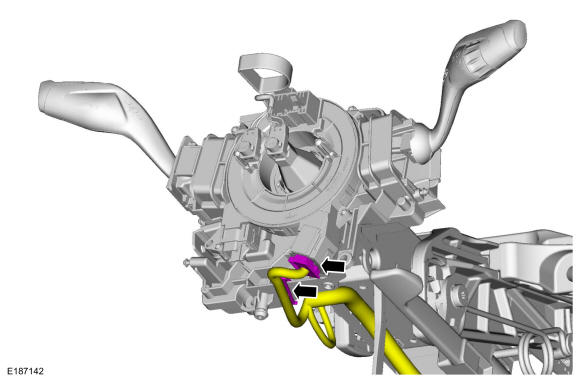

Detach the retainer and disconnect the clockspring electrical connector.

Courtesy of FORD MOTOR COMPANY

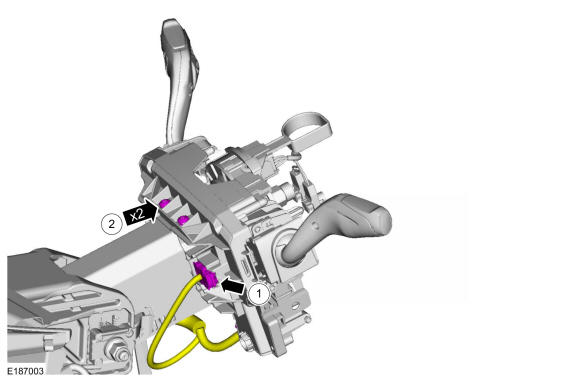

1. Disconnect the SCCM electrical connector.
2. Remove the retainers.
  Torque

  : 27 lb.in (3 Nm)
Courtesy of FORD MOTOR COMPANY

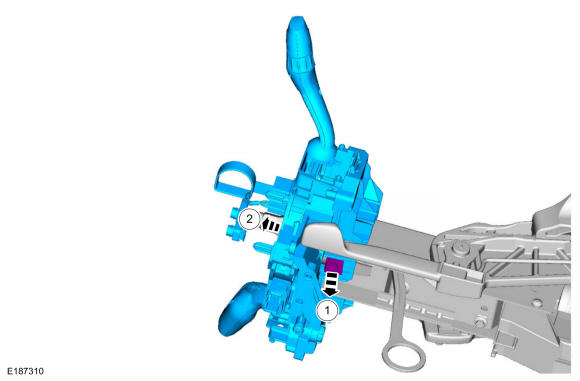

1. Pull the SCCM retaining clip.
2. Remove the SCCM from steering column.

Courtesy of FORD MOTOR COMPANY
