Liftgate Strut: Removal

WARNING: This page is about a different car, the 2021 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

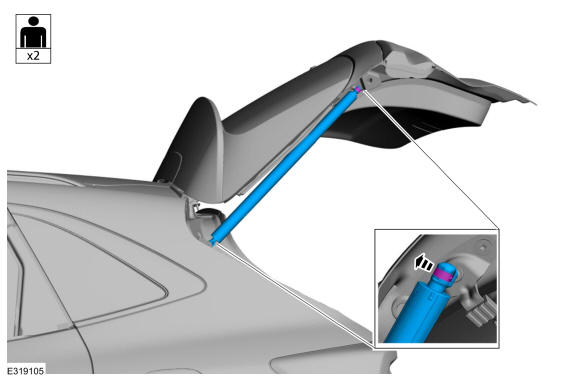

NOTE: LH side shown in illustration, RH side similar.

NOTE: Support the liftgate before removing the power liftgate motor. Failure to follow this direction may result in damage to the components.

Using a pick hook separate the clip and remove the power liftgate motor.

Use the General Equipment: Pick Hook

Courtesy of FORD MOTOR COMPANY
