Component Testing

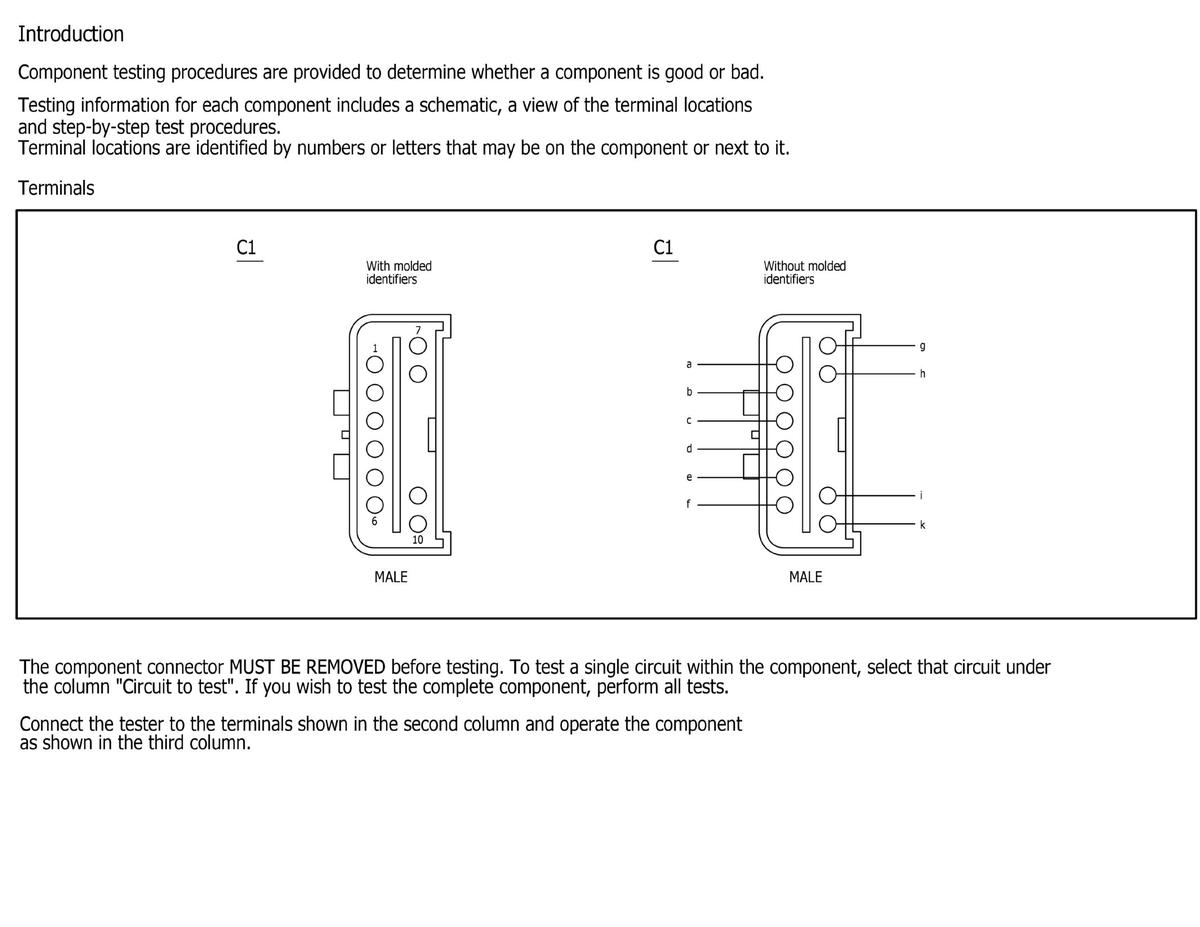

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

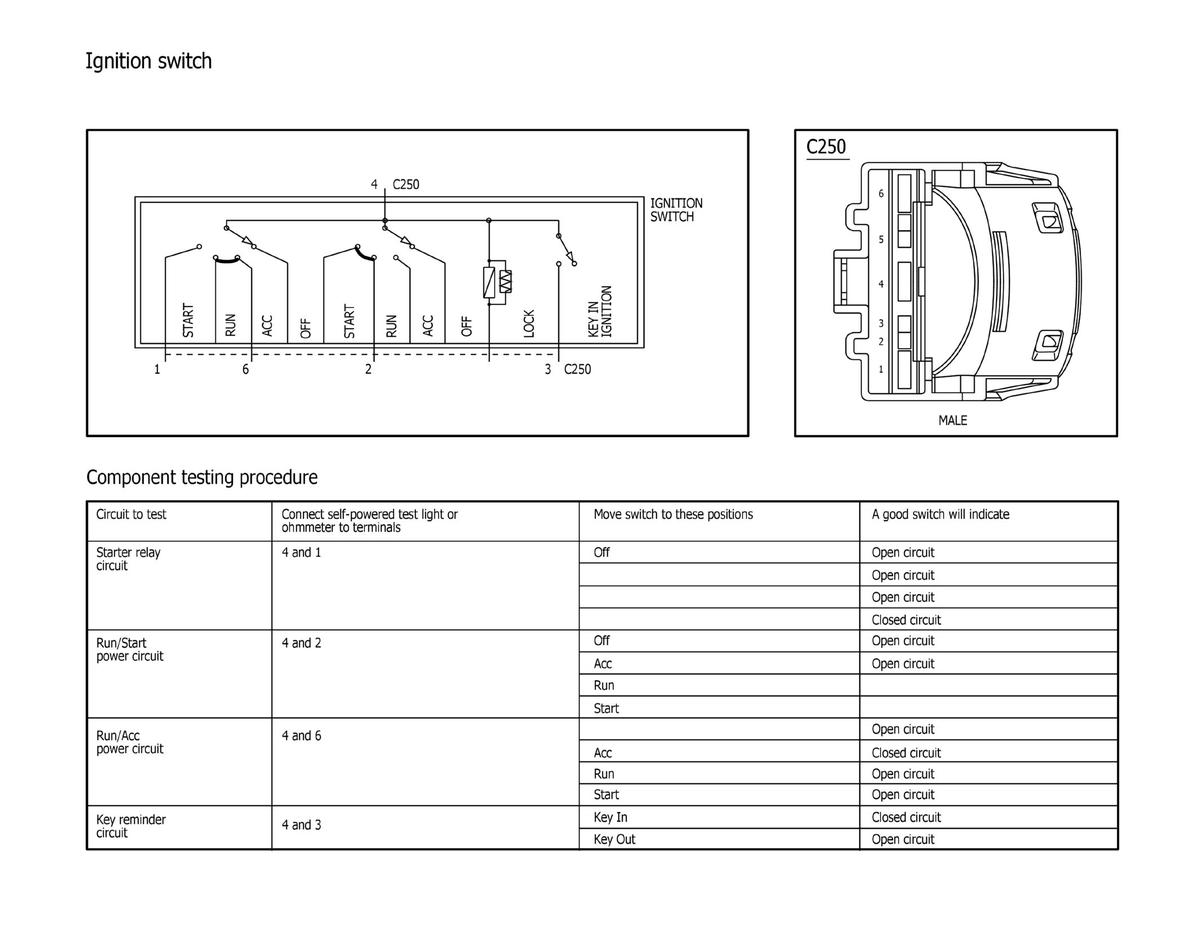

Fig 2: Ignition Switch Component Testing

Courtesy of FORD MOTOR COMPANY

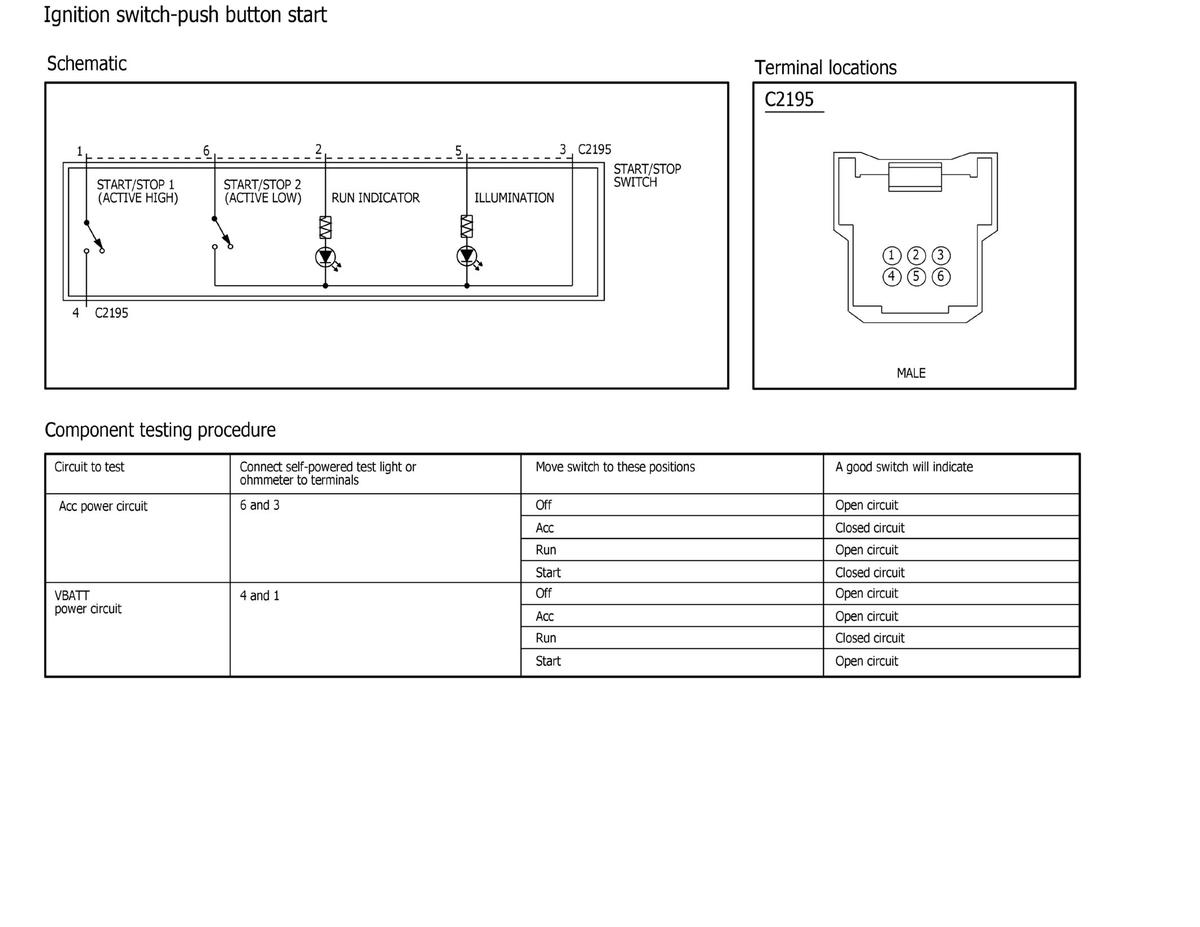

Fig 3: Ignition Switch-Push Button Start Component Testing

Courtesy of FORD MOTOR COMPANY

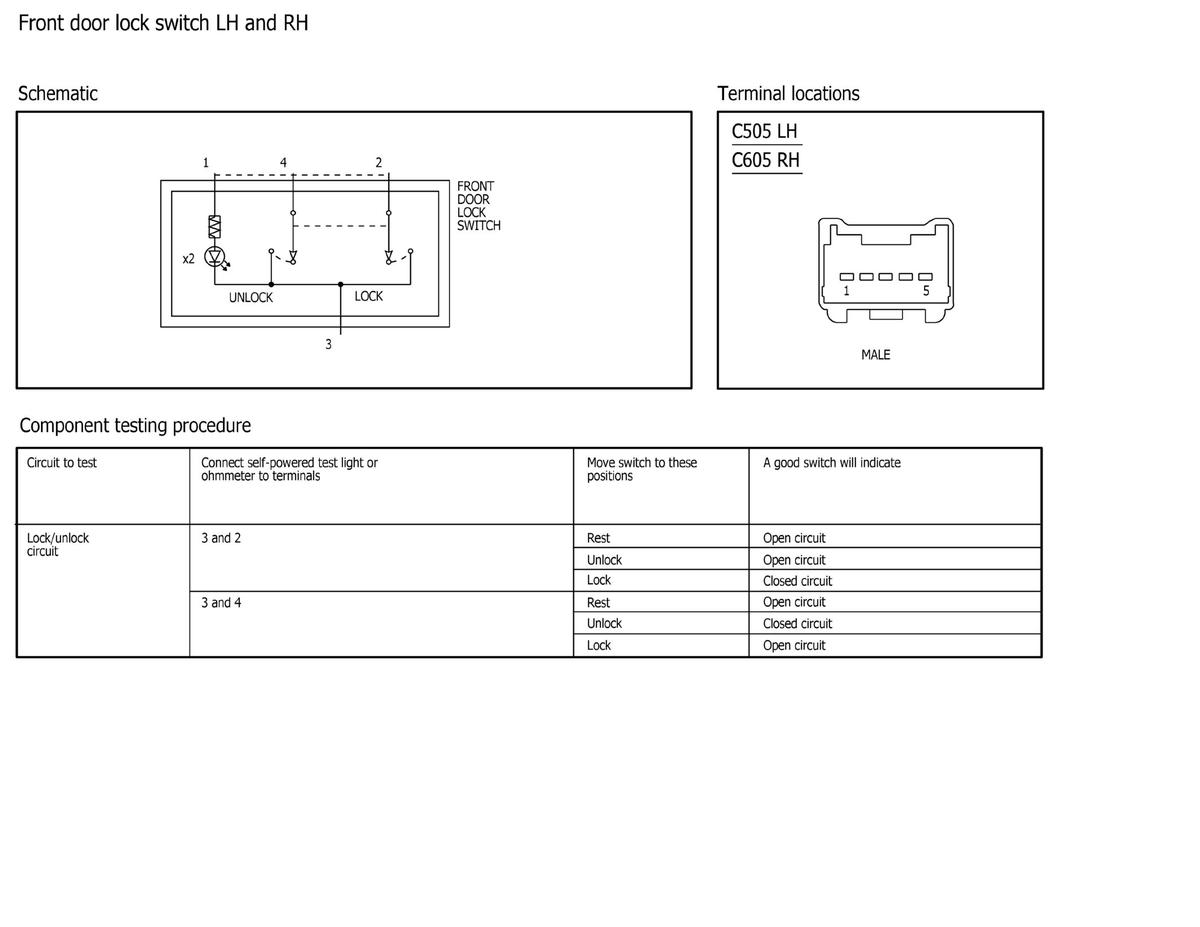

Fig 4: Front Door Lock Switch LH and RH Component Testing

Courtesy of FORD MOTOR COMPANY

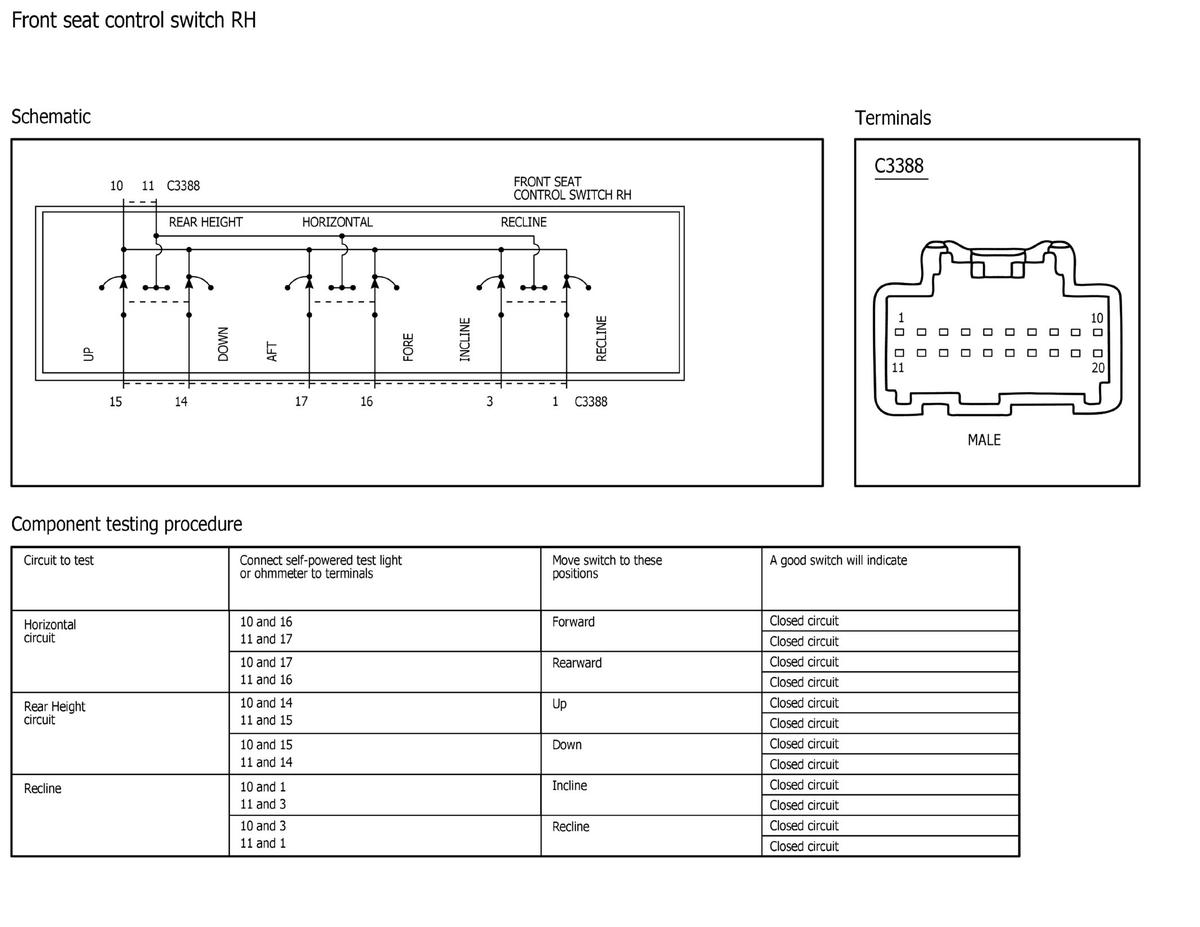

Fig 5: Front Seat Control Switch RH Component Testing

Courtesy of FORD MOTOR COMPANY
