Component Location Views

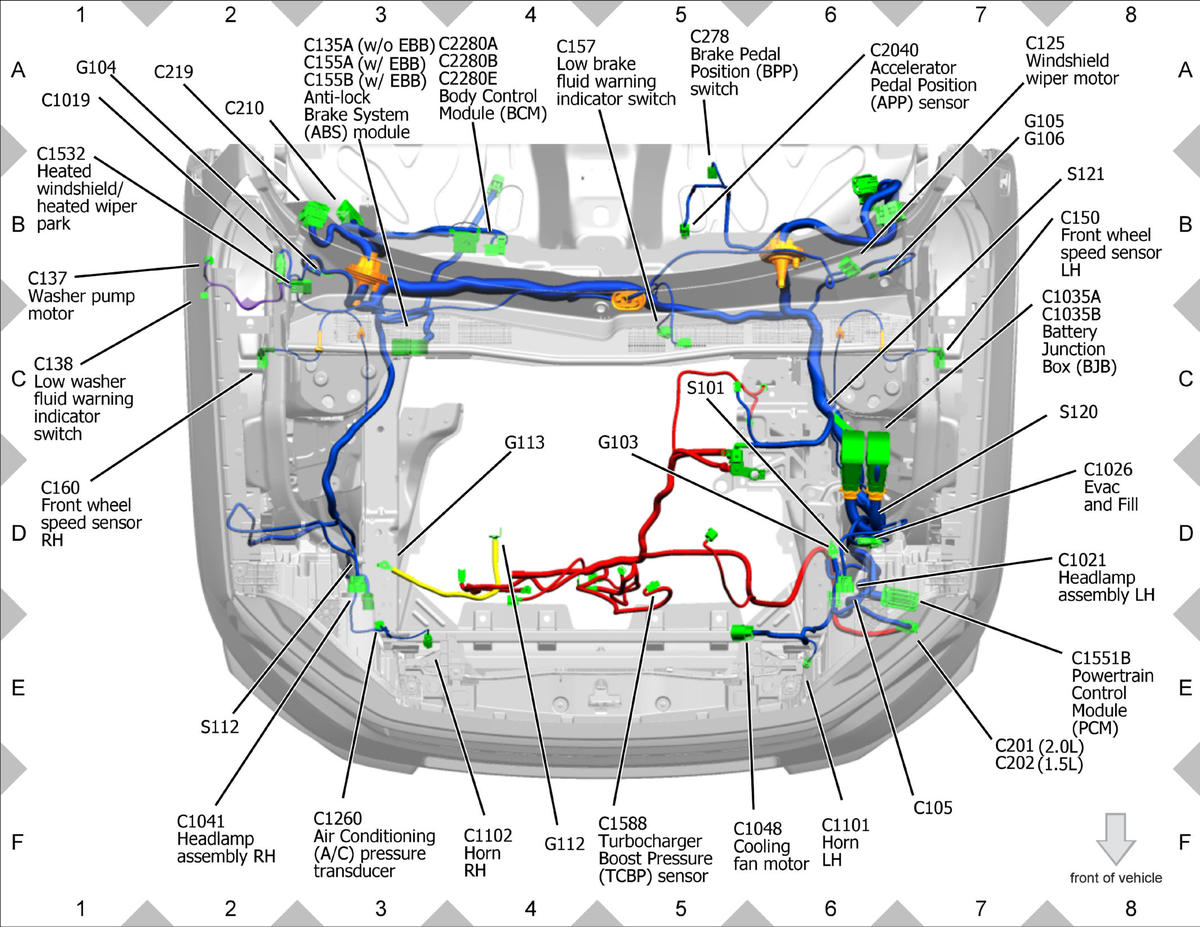

GFDWR131241Courtesy of FORD MOTOR COMPANY

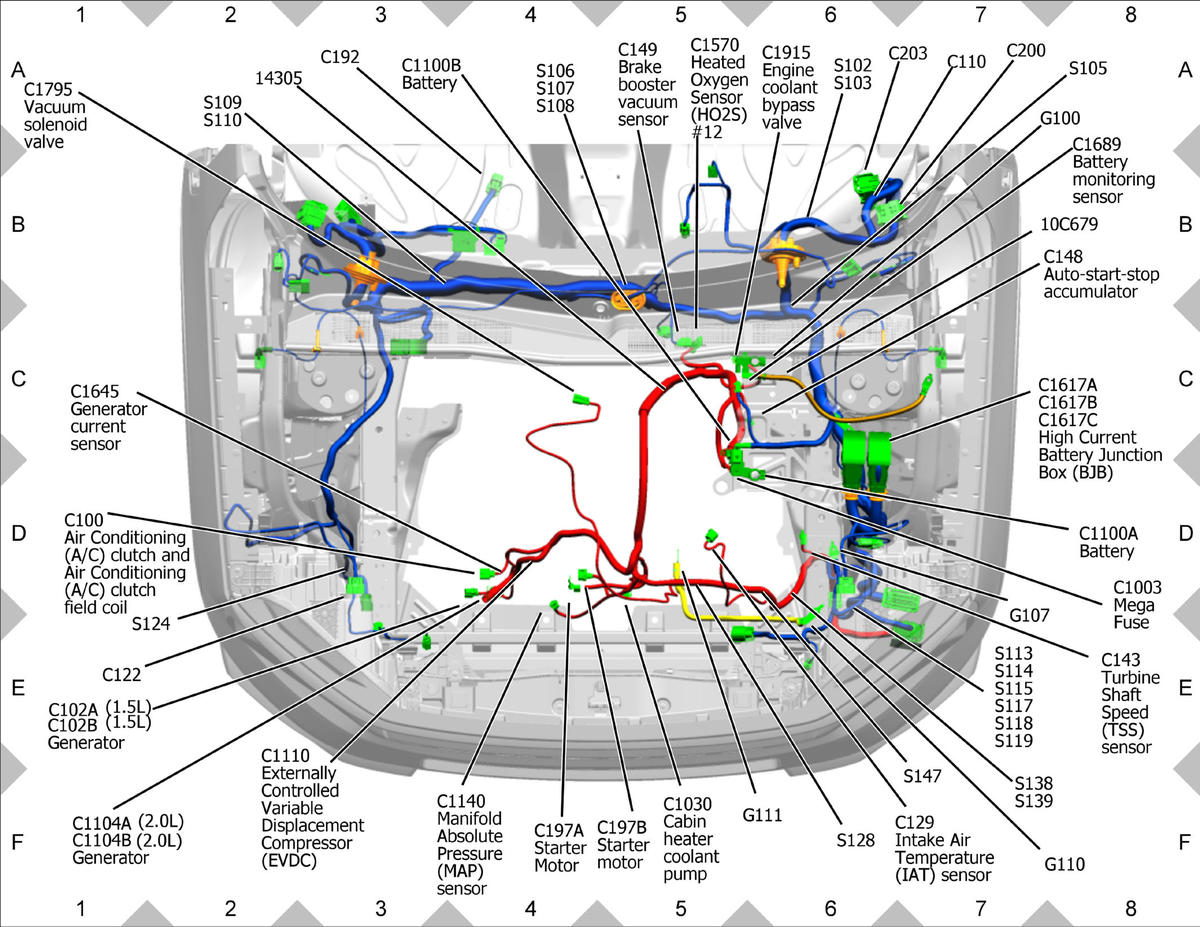

GFDWR131252Courtesy of FORD MOTOR COMPANY
GFDWR131263Courtesy of FORD MOTOR COMPANY

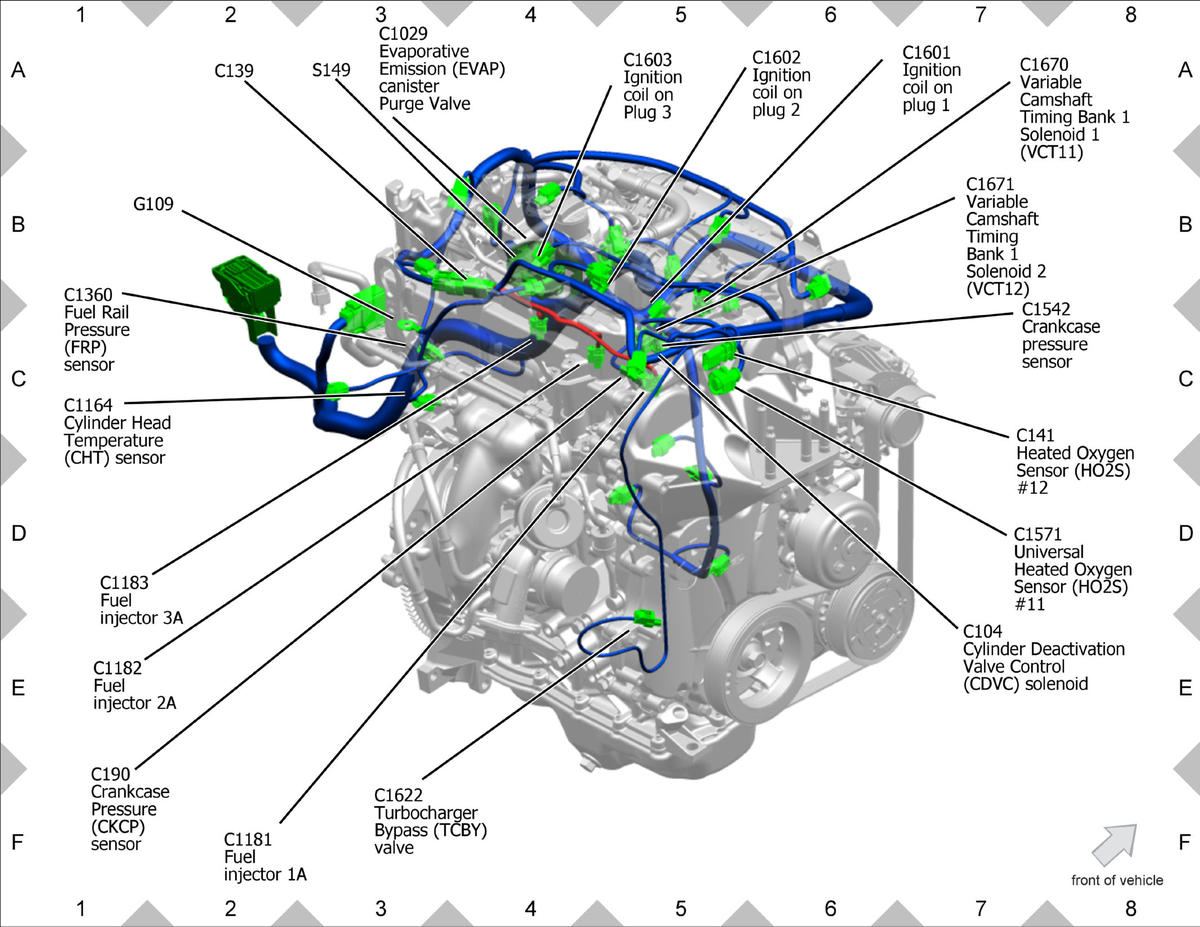

GFDWR131270Courtesy of FORD MOTOR COMPANY

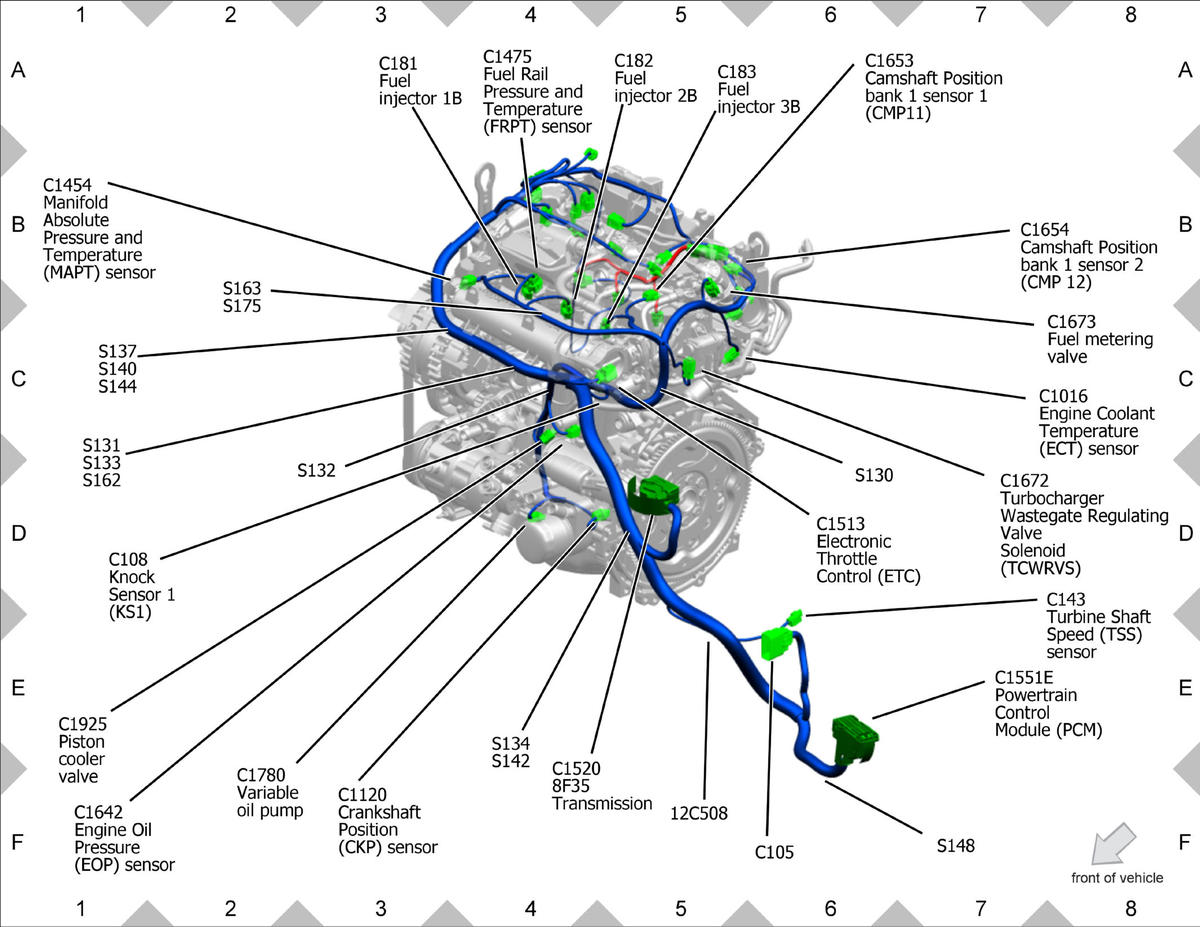

GFDWR131271Courtesy of FORD MOTOR COMPANY

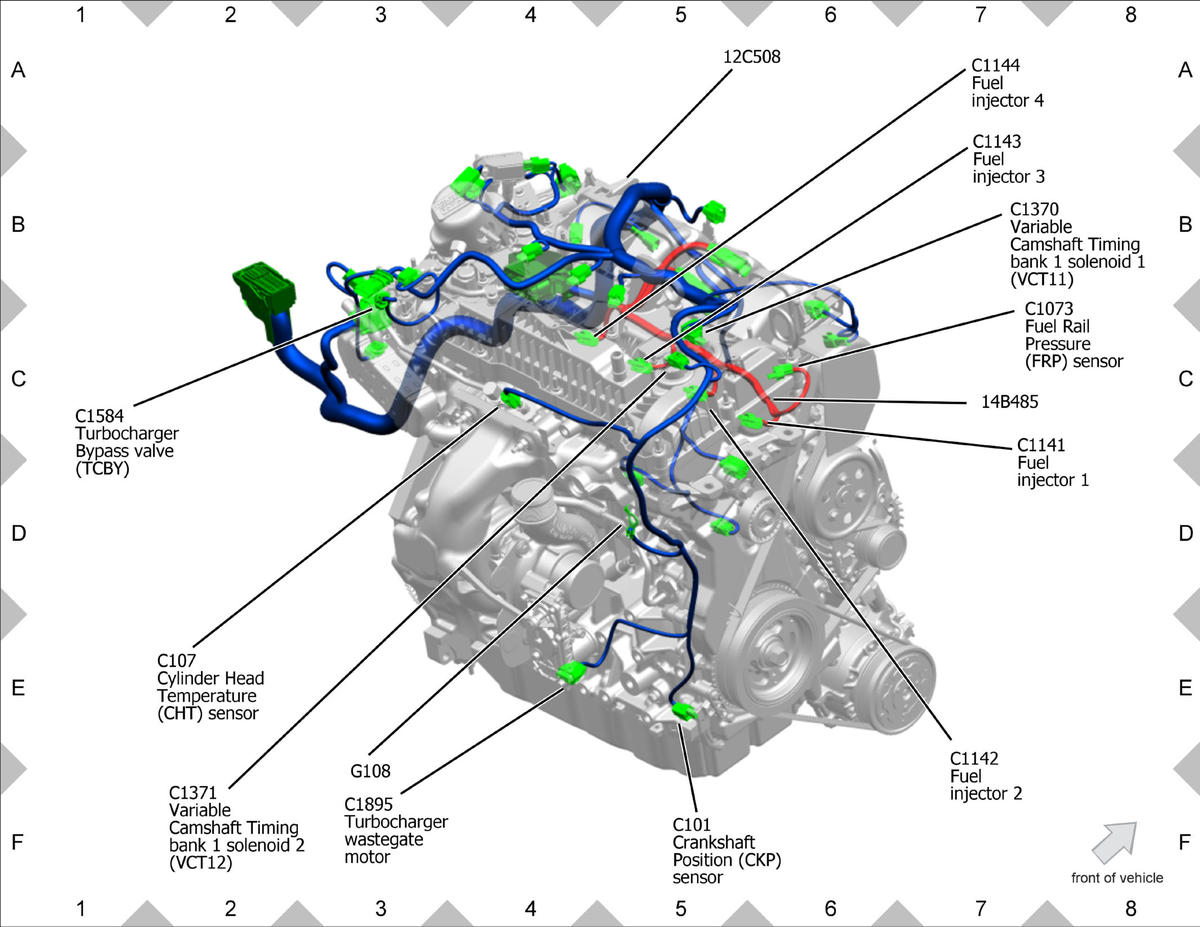

GFDWR131272Courtesy of FORD MOTOR COMPANY

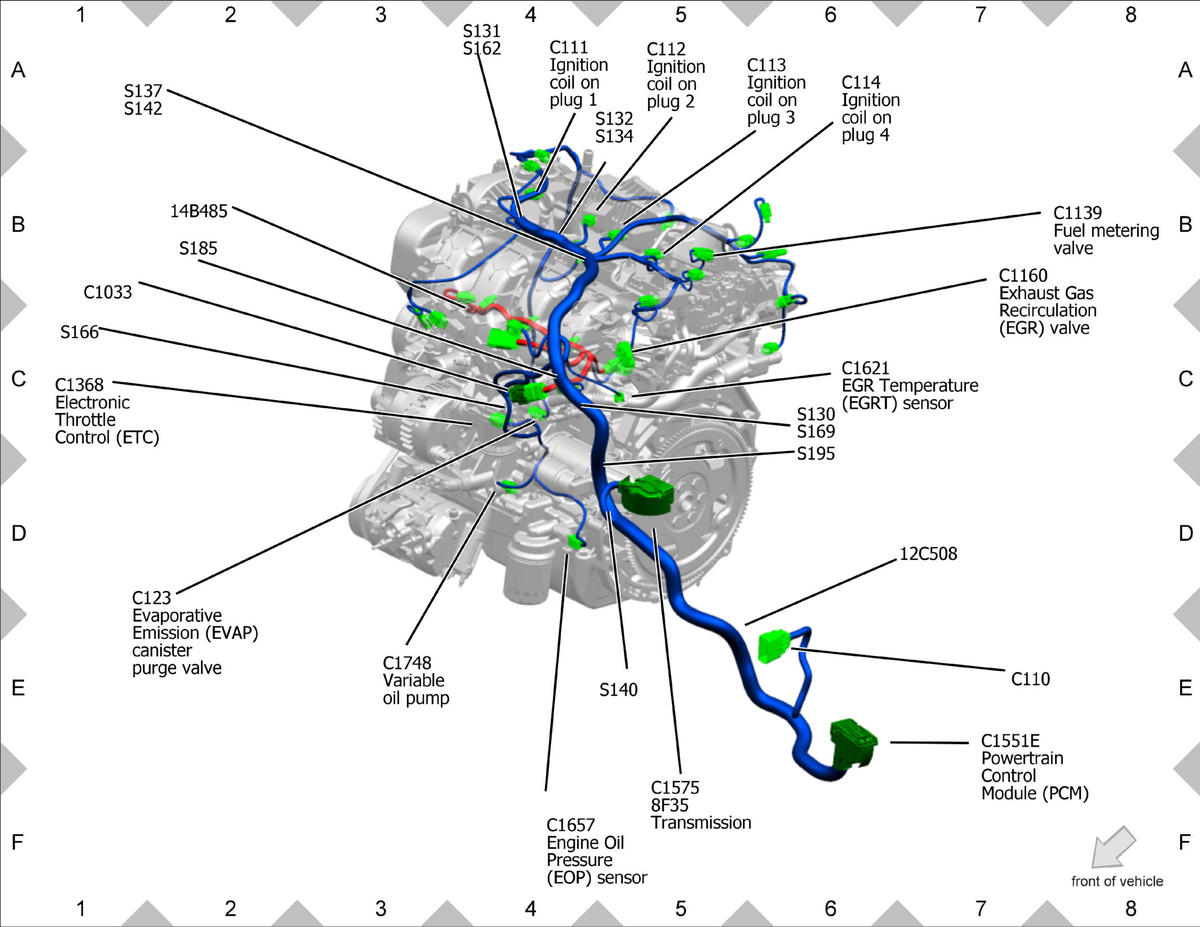

GFDWR131273Courtesy of FORD MOTOR COMPANY

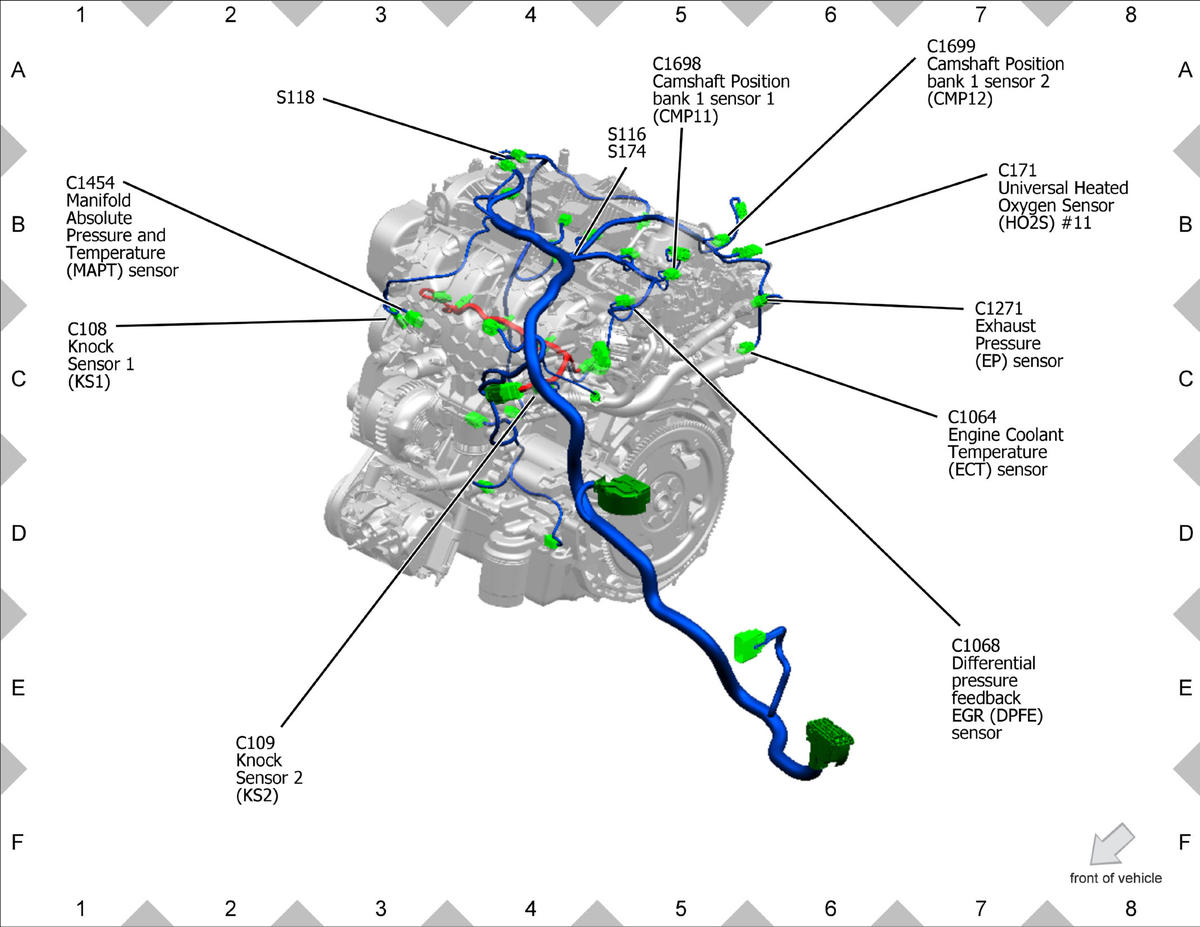

GFDWR131274Courtesy of FORD MOTOR COMPANY

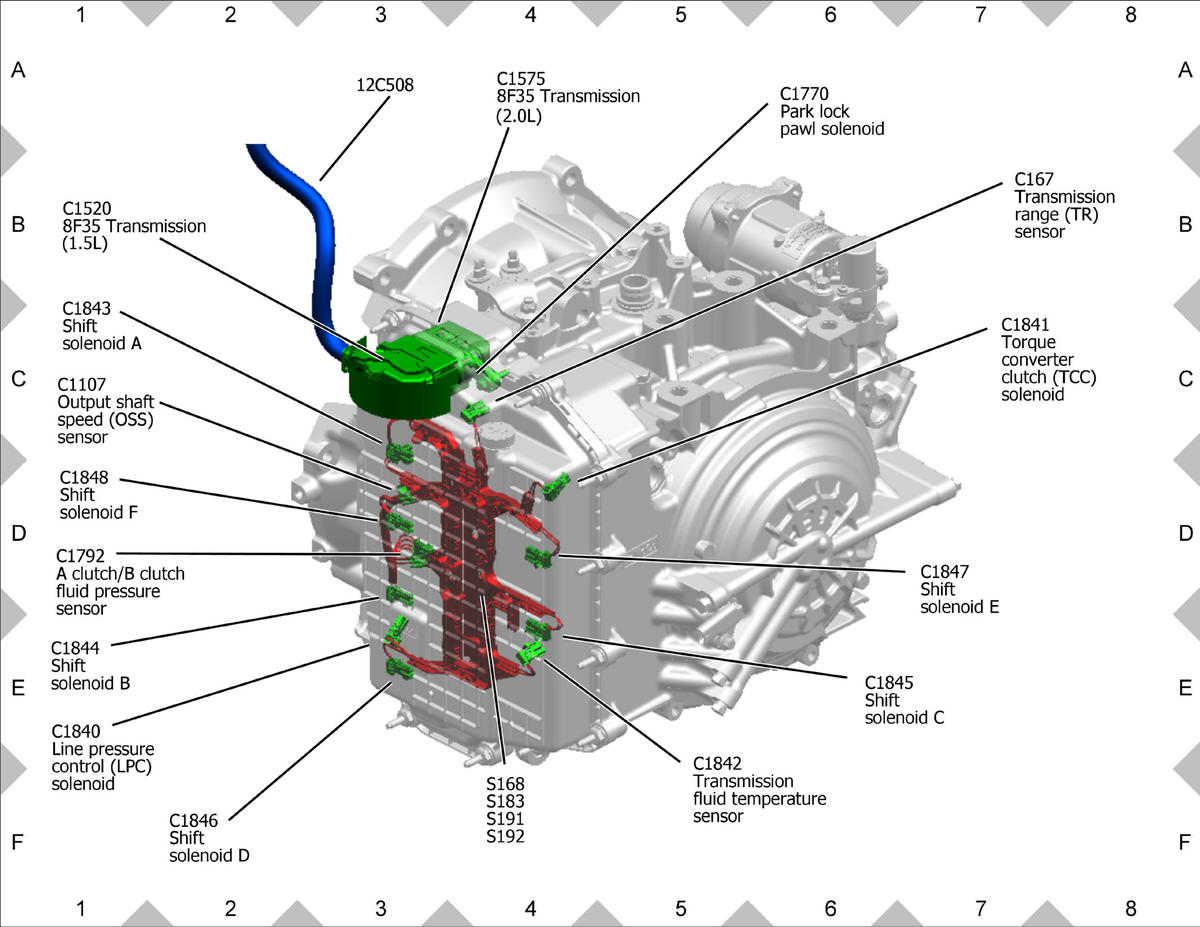

GFDWR131275Courtesy of FORD MOTOR COMPANY

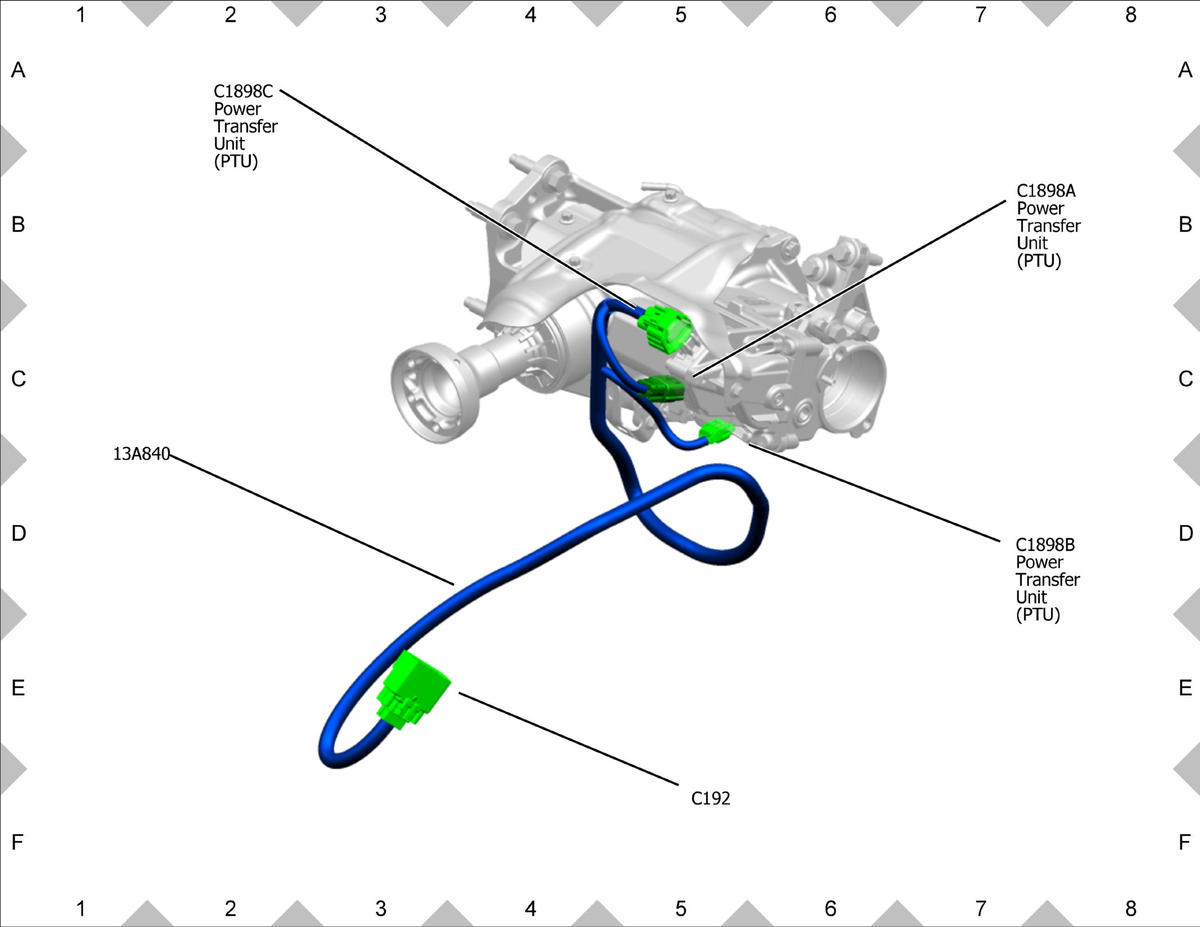

GFDWR131242Courtesy of FORD MOTOR COMPANY

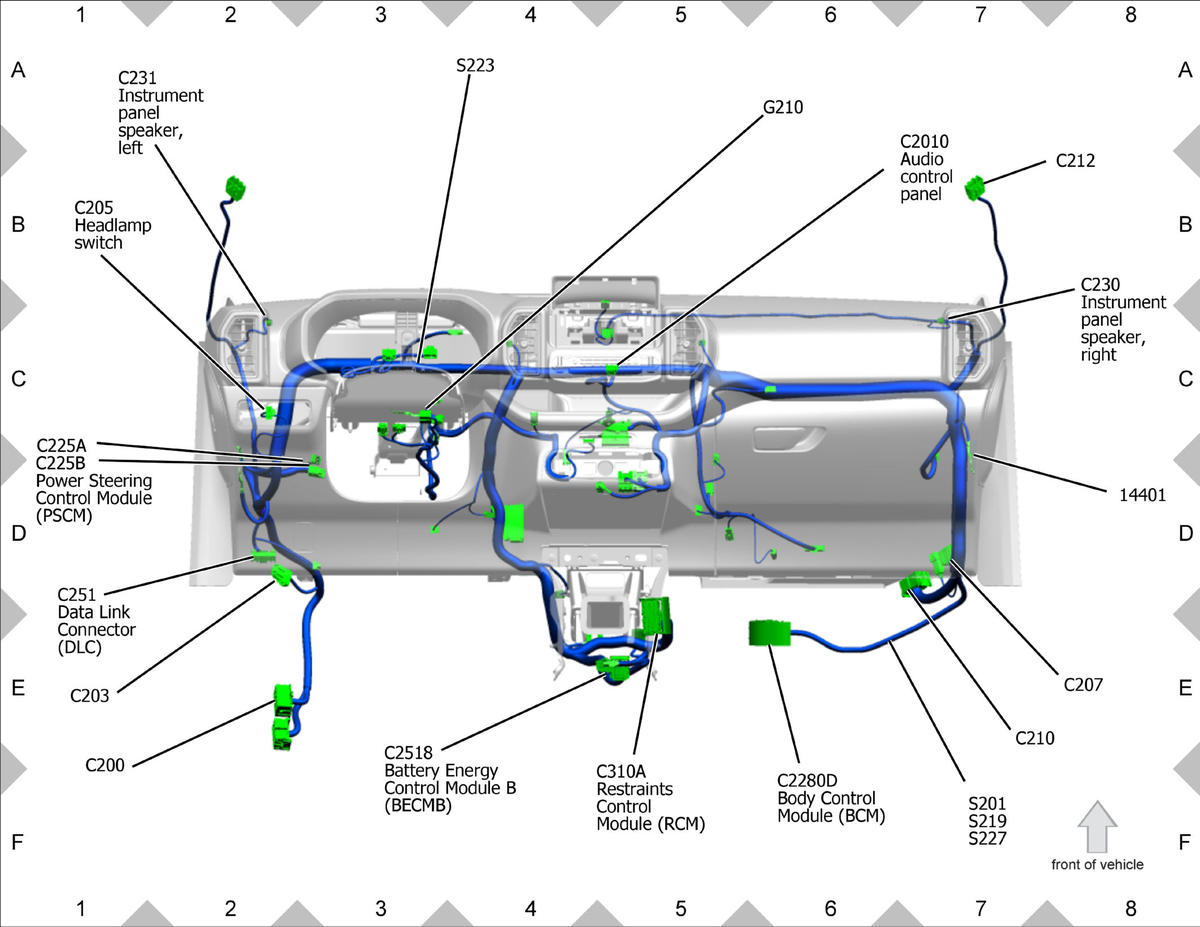

GFDWR131243Courtesy of FORD MOTOR COMPANY

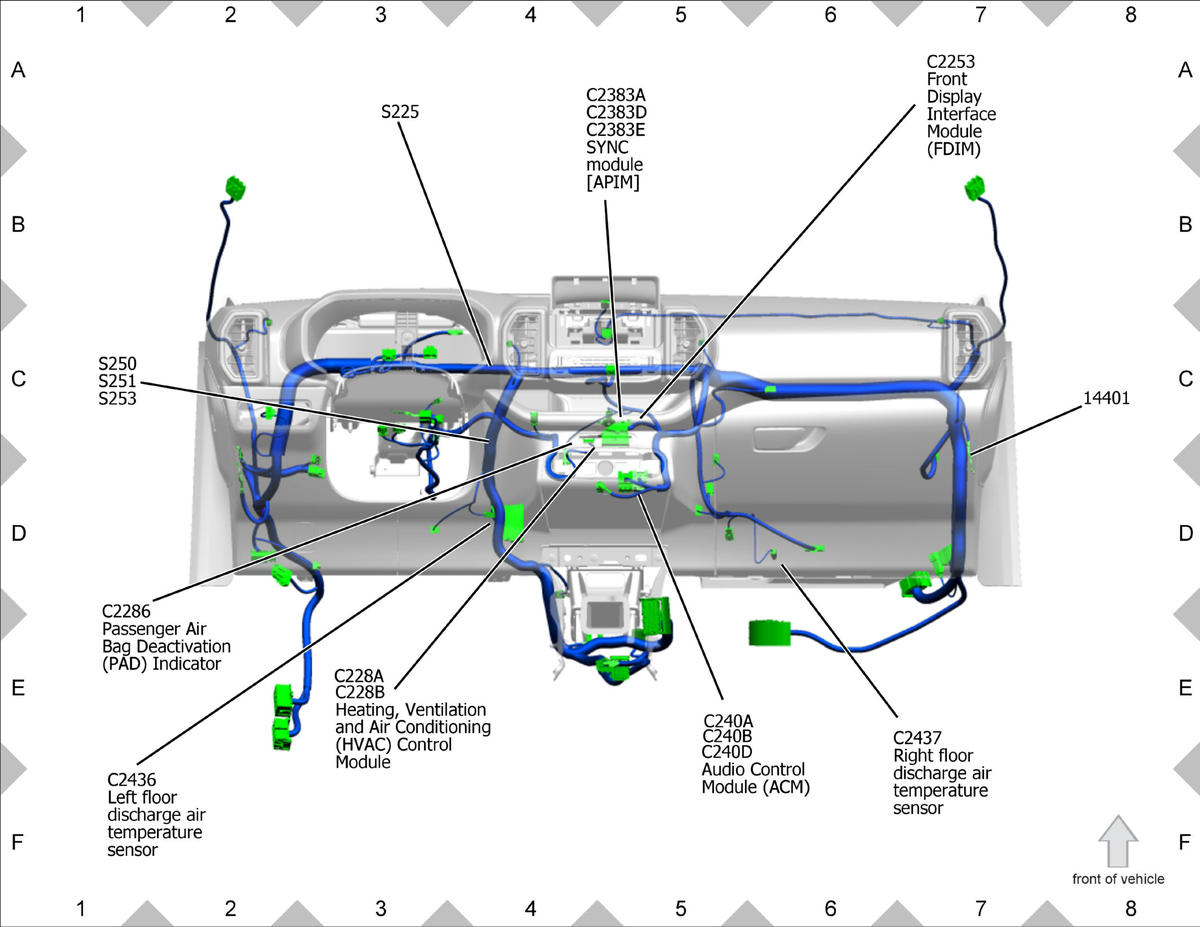

GFDWR131244Courtesy of FORD MOTOR COMPANY

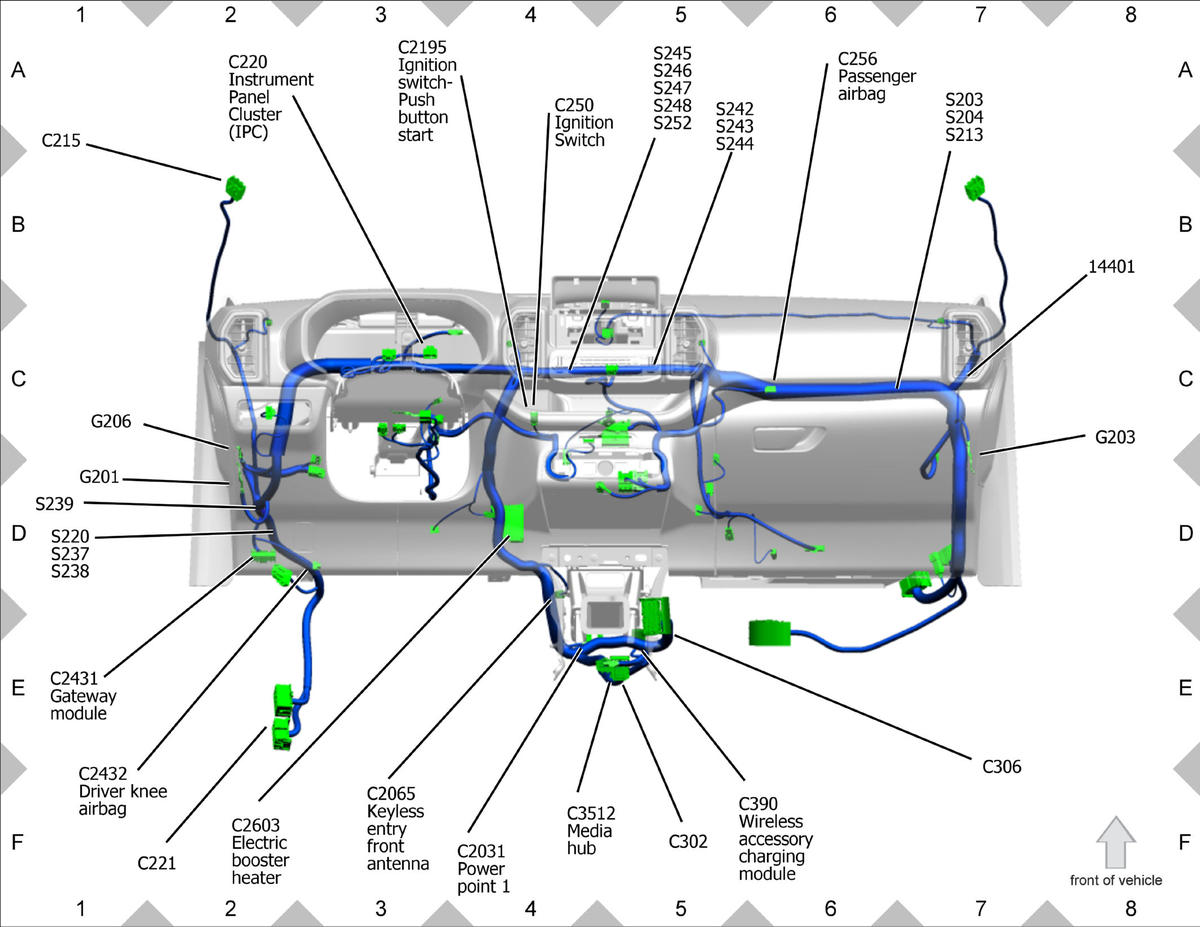

GFDWR131245Courtesy of FORD MOTOR COMPANY

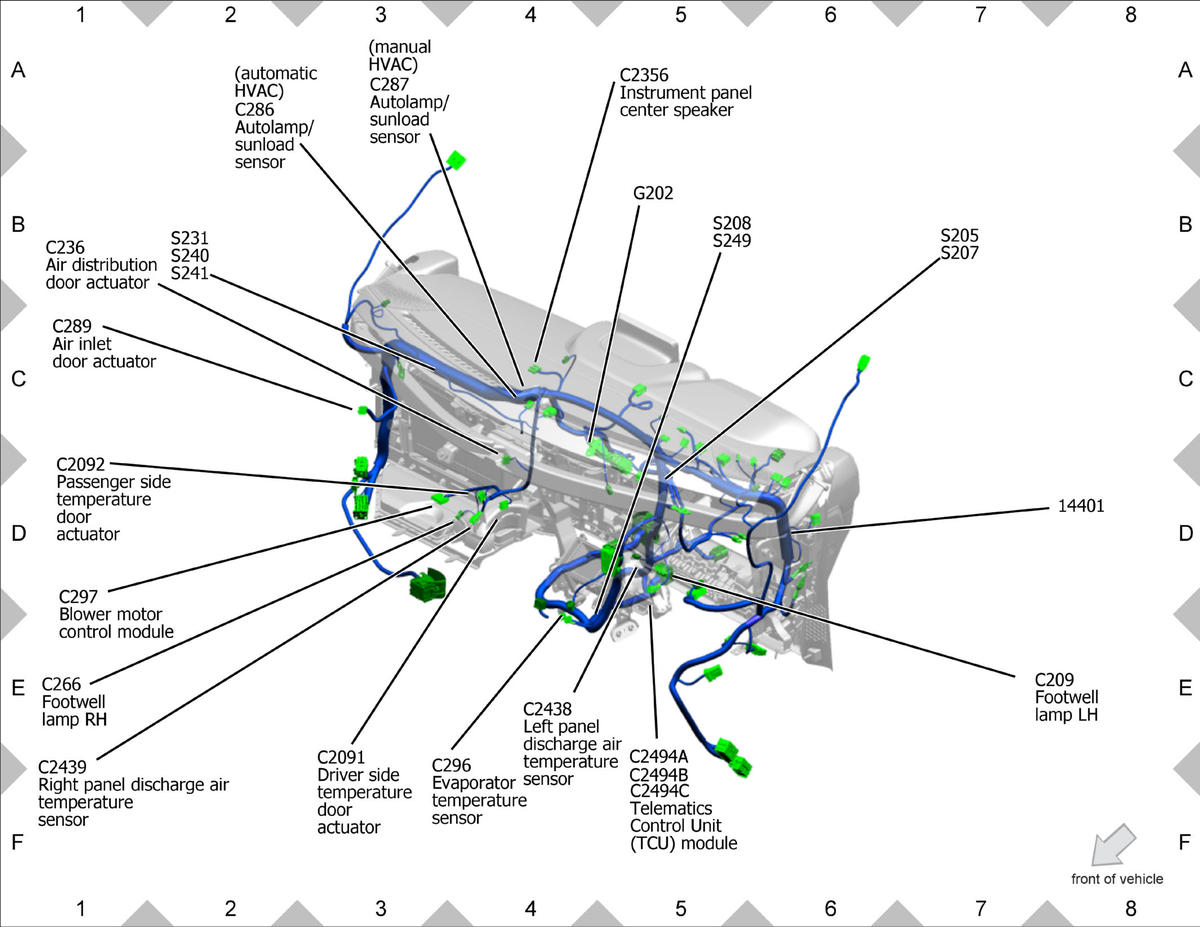

GFDWR131246Courtesy of FORD MOTOR COMPANY

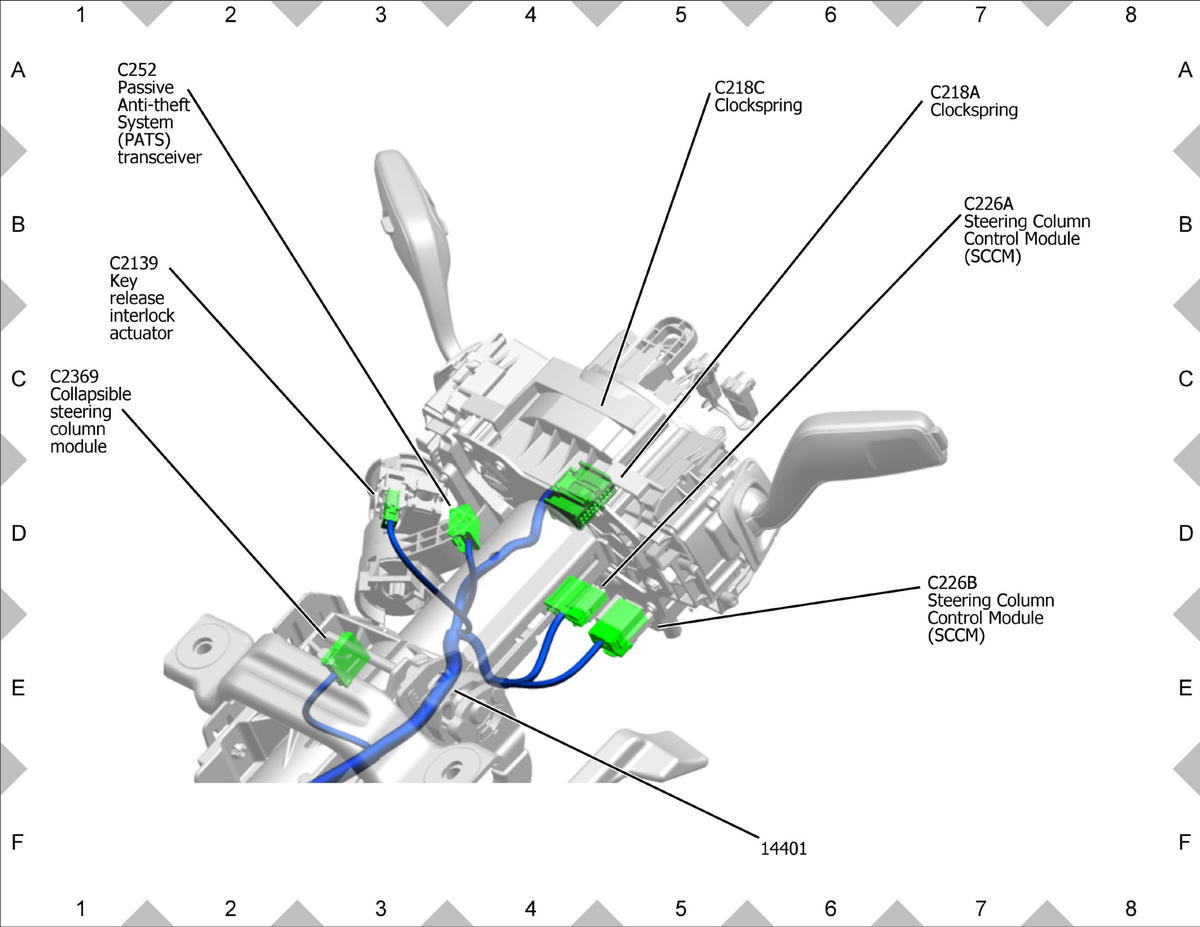

GFDWR131247Courtesy of FORD MOTOR COMPANY

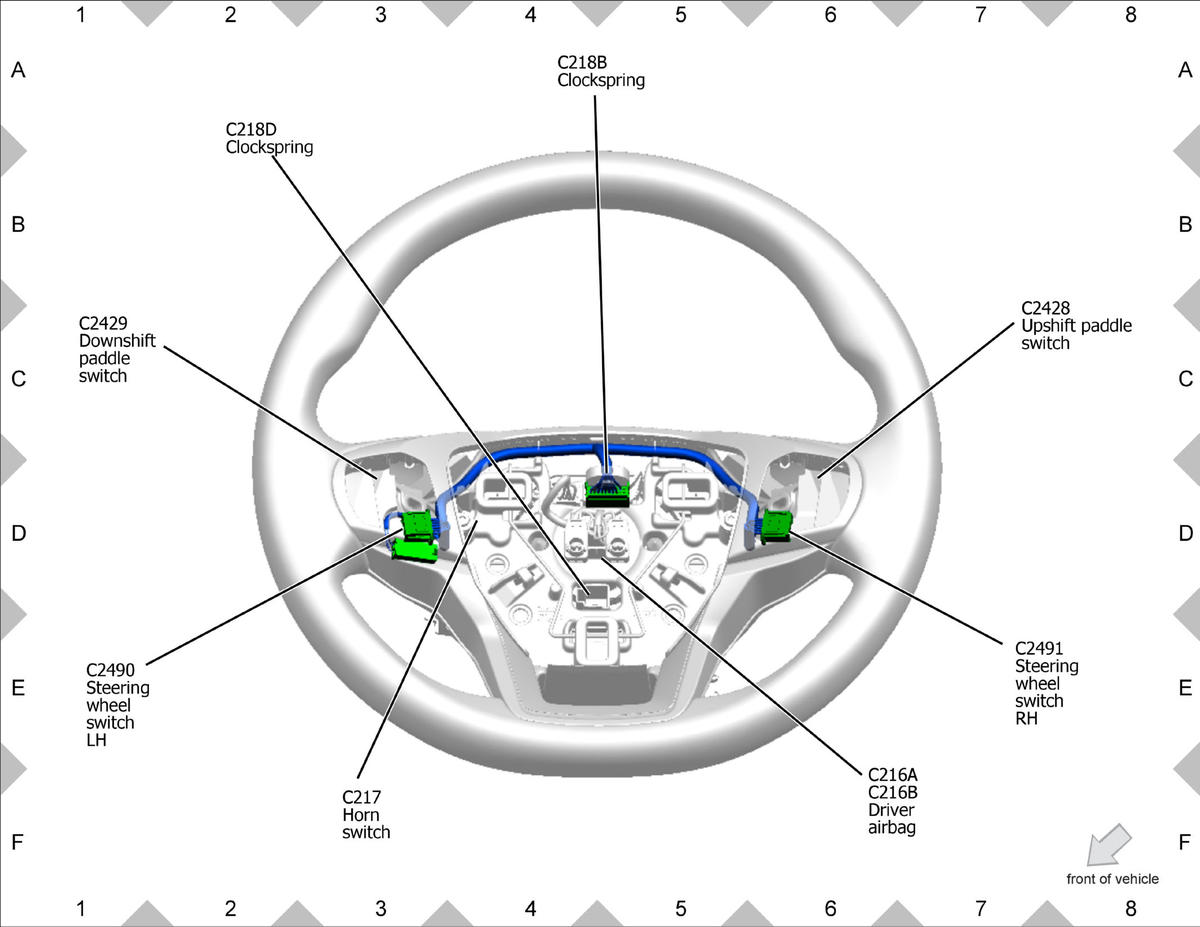

GFDWR131248Courtesy of FORD MOTOR COMPANY

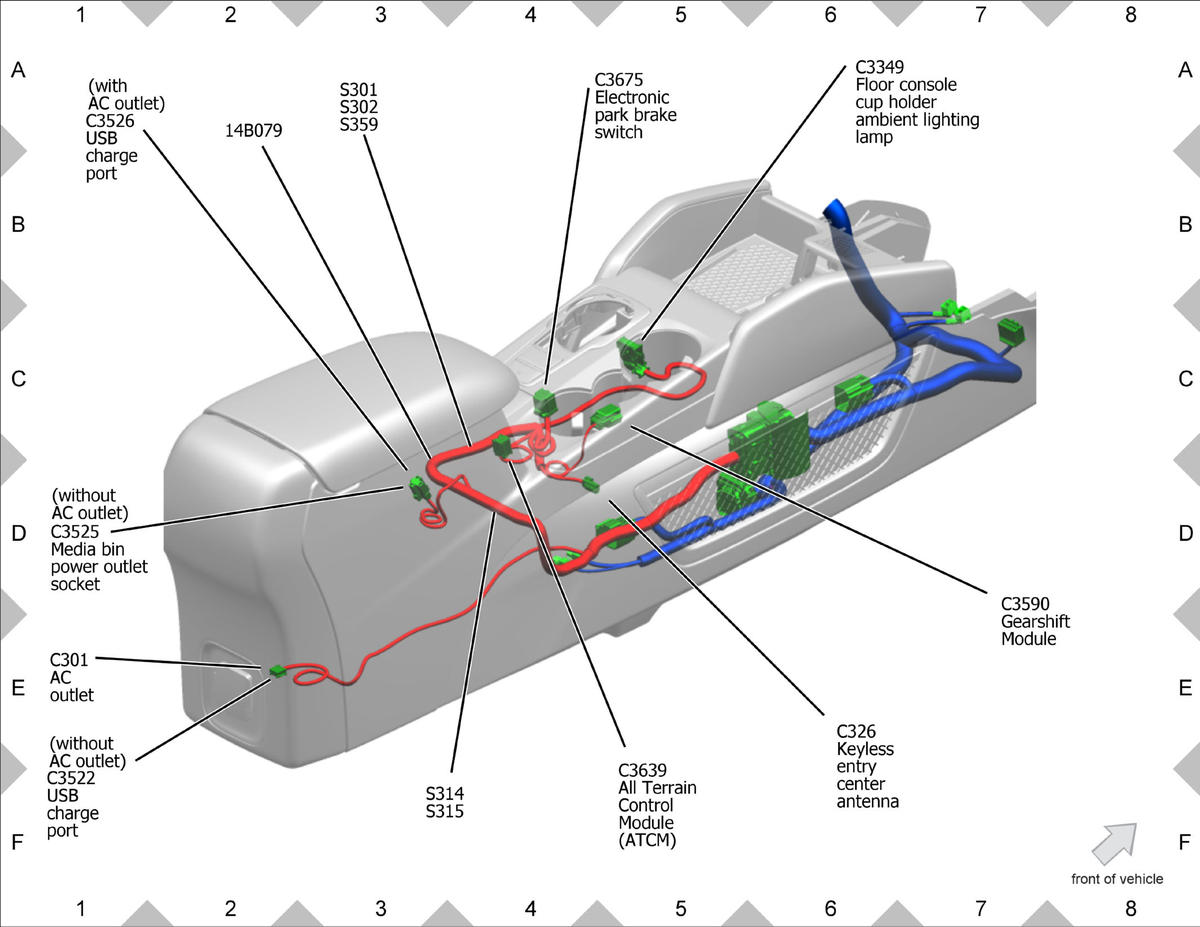

GFDWR131249Courtesy of FORD MOTOR COMPANY

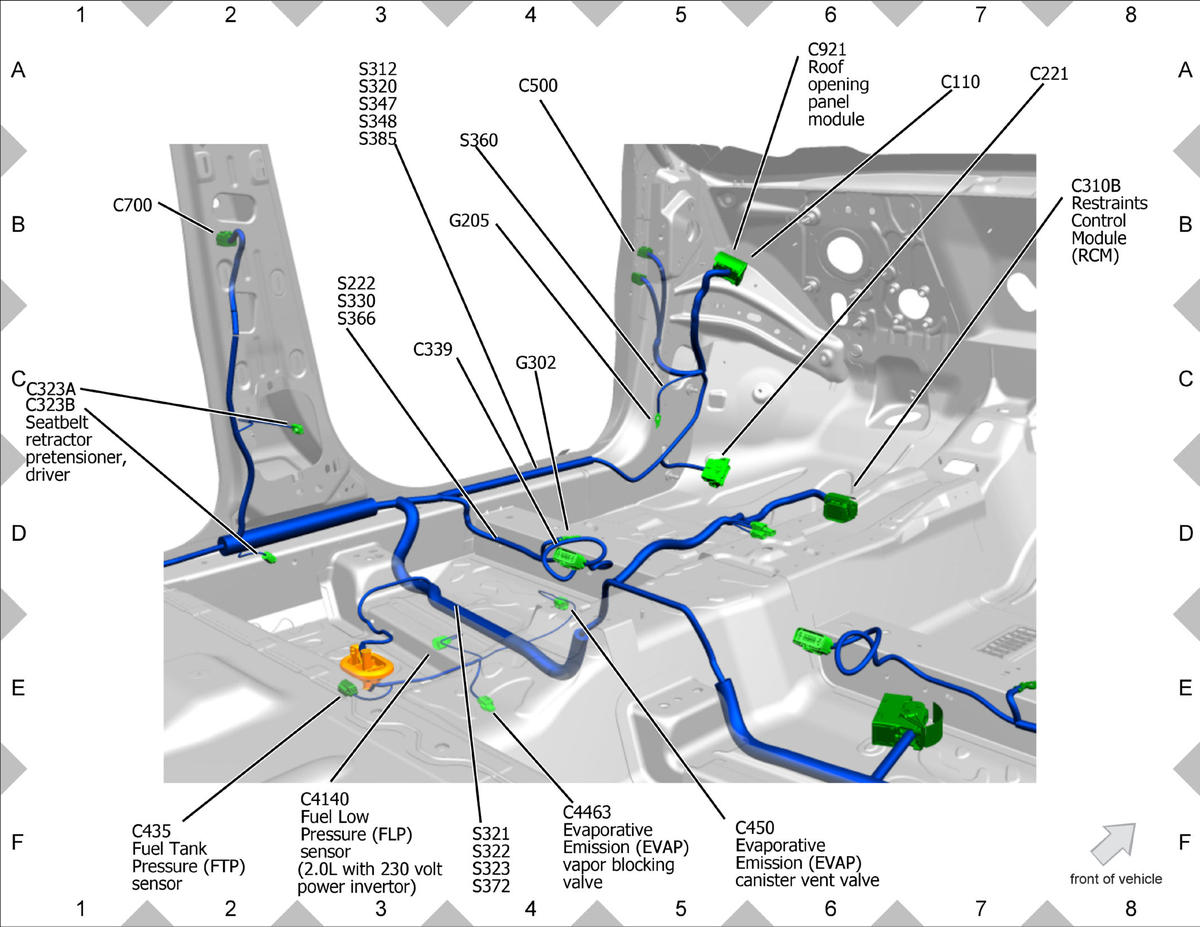

GFDWR131250Courtesy of FORD MOTOR COMPANY

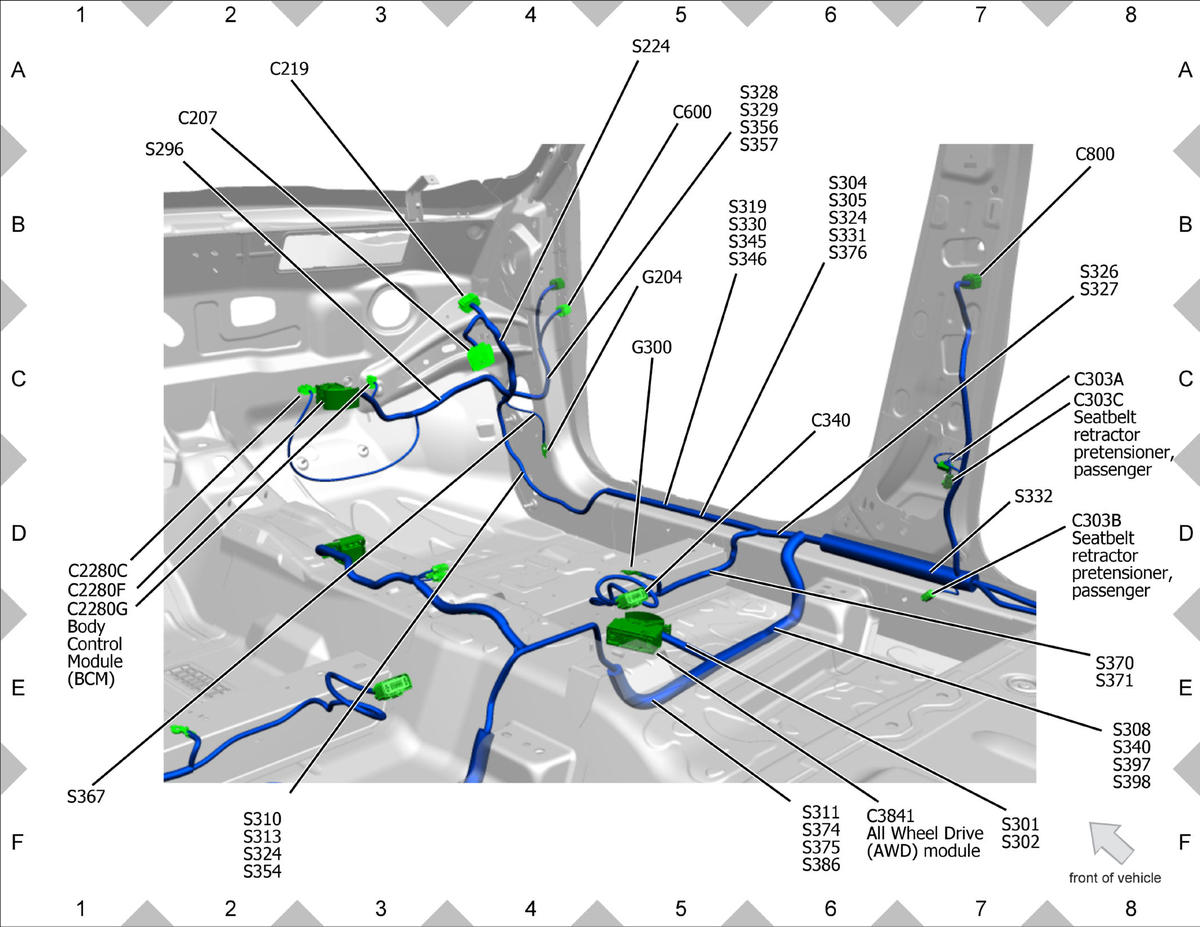

GFDWR131251Courtesy of FORD MOTOR COMPANY

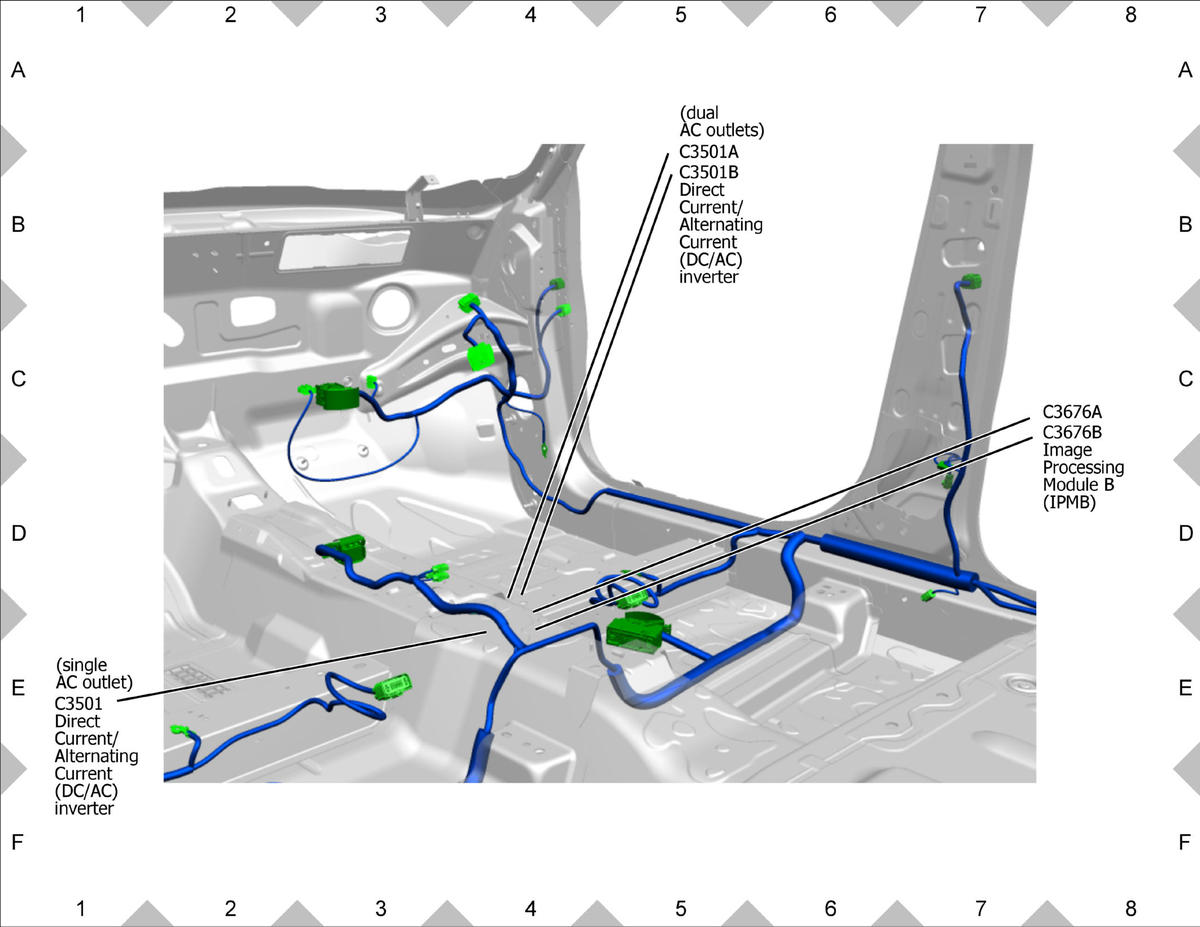

GFDWR131253Courtesy of FORD MOTOR COMPANY

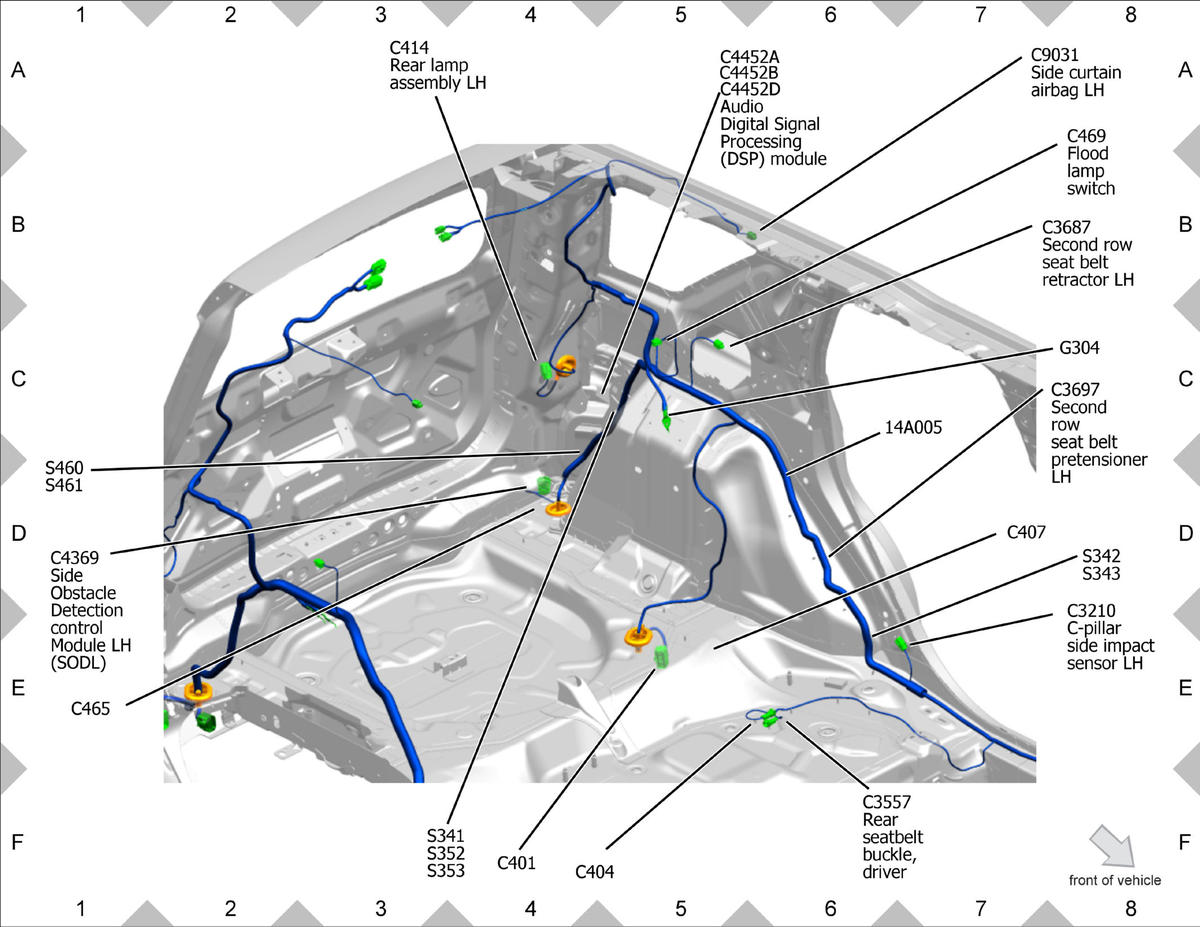

GFDWR131254Courtesy of FORD MOTOR COMPANY

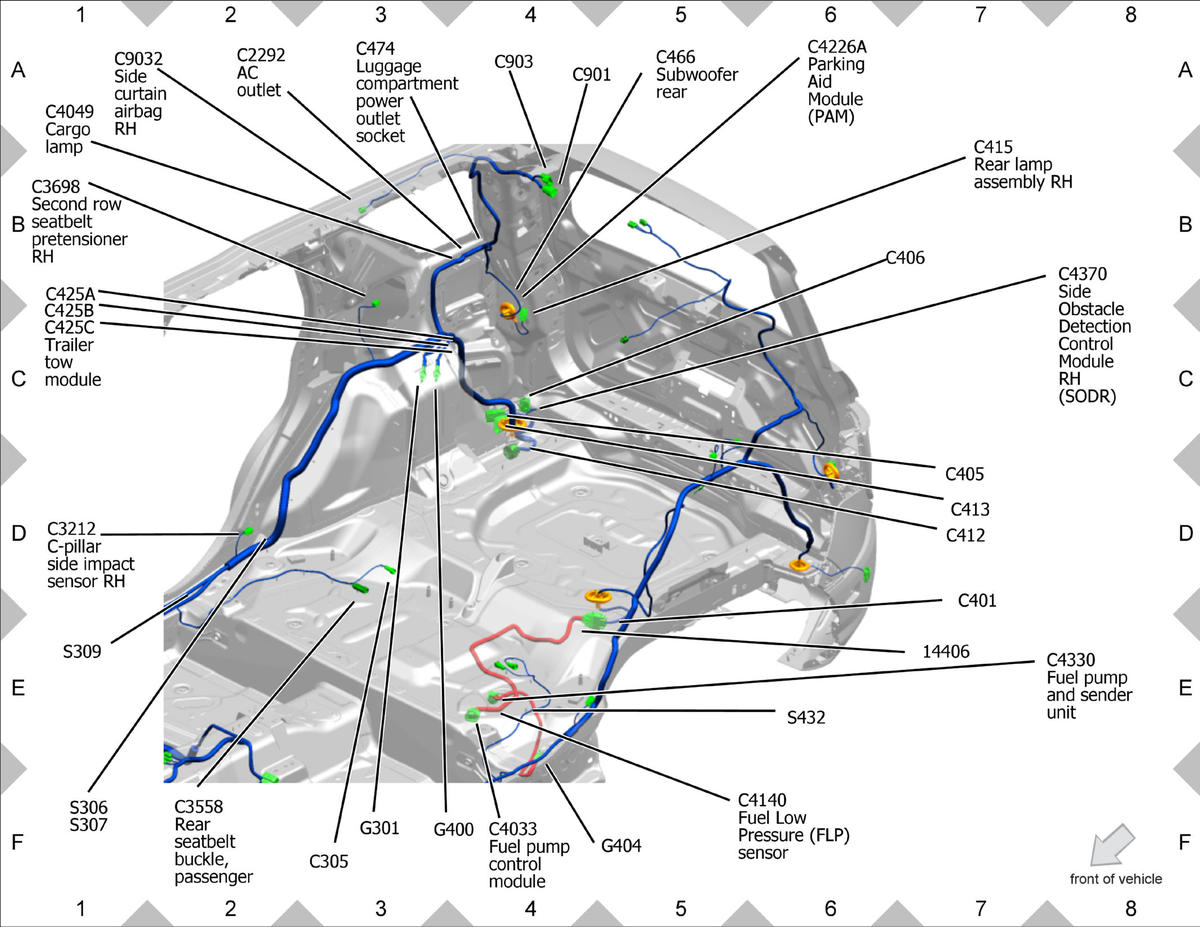

GFDWR131255Courtesy of FORD MOTOR COMPANY

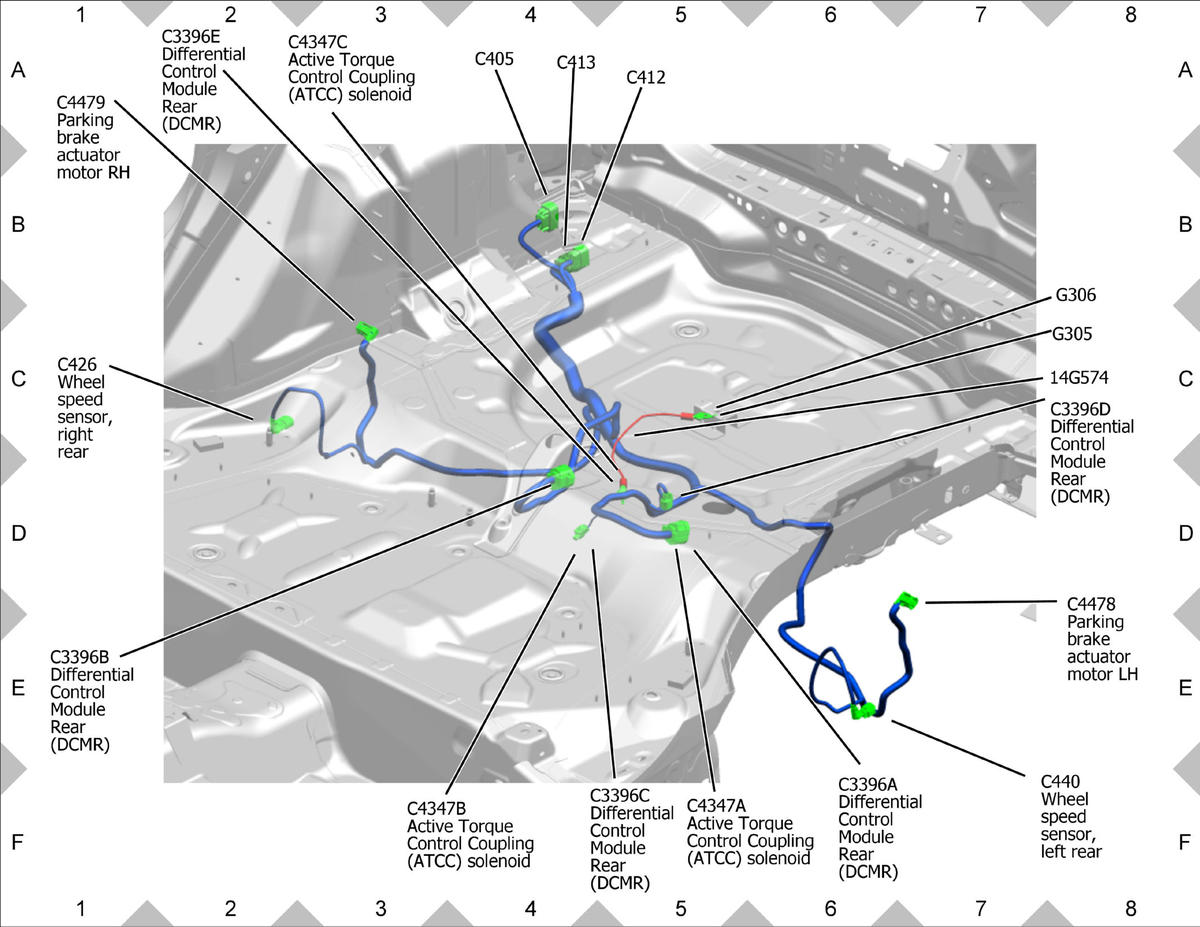

GFDWR131256Courtesy of FORD MOTOR COMPANY

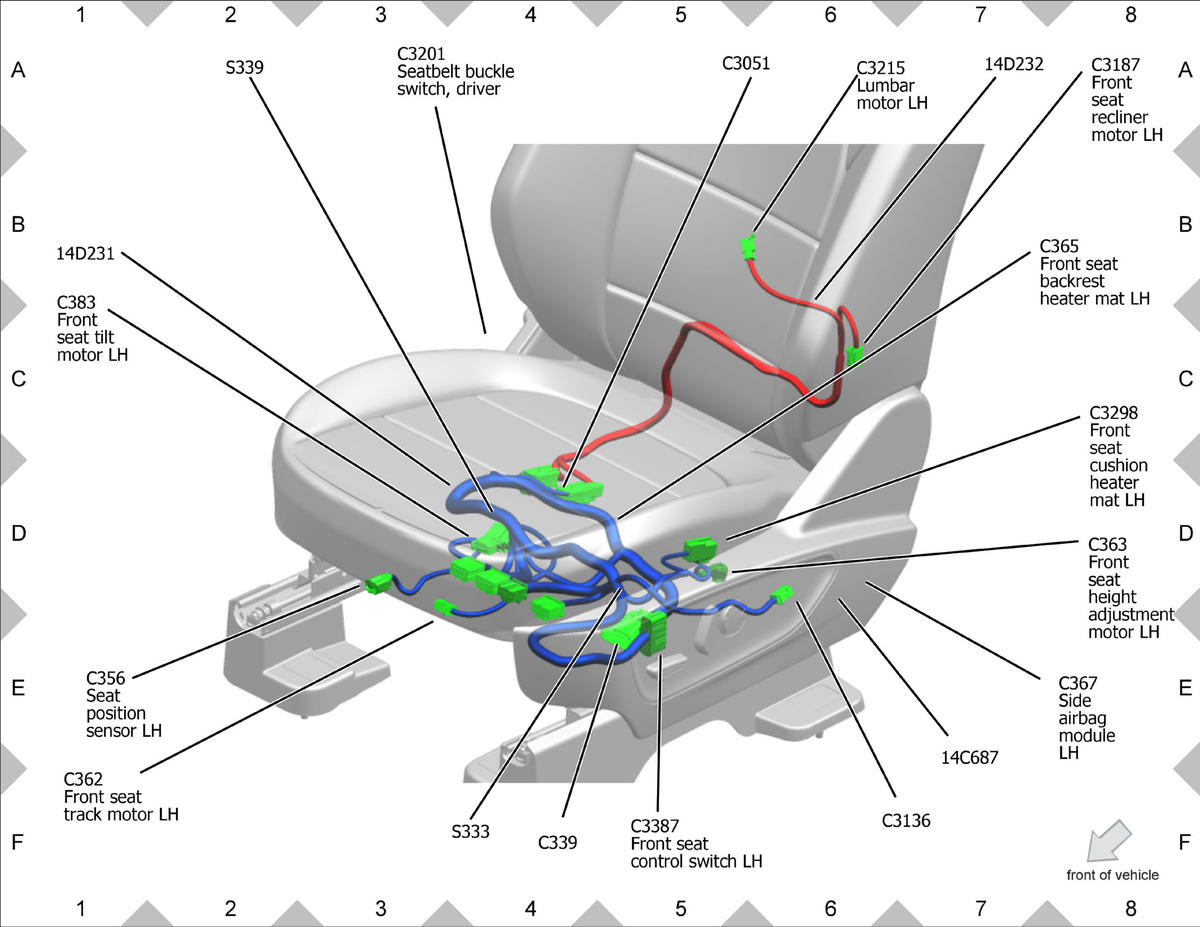

GFDWR131257Courtesy of FORD MOTOR COMPANY

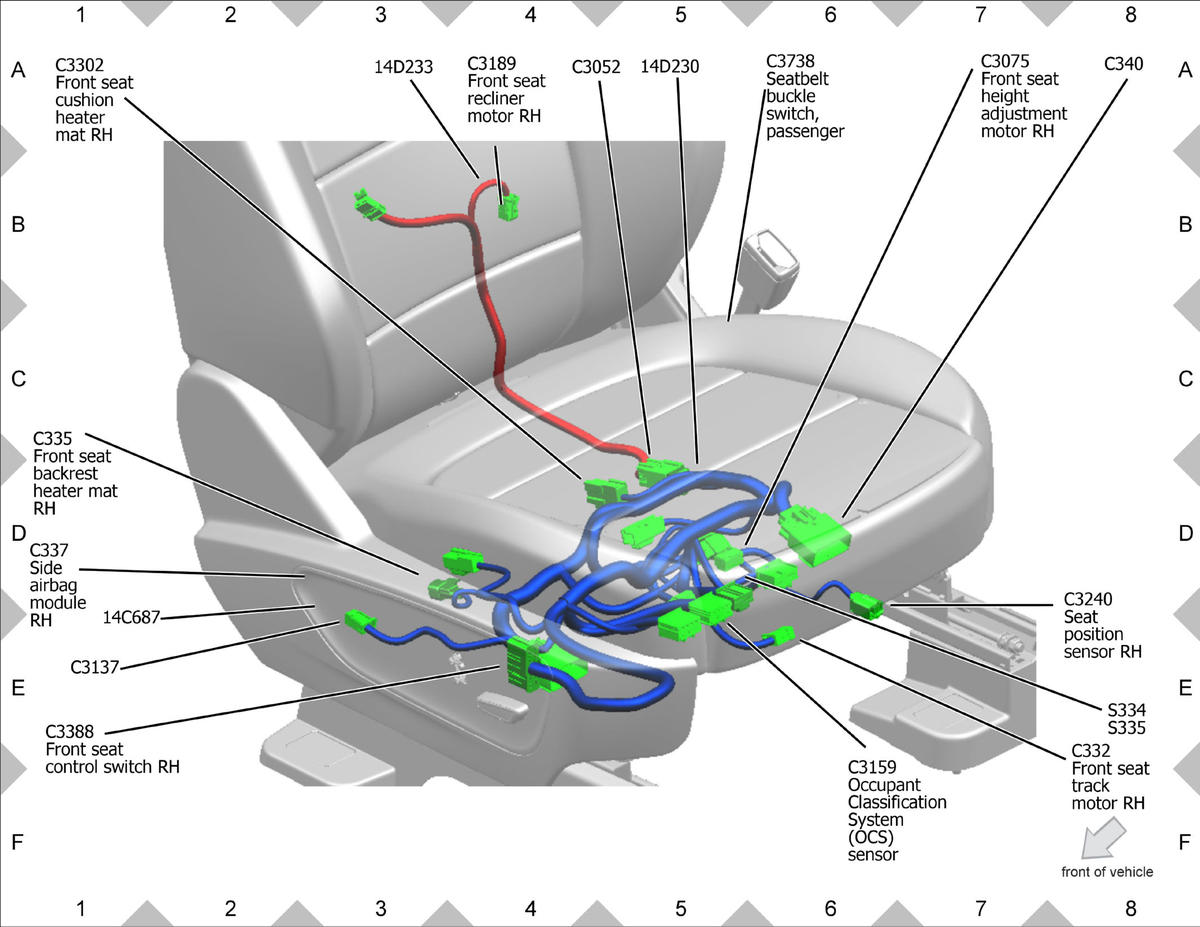

GFDWR131258Courtesy of FORD MOTOR COMPANY

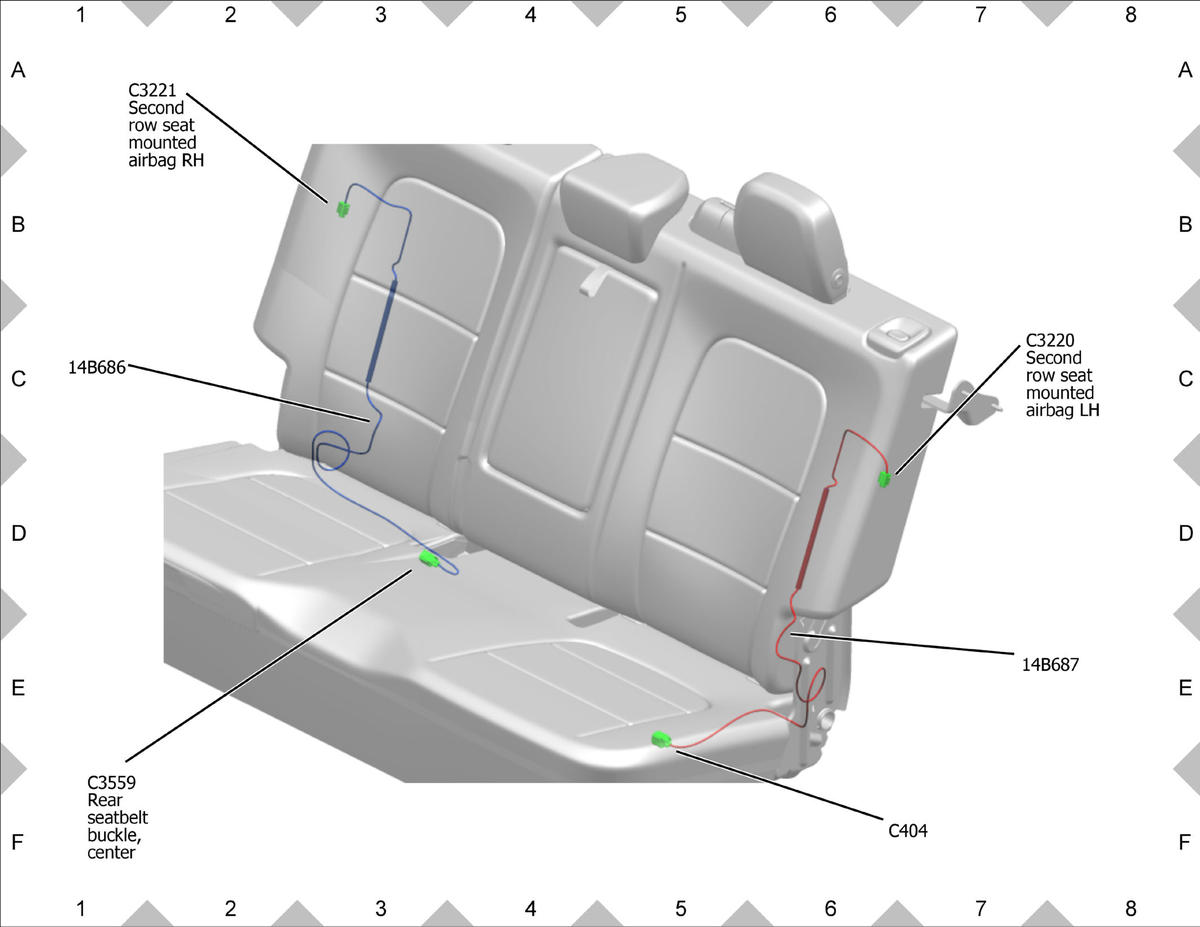

GFDWR131259Courtesy of FORD MOTOR COMPANY

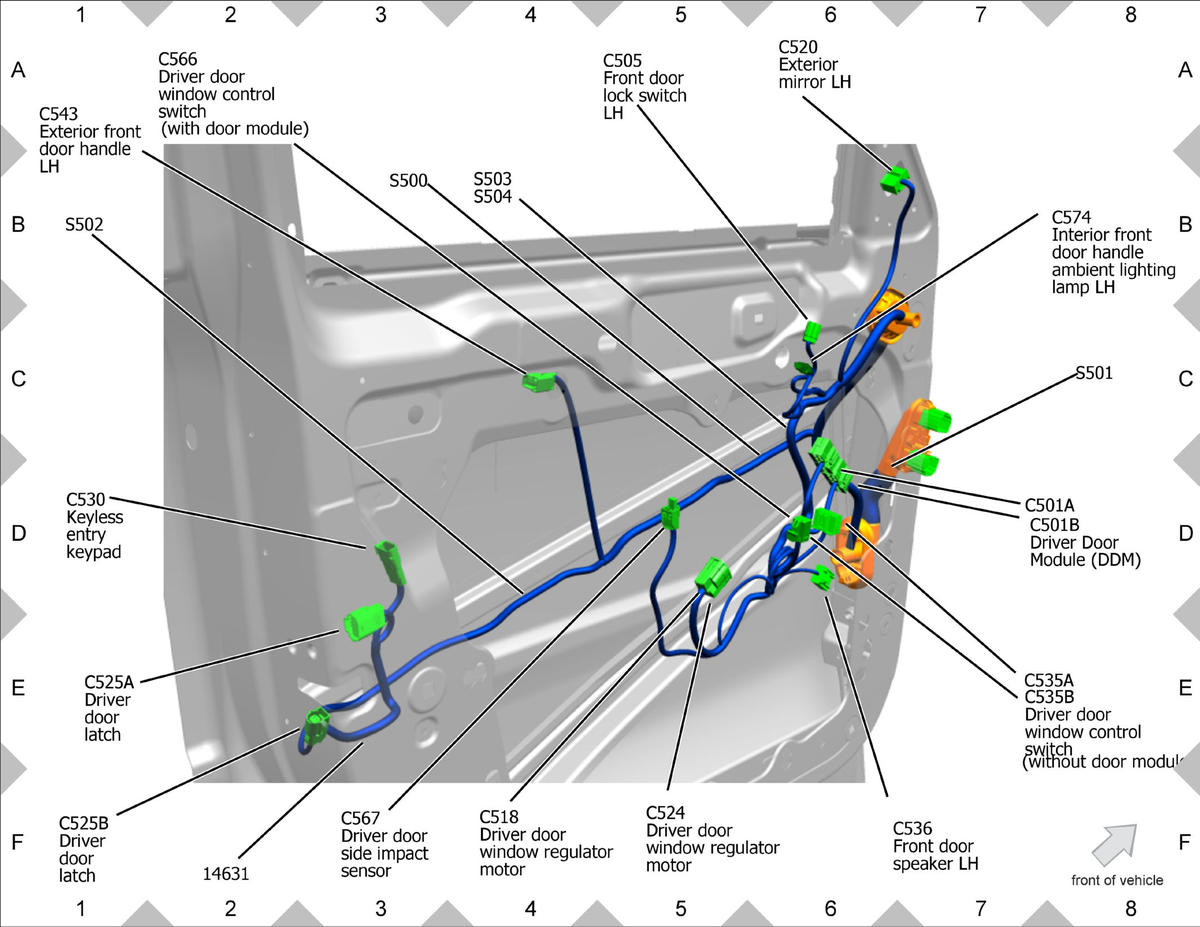

GFDWR131260Courtesy of FORD MOTOR COMPANY

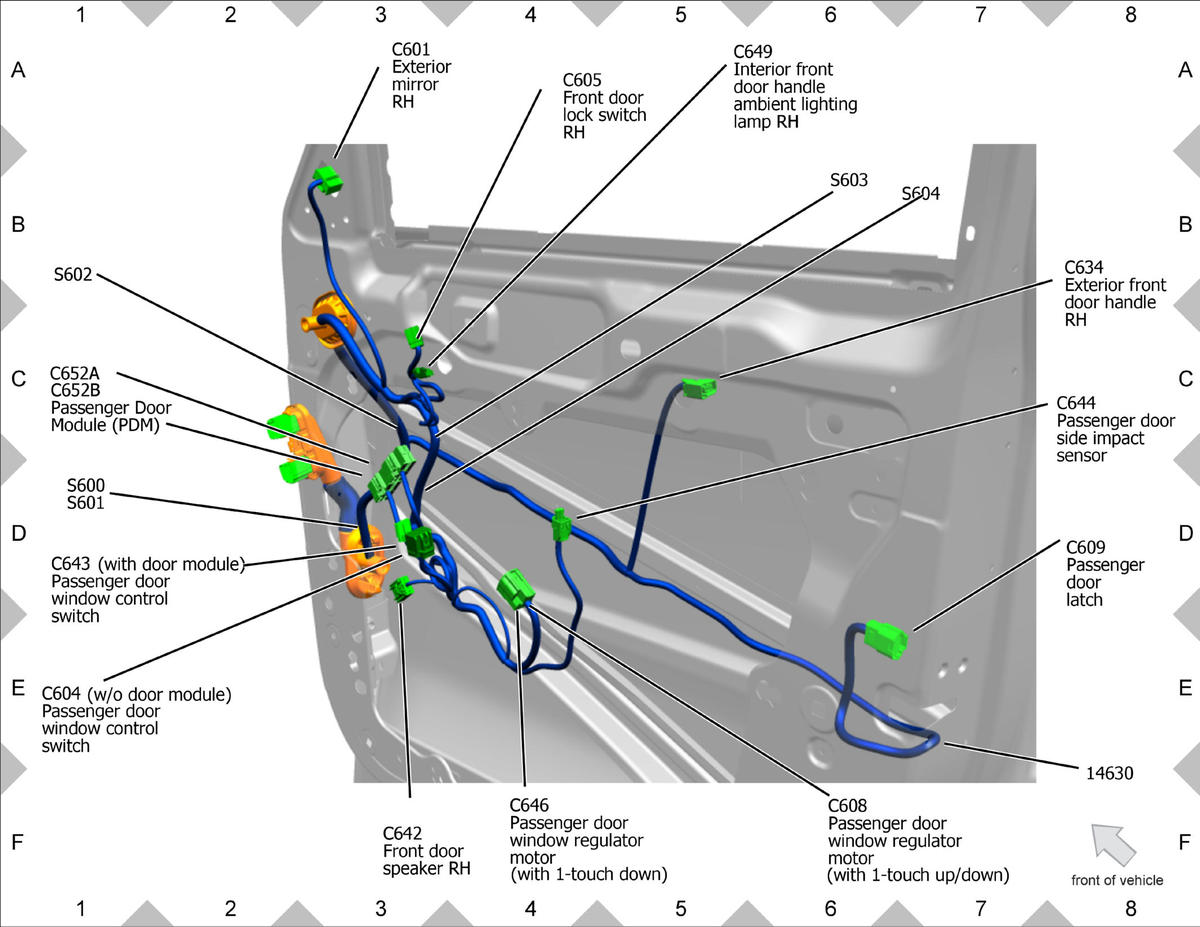

GFDWR131261Courtesy of FORD MOTOR COMPANY

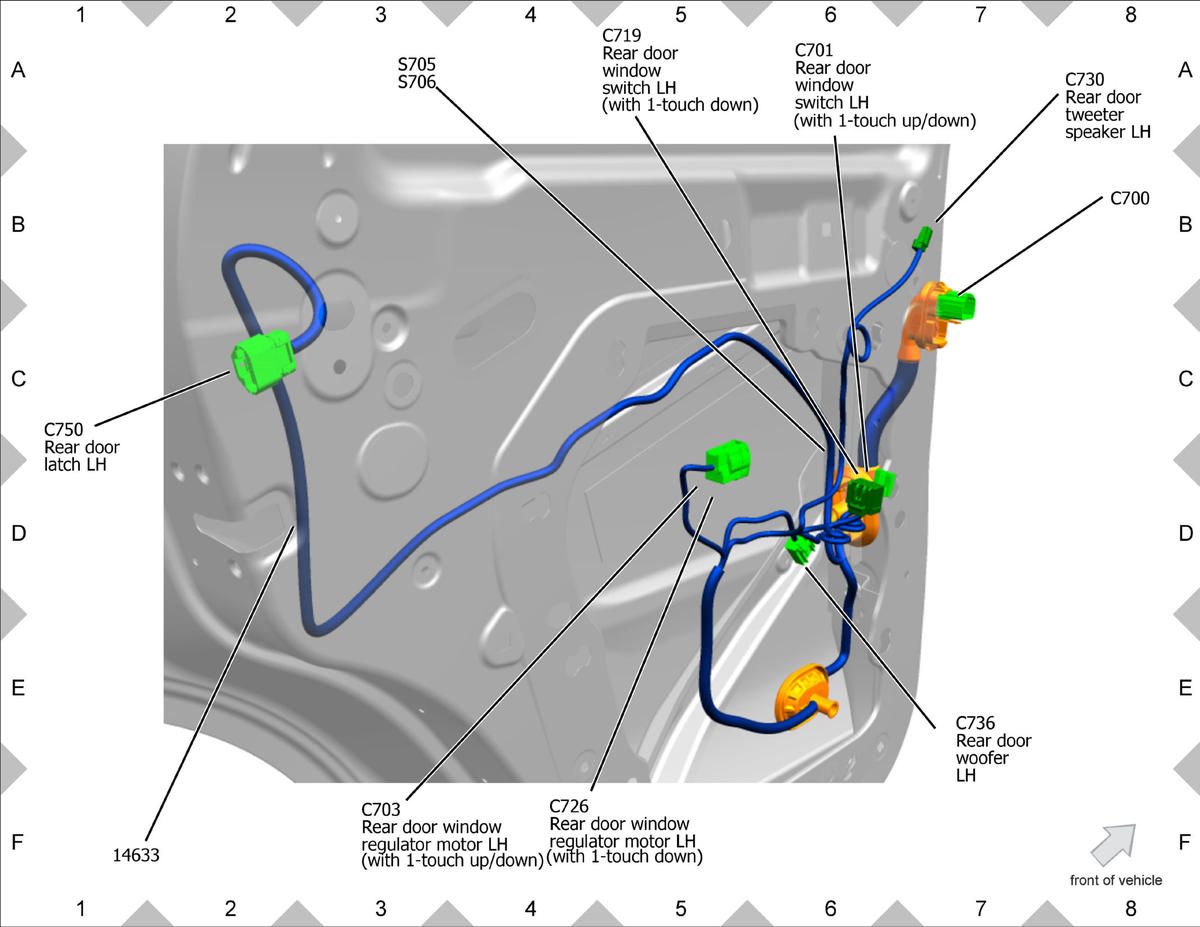

GFDWR131262Courtesy of FORD MOTOR COMPANY

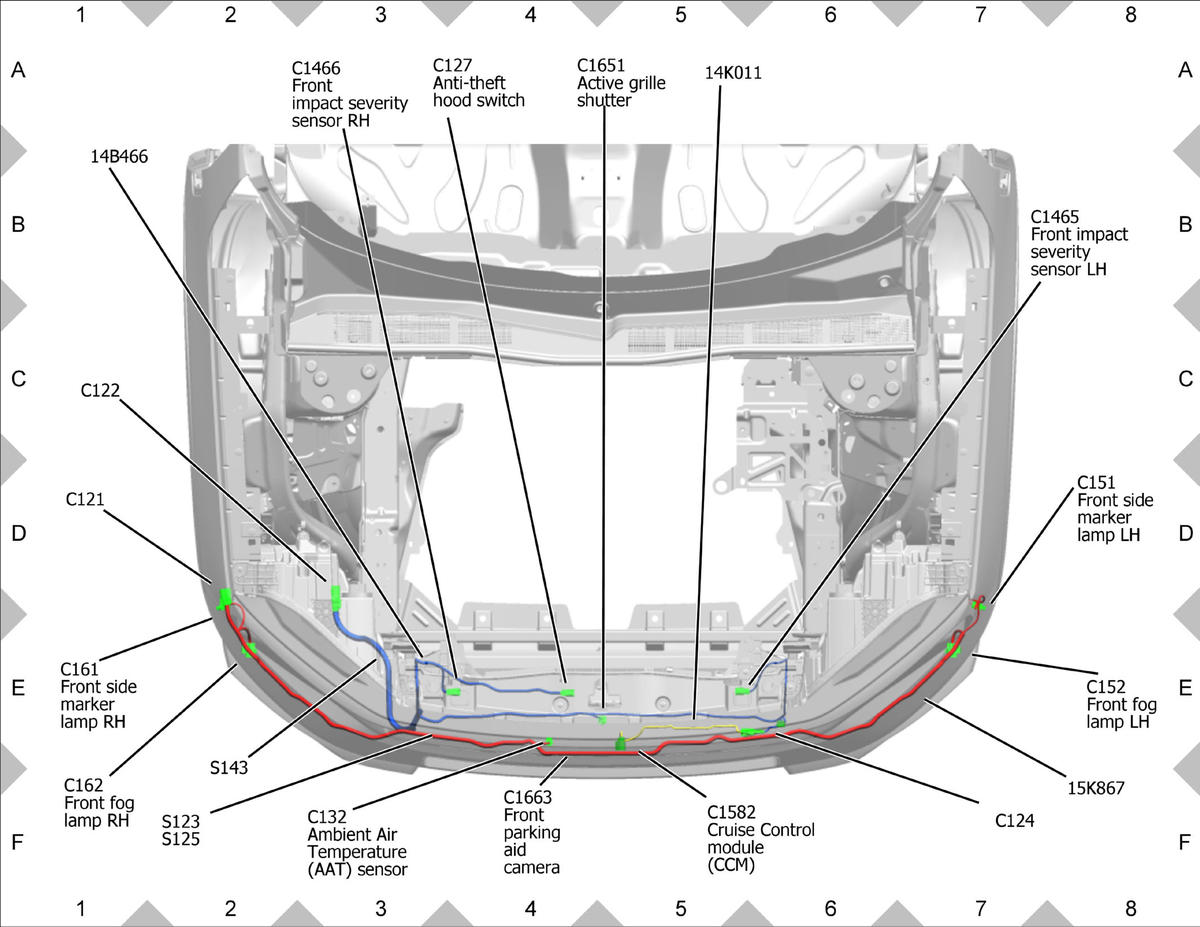

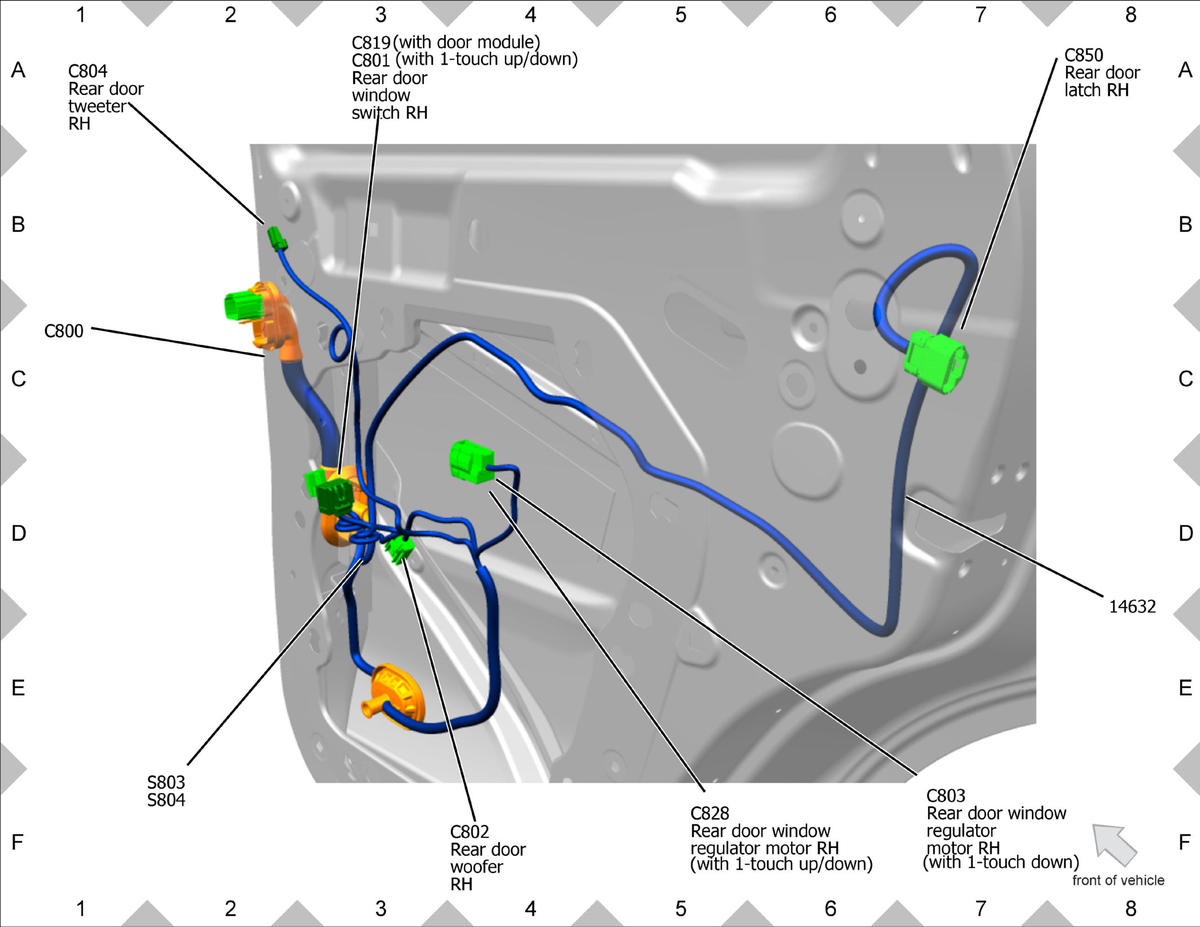

GFDWR131264Courtesy of FORD MOTOR COMPANY

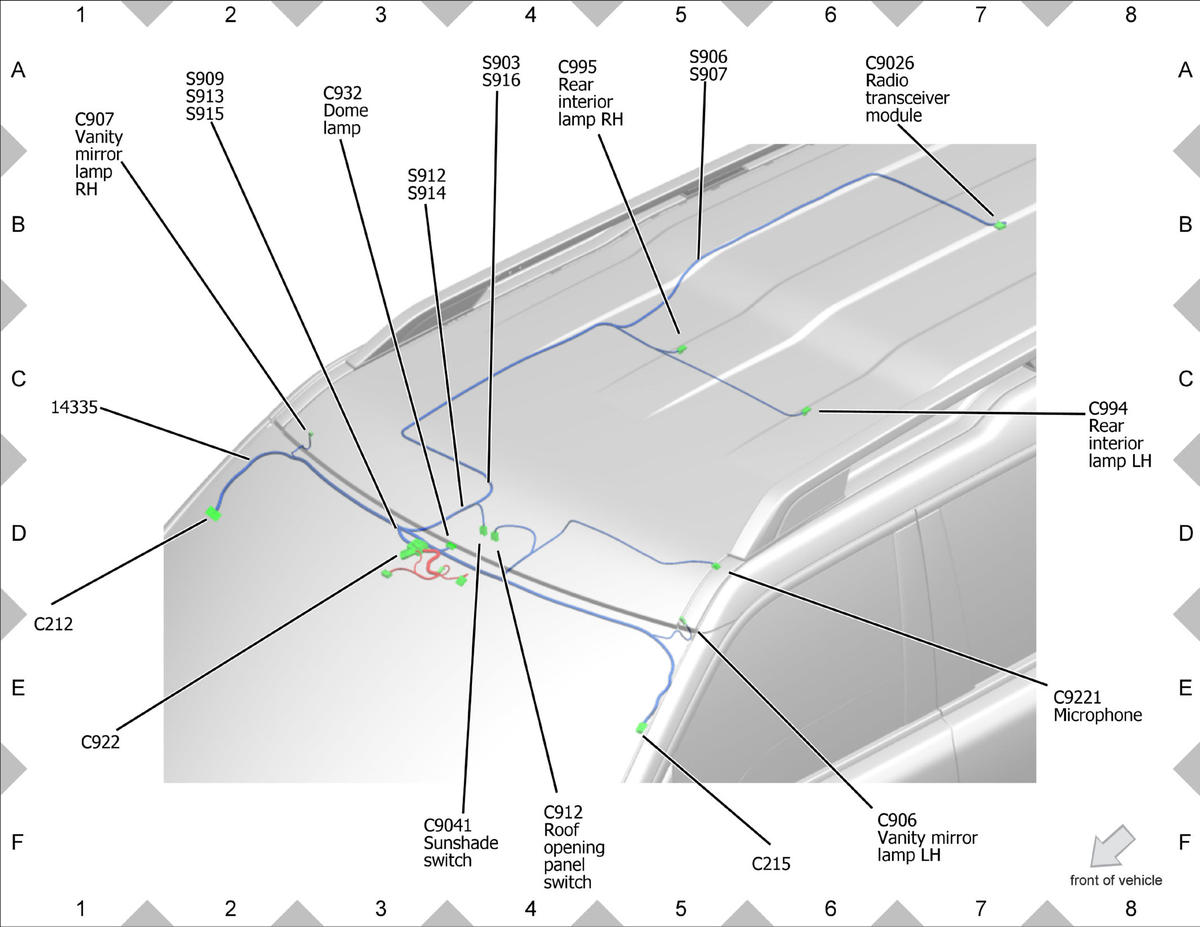

GFDWR131265Courtesy of FORD MOTOR COMPANY

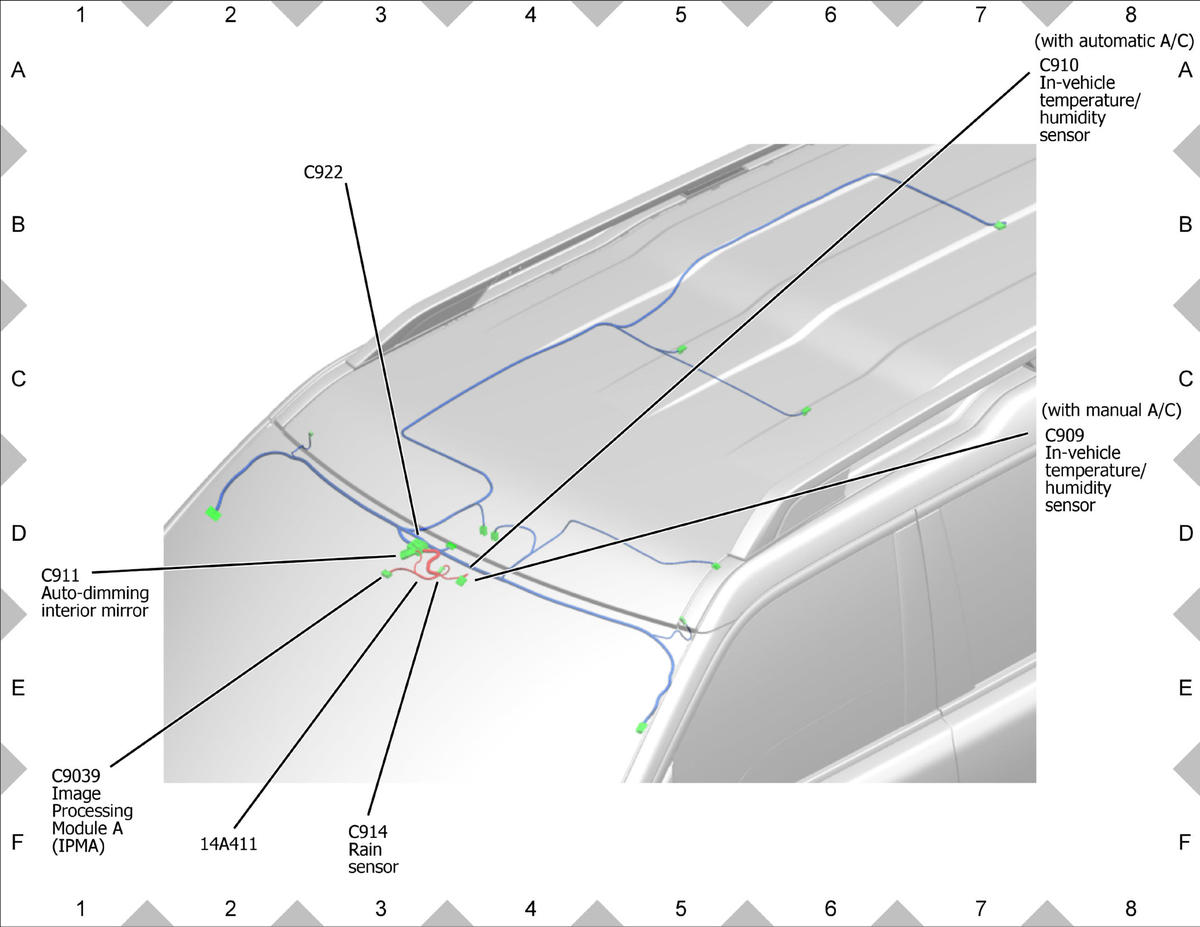

GFDWR131266Courtesy of FORD MOTOR COMPANY

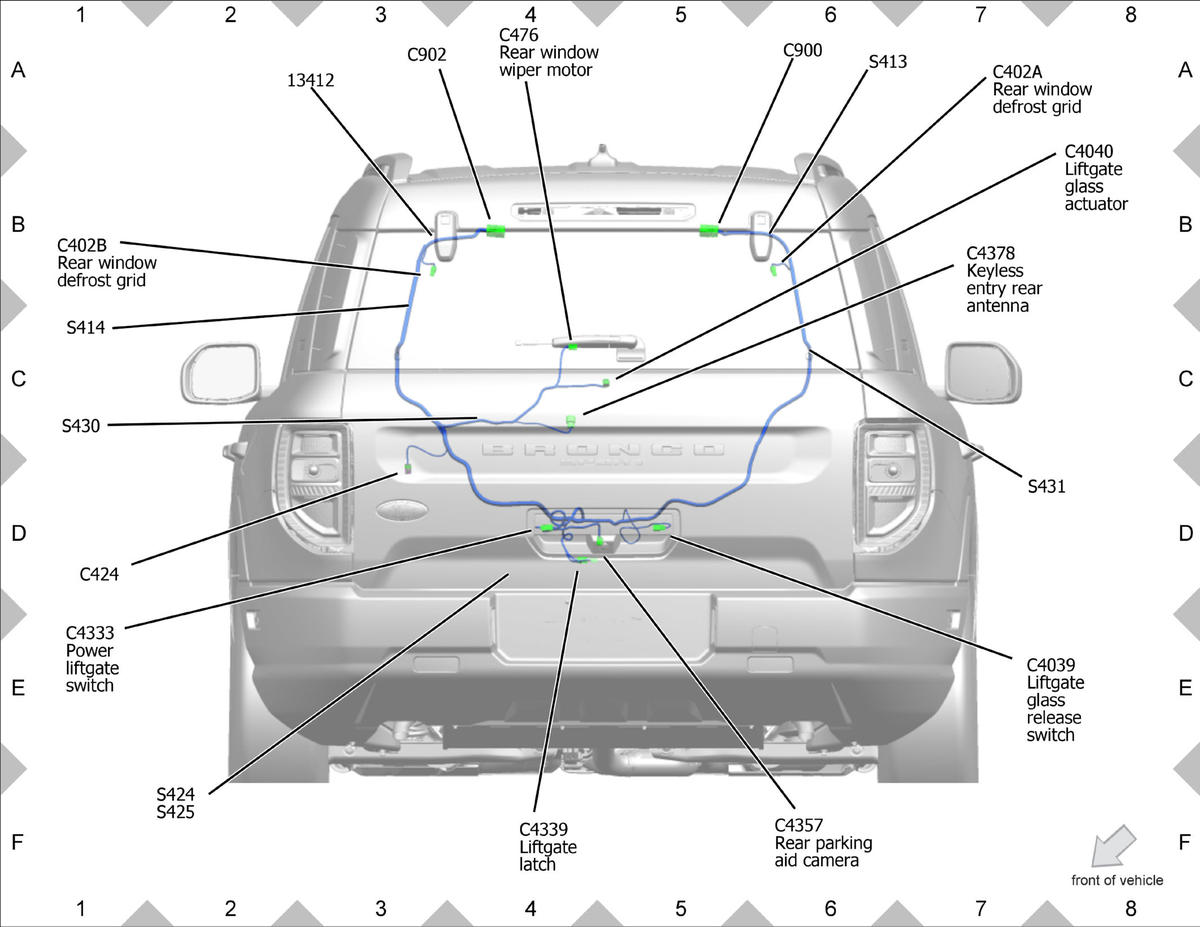

GFDWR131267Courtesy of FORD MOTOR COMPANY

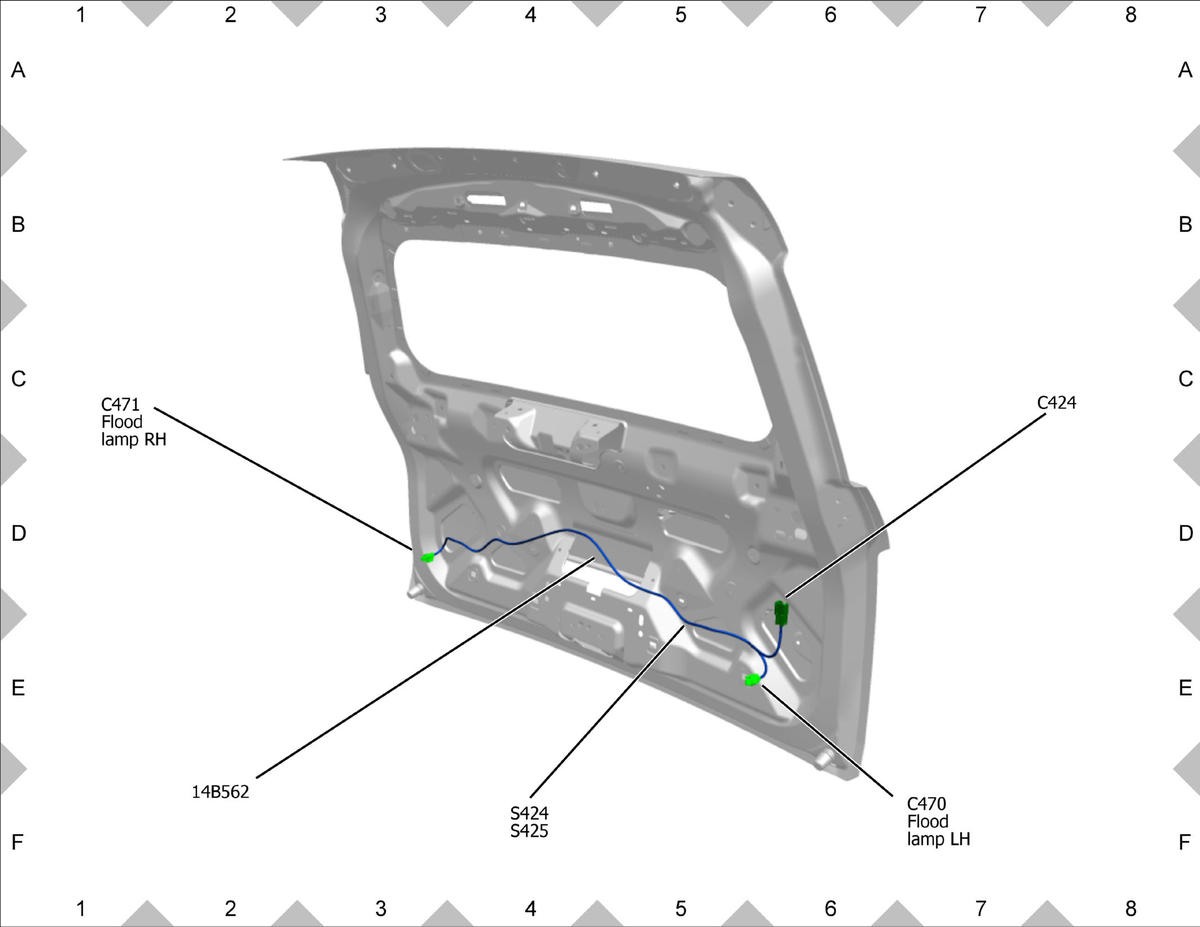

GFDWR131268Courtesy of FORD MOTOR COMPANY

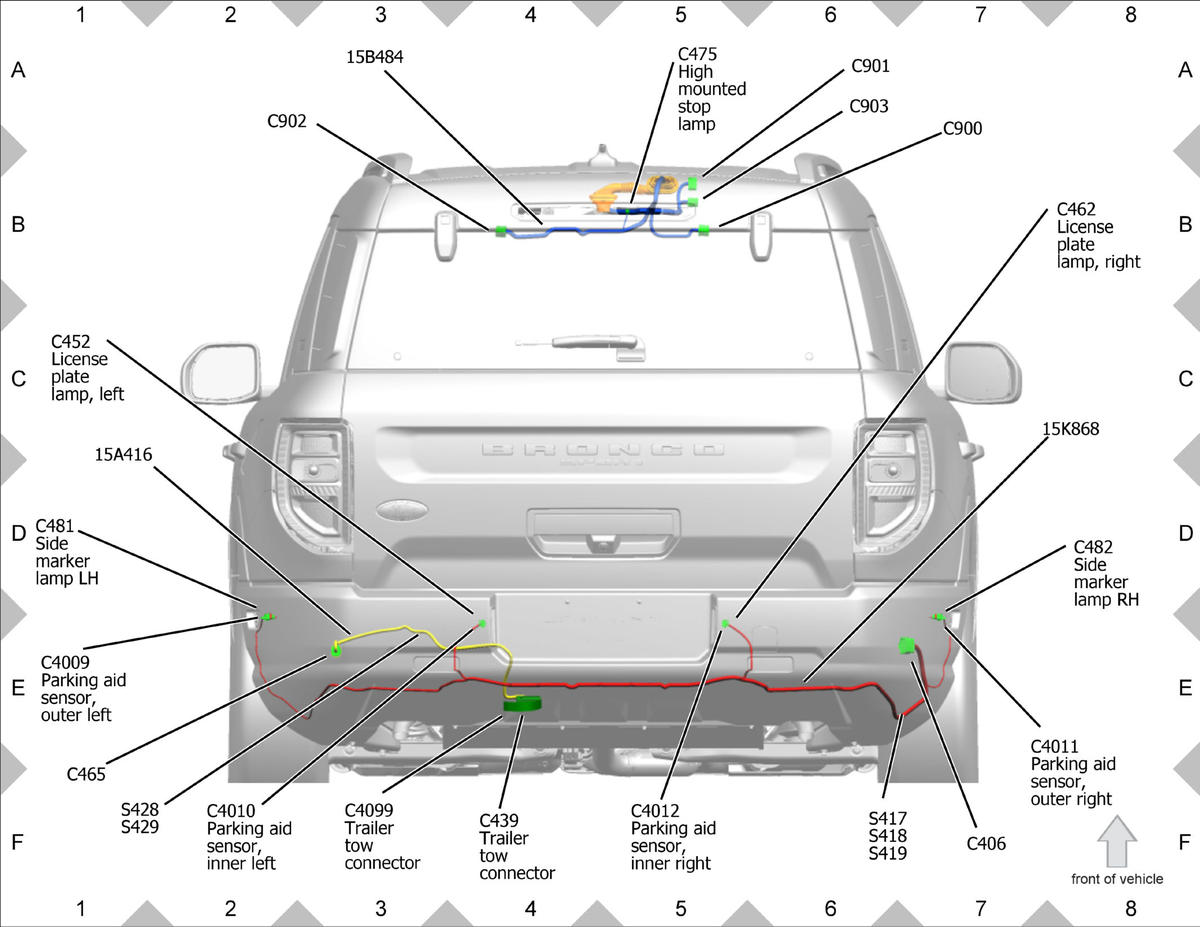

GFDWR131269Courtesy of FORD MOTOR COMPANY
