Steering Column Lower Shaft: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected or damage to the steering column internal sensor may result.

Using a holding device, hold the steering wheel in the straight-ahead position.

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result.

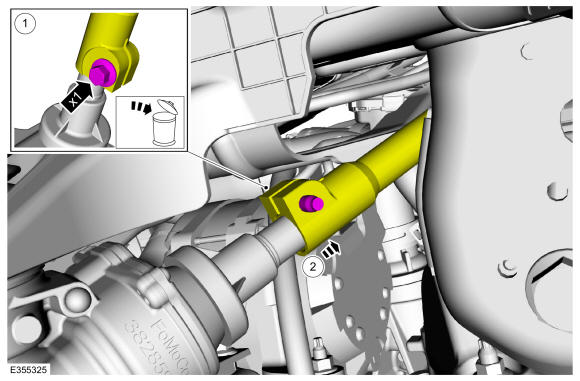

1. Remove and discard the steering column shaft coupler retainer.
  Torque

  : 22 lb.ft (30 Nm)
2. Separate the lower steering column shaft from the steering gear.
Courtesy of FORD MOTOR COMPANY
Remove the LH fender splash shield. Refer to: Fender Splash Shield .
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

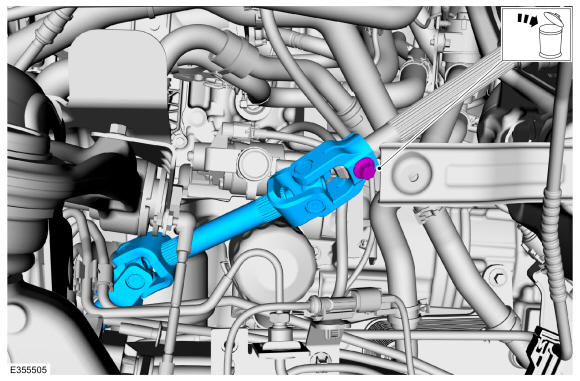

Remove and discard the bolt and remove the lower steering column shaft.

Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
