Tie Rod End: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Left hand drive (LHD) shown, right hand drive (RHD) similar.

NOTE: Disconnect the battery ground cable anytime the steering linkage is being serviced or damage to the steering gear may occur resulting in steering gear replacement.

Refer to: Battery Disconnect and Connect .
Remove the wheel and tire. Refer to: Wheel and Tire .

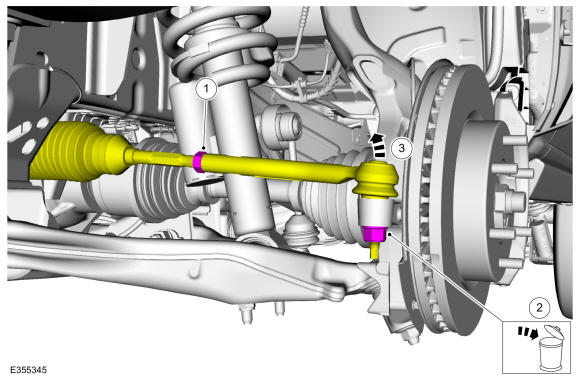

1. Loosen the tie rod end jam nut.
  Torque: 76 lb.ft (103 Nm)
2. NOTE: Use the hex-holding feature to prevent the stud from turning while removing/installing the nut.

  Remove and discard the outer tie rod end nut.

  Torque: 46 lb.ft (63 Nm)
3. NOTE: Do not use a hammer to separate the tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.

  NOTE: Use care when installing the tie rod separator or damage to the tie-rod end boot may occur.

  Separate the tie rod end from the wheel spindle.. Use the General Equipment: Tie Rod End Remover
Courtesy of FORD MOTOR COMPANY

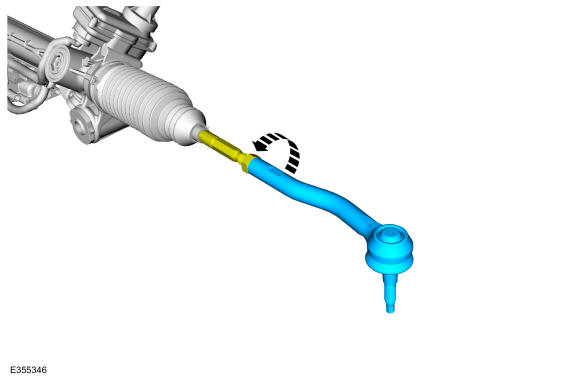

NOTE: Count and record the number of turns required to remove the outer tie-rod end for reference during installation.

Remove the tie rod end.

Courtesy of FORD MOTOR COMPANY
