OEM Electrical Wiring Diagram Introduction: Introduction

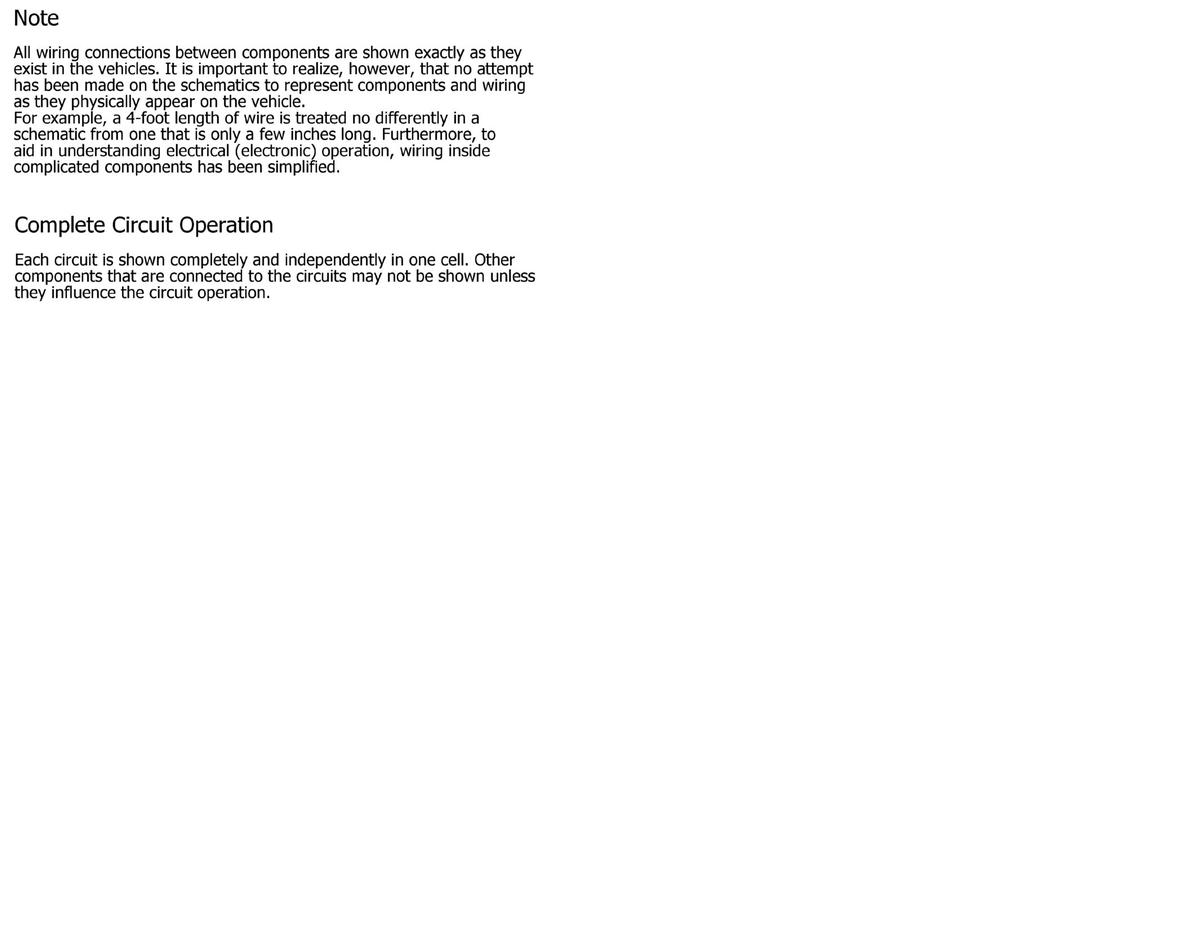

GFDWR151649Courtesy of FORD MOTOR COMPANY

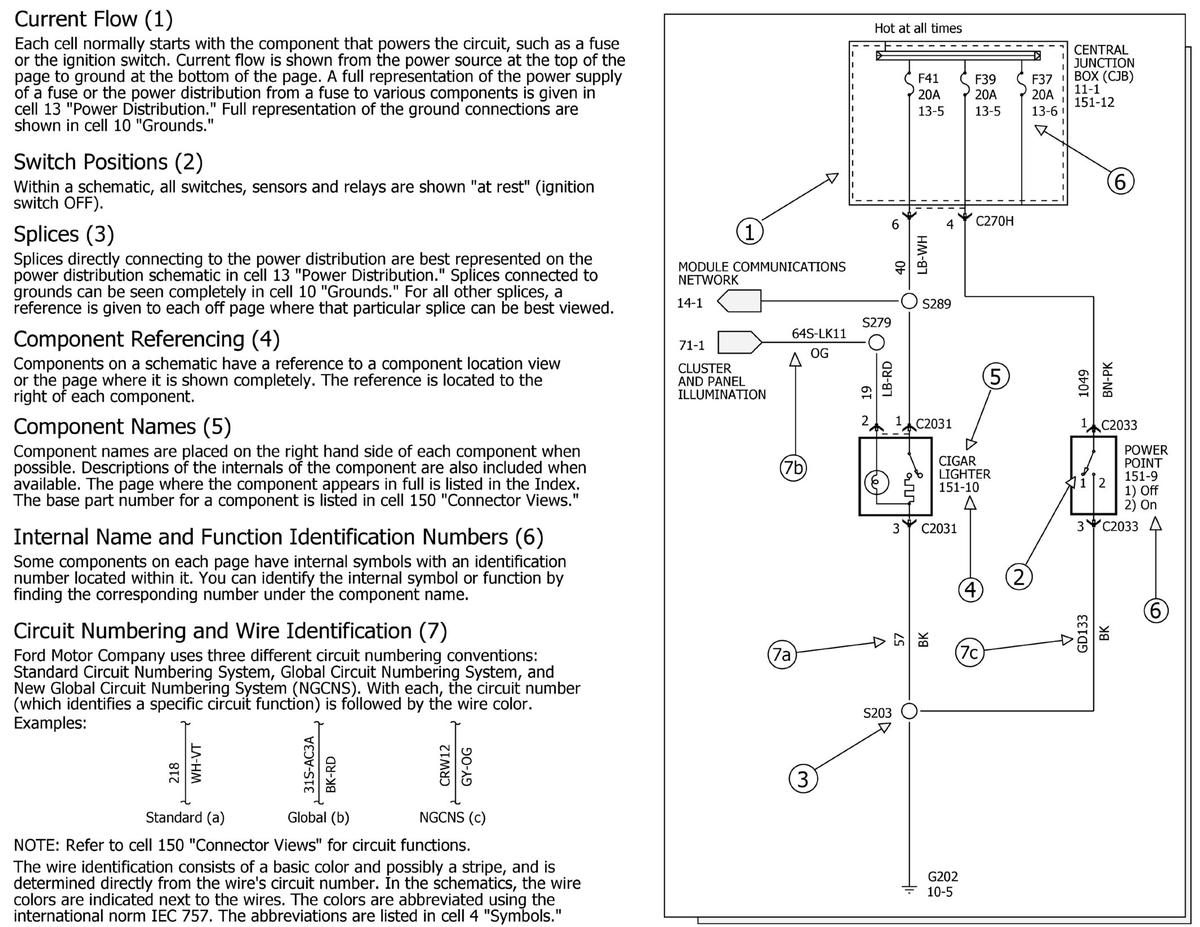

GFDWR151650Courtesy of FORD MOTOR COMPANY

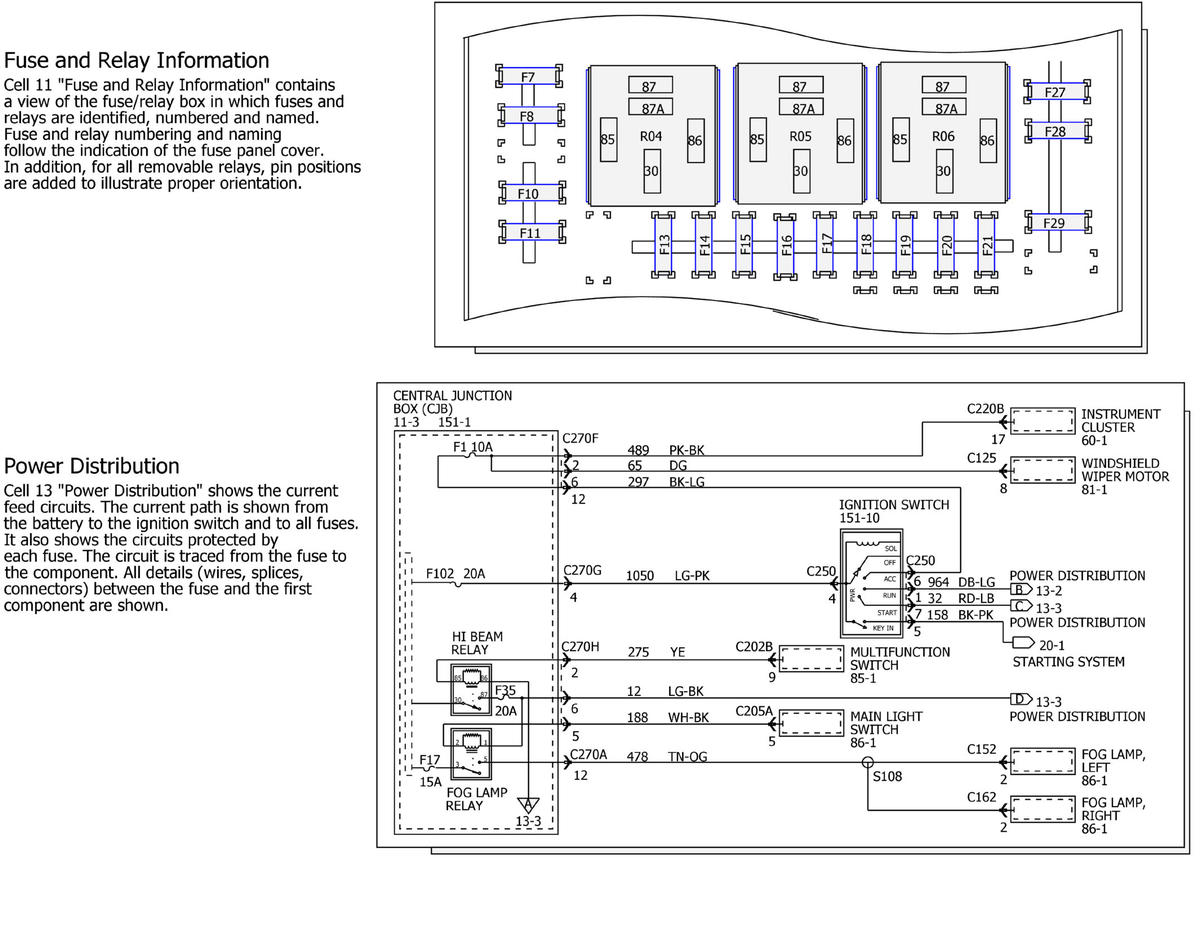

GFDWR151651Courtesy of FORD MOTOR COMPANY

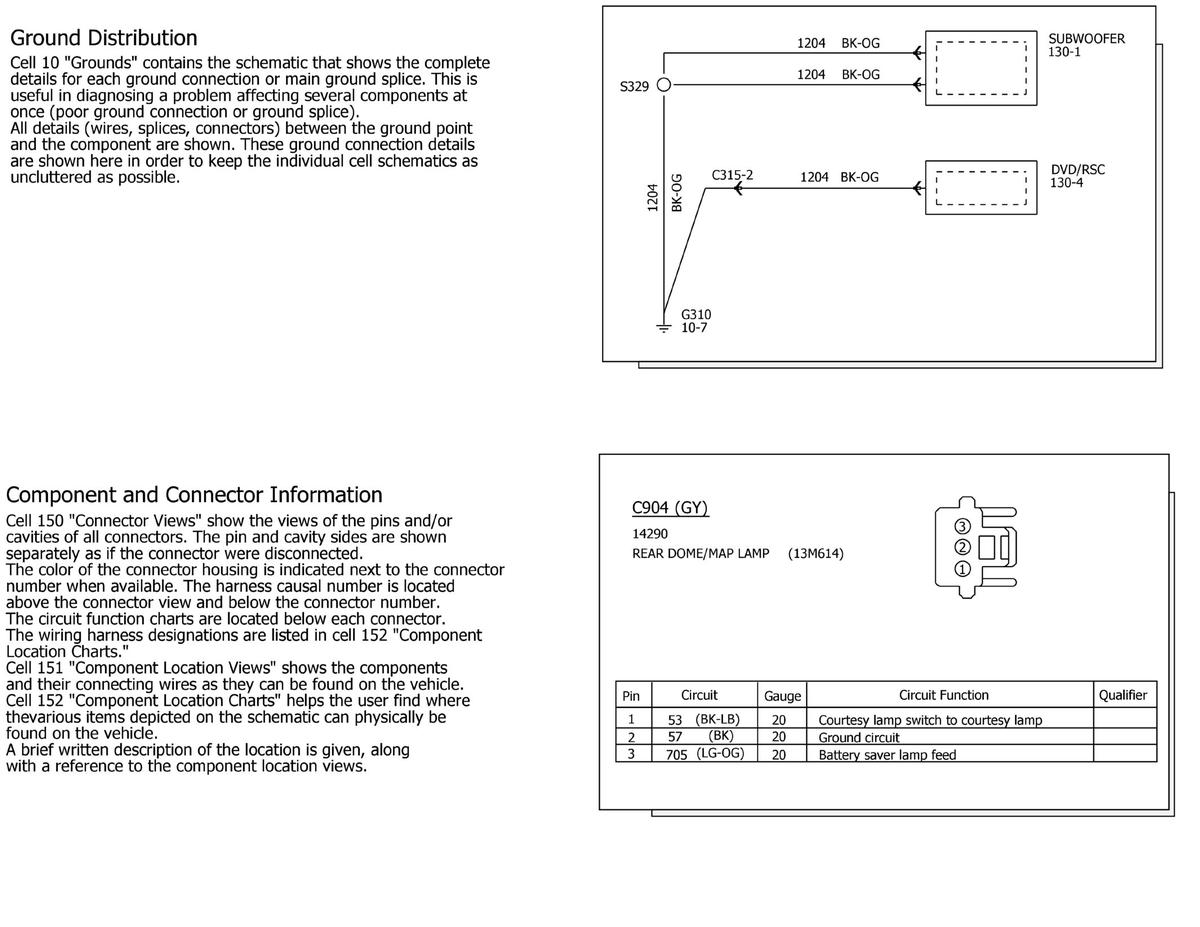

GFDWR151652Courtesy of FORD MOTOR COMPANY

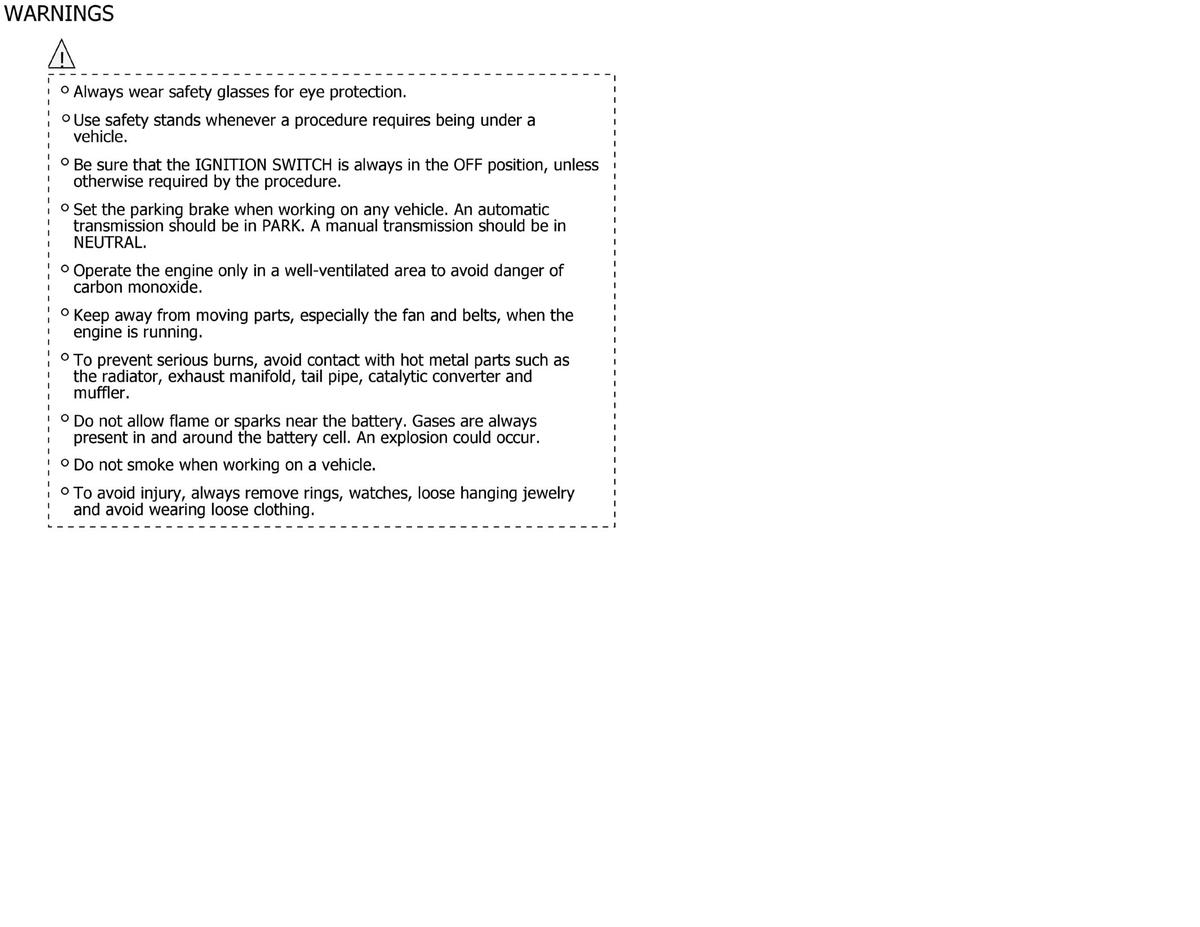

GFDWR151653Courtesy of FORD MOTOR COMPANY
