Removal And Installation: Horn: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the headlamp assembly. Refer to: Headlamp Assembly .
-

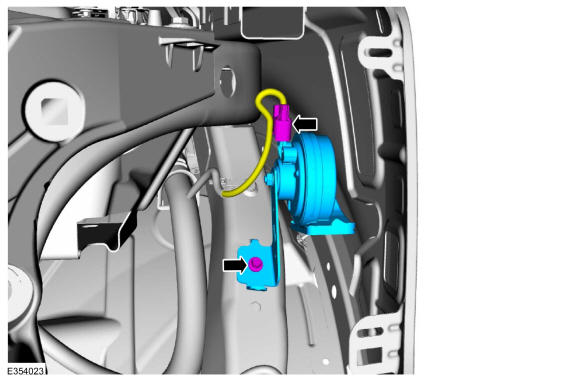

NOTE: LH (left hand) low pitch horn assembly shown in illustration, RH (right hand) high pitch horn assembly similar.
Remove the bolt, disconnect the electrical connector and remove the horn.
Torque
: 106 lb.in (12 Nm)
