Overhead Console: Removal

  1. Remove the windshield header trim panel. Refer to: Windshield Header Trim Panel .

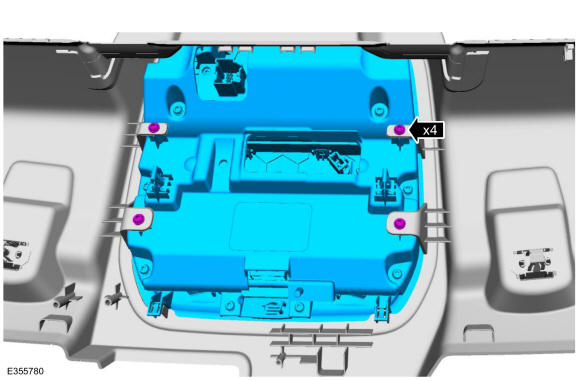

  2. Remove the screws.
    GFD628234Courtesy of FORD MOTOR COMPANY

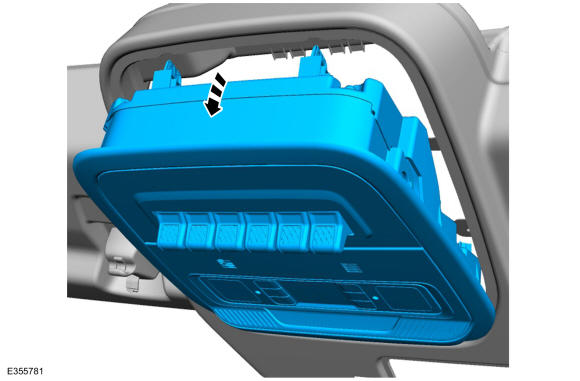

  3. Working from back to front, release the retainers and remove the overhead console
    GFD628235Courtesy of FORD MOTOR COMPANY

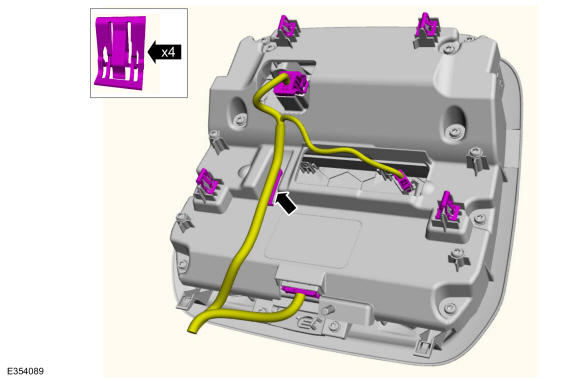

  4. Disconnect the electrical connectors.
GFD628236Courtesy of FORD MOTOR COMPANY
