Axle Assembly: Removal

  1. Remove the engine rear undershield. Refer to: Engine Rear Undershield .
  2. Remove the LH fender splash shield. Refer to: Fender Splash Shield .
  3. Remove the front driveshaft. Refer to: Front Driveshaft .
  4. Remove the front halfshafts. Refer to: Halfshaft .
    1. Disconnect the ELD electrical connector.
    2. Detach the retainers and position the ELD wiring harness aside.
    GFD623595Courtesy of FORD MOTOR COMPANY

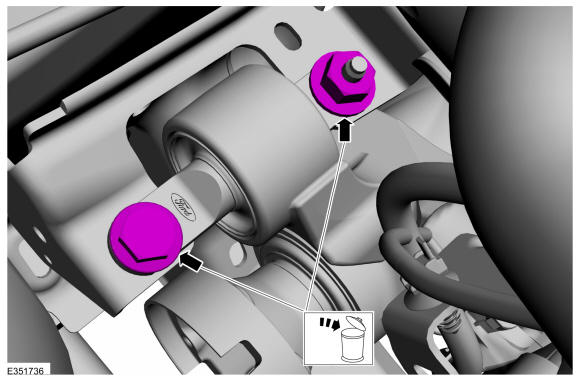

  6. Remove and discard the front axle carrier upper mounting bracket bolt and the nut.
    GFD623596Courtesy of FORD MOTOR COMPANY

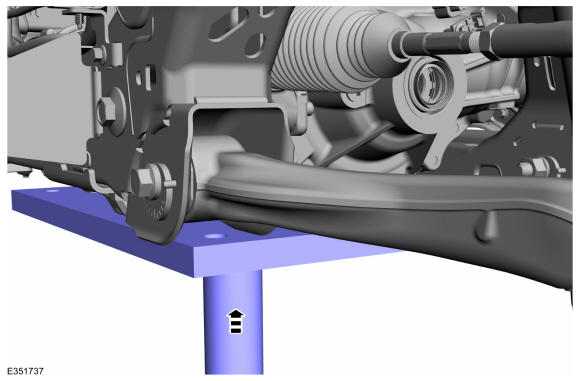

  7. Using transmission jack, support the front axle assembly. Use the General Equipment: Transmission Jack
    GFD623597Courtesy of FORD MOTOR COMPANY

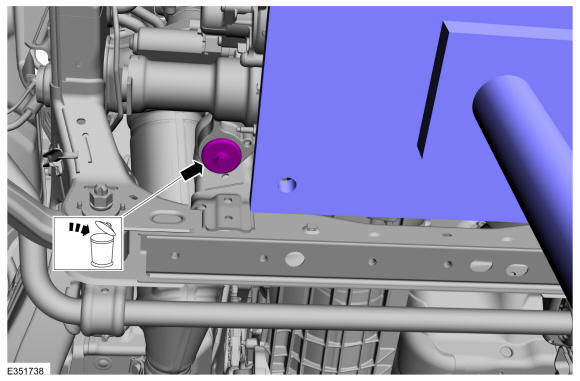

  8. Remove and discard the front axle tube bushing bolt. Use the General Equipment: Transmission Jack
    GFD623598Courtesy of FORD MOTOR COMPANY

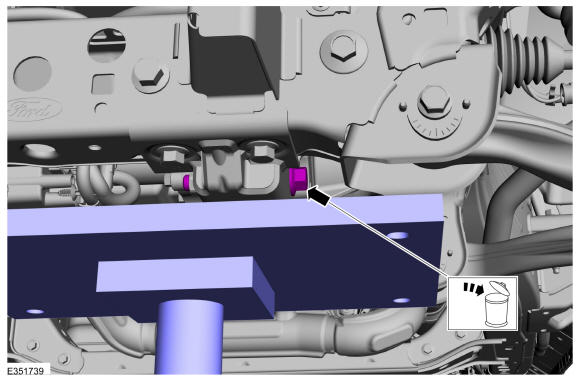

  9. Remove and discard the front axle cover bushing bolt. Use the General Equipment: Transmission Jack
    GFD623599Courtesy of FORD MOTOR COMPANY

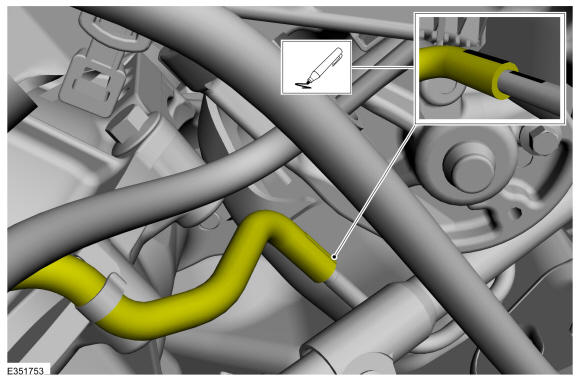

    • Highlight the installation mark on the breather hose and tube.

    • Detach the breather hose from tube.

    GFD623600Courtesy of FORD MOTOR COMPANY

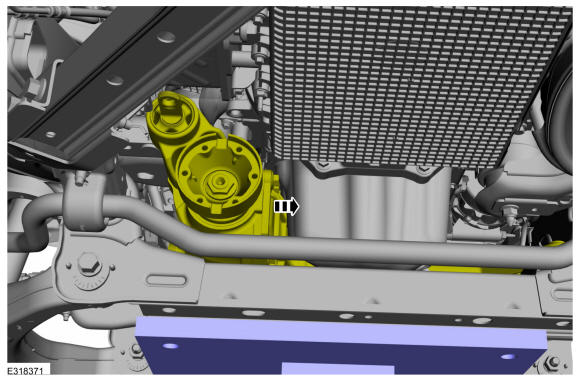

  11. Position the axle assembly slightly towards the center of the vehicle.
    GFD623601Courtesy of FORD MOTOR COMPANY

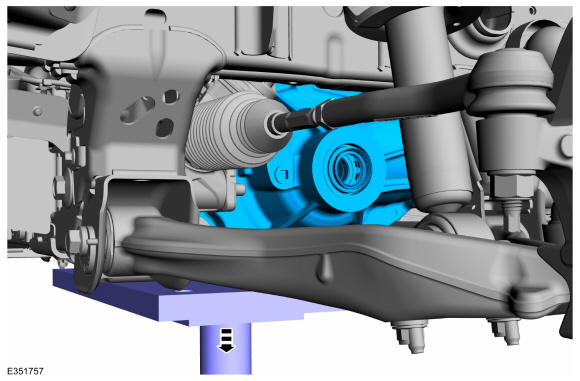

  12. Lower the transmission jack and the front axle assembly. Use the General Equipment: Transmission Jack
GFD623602Courtesy of FORD MOTOR COMPANY
