Front Seat Control Switch: Removal

NOTE: Driver seat shown in illustration, passenger seat similar.
  1. Remove the front seat. Refer to: Front Seat .

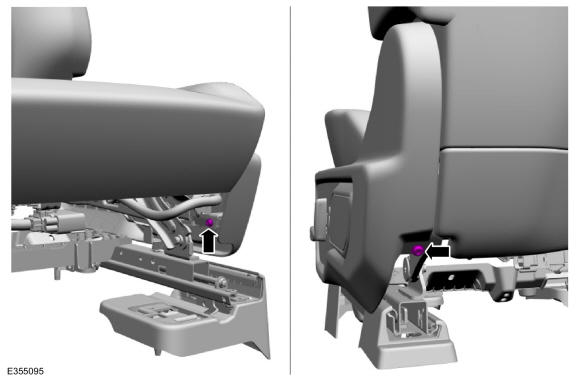

  2. Remove the front seat side shield screws.
    GFD627958Courtesy of FORD MOTOR COMPANY

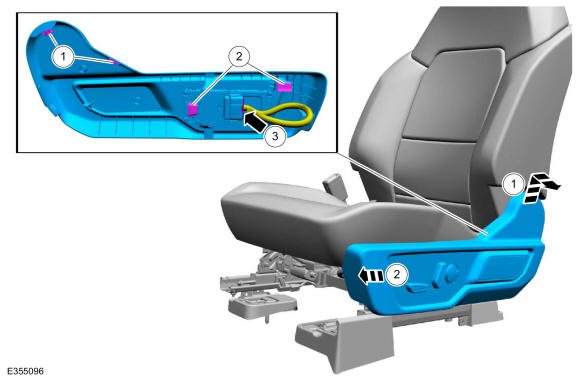

  3. Remove the front seat side shield.

    1. Firmly grasp the front seat side shield, lift up and out, separating the front seat side shield from the recliner bracket.
    2. Slide the front seat side shield forward and separate the front seat side shield from the seat.
    3. Disconnect the front seat control switch electrical connector.

    GFD627963Courtesy of FORD MOTOR COMPANY

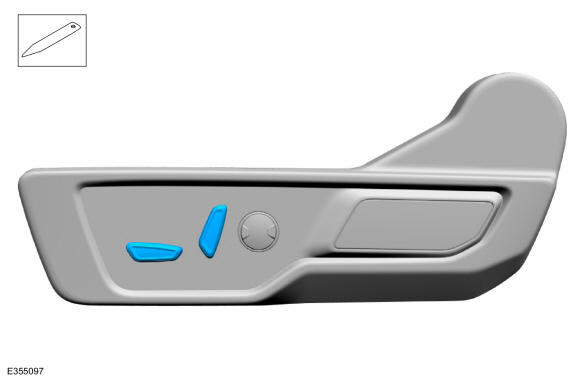

  4. Remove the front seat control switch knobs. Use the General Equipment: Interior Trim Remover
    GFD627988Courtesy of FORD MOTOR COMPANY

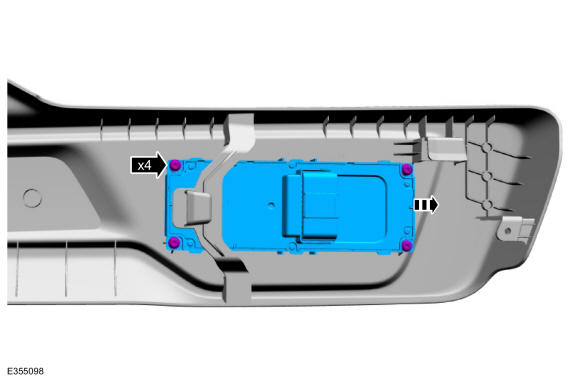

  5. Remove the screws and the front seat control switch.
GFD627989Courtesy of FORD MOTOR COMPANY
