Panhard Rod Bracket: Installation
- Refer to: JOINING TECHNIQUES .
- Loosely clamp the replacement bracket in a preliminary position. Perform measurements to verify proper placement of the panhard rod bracket, then clamp firmly into position.

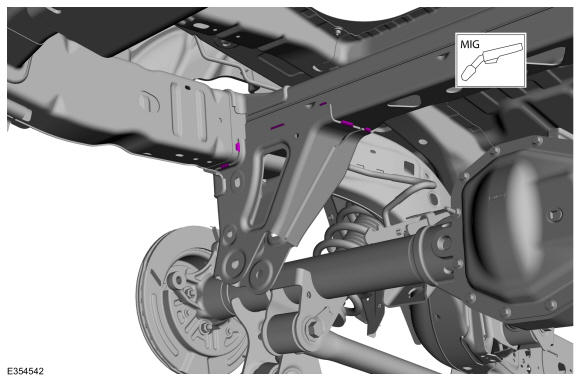

- With all measurements verified and the new bracket in proper position, tack-weld the new bracket in place to the frame crossmember and side rails.
Use the General Equipment: MIG/MAG Welding Equipment
Use the General Equipment: Locking Pliers
- With all measurements verified and the new bracket in proper position, tack-weld the new bracket in place to the frame crossmember and side rails.
- Re-check measurements, then solid weld the bracket to the frame.

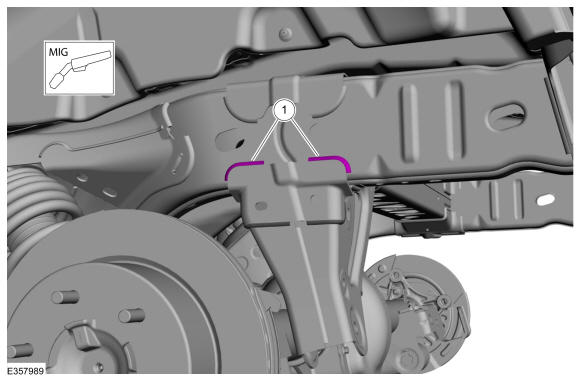

- Weld length - 80mm Use the General Equipment: MIG/MAG Welding Equipment
- Weld length - 263mm
- Re-check measurements, then solid weld the bracket to the frame.

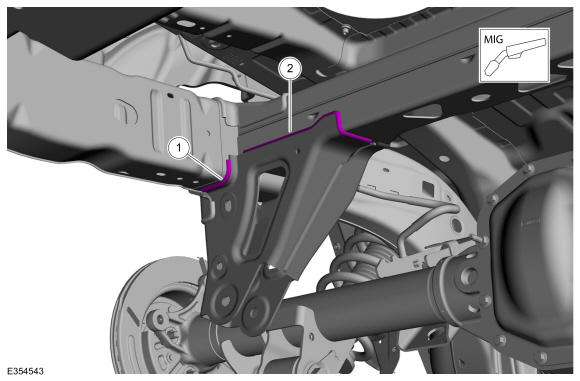

- Weld length - 229mm Use the General Equipment: MIG/MAG Welding Equipment
- Weld length - 73mm
- Re-check measurements, then solid weld the bracket to the frame.

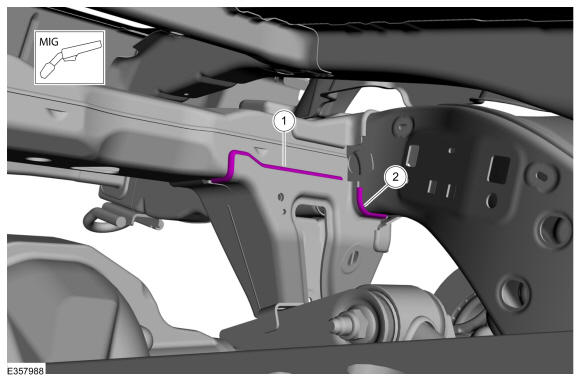

- Weld length - 56mm Use the General Equipment: MIG/MAG Welding Equipment

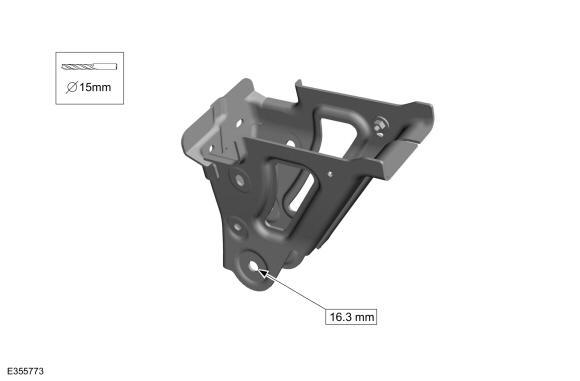

- Mark out the desired position for the panhard rod assembly bolts using the position obtained earlier and drill a hole on either side of the panhard rod bracket. Use the General Equipment: 15 mm Drill Bit
- Metal finish the repair area using typical metal finishing techniques.
- Restore corrosion protection. Refer to: CORROSION PREVENTION .
- Install the panhard rod. Refer to: Panhard Rod - Rear Suspension.
