Radio Transceiver Module (RTM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Carry out the PMI procedure for the RTM. Refer to: Module Configuration - System Operation and Component Description

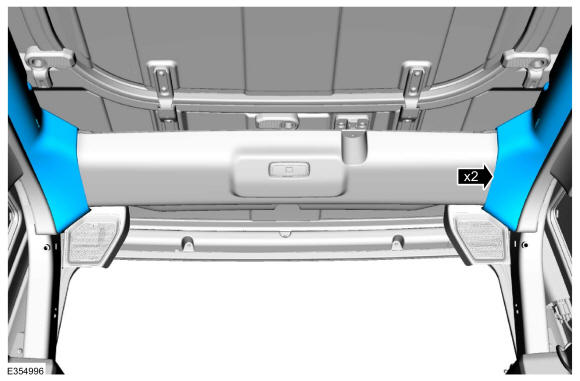

Remove the outer rear trim panels.

Courtesy of FORD MOTOR COMPANY

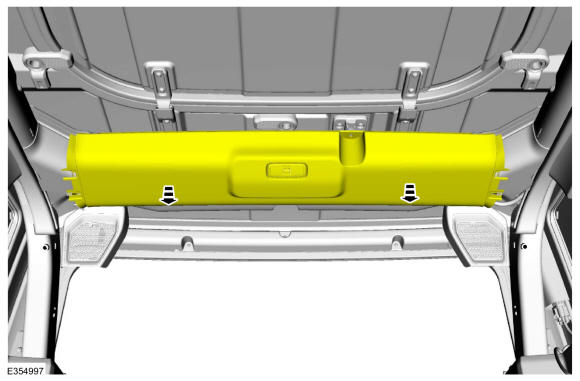

Position the center rear trim panel down.

Courtesy of FORD MOTOR COMPANY

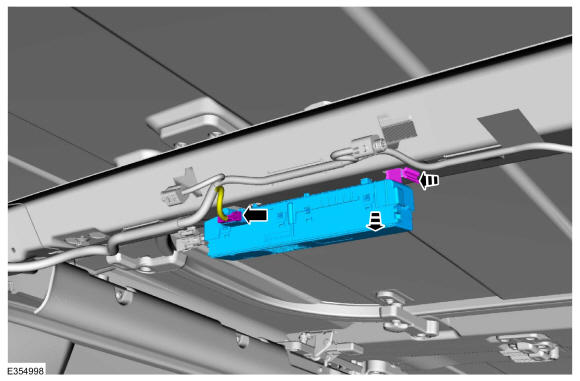

Release the RTM bracket clip, Disconnect the electrical connector and remove the RTM.

Courtesy of FORD MOTOR COMPANY
