Front Toe Adjustment

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTE: Before carrying out a toe adjustment, check the tires for the correct pressure. Inspect the tires for incorrect wear or damage. Inspect the suspension for wear or damage.

NOTE: Make sure that the vehicle is standing on a level surface.

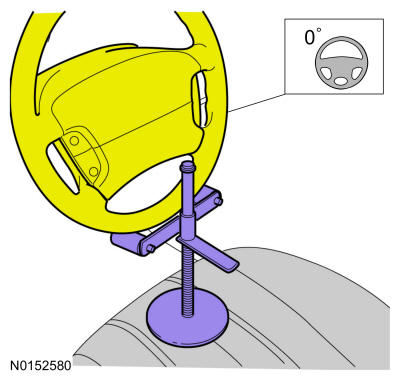

Steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY
Using alignment equipment and the manufacturer's instructions, check the front toe setting on both sides. Use the General Equipment: Wheel Alignment System

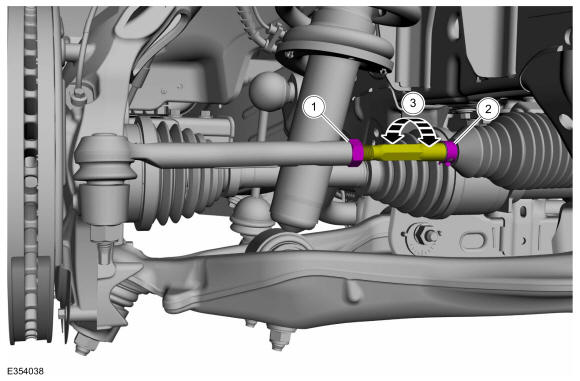

1. On both sides. Loosen the outer tie rod end jamb nut.
  Torque: 76 lb.ft (103 Nm)
2. On both sides. Position aside the steering gear boot clamp.
3. NOTE: Do not allow the steering gear bellows to twist when the inner tie rod is rotated.

  Rotate the inner tie-rods in either a clockwise or a counterclockwise direction to adjust the toe setting on both sides.
Courtesy of FORD MOTOR COMPANY
Recheck the toe settings and adjust as necessary.
NOTE: If equipped with Lane Departure Warning (LDW) System, camera alignment is required for the lane keeping alert and lane keeping aid to function correctly.

Connect the scan tool and perform the IPMA camera alignment procedure. Follow the scan tool directions.
