Steering Column Upper Shaft: Installation

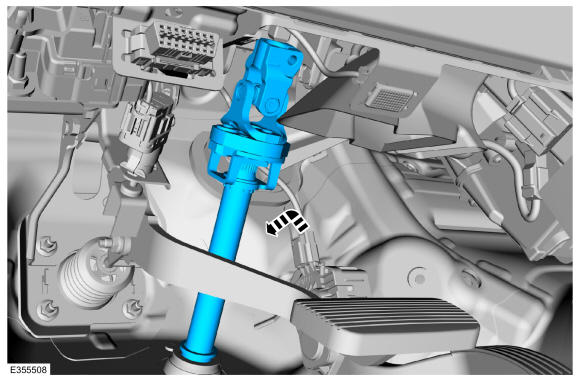

Install the steering column upper shaft.

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

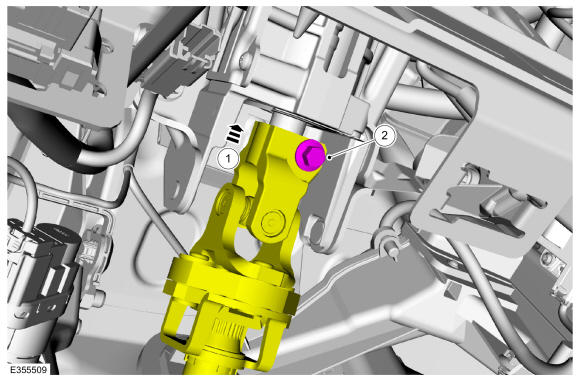

Connect the steering column upper shaft to the steering column.
1. Connect the steering column upper shaft to the steering column.
2. Install the new retainer.
  Torque

  : 21 lb.ft (28 Nm)
Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

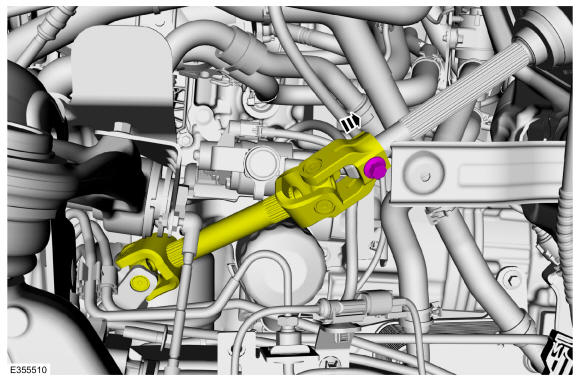

Connect the lower steering column shaft to the upper steering column shaft and install the retainer.

Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH fender splash shield. Refer to: Fender Splash Shield .
