Front Seat Backrest: Installation

  1. To install, reverse the removal procedure.
  2. On both sides, install the front seat backrest bolts in the following sequence.

    1. Install the bolt.

      Torque

      : 35 lb.ft (47.5 Nm)

    2. Install the bolt.

      Torque

      : 35 lb.ft (47.5 Nm)

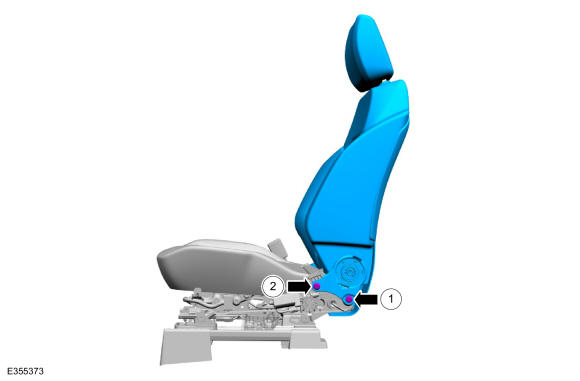

Fig 1: Front Seat Backrest Bolts Tightening Sequence
GFD627976Courtesy of FORD MOTOR COMPANY
