Selector Lever Knob: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

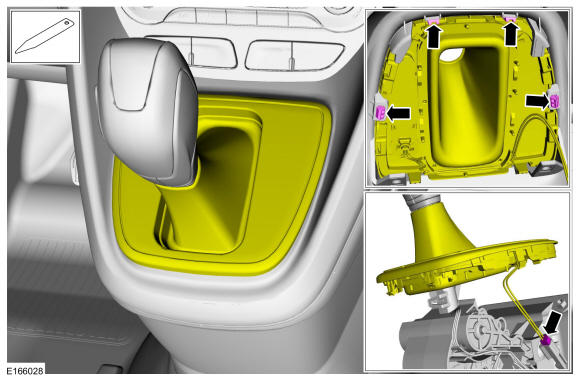

Disengage the 4 retaining tabs and lift the selector lever bezel up and disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

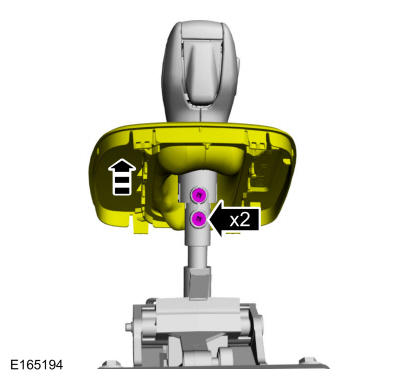

Lift the selector lever bezel up and remove the retainers.

Courtesy of FORD MOTOR COMPANY

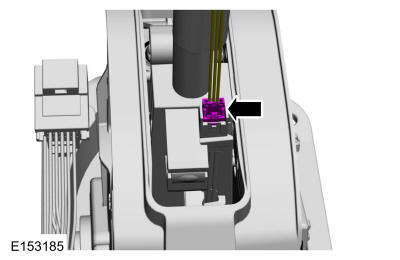

Disconnect the select shift switch electrical connector.

Courtesy of FORD MOTOR COMPANY

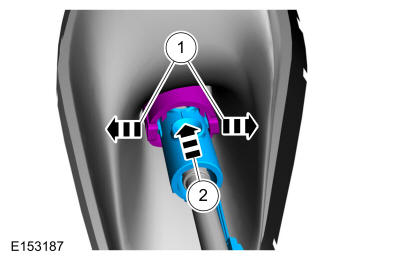

1. Disengage the selector lever knob from the retaining tabs.
2. Separate the selector lever knob from the selector lever bezel.
Courtesy of FORD MOTOR COMPANY
Remove the selector lever knob.

Courtesy of FORD MOTOR COMPANY
