Connector Repair Procedures

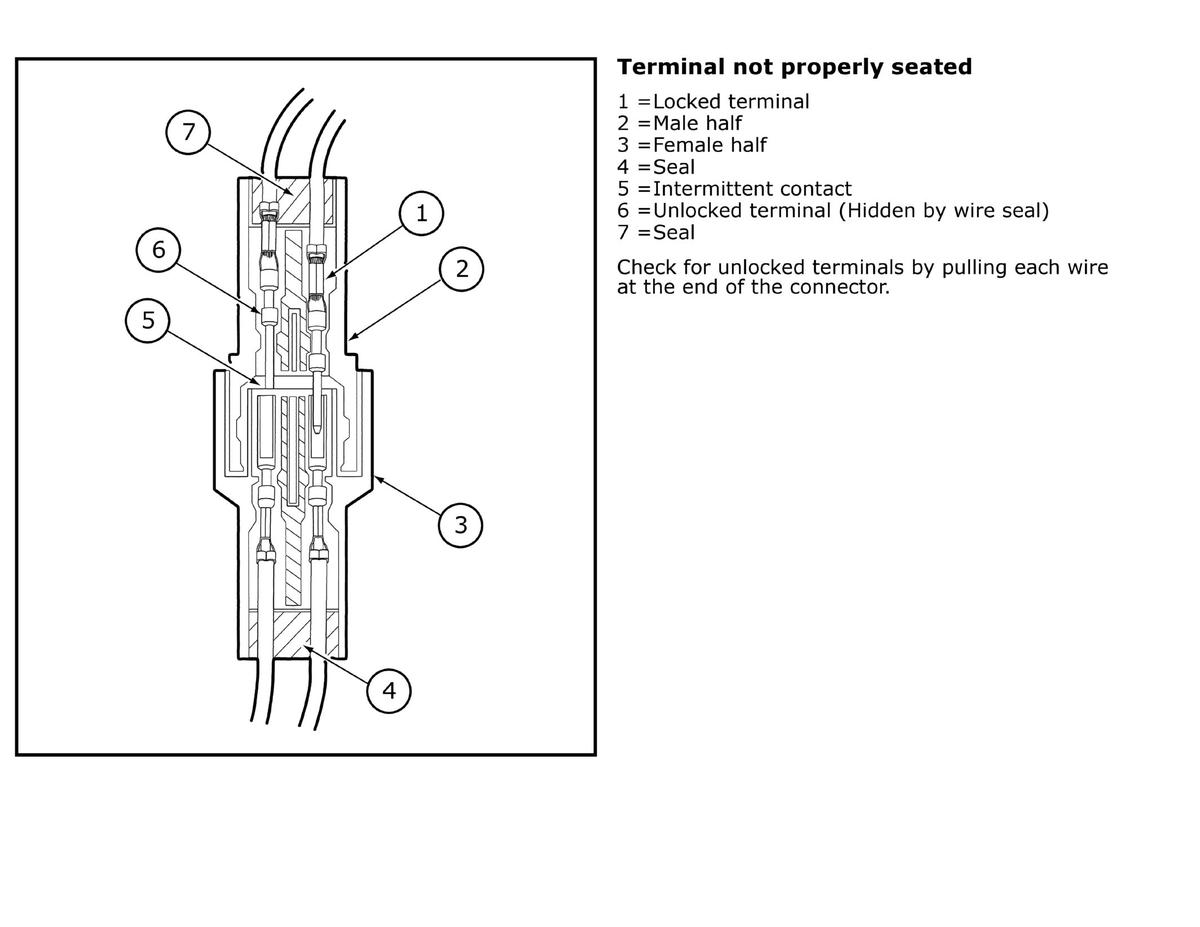

GFDWR79812Courtesy of FORD MOTOR COMPANY

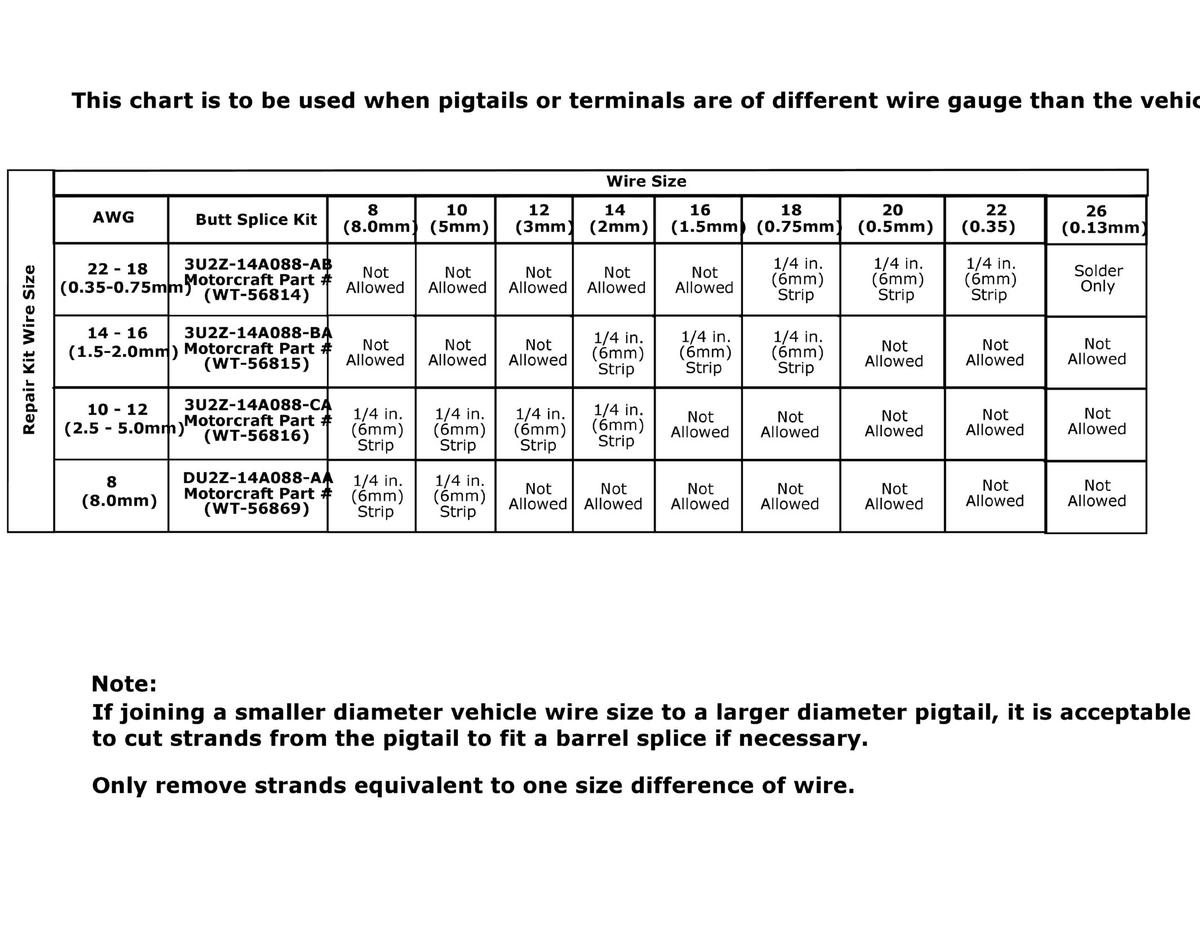

GFDWR79813Courtesy of FORD MOTOR COMPANY

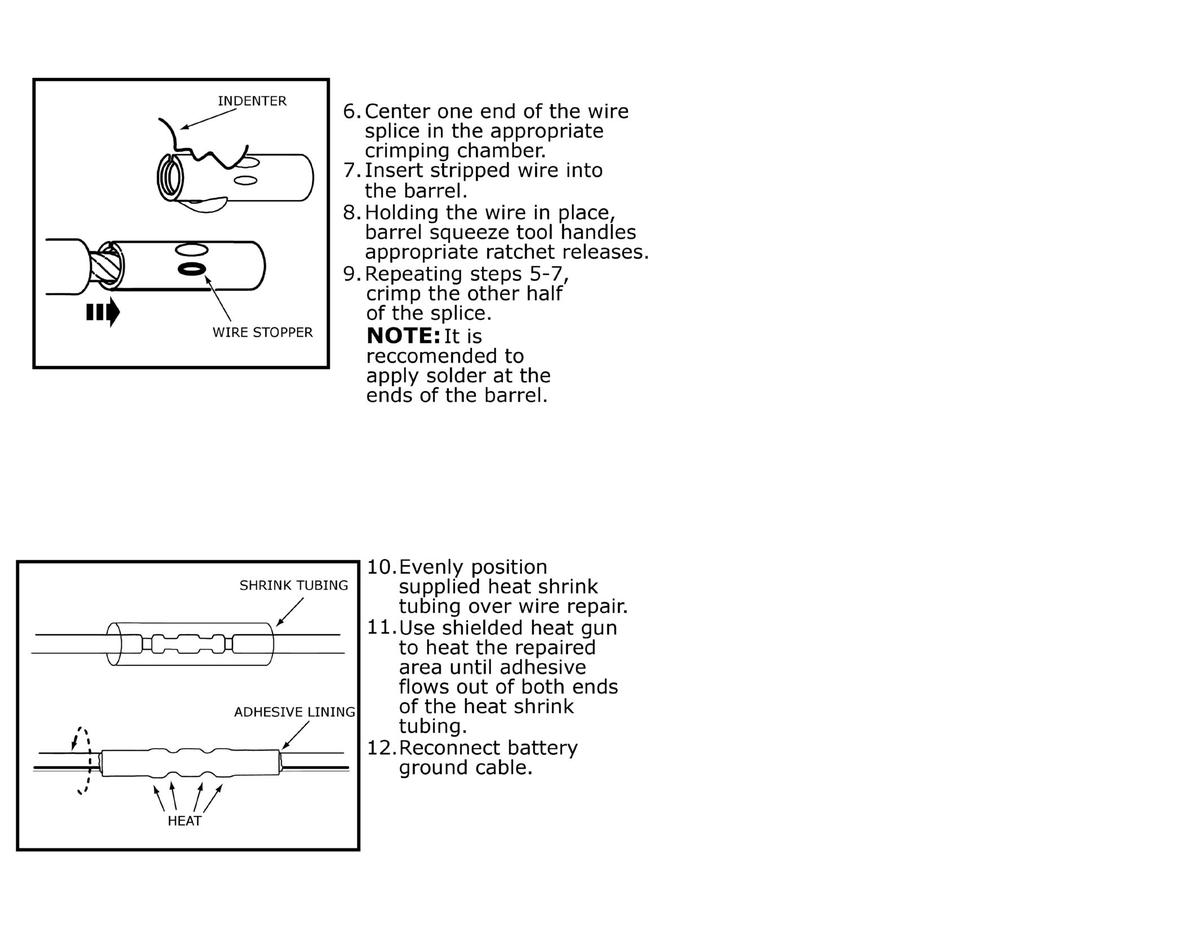

GFDWR79814Courtesy of FORD MOTOR COMPANY

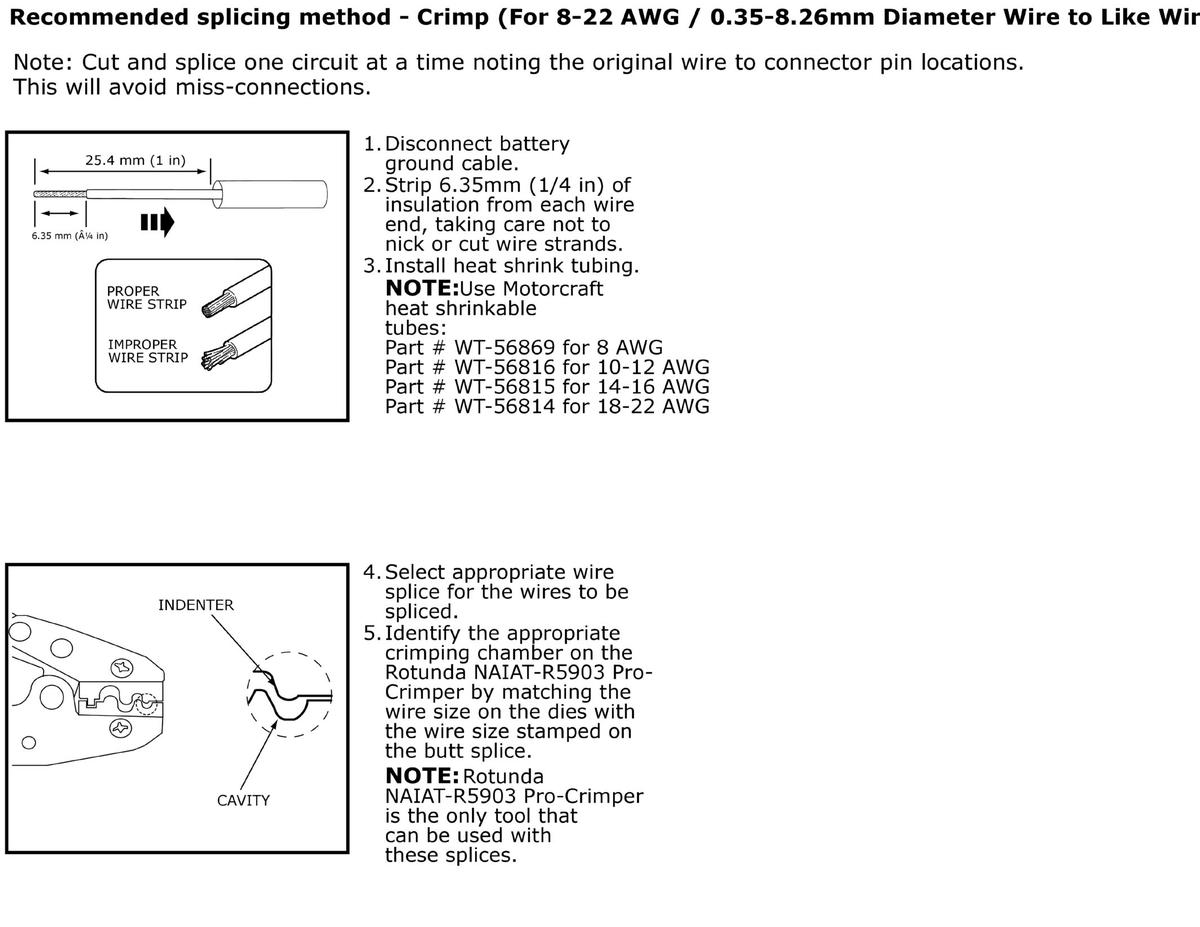

GFDWR79815Courtesy of FORD MOTOR COMPANY

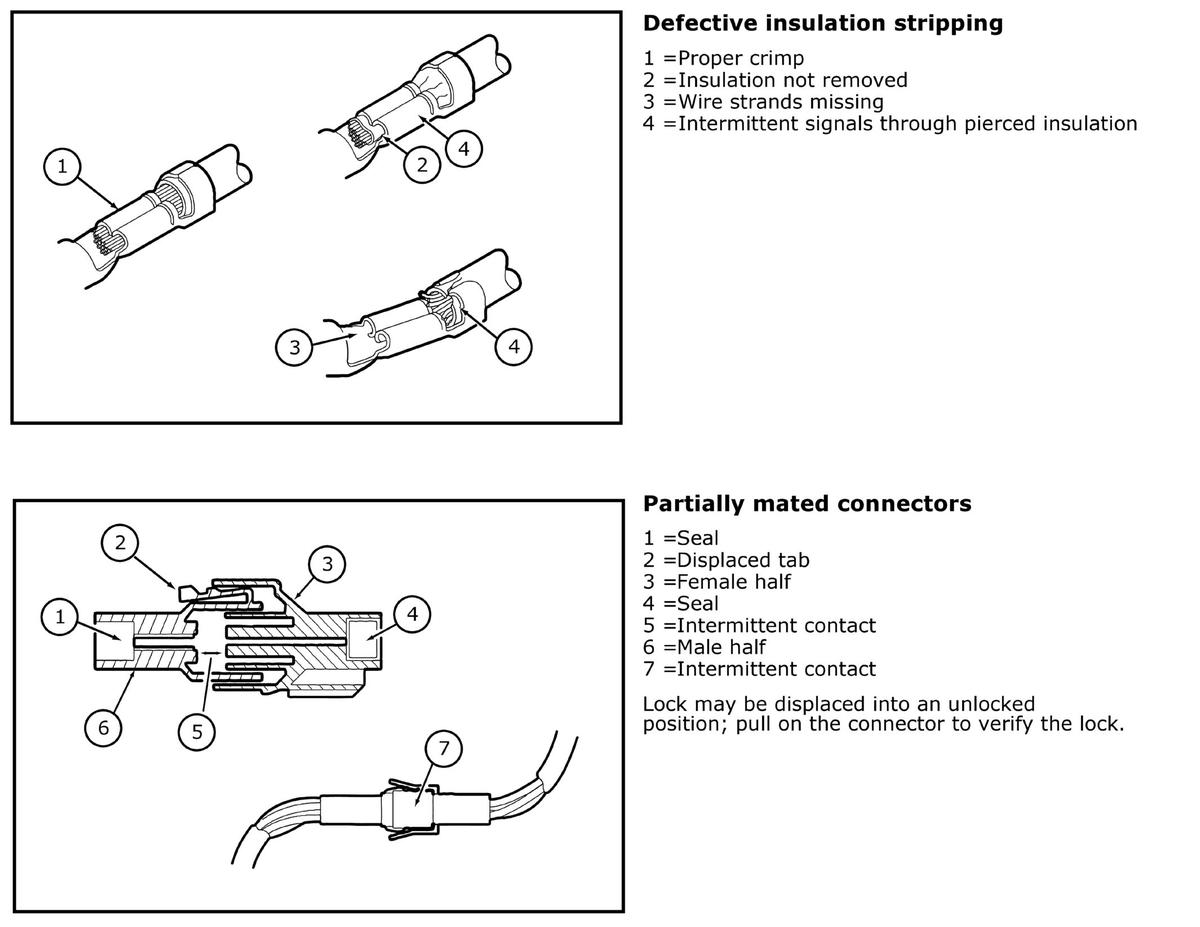

GFDWR79816Courtesy of FORD MOTOR COMPANY

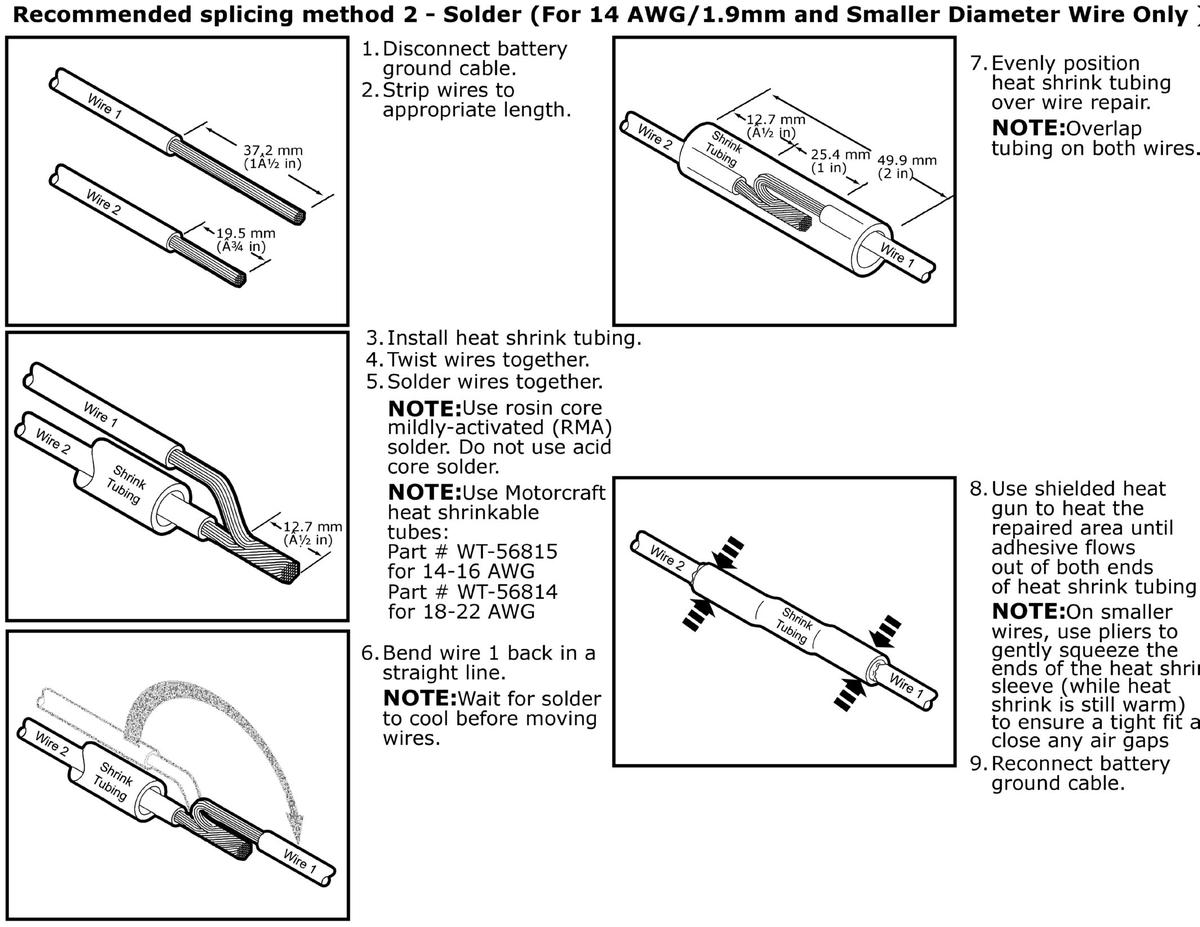

GFDWR79817Courtesy of FORD MOTOR COMPANY

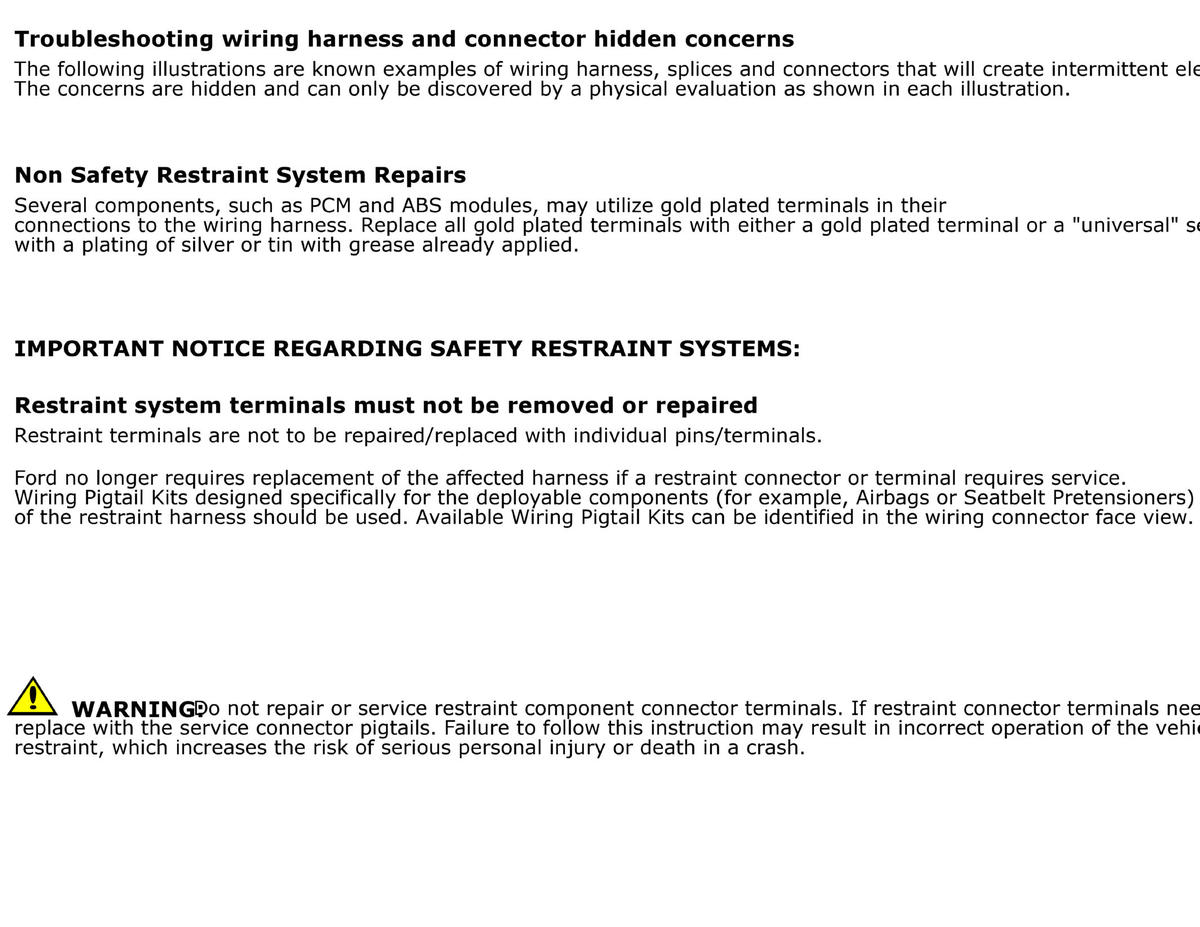

GFDWR79818Courtesy of FORD MOTOR COMPANY

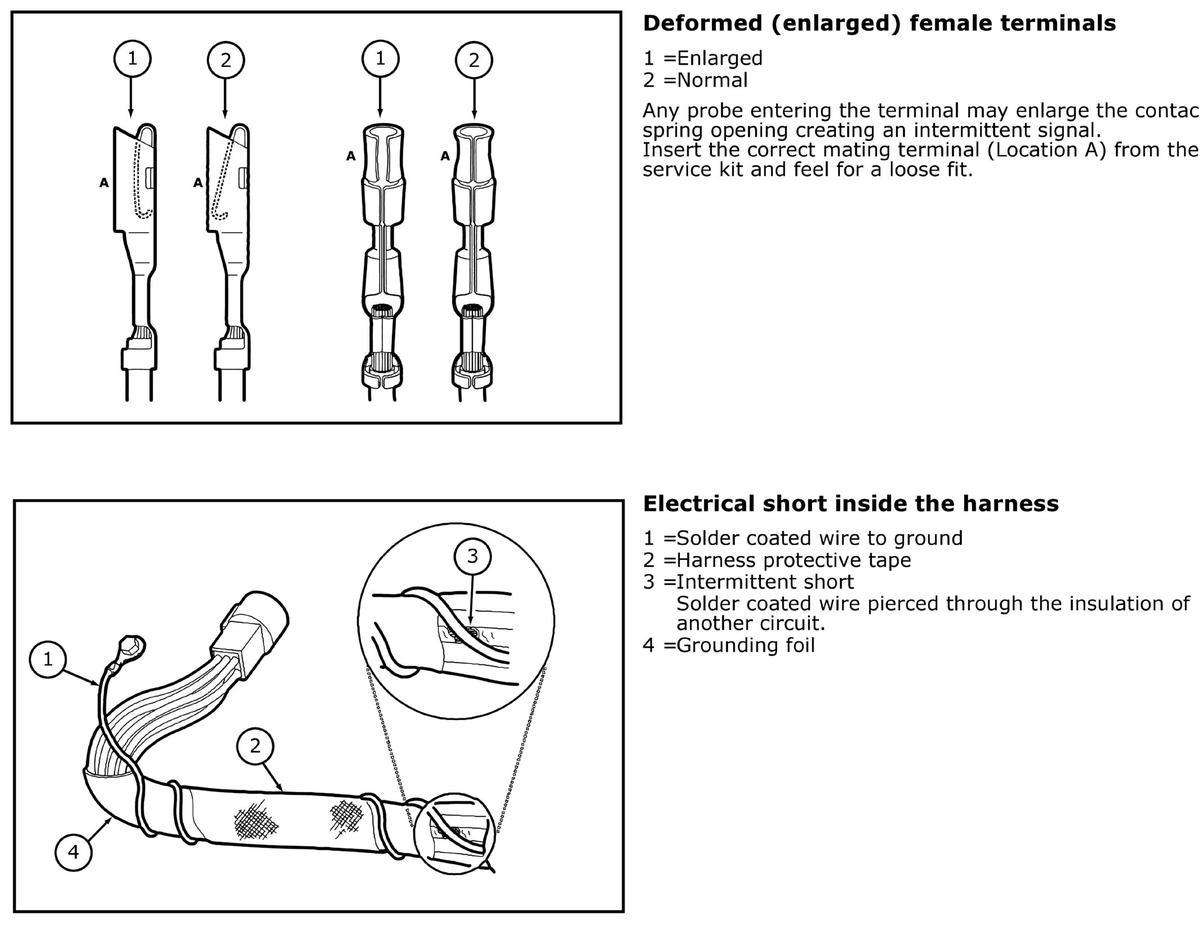

GFDWR79819Courtesy of FORD MOTOR COMPANY

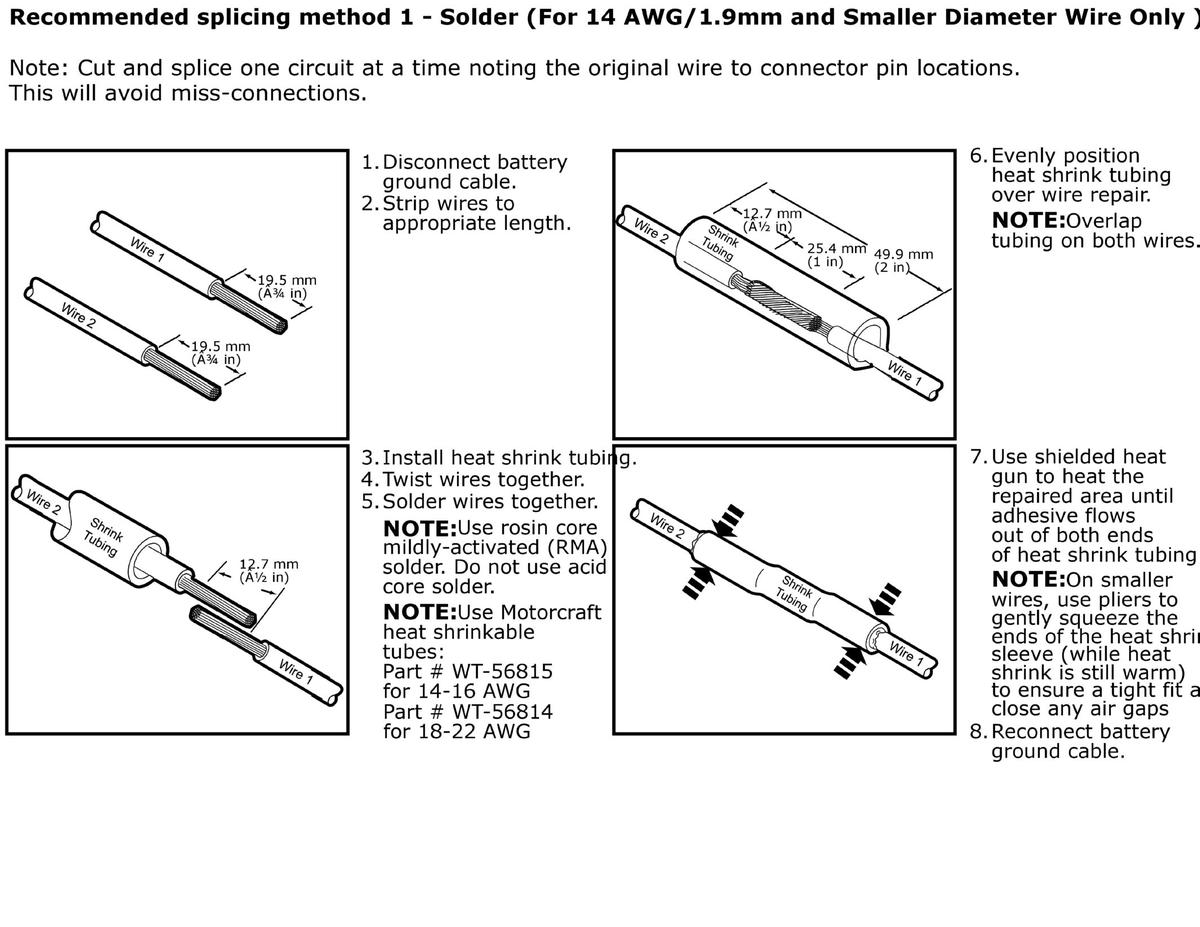

GFDWR79820Courtesy of FORD MOTOR COMPANY
