Electric Powertrain Cooling
WARNING: This page is about a different variant/trim than selected.

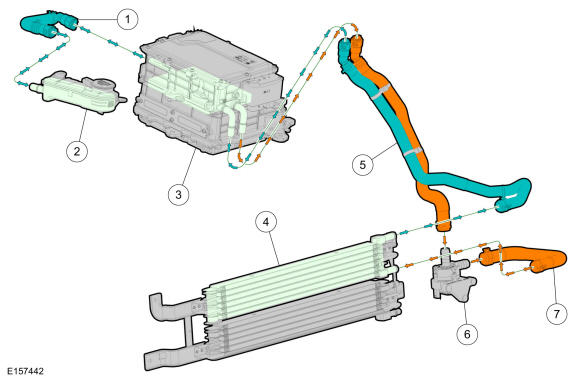

| Item | Part Number | Description |
|---|---|---|
| 1 | 8C351 | Coolant expansion tank-to-secondary on board diagnostic module C/transmission control module (SOBDMC/TMC) hose |
| 2 | 8C045 | Coolant expansion tank |
| 3 | 7B012 | Secondary on board diagnostic module C/transmission control module (SOBDMC/TCM) (Refer to Transmission Description - System Operation And Component Description |
| 4 | 7A095 | Radiator/transmission fluid cooler assembly |
| 5 | 8B274 | Upper hose and clamp assembly |
| 6 | 18D474 | Coolant pump |
| 7 | 8B273 | Lower hose and clamp assembly |
