Electronic Engine Controls - Component Location

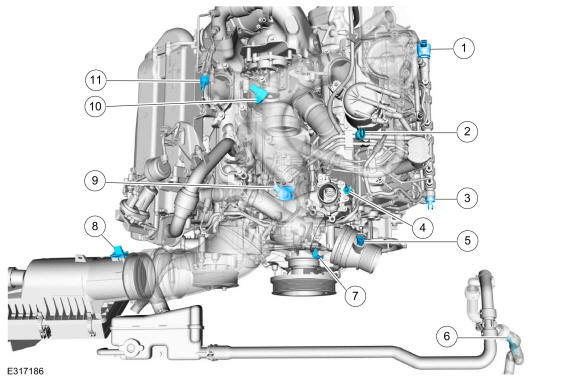

Electronic Engine Controls - Top
| Item | Description |
|---|---|
| 1 | Fuel Pressure Control Valve |
| 2 | Fuel Pressure and Temperature sensor |
| 3 | FRP sensor |
| 4 | ECT sensor |
| 5 | Charge Air Cooler Temperature sensor |
| 6 | ECT Secondary Cooling system (ECT2) sensor |
| 7 | CMP sensor |
| 8 | MAF sensor |
| 9 | Fuel Volume Control Valve |
| 10 | MAP sensor |
| 11 | Exhaust Pressure (EP) sensor |

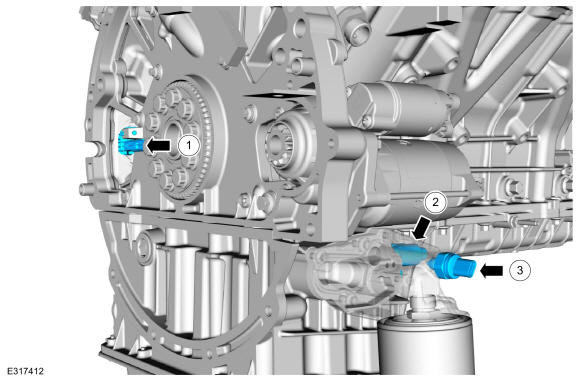

Electronic Engine - Rear
| Item | Description |
|---|---|
| 1 | CKP sensor |
| 2 | Oil Pressure Control Solenoid |
| 3 | Engine Oil Pressure and Temperature sensor |
Electronic Engine Controls - Exhaust System
| Item | Description |
|---|---|
| 1 | Exhaust Gas Temperature sensor 11 |
| 2 | Exhaust Gas Temperature sensor 12 |
| 3 | NOX11 sensor 11 |
| 4 | NOX11 module 11 |
| 5 | DPF Pressure sensor |
| 6 | Exhaust Gas Temperature sensor 13 |
| 7 | NOX12 sensor 12 |
| 8 | NOX12 module 12 |
| 9 | Exhaust Gas Temperature sensor 14 |
| 10 | Patriculate Matter sensor 11 |
| 11 | Particulate Matter sensor Module 11 |

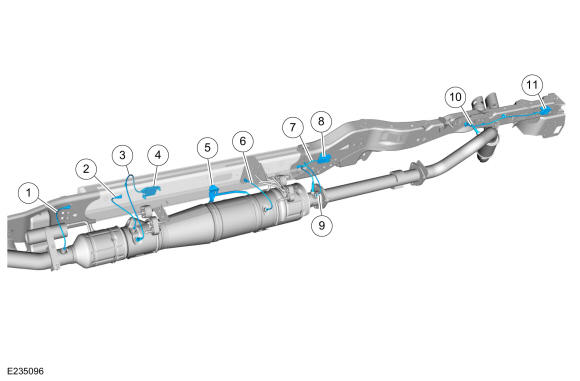

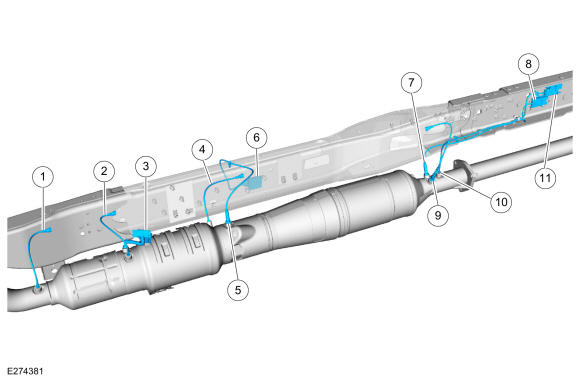

Electronic Engine Controls - Exhaust System - Chassis Cab
| Item | Description |
|---|---|
| 1 | Exhaust Gas Temperature sensor 11 |
| 2 | Exhaust Gas Temperature sensor 12 |
| 3 | DPF Pressure sensor |
| 4 | Exhaust Gas Temperature sensor 13 |
| 5 | NOX11 sensor 11 |
| 6 | NOX11 module 11 |
| 7 | NOX12 sensor 12 |
| 8 | NOX12 module 12 |
| 9 | Patriculate Matter sensor 11 |
| 10 | Exhaust Gas Temperature sensor 14 |
| 11 | Particulate Matter sensor Module 11 |

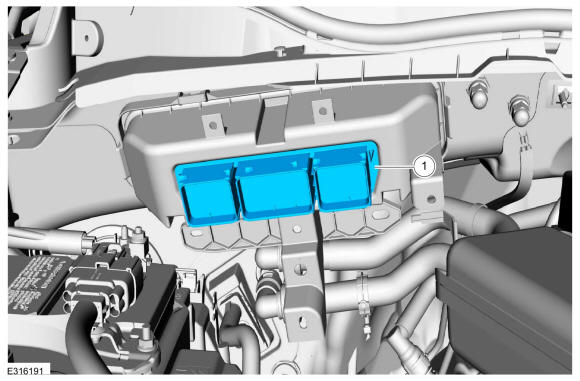

Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
