Overhead Console: Removal

WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

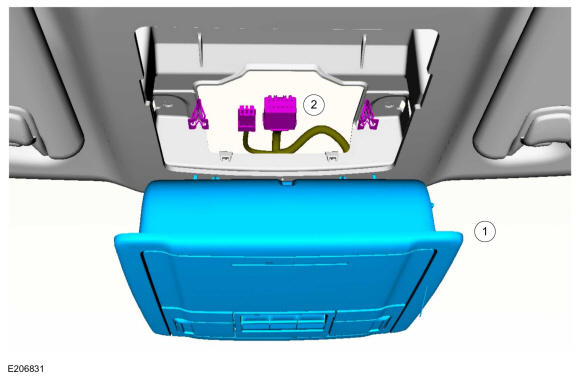

    1. Release the clips and lower the overhead console.
    2. Disconnect the electrical connectors.
GFD418128Courtesy of FORD MOTOR COMPANY
