Lower Arm: Installation

WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

If necessary, install the lower arm bushing. Refer to: Lower Arm Bushing .

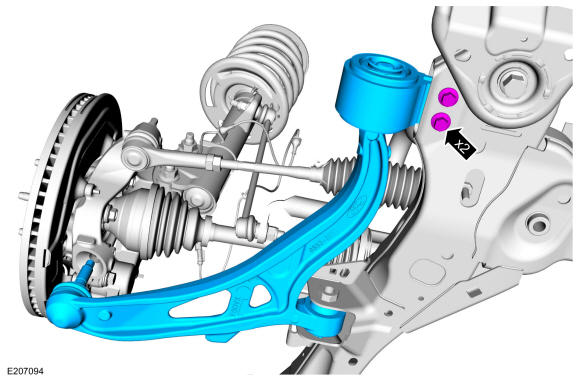

NOTE: Install the new lower arm rearward bolts from the bottom of the lower arm bushing with the nuts on top.

Position the lower arm and install the new lower arm rearward nuts and bolts.

Torque: 73 lb.ft (99 Nm)

Courtesy of FORD MOTOR COMPANY

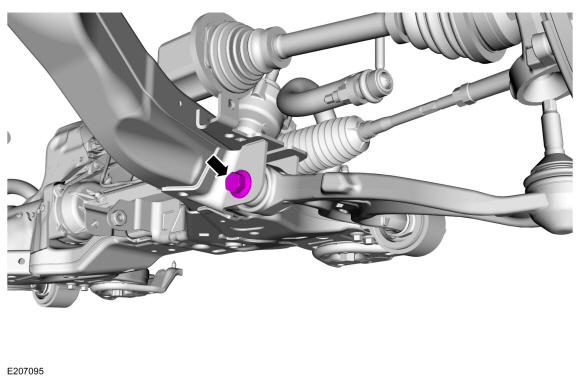

NOTE: Tighten the lower arm forward bolt with the weight of the vehicle on the wheels and tires or damage to the bushings may occur.

NOTE: Only tighten the bolt finger tight at this stage.

Install the new lower arm forward bolt.

Courtesy of FORD MOTOR COMPANY

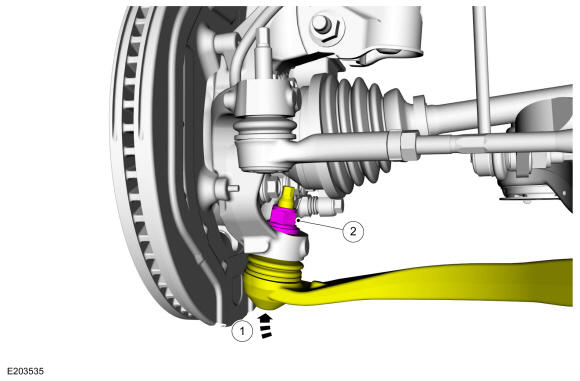

NOTE: Use the hex-holding feature to prevent the stud from turning while installing the lower ball joint nut.
1. Attach the lower ball joint to the wheel knuckle.
2. Install the new lower ball joint nut.
  Torque: 155 lb.ft (210 Nm)
Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
NOTE: Tighten the lower arm forward bolt with the weight of the vehicle on the wheels and tires or damage to the bushings may occur.

Install the new lower arm forward bolt.

Torque: 195 lb.ft (265 Nm)

Courtesy of FORD MOTOR COMPANY
