Front Stabilizer Bar Link: Installation

WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

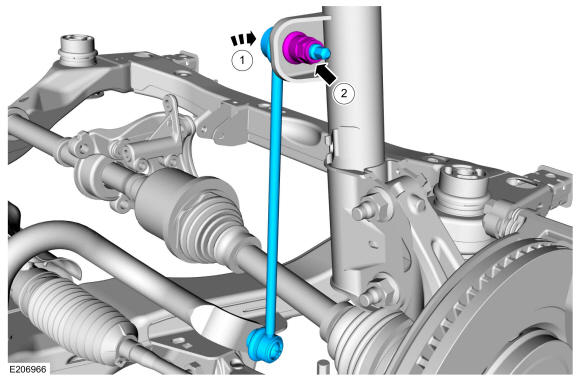

  1. NOTE: Do not use power tools to install the stabilizer bar link nut. Damage to the stabilizer bar link ball joint or boot may occur.
    NOTE: To install the stabilizer bar link upper nut, use the hex holding feature to prevent the stabilizer bar link ball joint from turning while installing the stabilizer bar link upper nut.

    1. Position the front stabilizer bar link.
    2. Install the new front stabilizer bar link upper nut.

      Torque: 111 lb.ft (150 Nm)

    GFD412737Courtesy of FORD MOTOR COMPANY
  2. NOTE: Do not use power tools to install the stabilizer bar link nut. Damage to the stabilizer bar link ball joint or boot may occur.
    NOTE: To install the stabilizer bar link lower nut, use the hex holding feature to prevent the stabilizer bar link ball joint from turning while installing the stabilizer bar link lower nut.

    1. Position the front stabilizer bar link.
    2. Install the new front stabilizer bar link lower nut.

      Torque: 111 lb.ft (150 Nm)

    GFD412734Courtesy of FORD MOTOR COMPANY
  3. Install the wheel and tire. Refer to: Wheel and Tire .
