Connector Repair Procedures

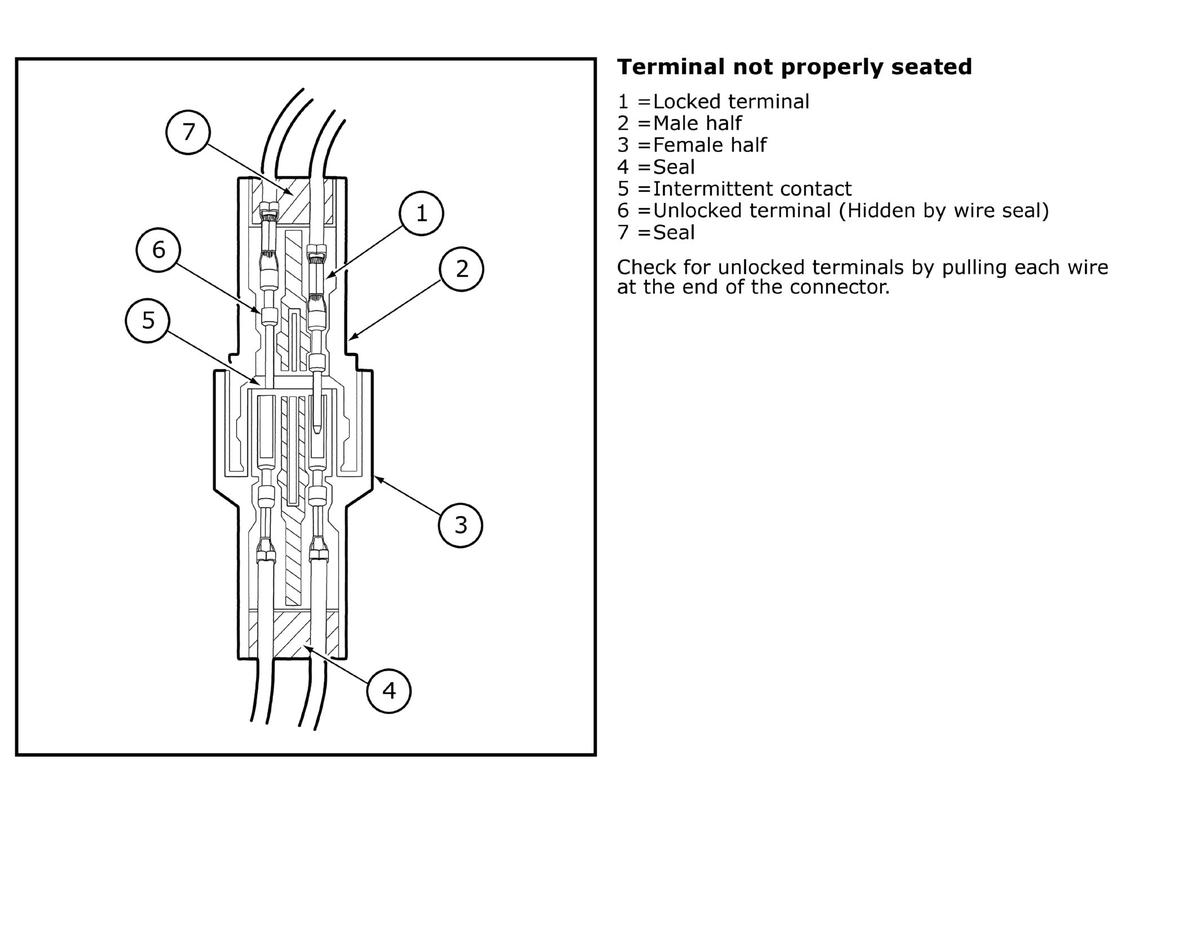

GFDWR102561Courtesy of FORD MOTOR COMPANY

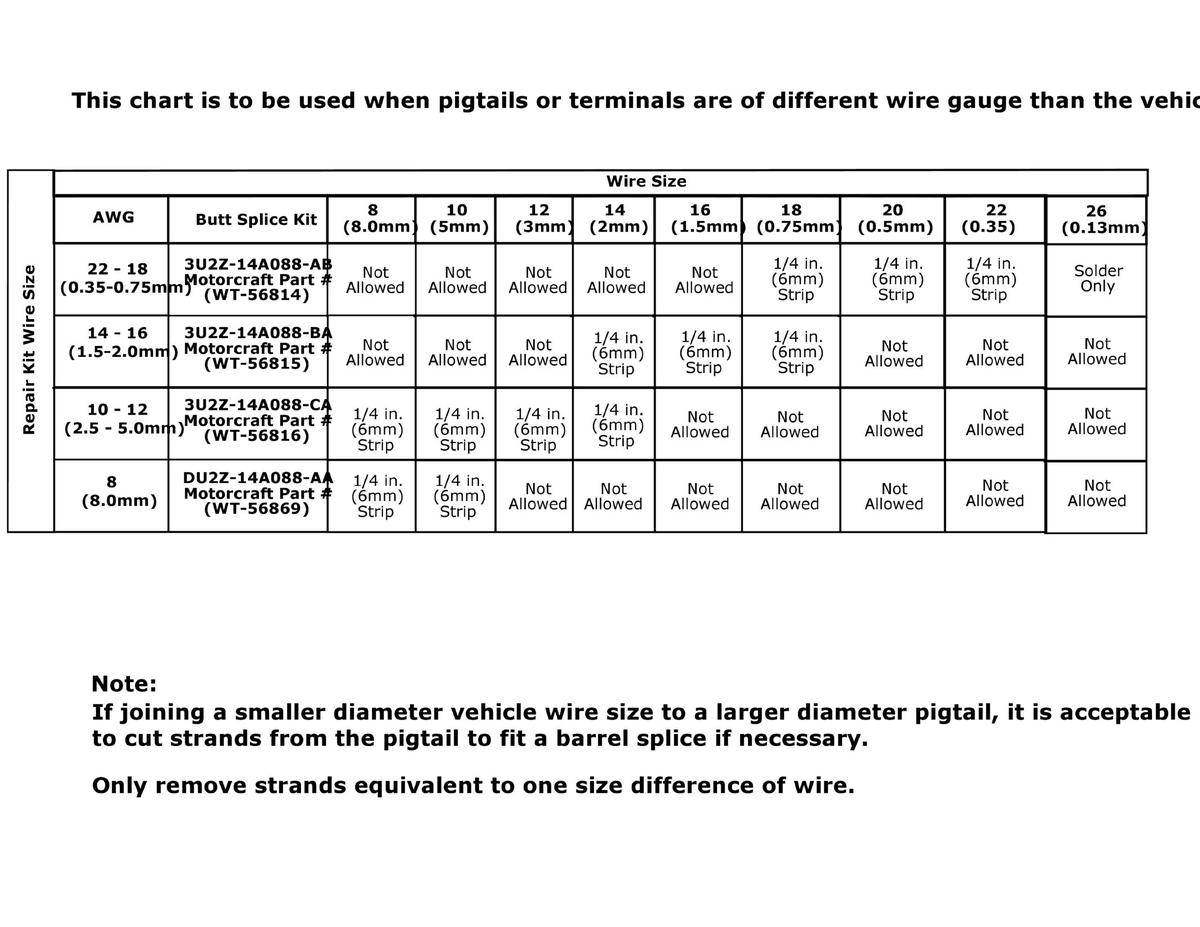

GFDWR102562Courtesy of FORD MOTOR COMPANY

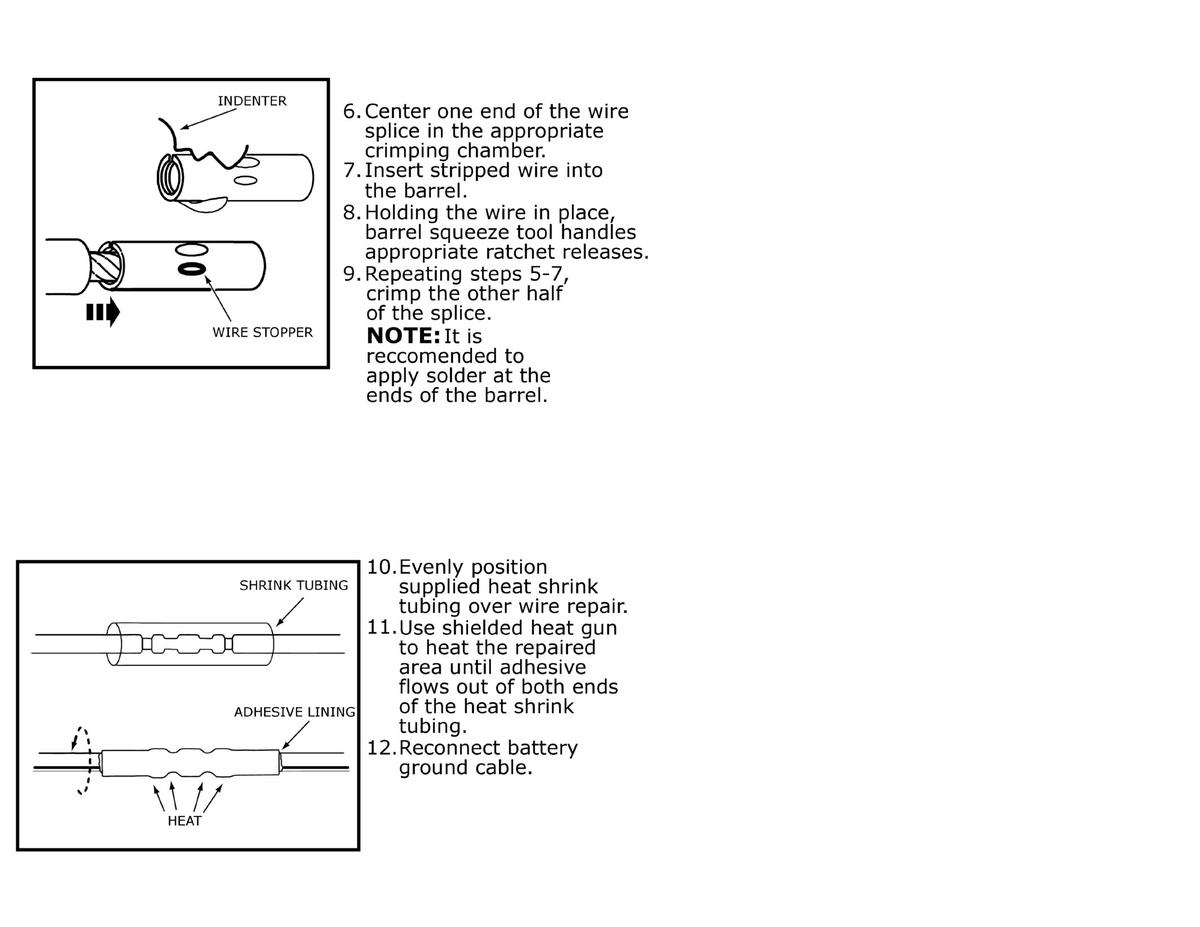

GFDWR102563Courtesy of FORD MOTOR COMPANY

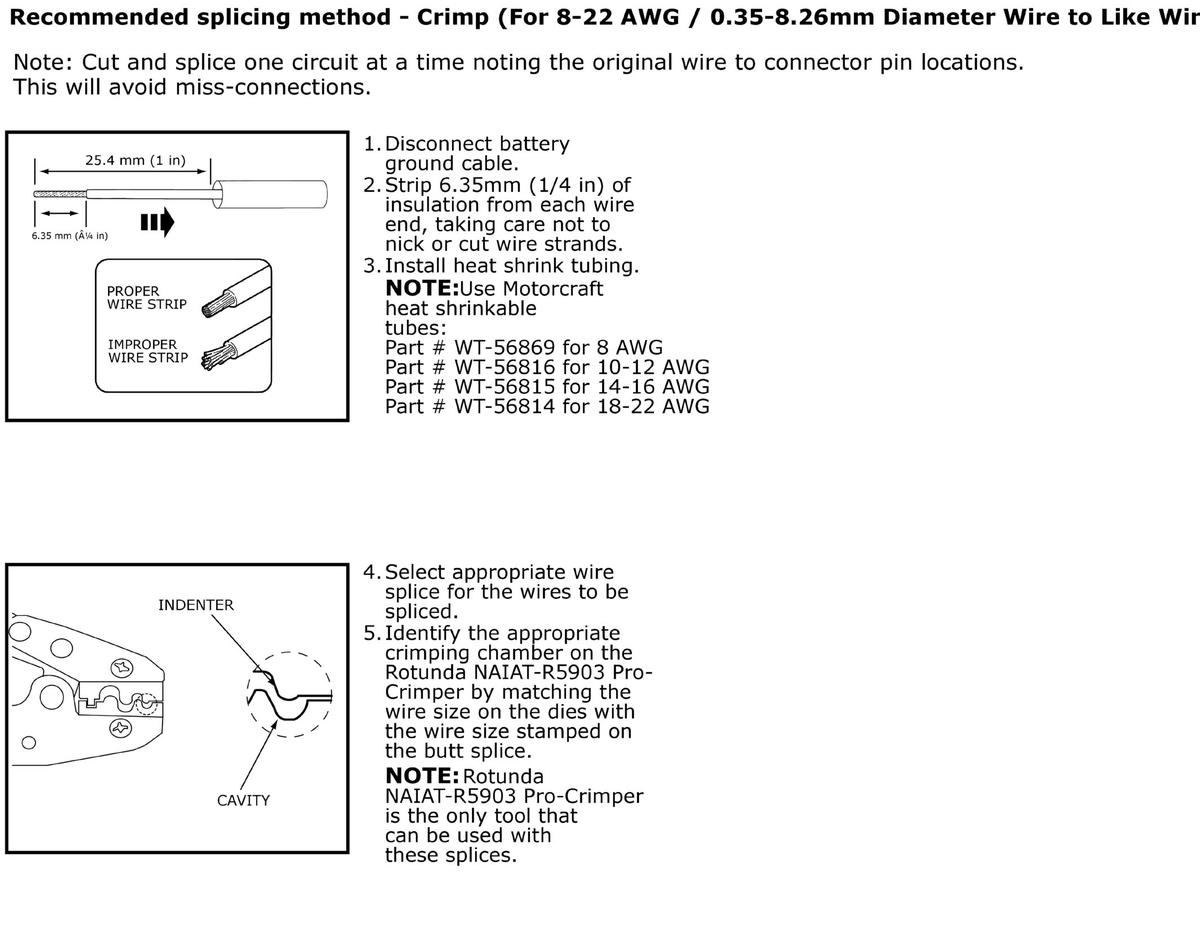

GFDWR102564Courtesy of FORD MOTOR COMPANY

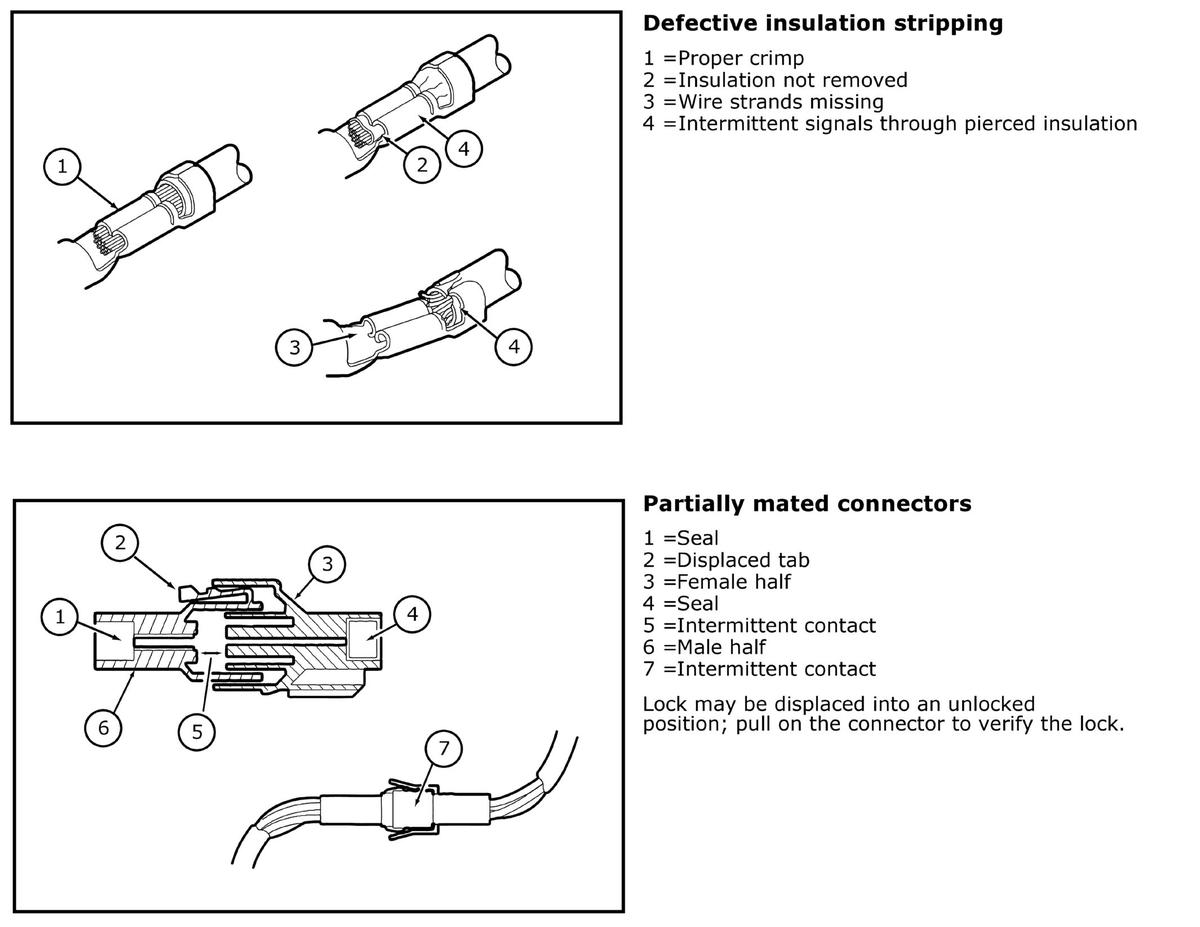

GFDWR102565Courtesy of FORD MOTOR COMPANY

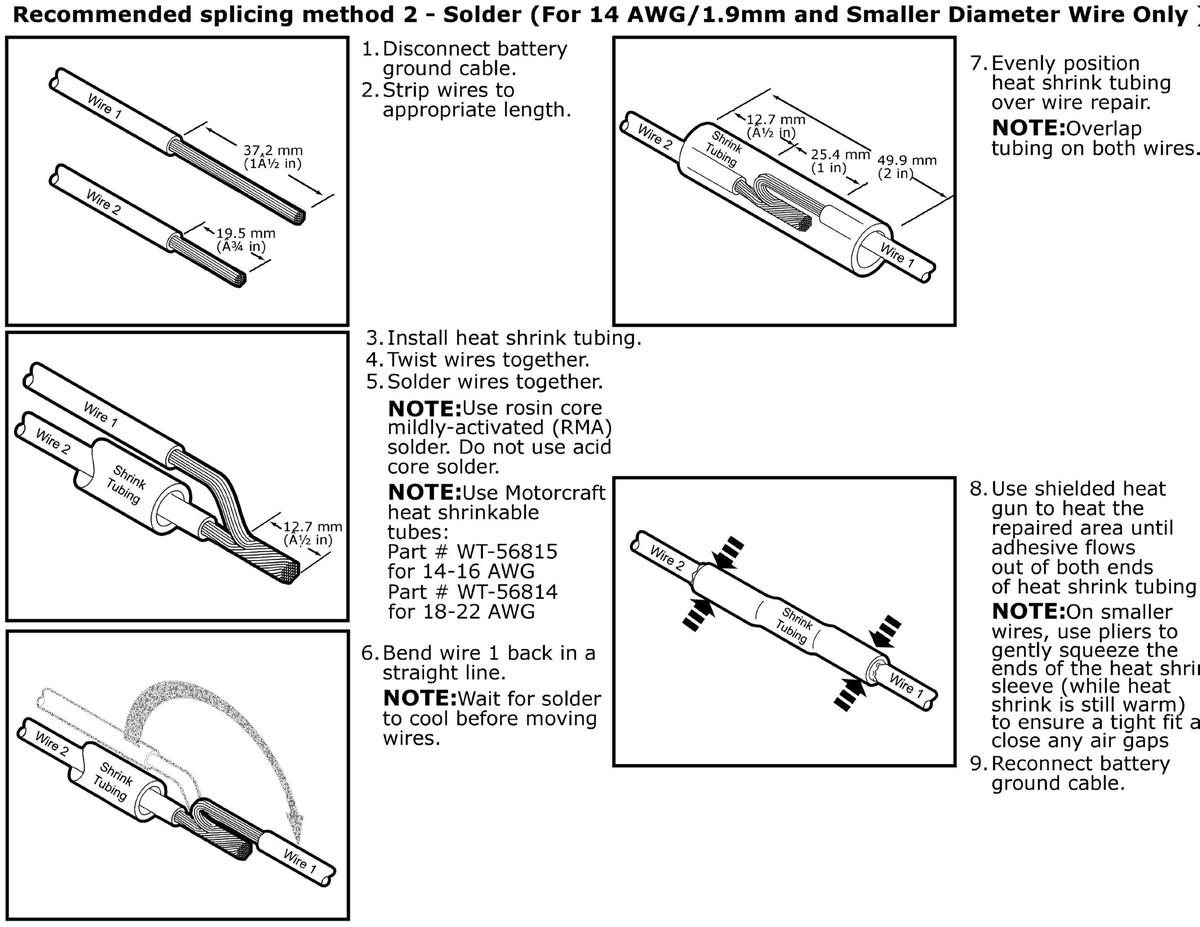

GFDWR102566Courtesy of FORD MOTOR COMPANY

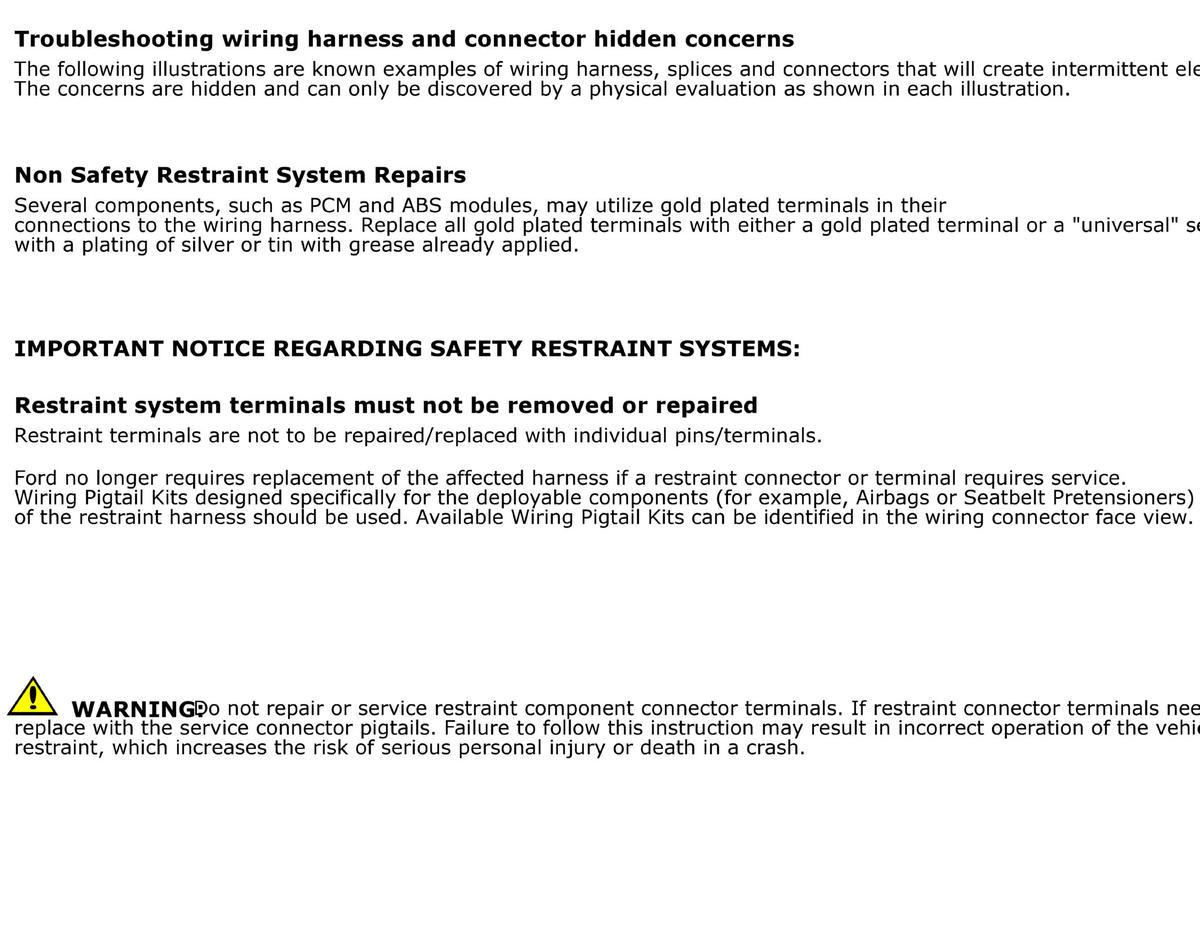

GFDWR102567Courtesy of FORD MOTOR COMPANY

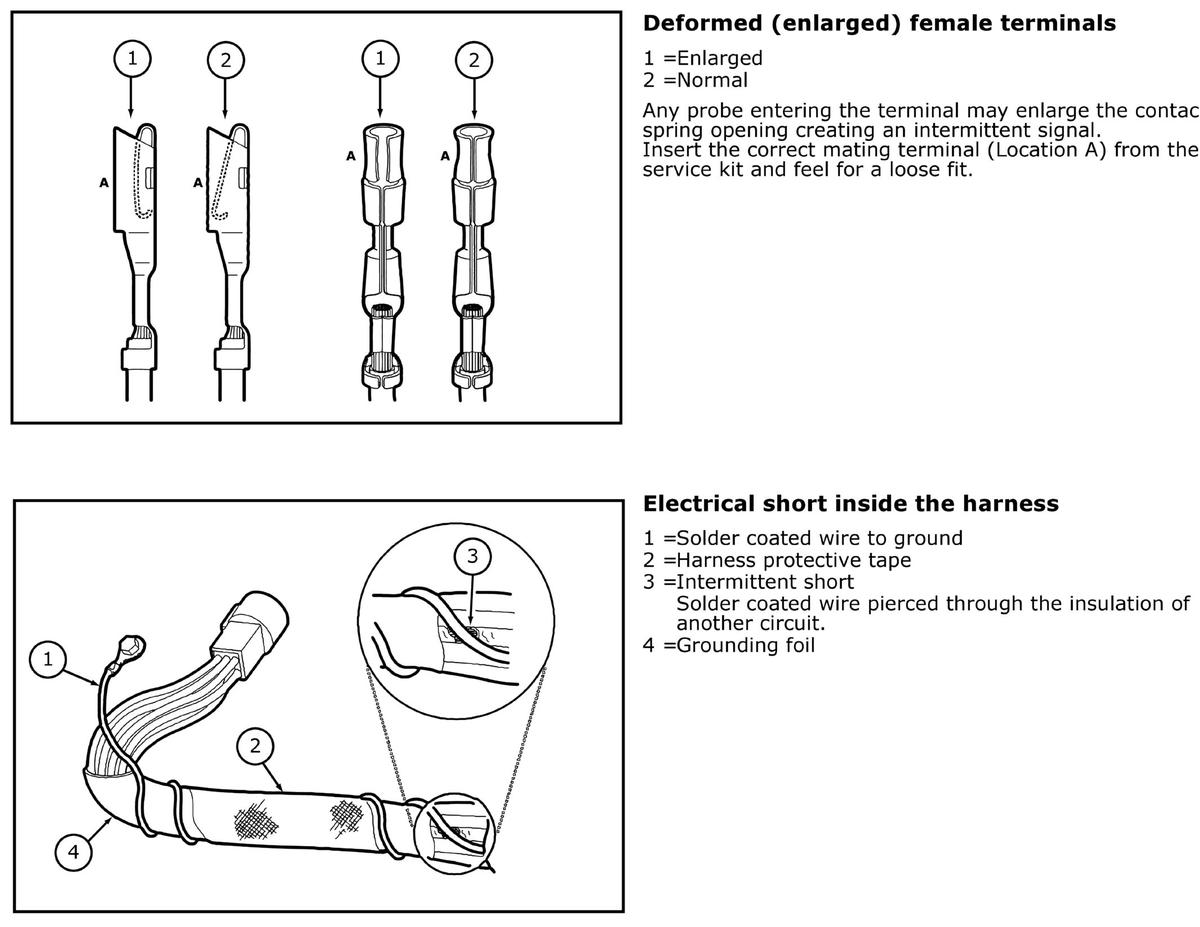

GFDWR102568Courtesy of FORD MOTOR COMPANY

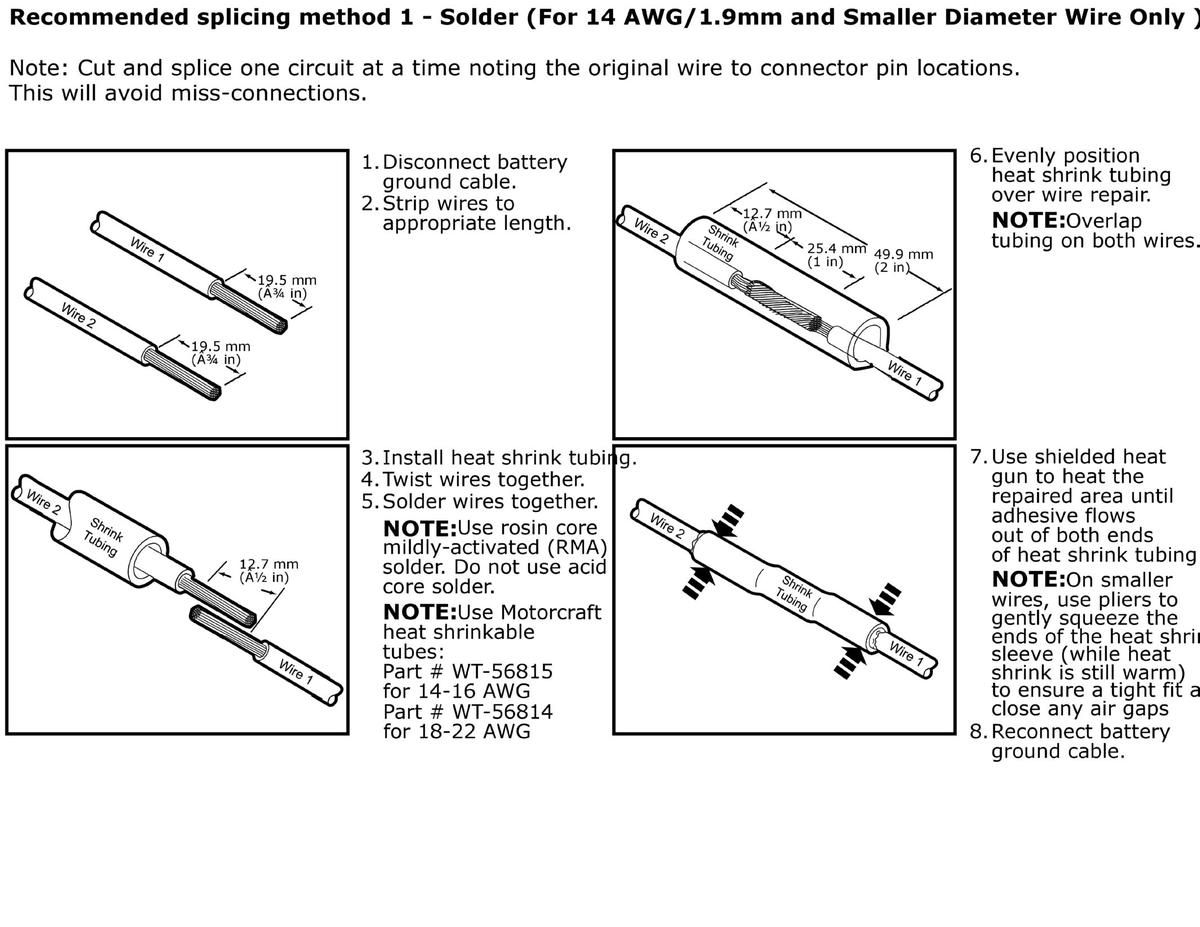

GFDWR102569Courtesy of FORD MOTOR COMPANY
