Piston Diameter

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Check

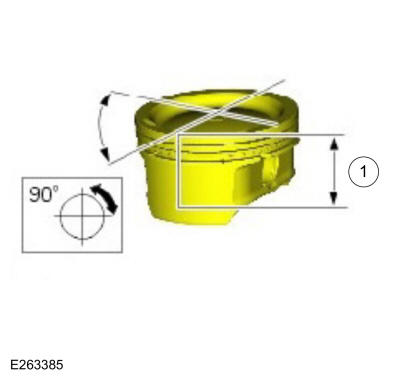

    • Measure the piston diameter 90 degrees from the piston pin and piston diameter (DN) height down from the top of the piston at the point indicated.

    • Refer to specifications for the piston diameter (DN) height. Refer to: Specifications .

GFD505294Courtesy of FORD MOTOR COMPANY
