Front Wheel Speed Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake disc shield. Refer to: Brake Disc Shield .

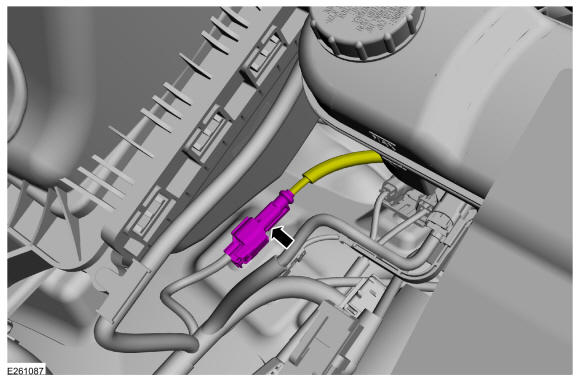

- Disconnect the wheel speed sensor electrical connector.

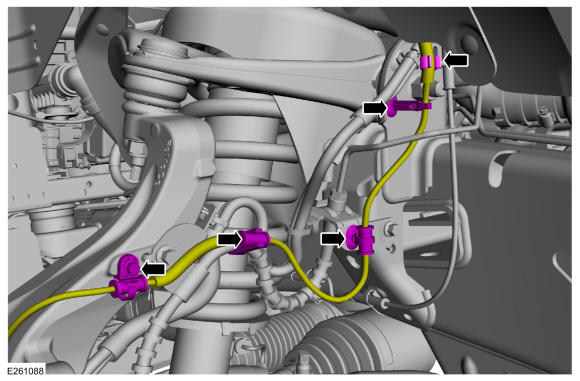

- Remove the bolt and detach the wiring retainers.
Torque: 106 lb.in (12 Nm)

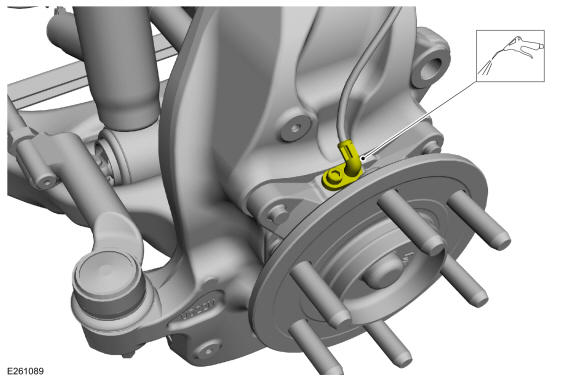

- Using compressed air, clean the area surrounding the front wheel speed sensor.

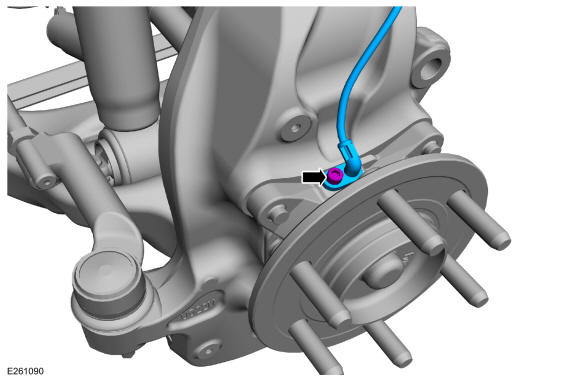

- Remove the bolt and the front wheel speed sensor.
Torque: 150 lb.in (17 Nm)
