Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2019 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.

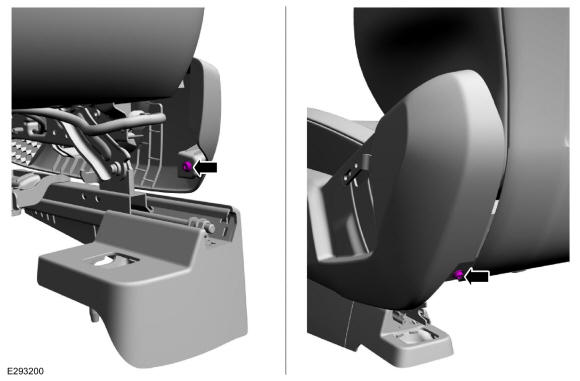

  1. Remove the front seat side shield screws.
    GFD434081Courtesy of FORD MOTOR COMPANY

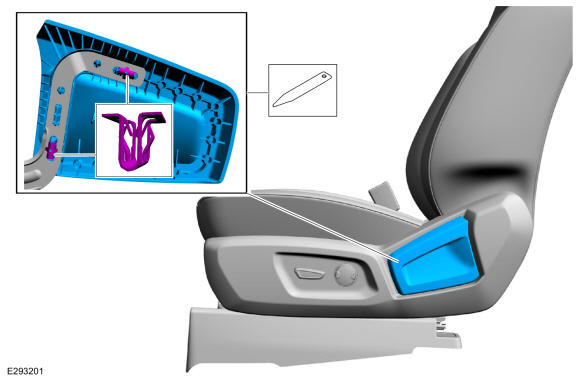

  2. Release the retainers and remove the front seat recline handle cover.
    GFD434082Courtesy of FORD MOTOR COMPANY

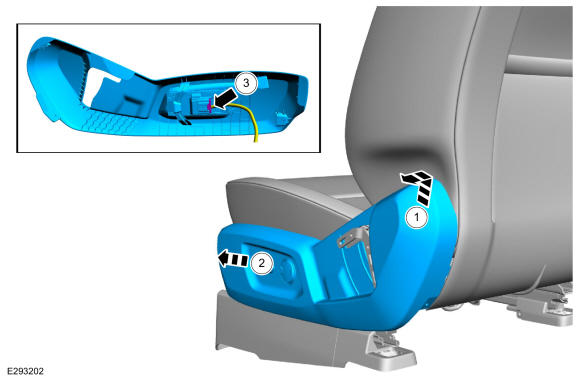

  3. Remove the front seat side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD434083Courtesy of FORD MOTOR COMPANY

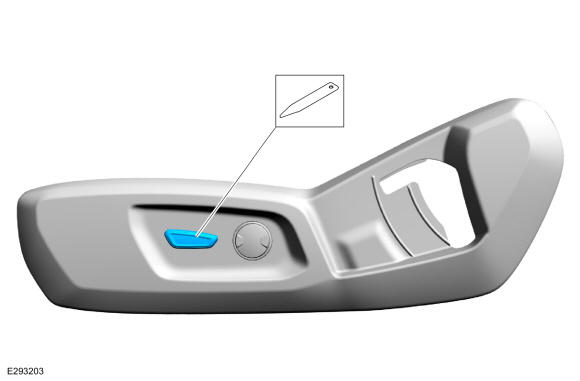

  4. Remove the front seat control switch knob. Use the General Equipment: Interior Trim Remover
    GFD434084Courtesy of FORD MOTOR COMPANY

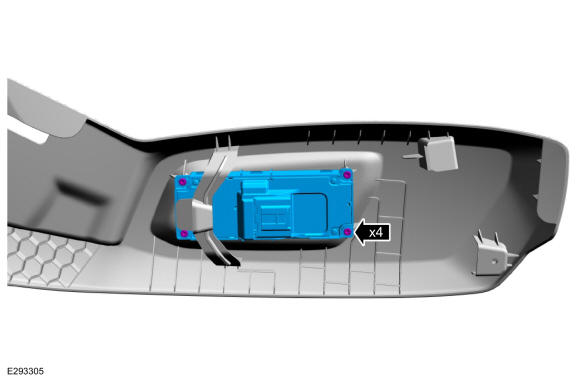

  5. Remove the screws and the front seat control switch.
GFD434085Courtesy of FORD MOTOR COMPANY
