Overhead Console: Removal

WARNING: This page is about a different car, the 2019 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

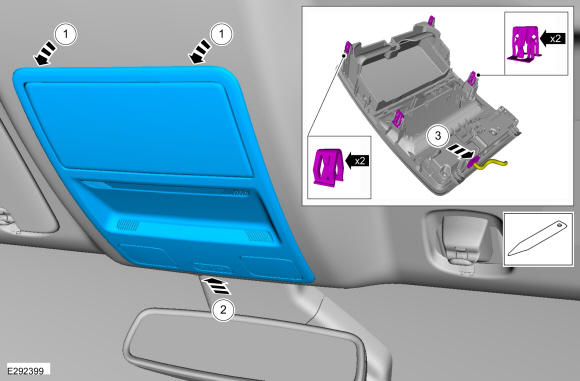

Vehicles with long console

Remove the overhead console.
1. Release the clips at the rear and middle of the overhead console.
2. Pull the overhead console rearward to remove.
3. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

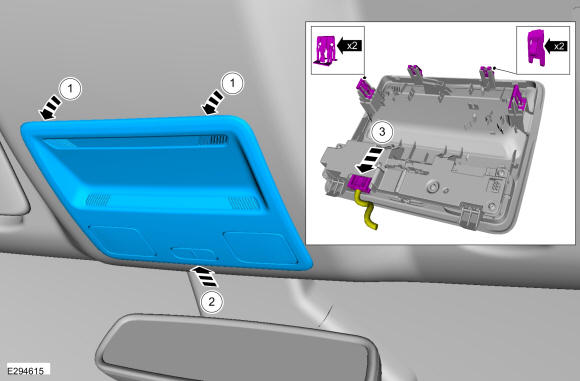

Vehicles with short console
Remove the overhead console.
1. Release the clips at the rear and middle of the overhead console.
2. Pull the overhead console rearward to remove.
3. Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
