Axle Assembly: Removal

WARNING: This page is about a different car, the 2019 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front driveshaft. Refer to: Front Driveshaft .
  2. Remove the front halfshafts. Refer to: Front Halfshaft LH . Refer to: Front Halfshaft RH .
  3. If equipped. Remove the bolts and the engine front undershield.
    GFD431371Courtesy of FORD MOTOR COMPANY
  4. If equipped. Remove the bolts and the engine front undershield.
    GFD431372Courtesy of FORD MOTOR COMPANY
  5. If equipped. Remove the bolts and the front axle skid plate.
    GFD431373Courtesy of FORD MOTOR COMPANY
  6. Remove the pin-type retainers and the LH fender splash shield.
    GFD431374Courtesy of FORD MOTOR COMPANY

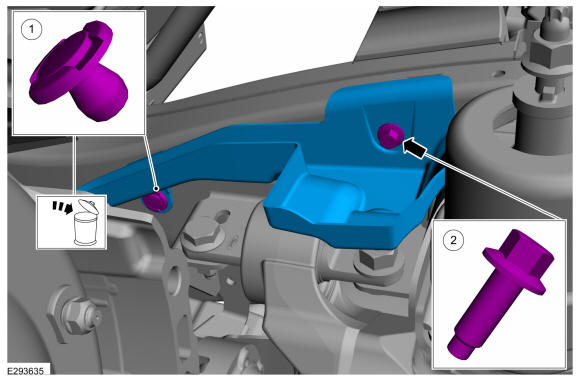

    1. Remove and discard the revet-type push pin.
    2. Remove the bolt and the oil filter shield.
    GFD431375Courtesy of FORD MOTOR COMPANY

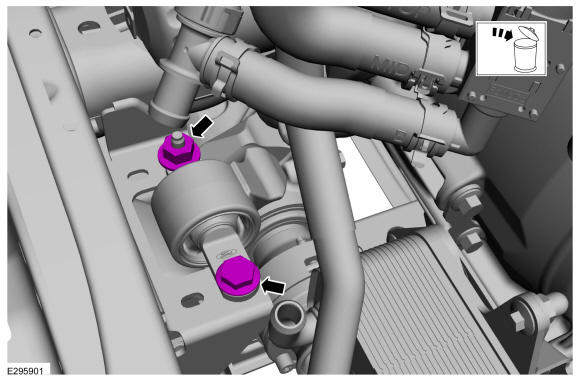

  8. Remove and discard the front axle carrier upper mounting bracket bolt and the nut.
    GFD431376Courtesy of FORD MOTOR COMPANY

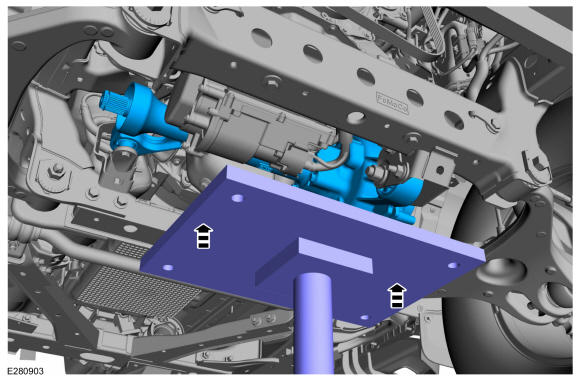

  9. Using transmission jack, support the front axle assembly. Use the General Equipment: Transmission Jack
    GFD431377Courtesy of FORD MOTOR COMPANY

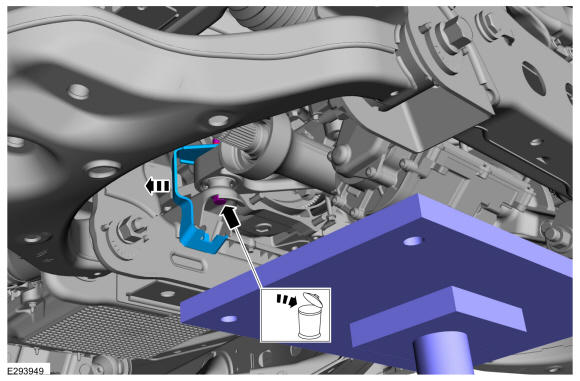

  10. Remove and discard the front axle tube bushing bolt and remove the support bracket. Use the General Equipment: Transmission Jack
    GFD431378Courtesy of FORD MOTOR COMPANY

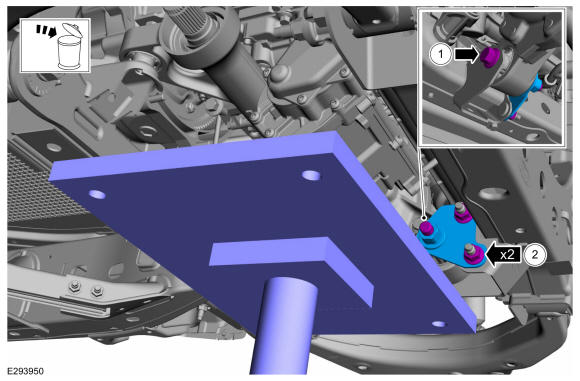

    1. Remove and discard the front axle cover bushing bolt.
    2. Remove and discard the nuts and remove the front axle cover mounting support bracket. Use the General Equipment: Transmission Jack
    GFD431379Courtesy of FORD MOTOR COMPANY

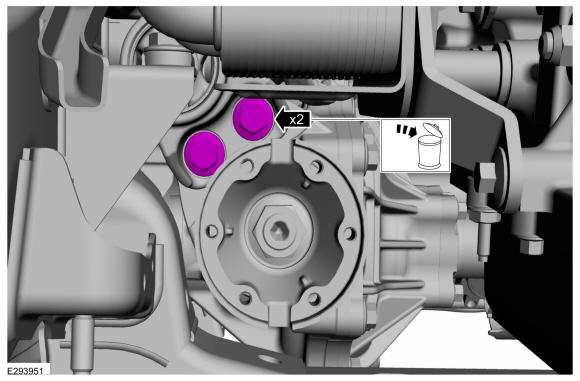

  12. Remove and discard the bolts and disconnect the front axle from the axle carrier mounting bracket. Use the General Equipment: Transmission Jack
    GFD431380Courtesy of FORD MOTOR COMPANY

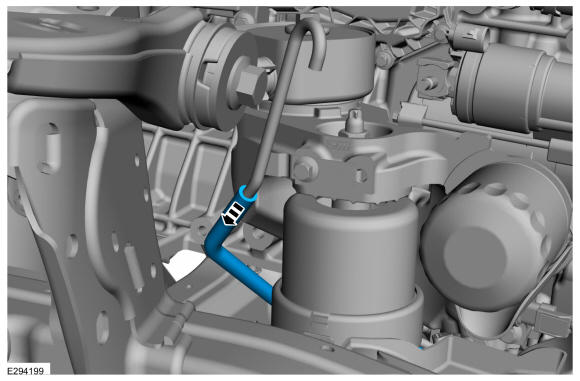

  13. Detach the hose from the metal breather tube.
    GFD431381Courtesy of FORD MOTOR COMPANY

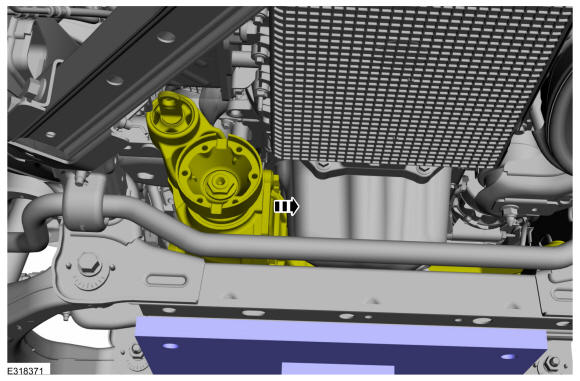

  14. Position the axle assembly slightly toward the center of the vehicle.
    GFD431382Courtesy of FORD MOTOR COMPANY

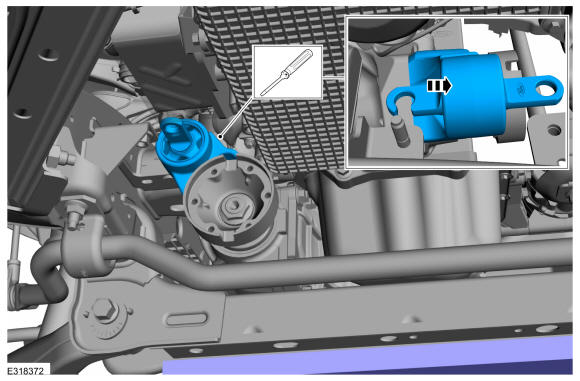

  15. Using general equipment, pry and remove the axle carrier mounting bracket from the front axle assembly. Use the General Equipment: Flat Headed Screw Driver
    GFD431383Courtesy of FORD MOTOR COMPANY

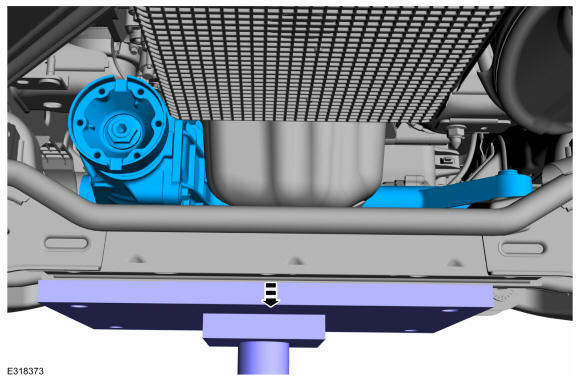

  16. Lower the transmission jack and the front axle assembly. Use the General Equipment: Transmission Jack
GFD431384Courtesy of FORD MOTOR COMPANY
