Differential Fluid Level Check

WARNING: This page is about a different car, the 2019 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Name	Specification
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL	WSP-M2C197-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

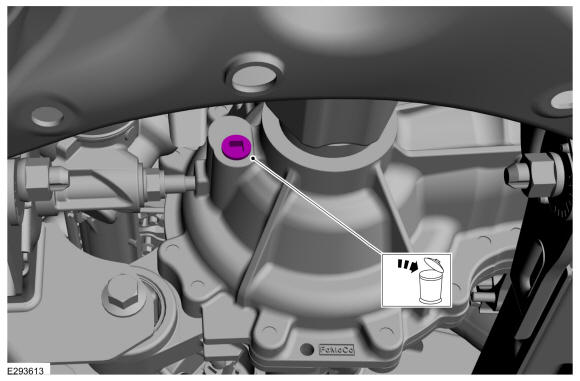

Remove and discard the front differential fill plug.

Courtesy of FORD MOTOR COMPANY

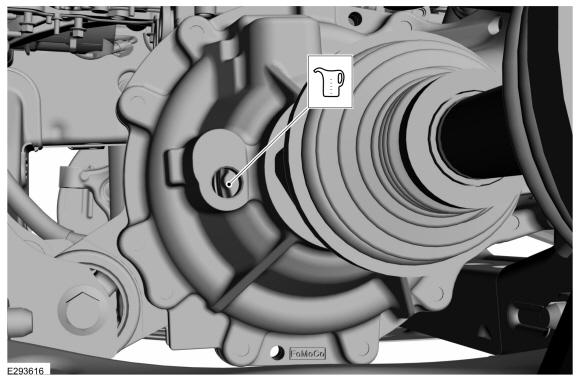

Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be to the bottom of fluid fill plug opening.
Material: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL (WSP-M2C197-A)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

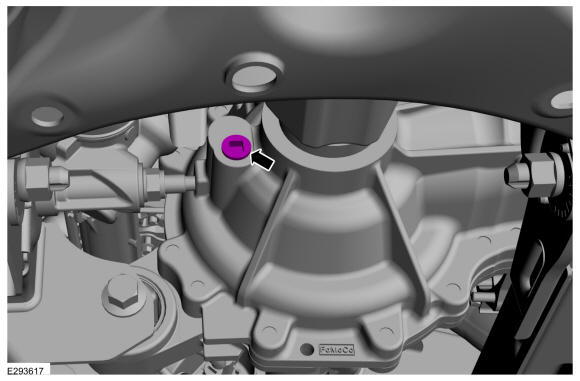

Install the new front differential fill plug.

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
