Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2019 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced.

Using a diagnostic scan tool, perform the PMI process for the BCM following the on-screen instructions.

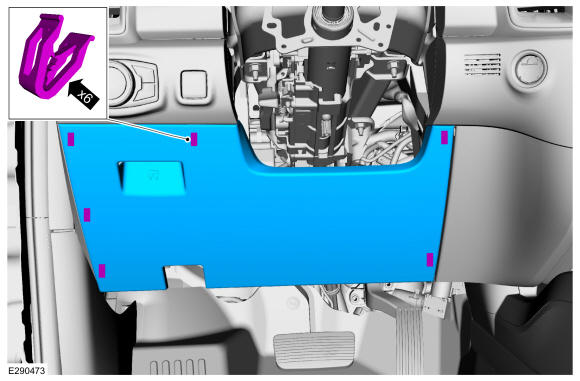

Remove the BCM access cover.

Courtesy of FORD MOTOR COMPANY

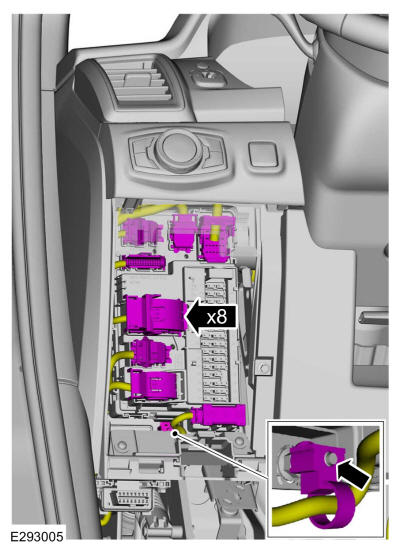

Disconnect the electrical connectors and release the wire harness retainer from the BCM.

Courtesy of FORD MOTOR COMPANY

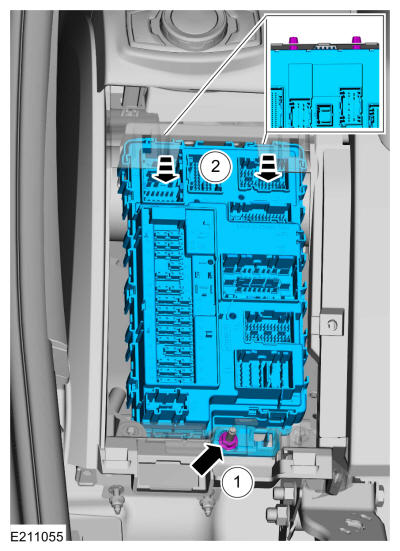

Remove the BCM and bracket.
1. Remove the nut.
  Torque: 48 lb.in (5.4 Nm)
2. Remove the BCM.

Courtesy of FORD MOTOR COMPANY
