Section 294 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2019 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

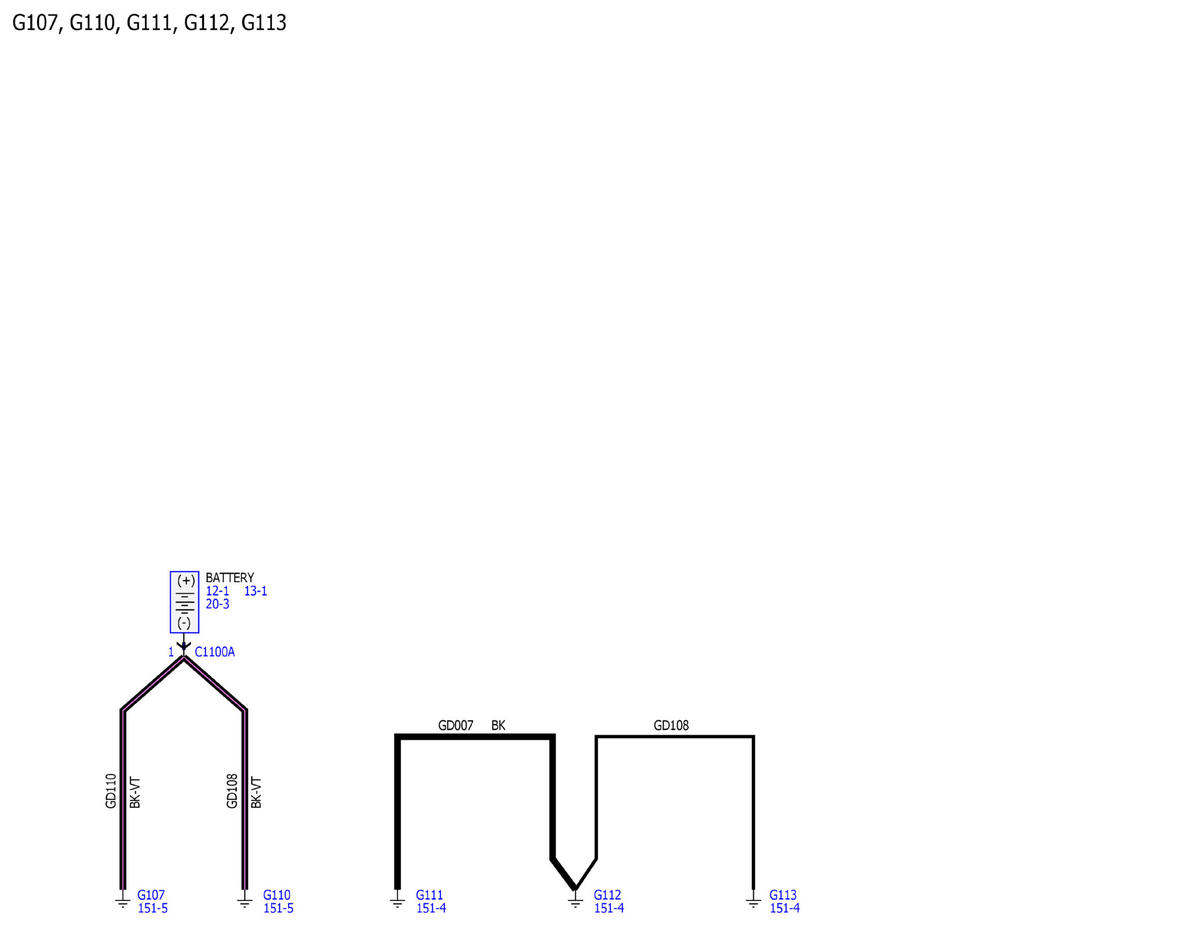

GFDWR70272Courtesy of FORD MOTOR COMPANY

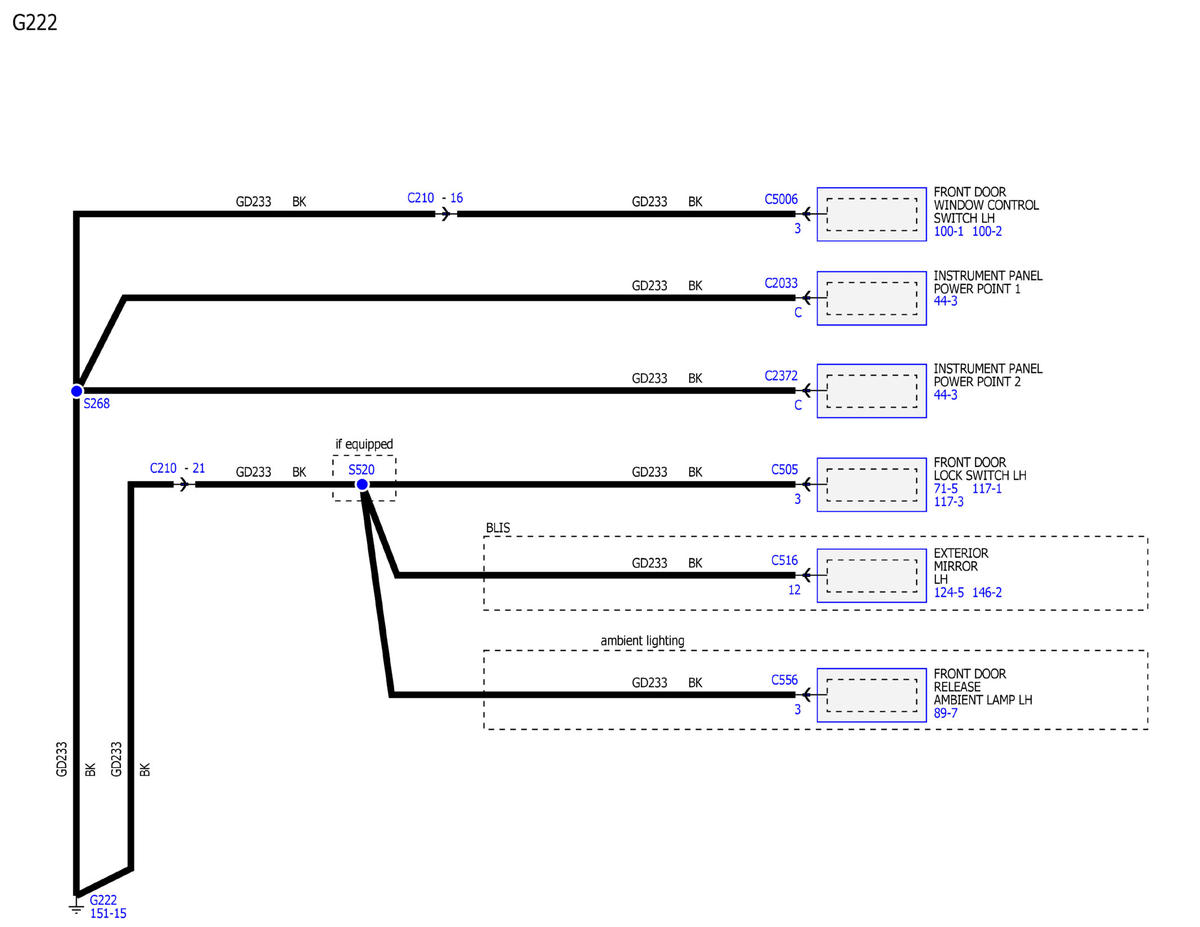

GFDWR70273Courtesy of FORD MOTOR COMPANY

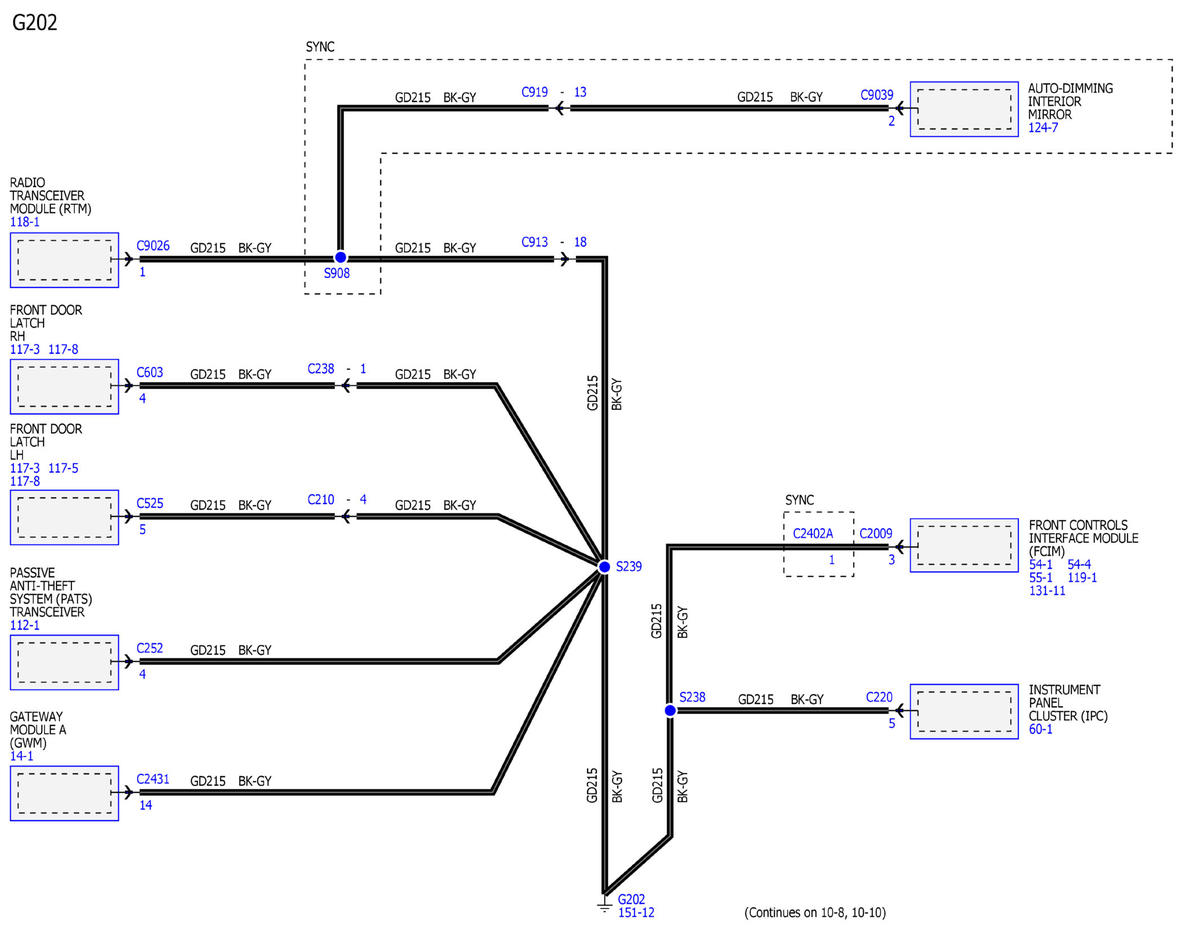

GFDWR70274Courtesy of FORD MOTOR COMPANY

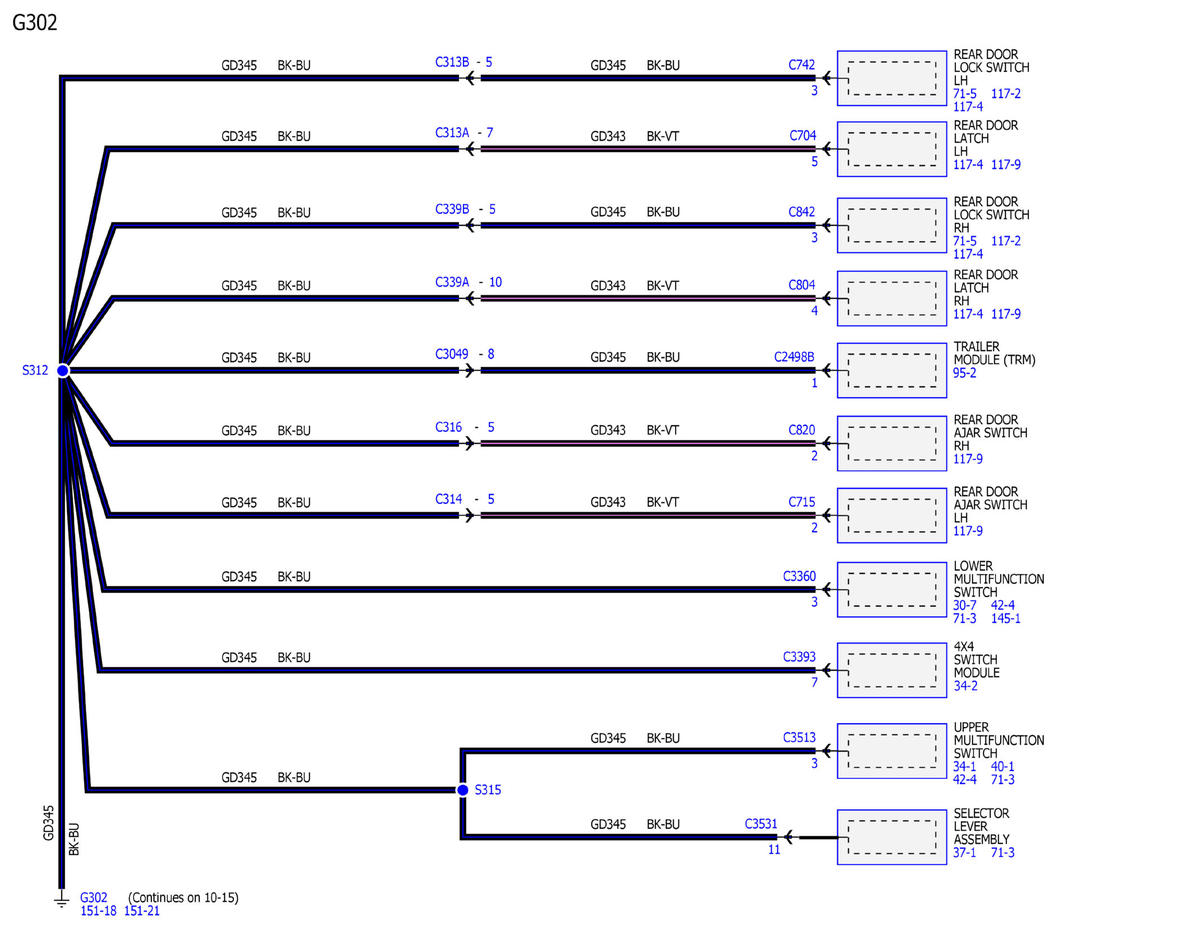

GFDWR70275Courtesy of FORD MOTOR COMPANY

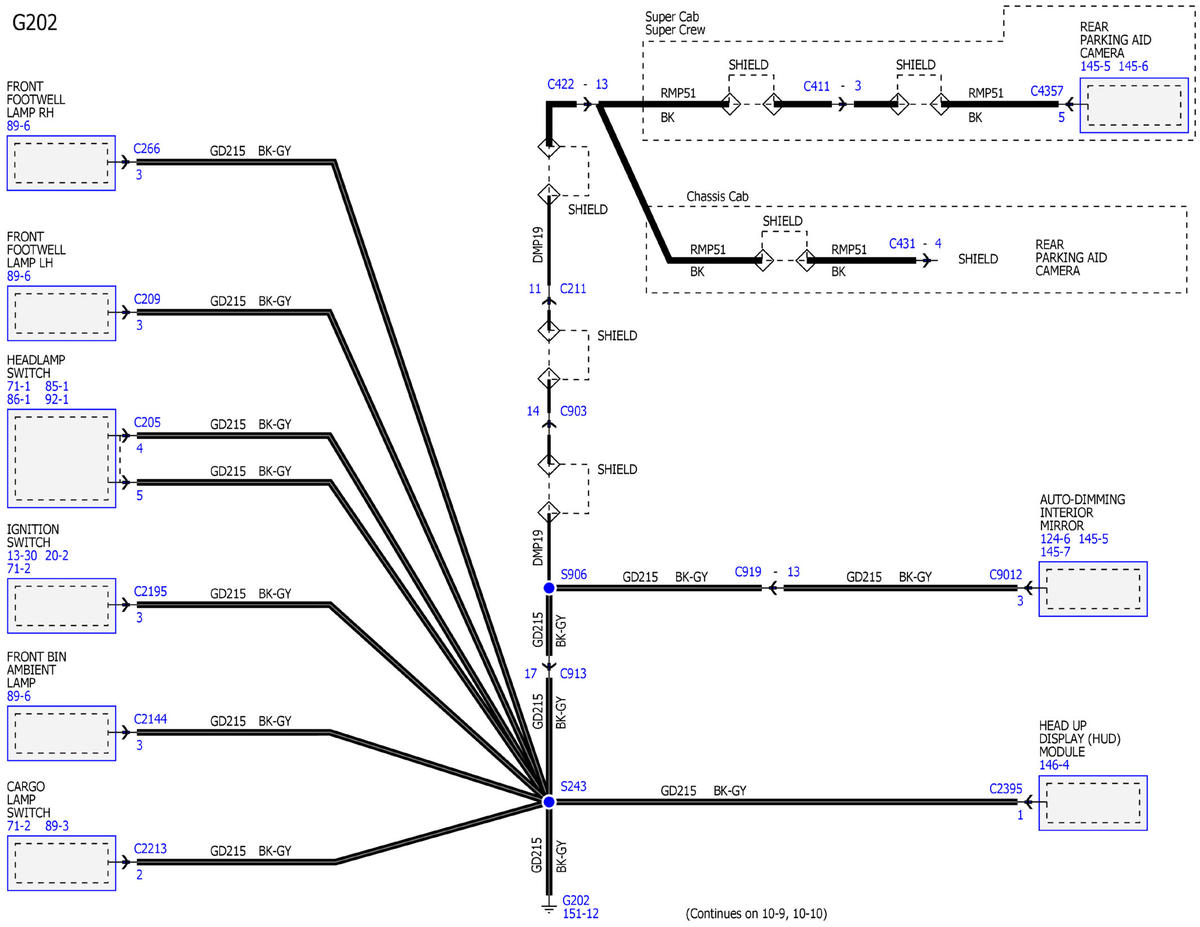

GFDWR70276Courtesy of FORD MOTOR COMPANY

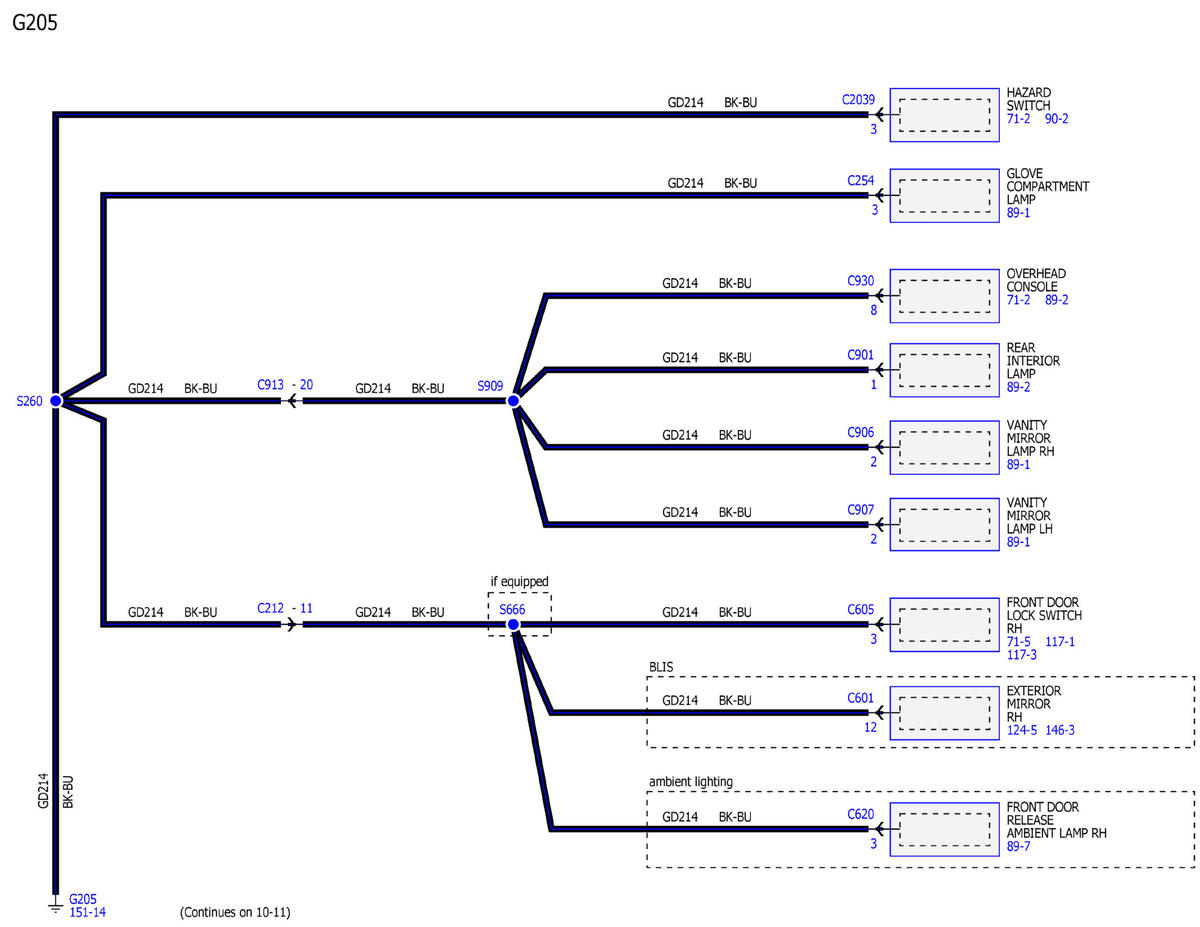

GFDWR70277Courtesy of FORD MOTOR COMPANY

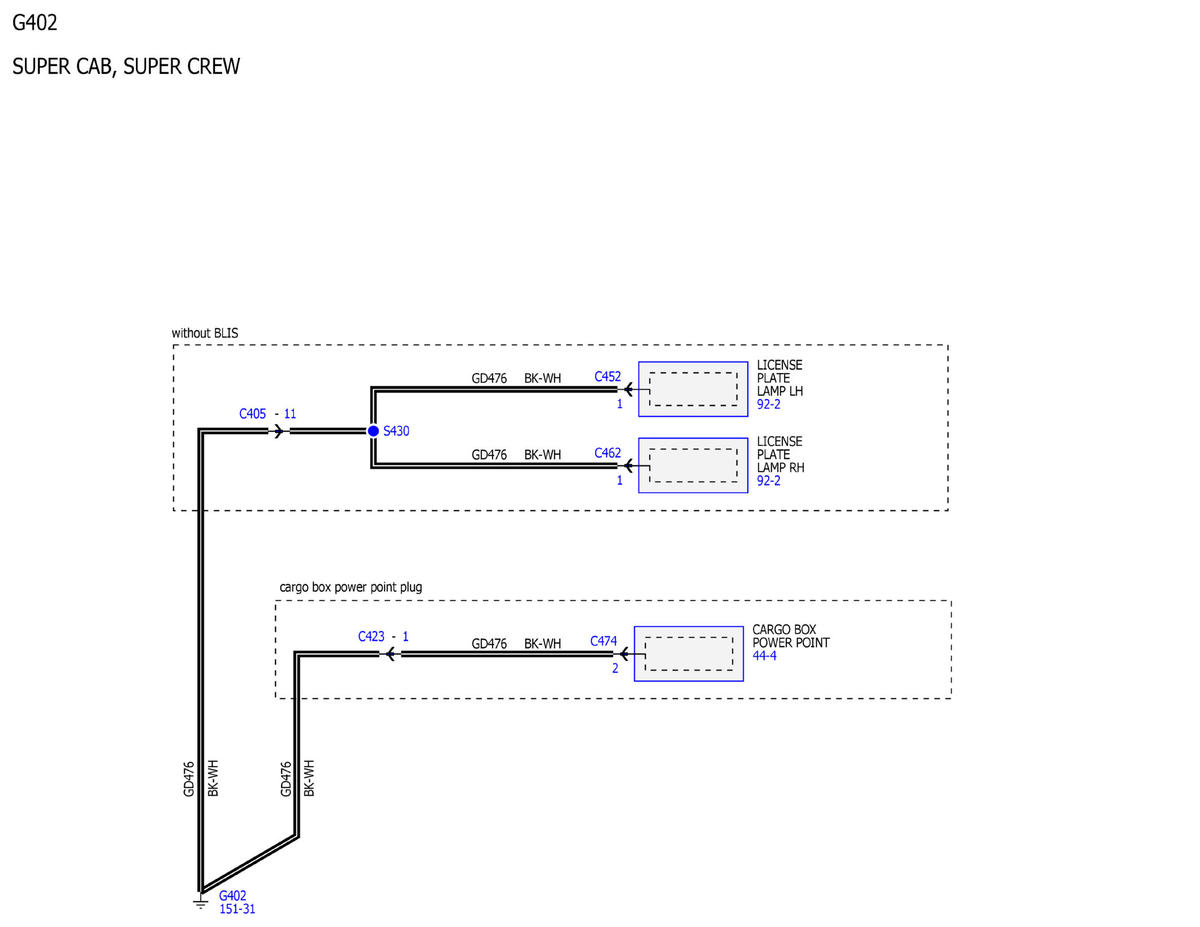

GFDWR70278Courtesy of FORD MOTOR COMPANY

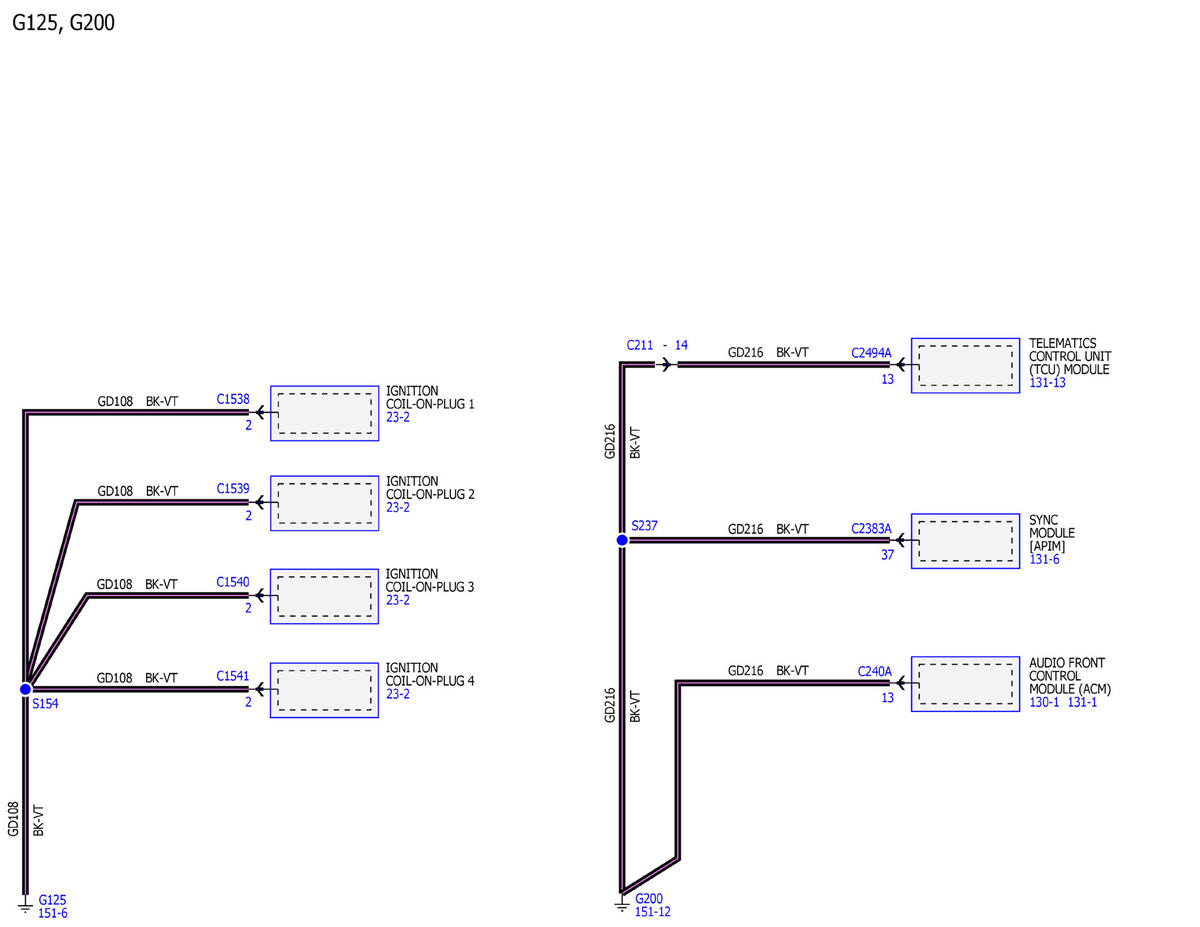

GFDWR70279Courtesy of FORD MOTOR COMPANY

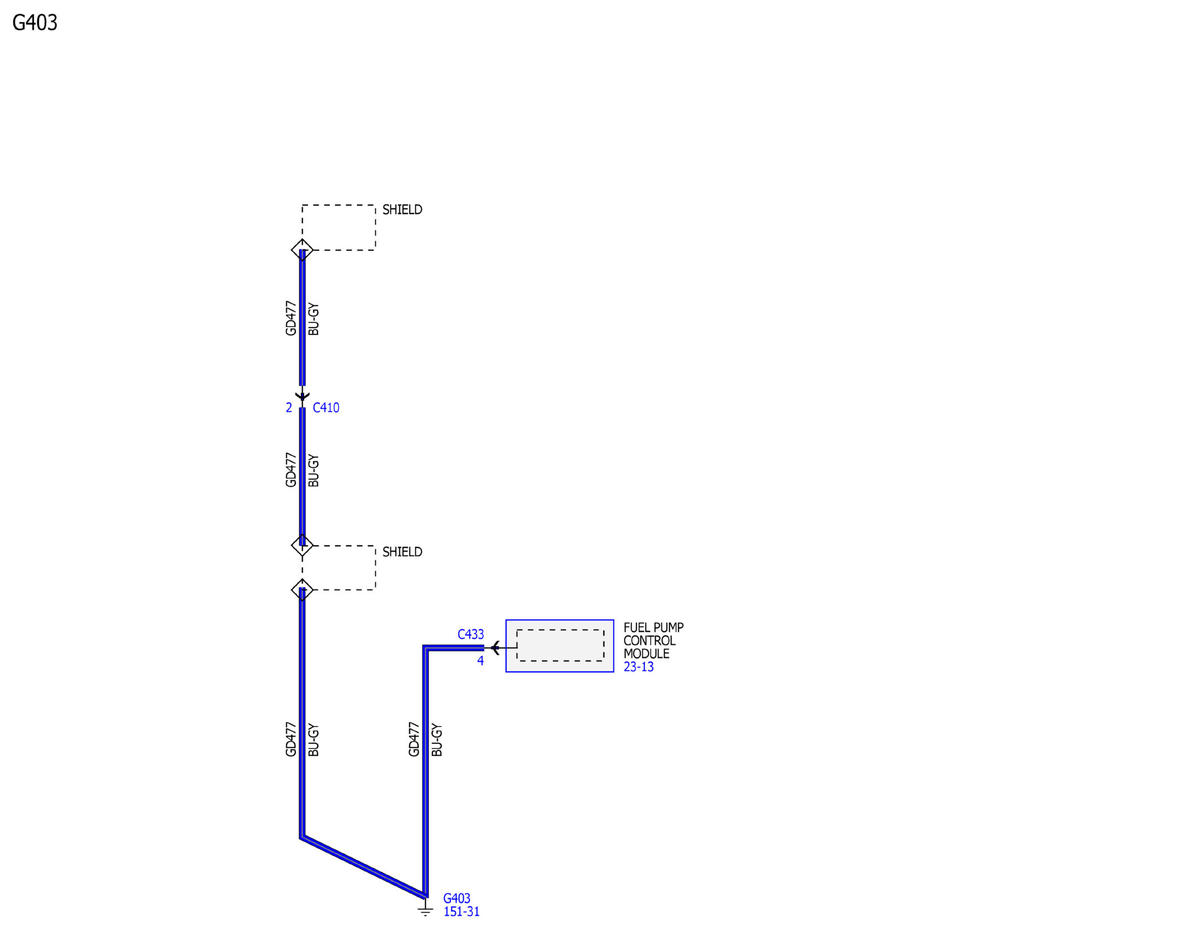

GFDWR70280Courtesy of FORD MOTOR COMPANY

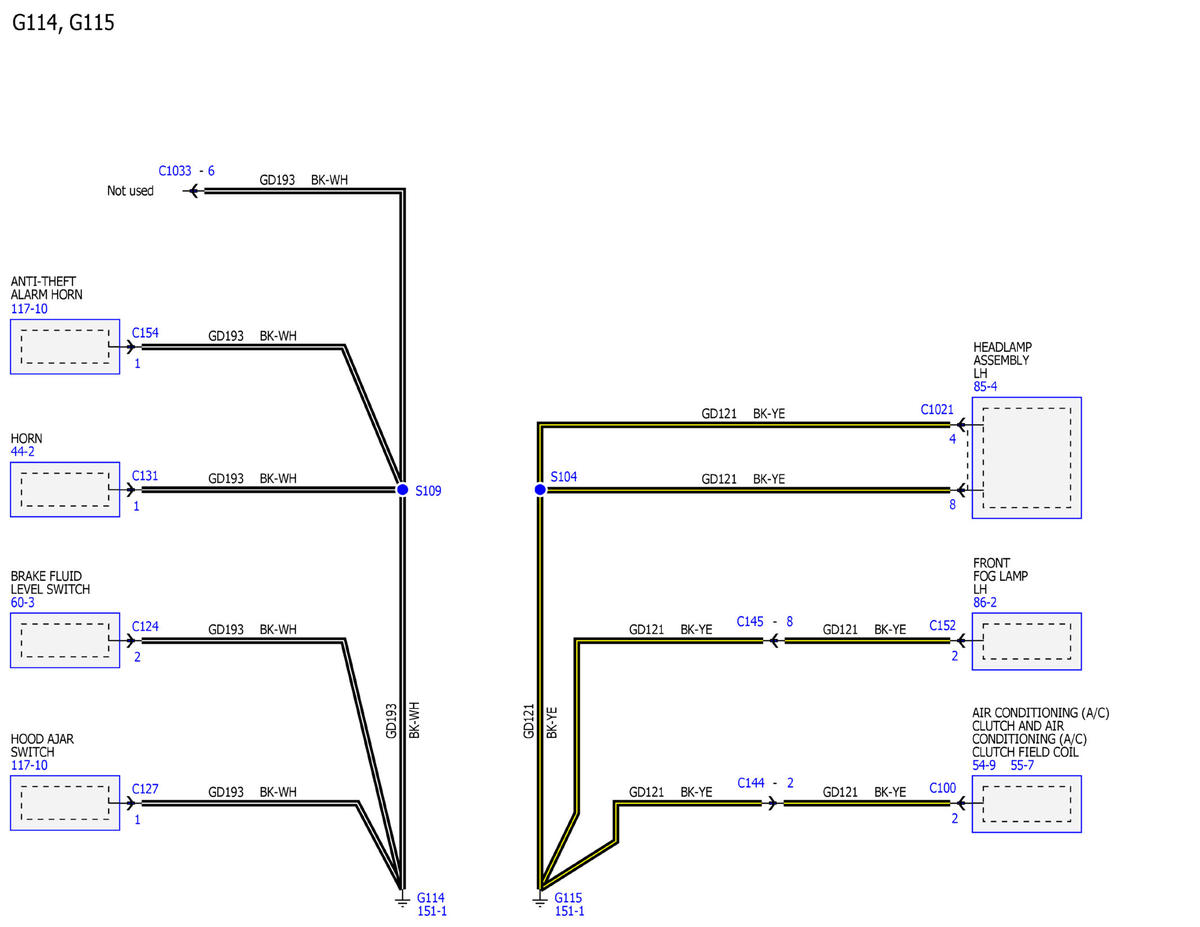

GFDWR70281Courtesy of FORD MOTOR COMPANY

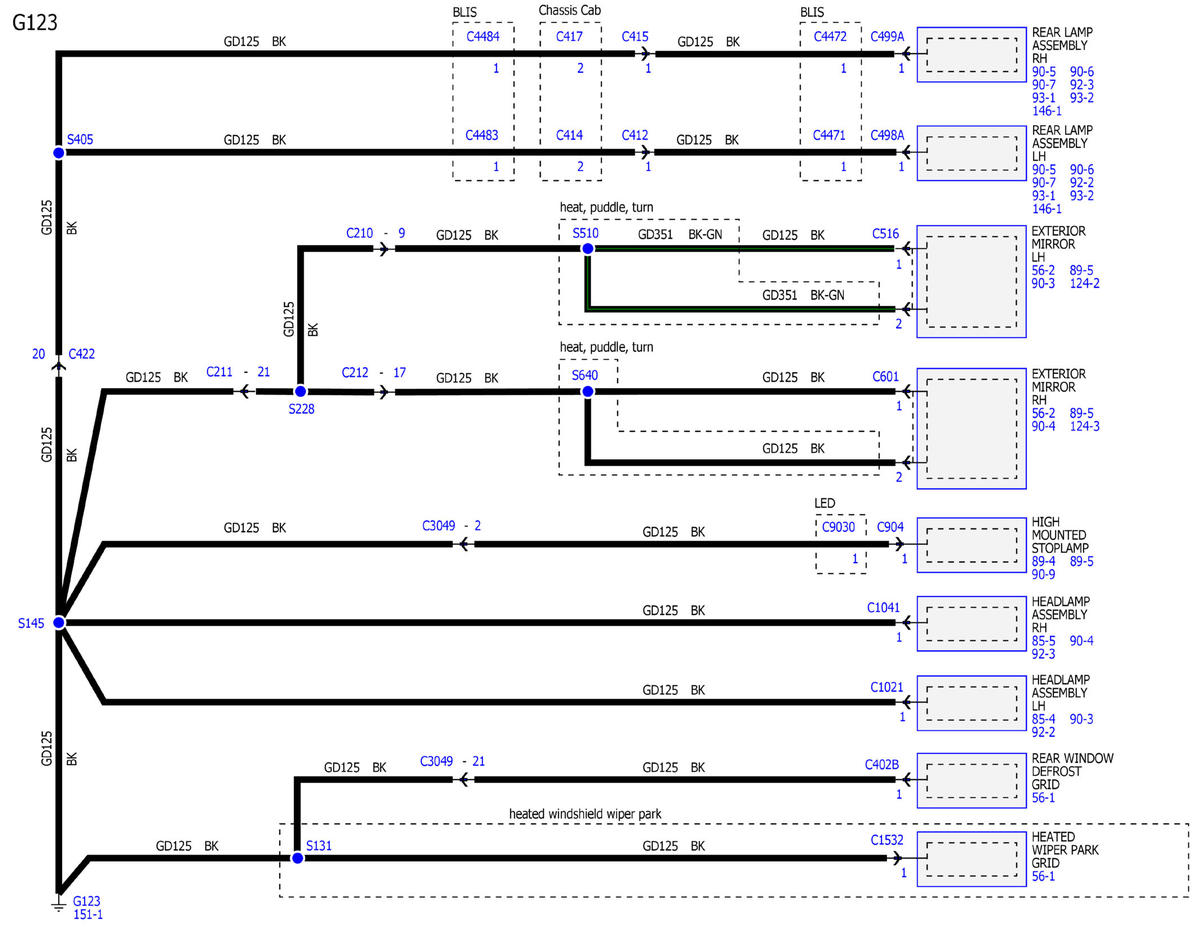

GFDWR70282Courtesy of FORD MOTOR COMPANY

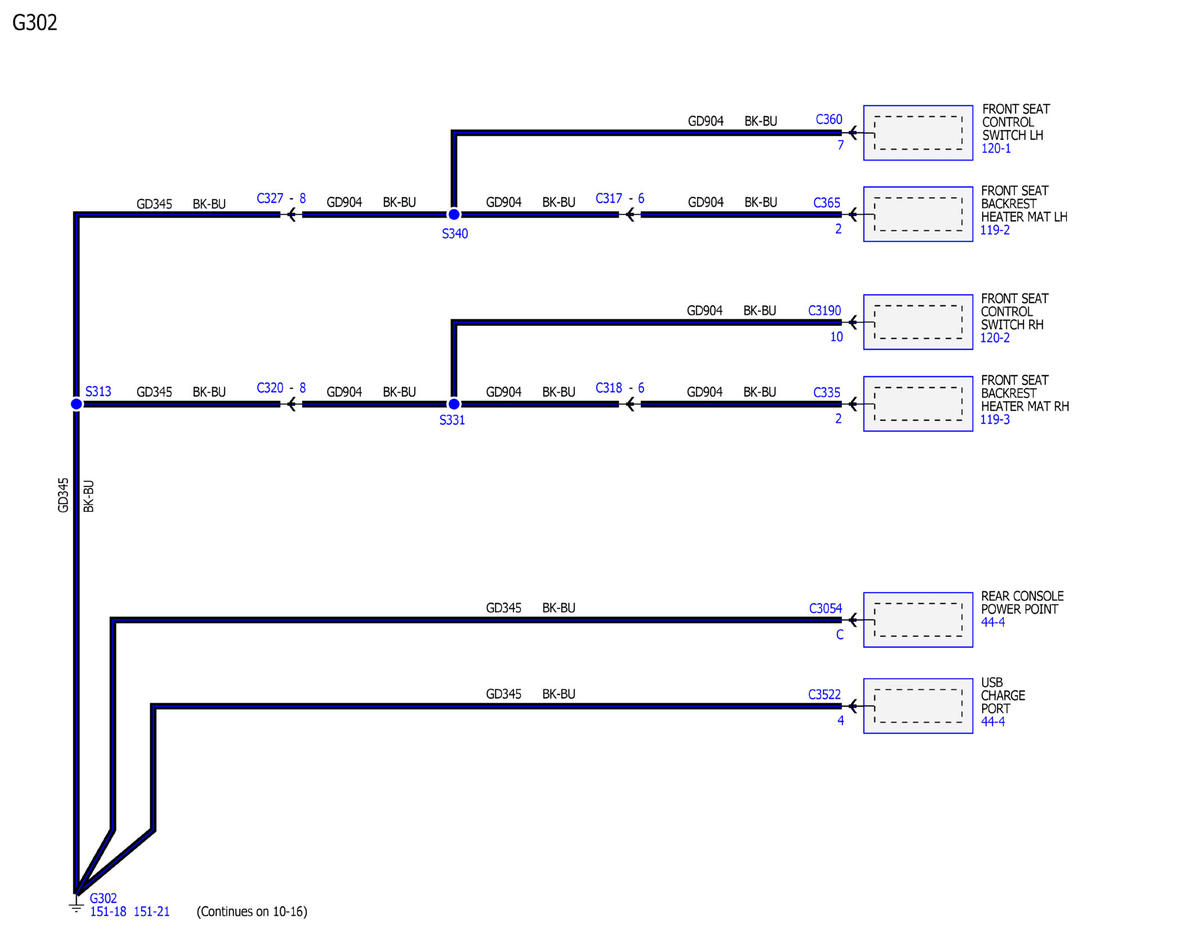

GFDWR70283Courtesy of FORD MOTOR COMPANY

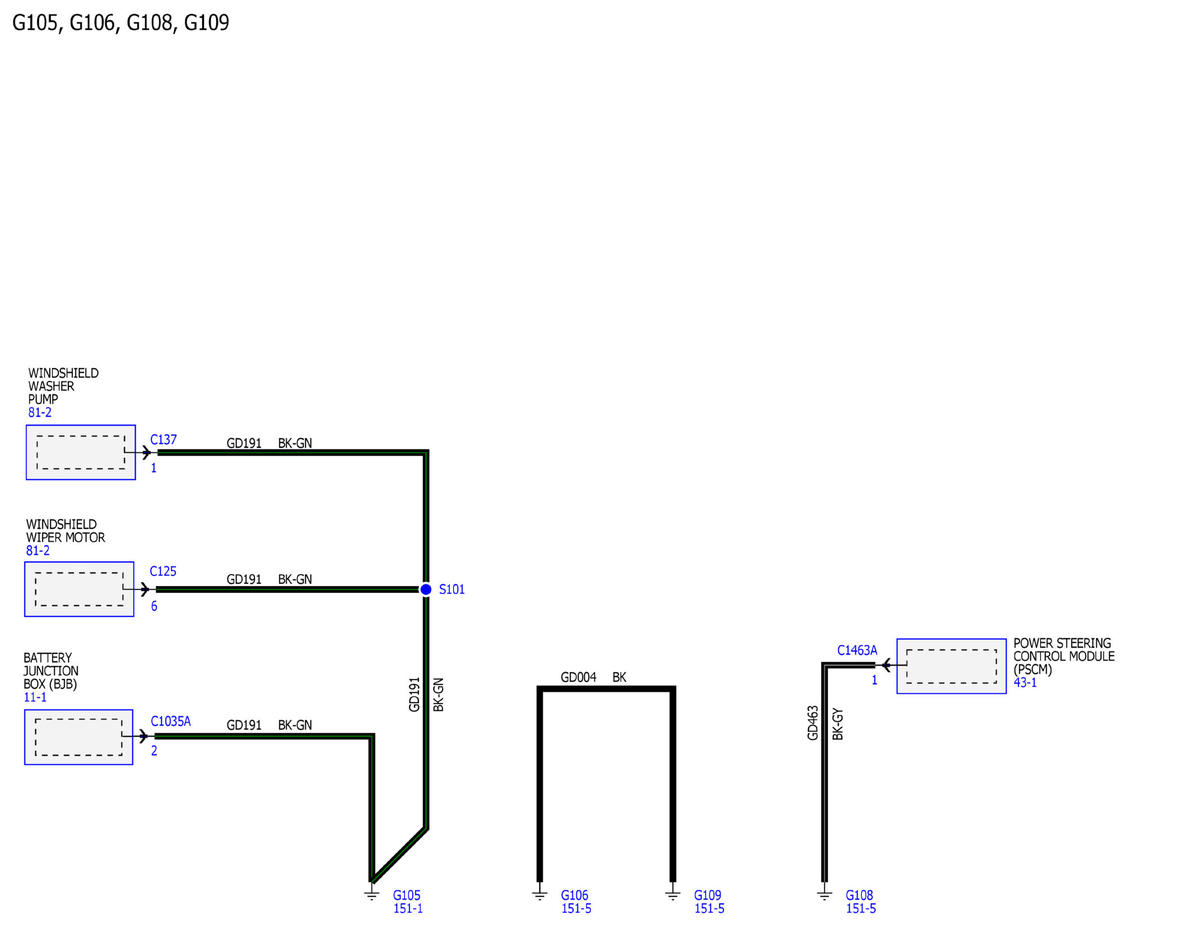

GFDWR70284Courtesy of FORD MOTOR COMPANY

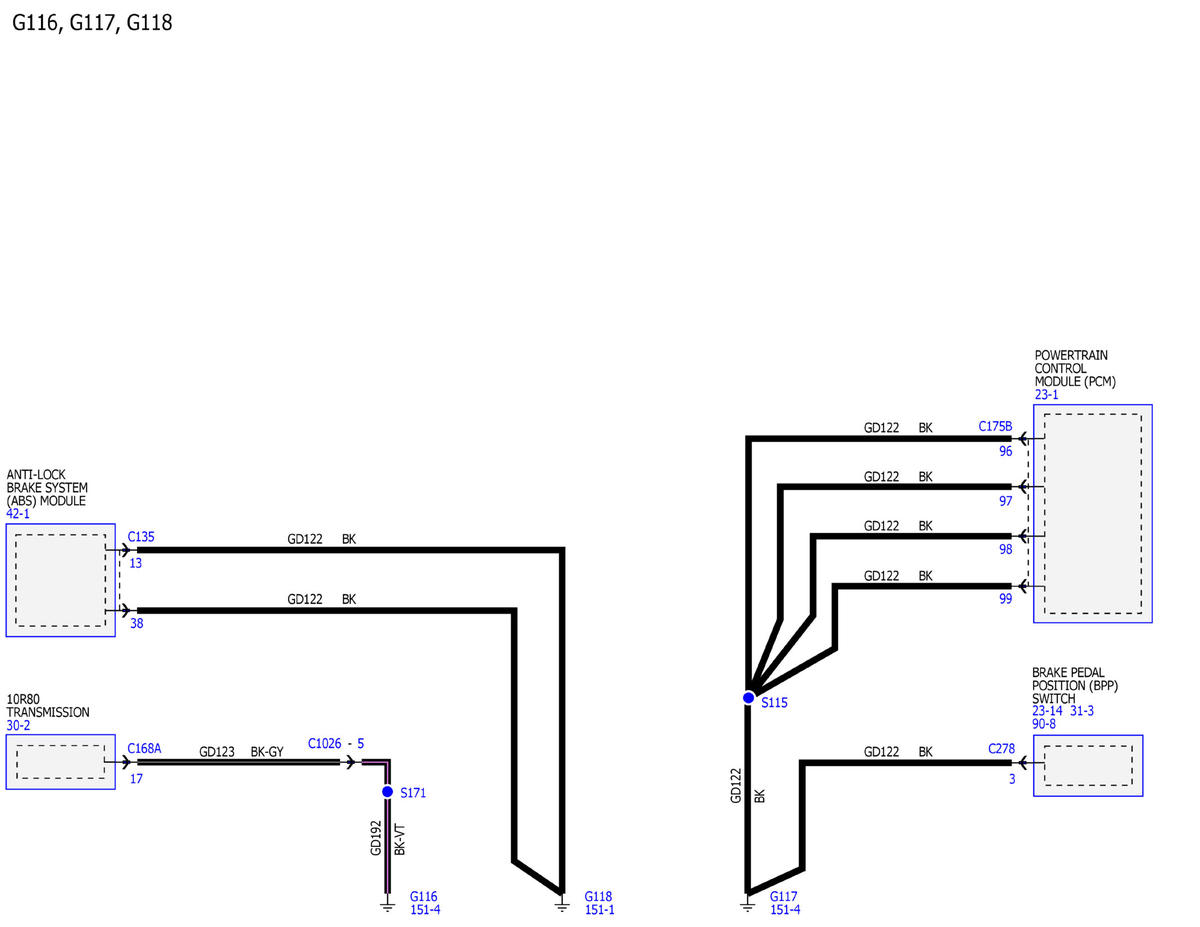

GFDWR70285Courtesy of FORD MOTOR COMPANY

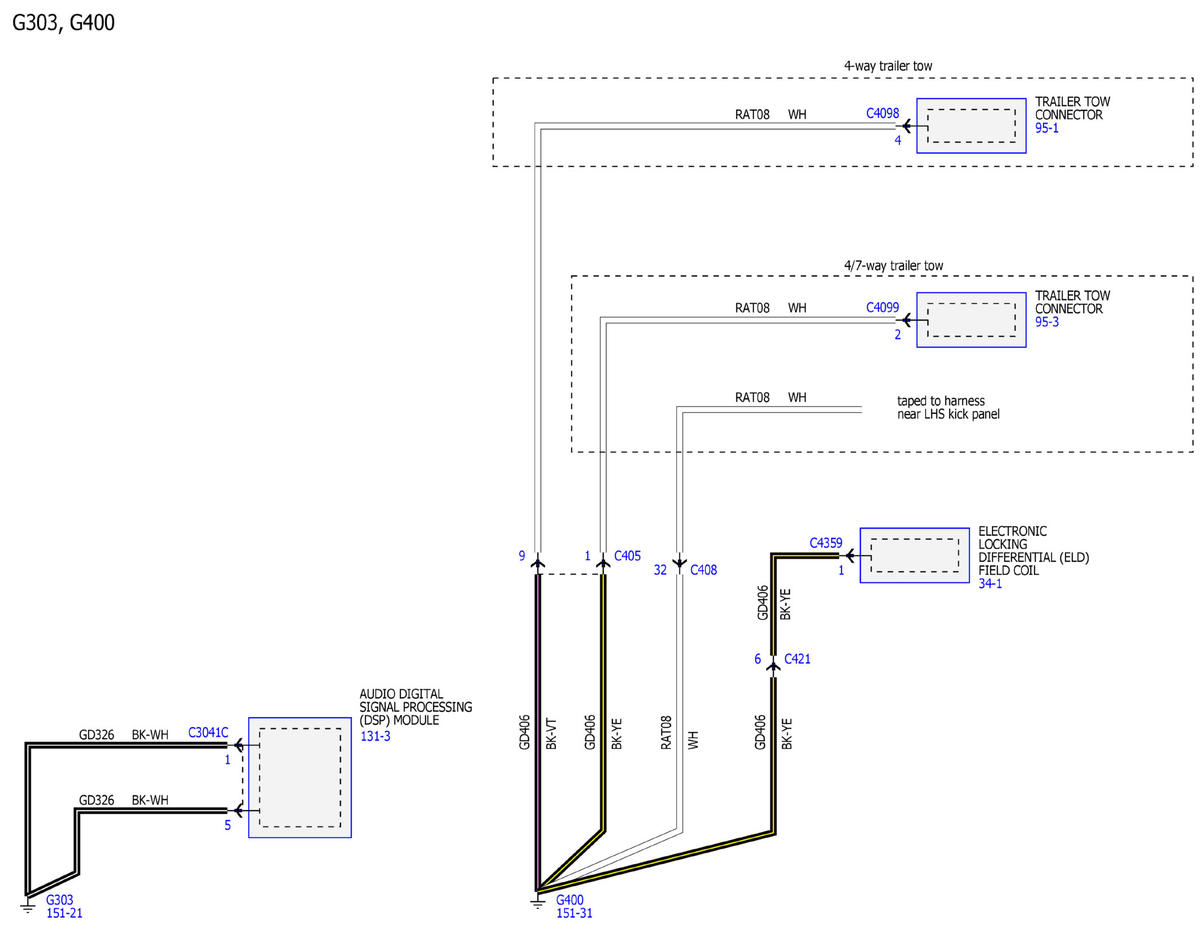

GFDWR70286Courtesy of FORD MOTOR COMPANY

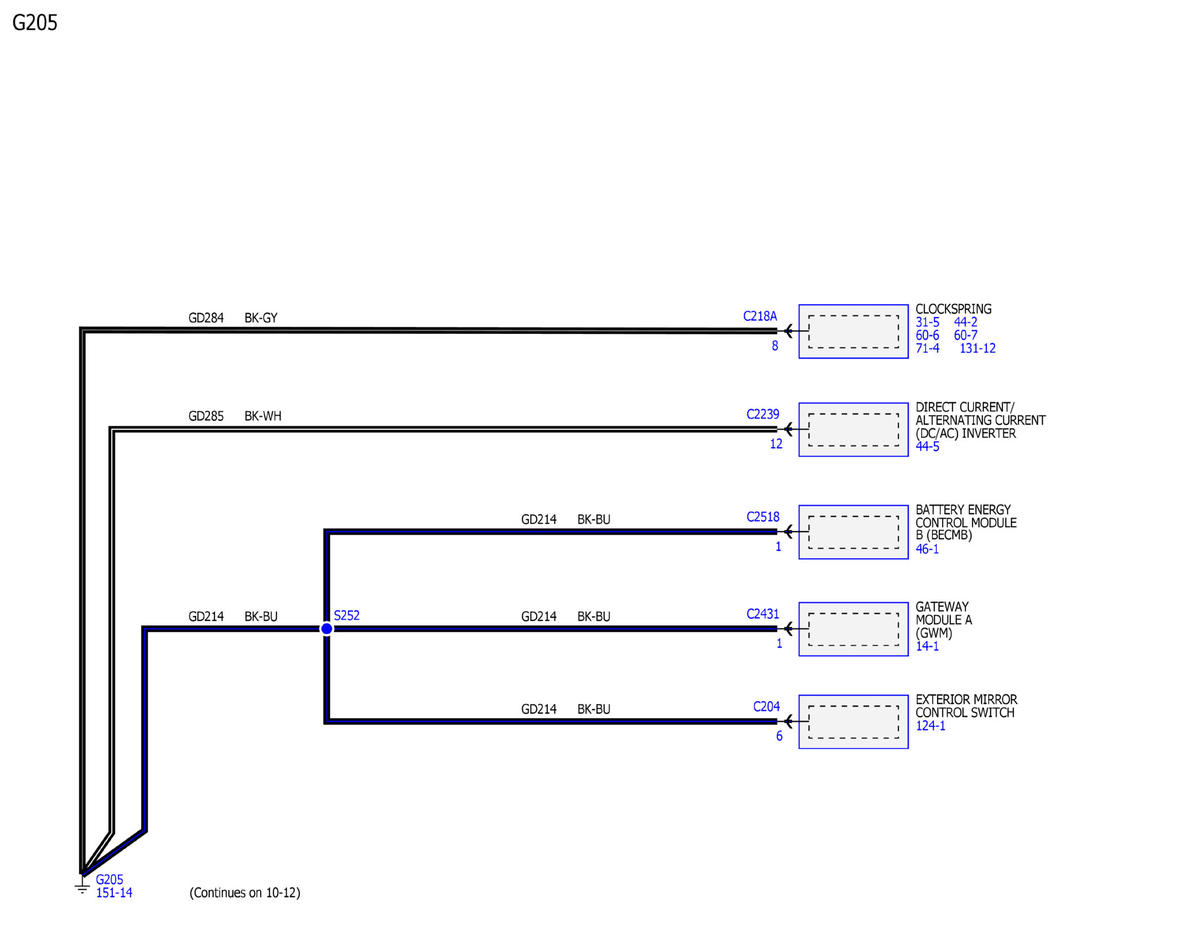

GFDWR70287Courtesy of FORD MOTOR COMPANY

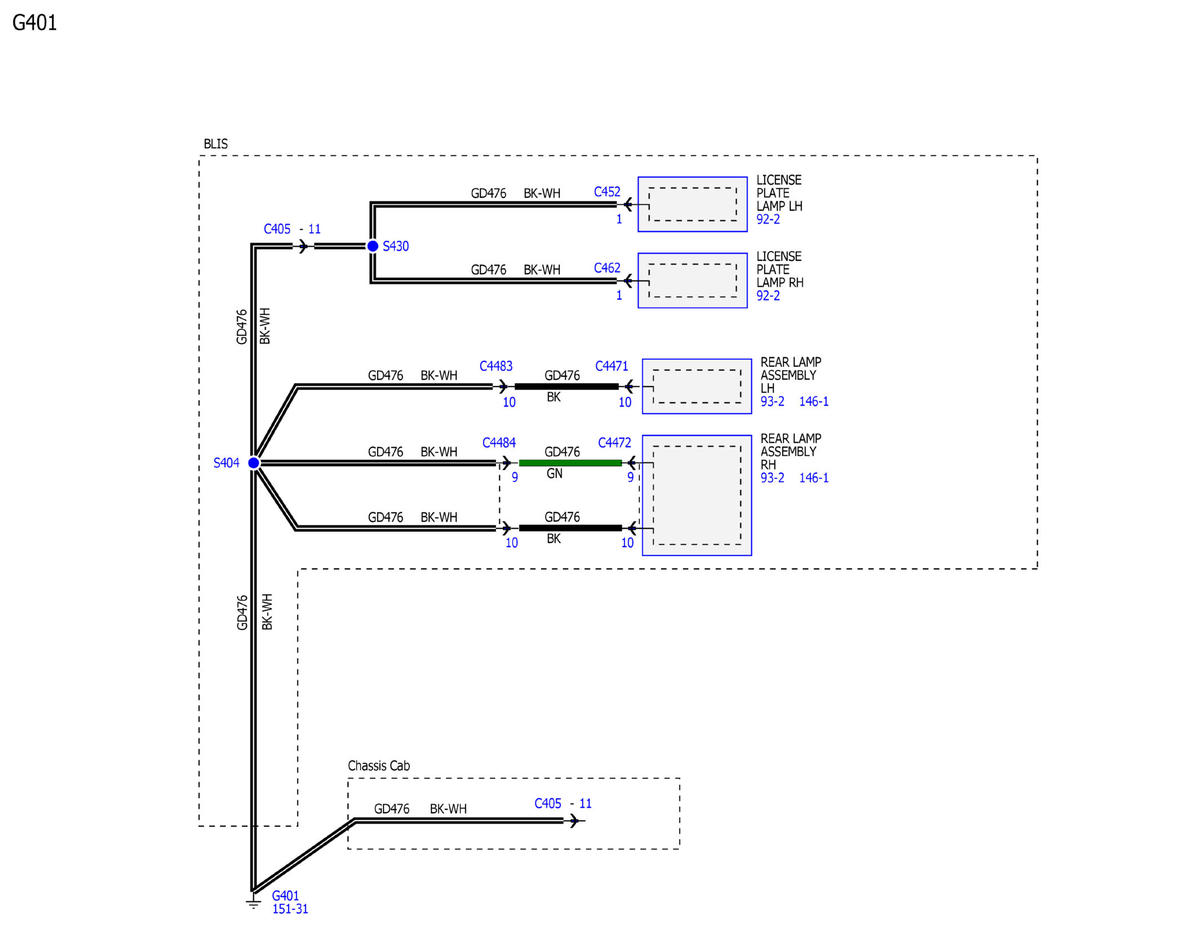

GFDWR70288Courtesy of FORD MOTOR COMPANY

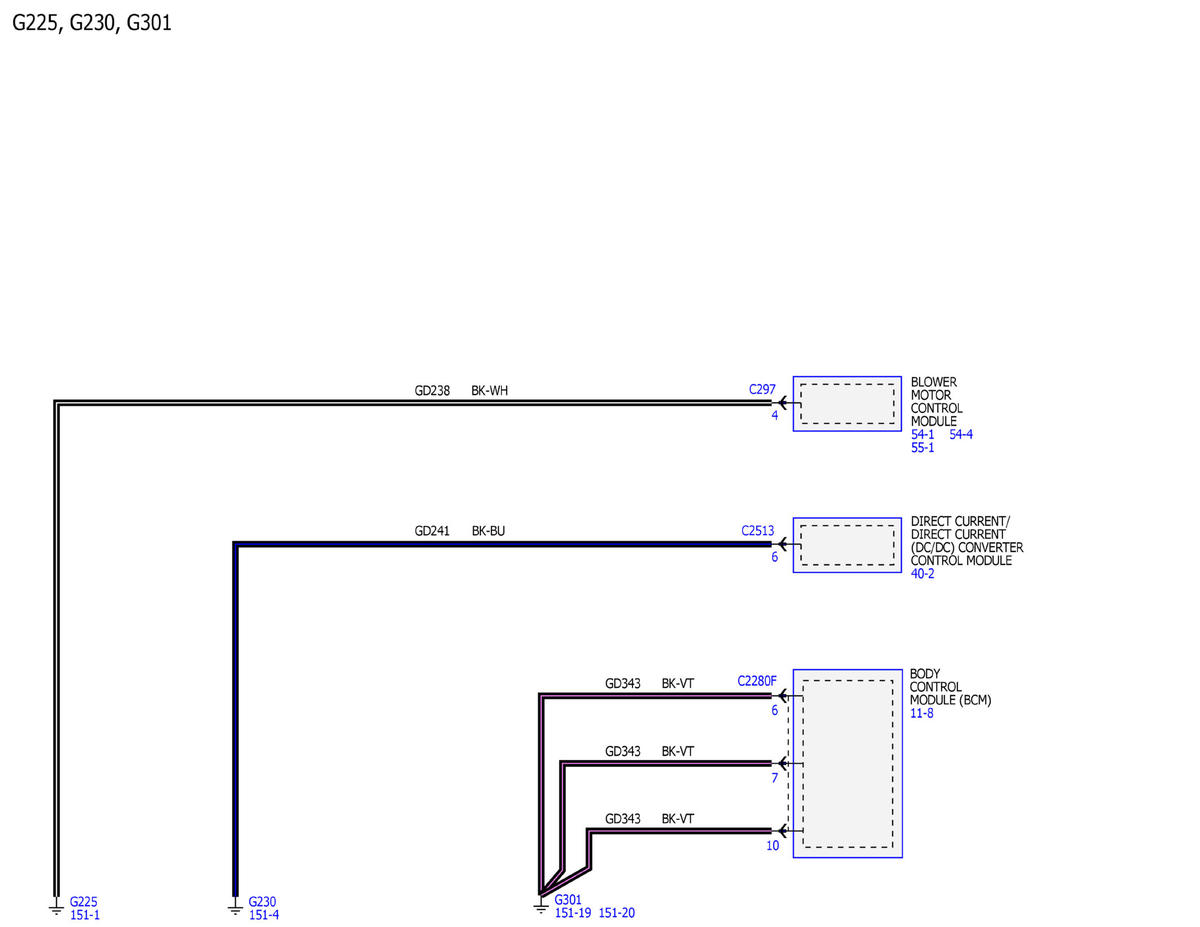

GFDWR70289Courtesy of FORD MOTOR COMPANY

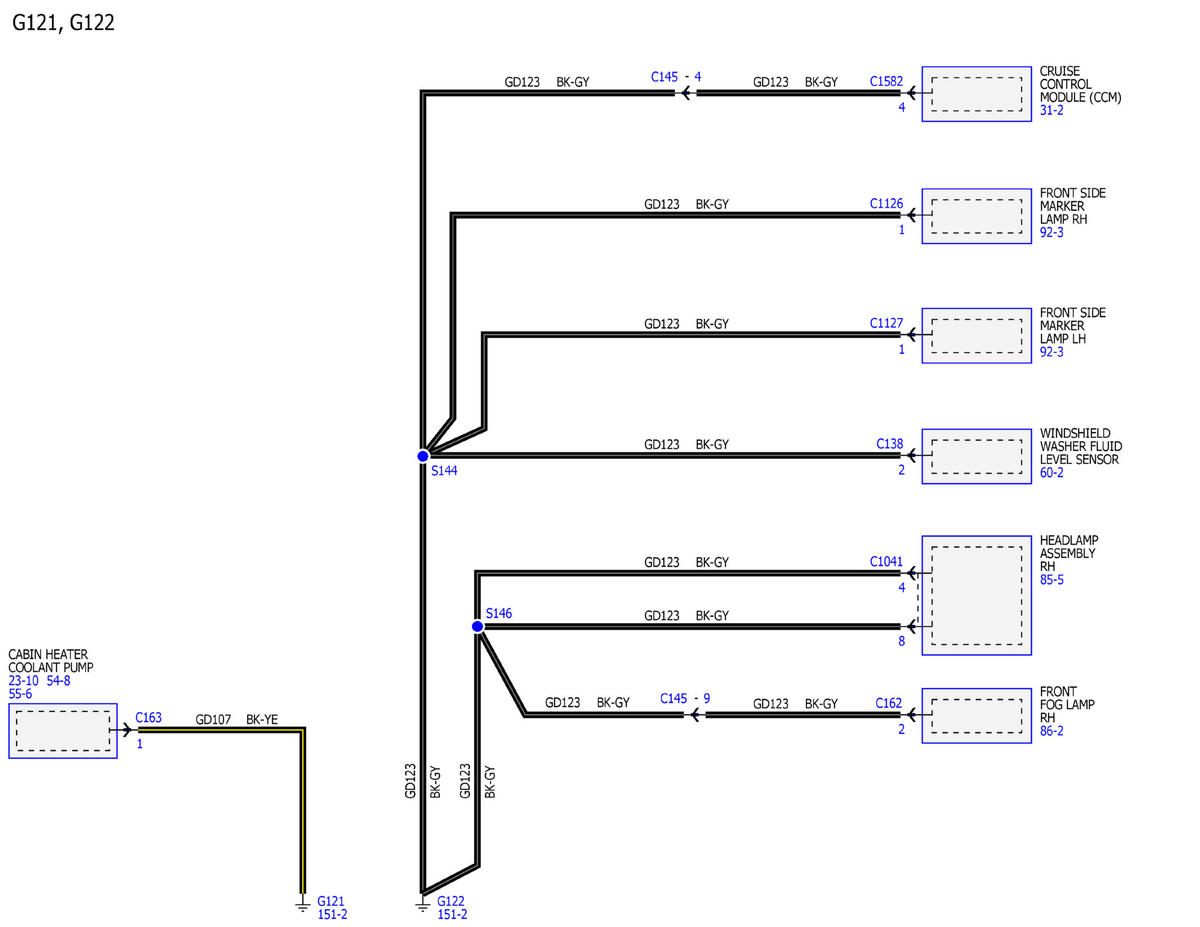

GFDWR70290Courtesy of FORD MOTOR COMPANY

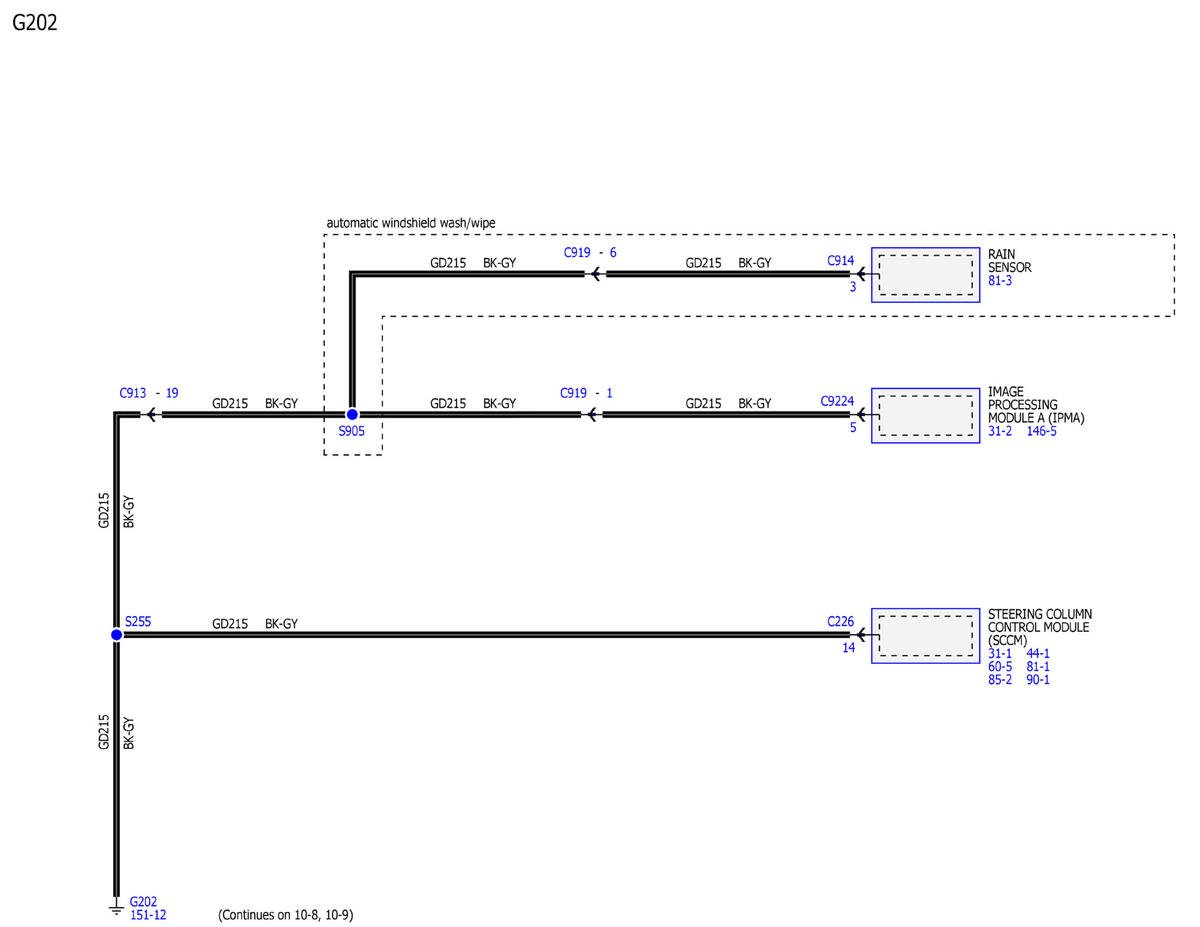

GFDWR70291Courtesy of FORD MOTOR COMPANY
