Transmission Fluid Level Check

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Check

1. Start the engine and allow to run for 1 minute. Turn engine off and wait 5 minutes.
2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

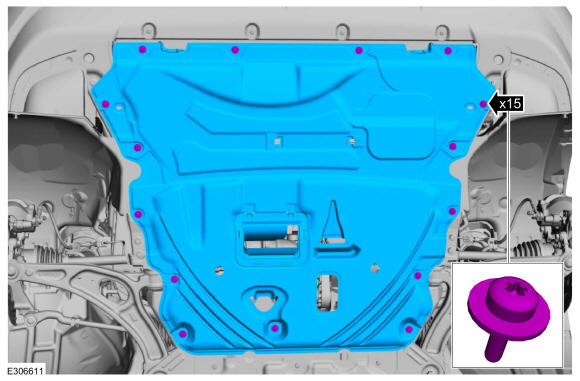

3. Remove the screws and the engine front undershield.

   Courtesy of FORD MOTOR COMPANY

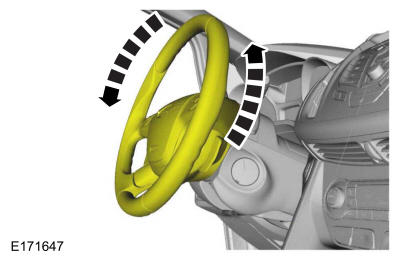

4. Rotate the steering wheel counter clockwise to access the transmission fluid leveling plug.

   Courtesy of FORD MOTOR COMPANY

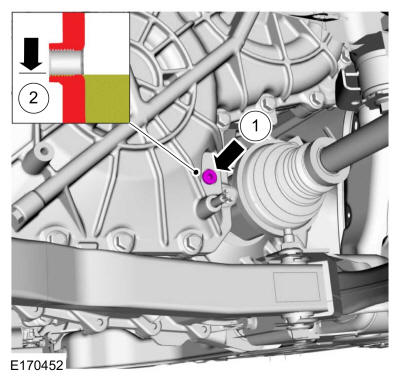

5. NOTE: The transmission fluid should be even with the bottom of the transmission fluid leveling plug hole.

   Remove the transmission fluid leveling plug and check the transmission fluid level.

   Courtesy of FORD MOTOR COMPANY

   Adding Additional Transmission Fluid

   NOTE: The following procedure uses the Mityvac MITMV6412 ATF Refill System.

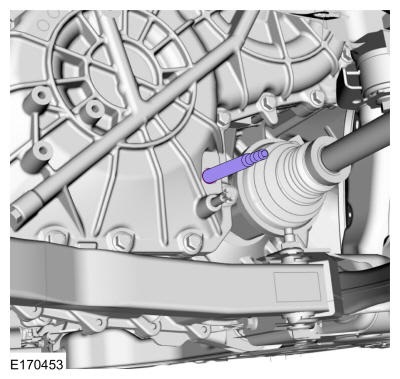

6. Select adapter MVA585 (M10 X 1.0) and install into transmission fluid leveling plug hole hand tight.

   Courtesy of FORD MOTOR COMPANY

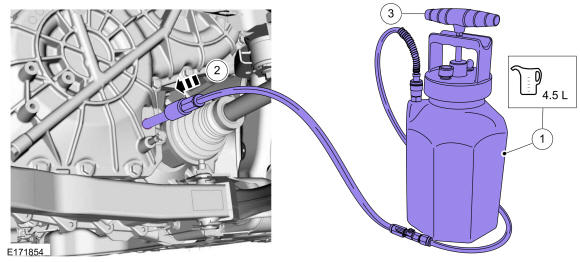

7. Fill the transmission with transmission fluid.
   1. Fill the Mityvac MITMV6412 with transmission fluid.

      Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

   2. Connect the Mityvac MITMV6412.
   3. Follow the manufacturer instructions to dispense the fluid into the transmission.

   Courtesy of FORD MOTOR COMPANY

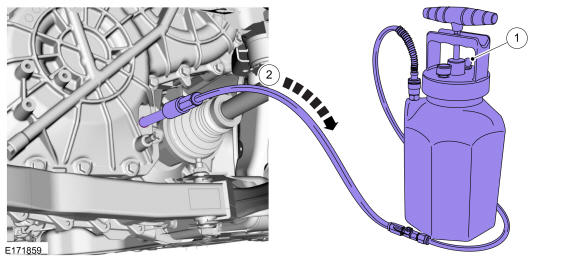

8. 1. Release the pressure.
   2. Allow all excess fluid to drain back into the canister, then remove the Mityvac MITMV6412.

   Courtesy of FORD MOTOR COMPANY

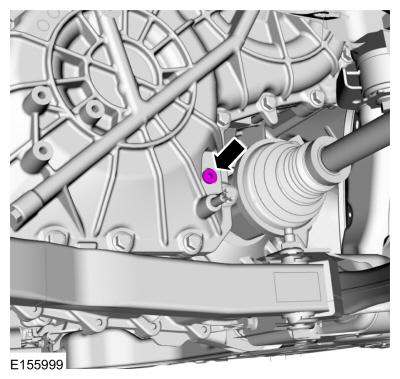

9. Install the transmission fluid leveling plug.

   Torque: 71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

10. Install the engine front undershield and the screws.

Courtesy of FORD MOTOR COMPANY
