Transmission Controls - Hf45
Transmission Controls - Hf45

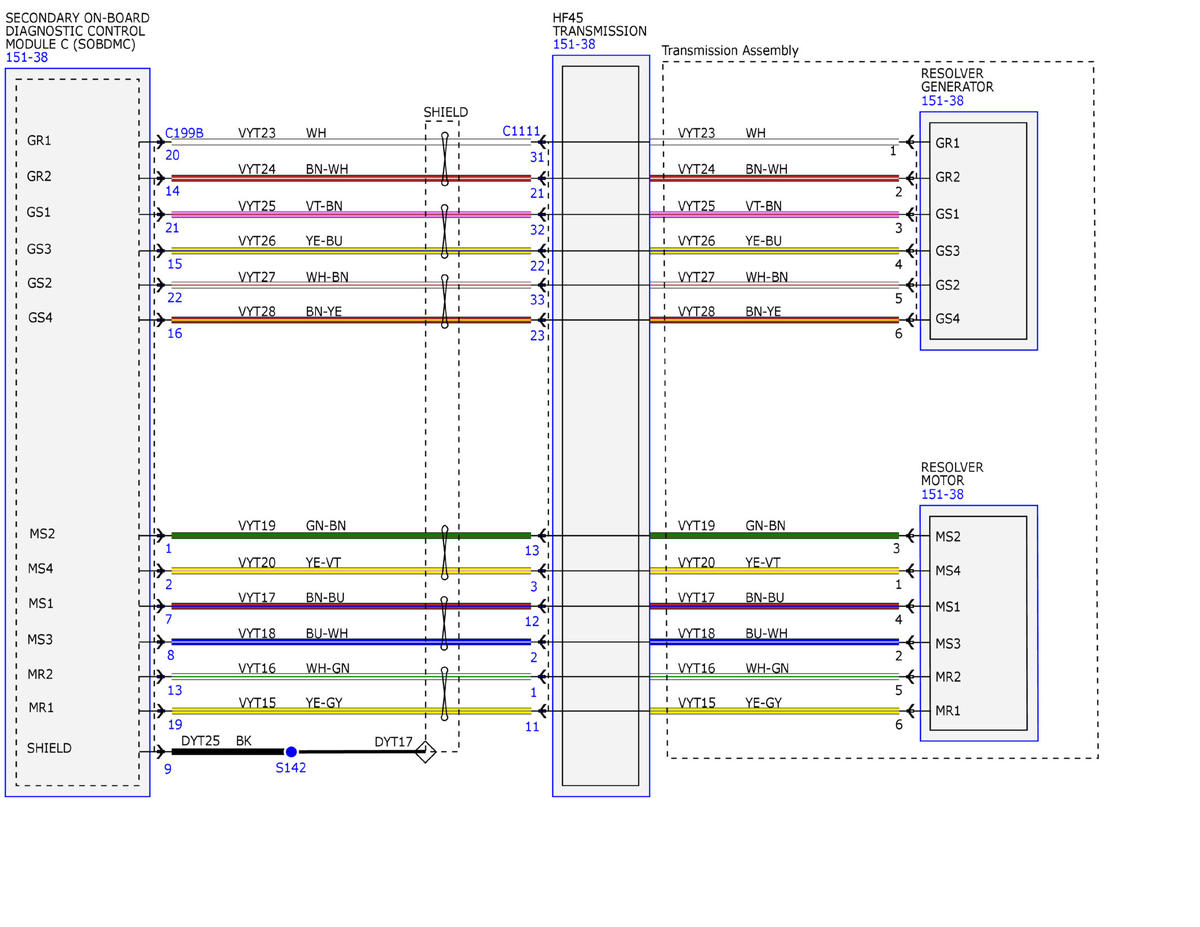

Fig 1: Transmission Controls - HF45 Wiring Diagram (1 of 7)
Courtesy of FORD MOTOR COMPANY

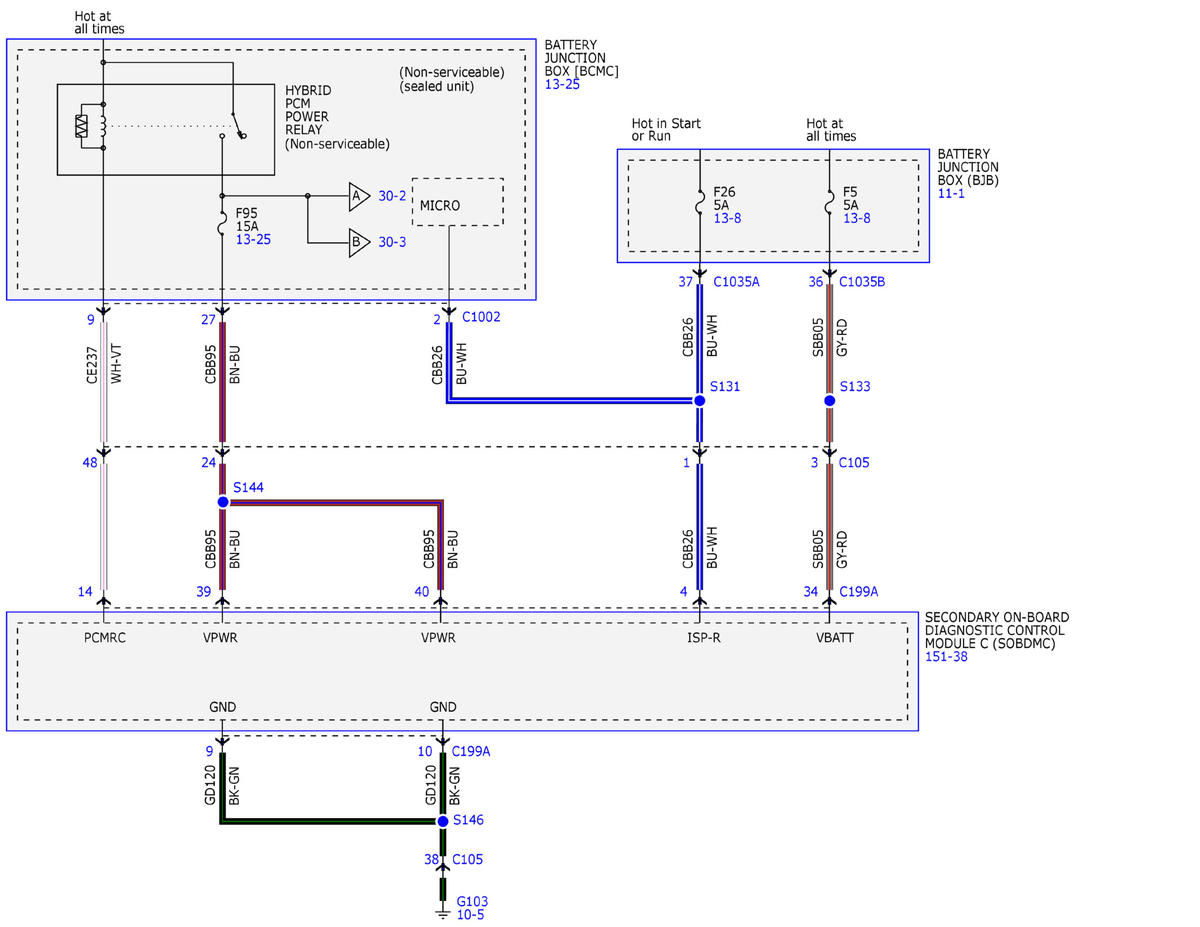

Fig 2: Transmission Controls - HF45 Wiring Diagram (2 of 7)
Courtesy of FORD MOTOR COMPANY

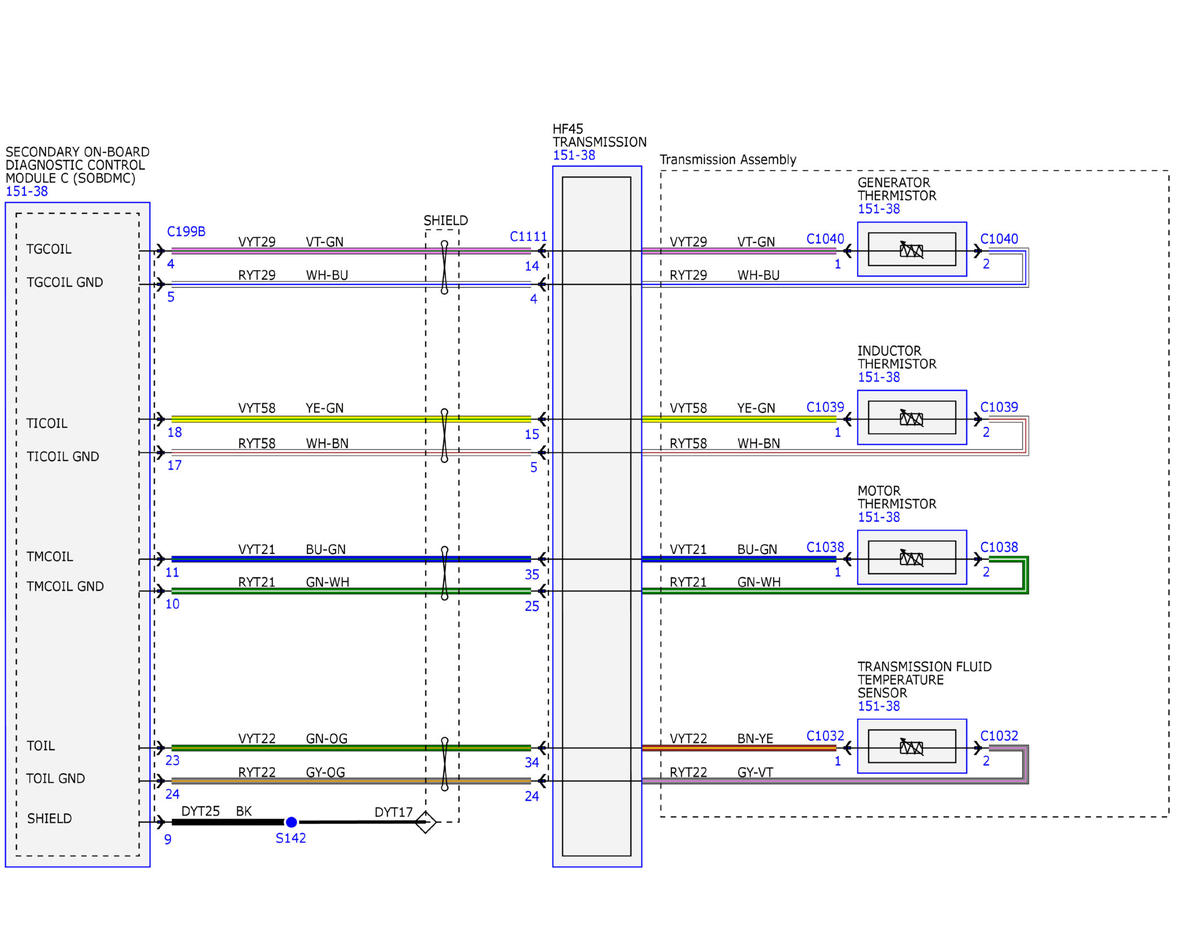

Fig 3: Transmission Controls - HF45 Wiring Diagram (3 of 7)
Courtesy of FORD MOTOR COMPANY

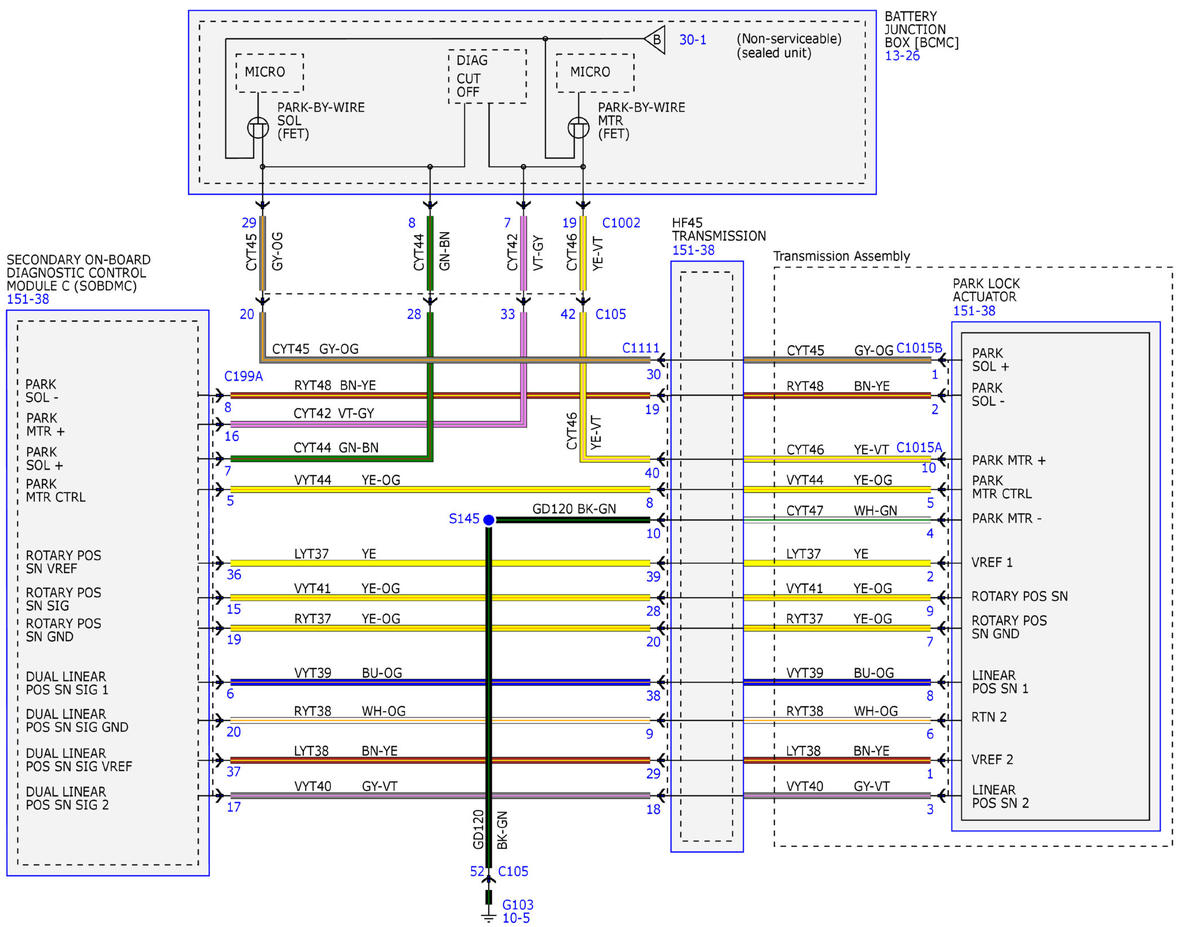

Fig 4: Transmission Controls - HF45 Wiring Diagram (4 of 7)
Courtesy of FORD MOTOR COMPANY

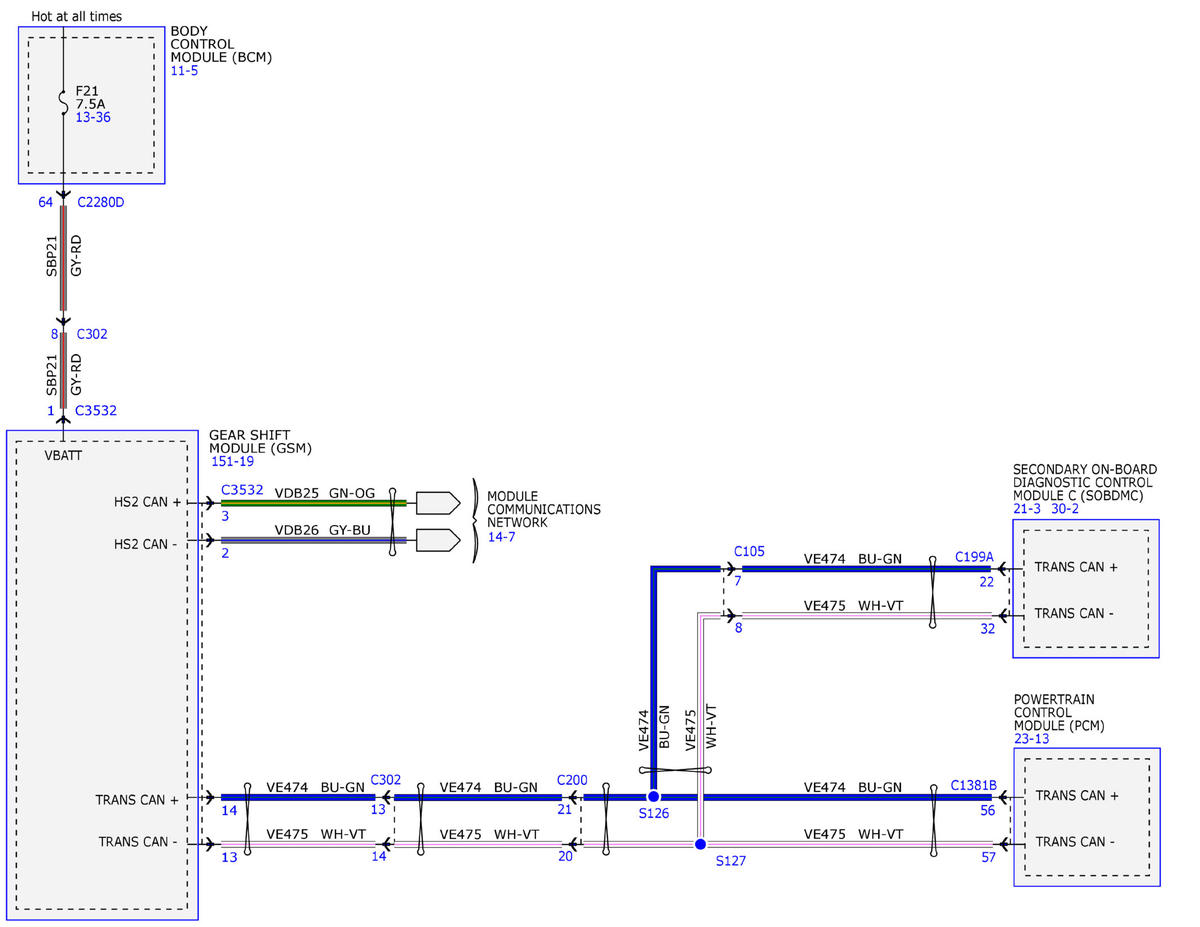

Fig 5: Transmission Controls - HF45 Wiring Diagram (5 of 7)
Courtesy of FORD MOTOR COMPANY

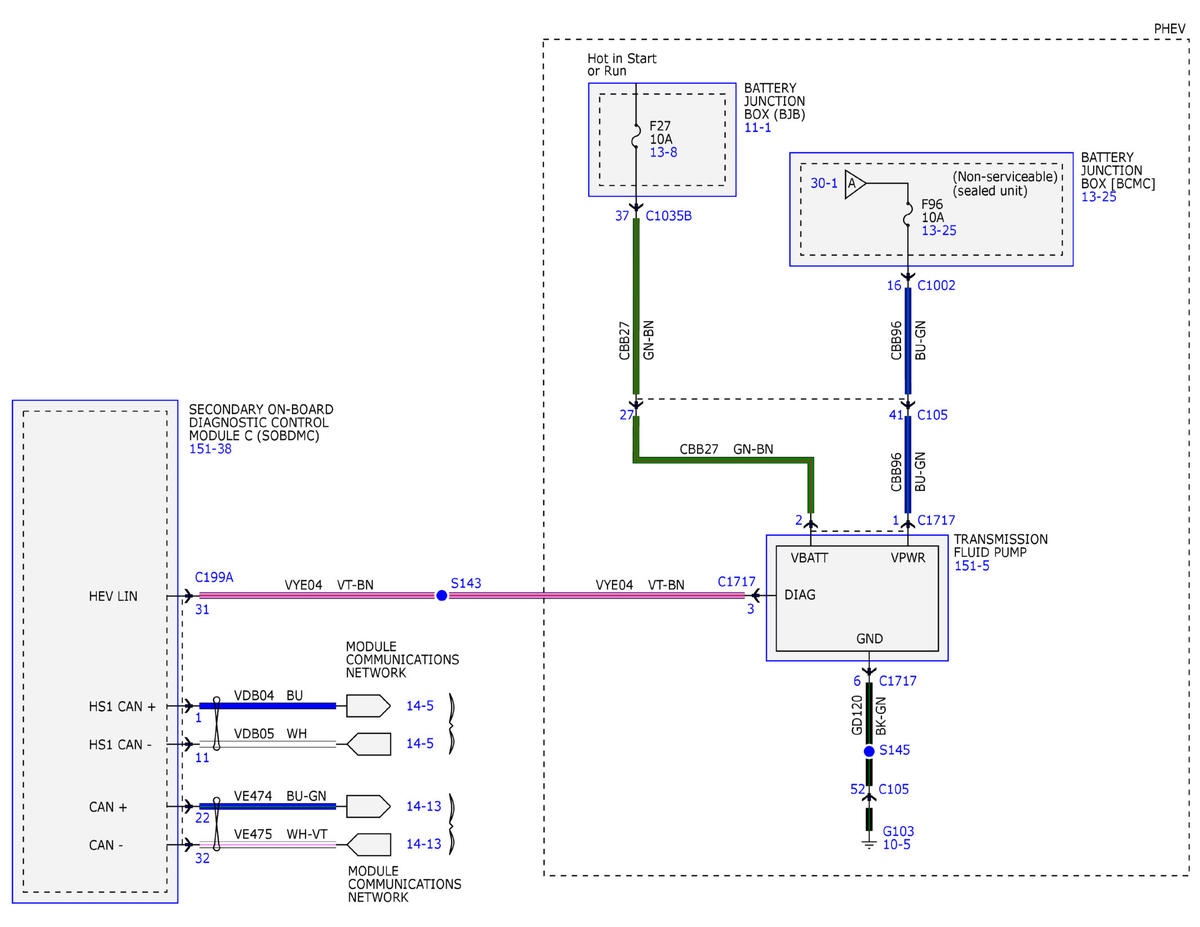

Fig 6: Transmission Controls - HF45 Wiring Diagram (6 of 7)
Courtesy of FORD MOTOR COMPANY

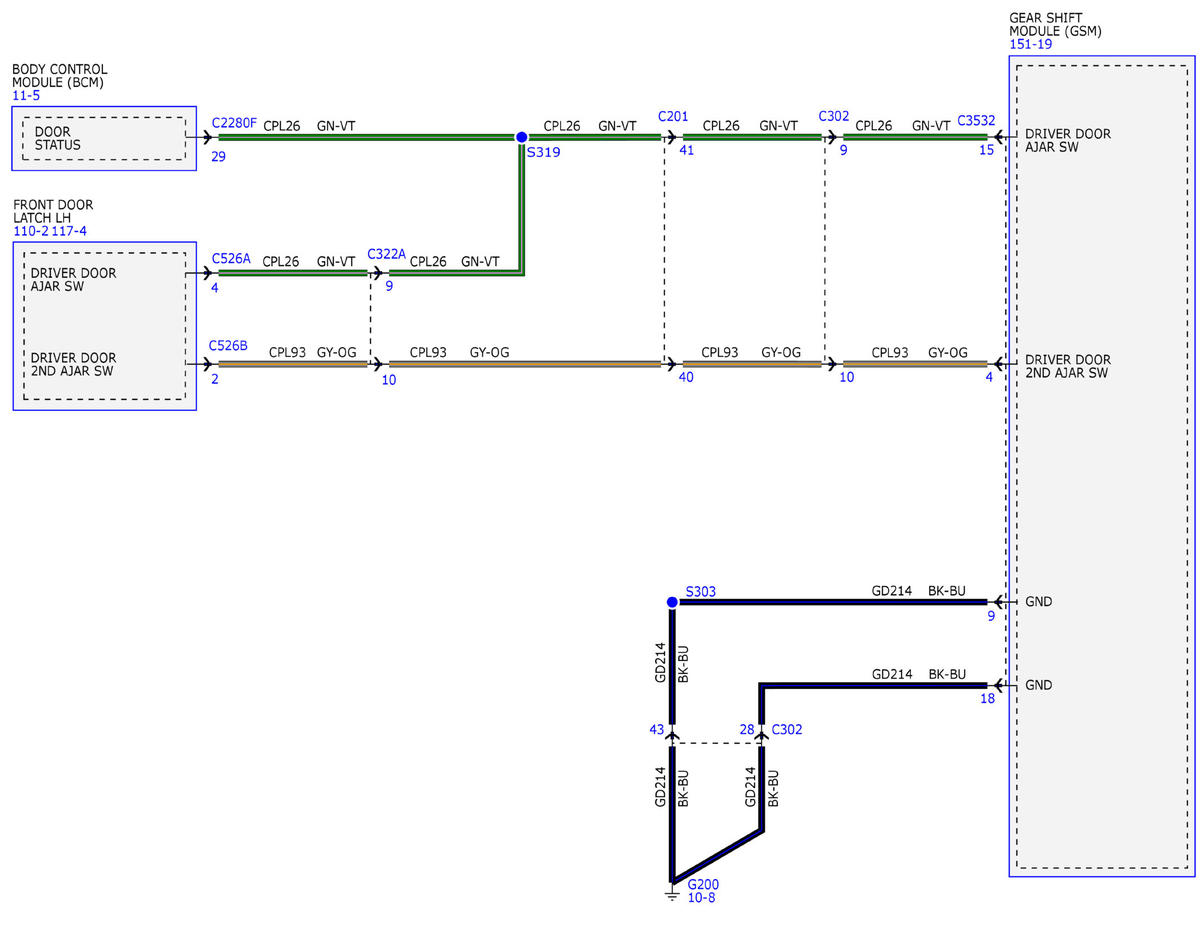

Fig 7: Transmission Controls - HF45 Wiring Diagram (7 of 7)
Courtesy of FORD MOTOR COMPANY
