Trailer/Camper Adapter
Trailer/Camper Adapter

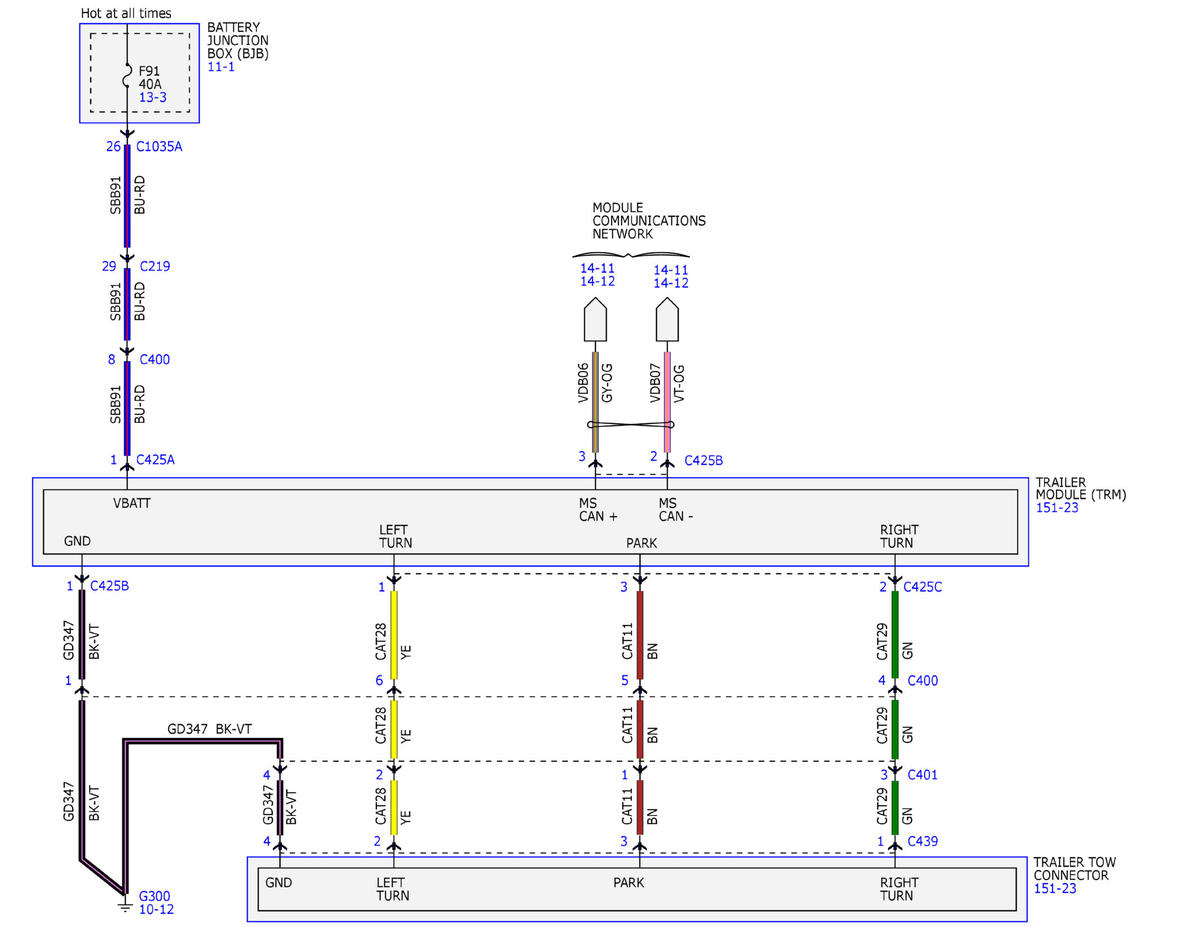

Fig 1: Trailer/Camper Adapter Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
