Power Seats
Power Seats

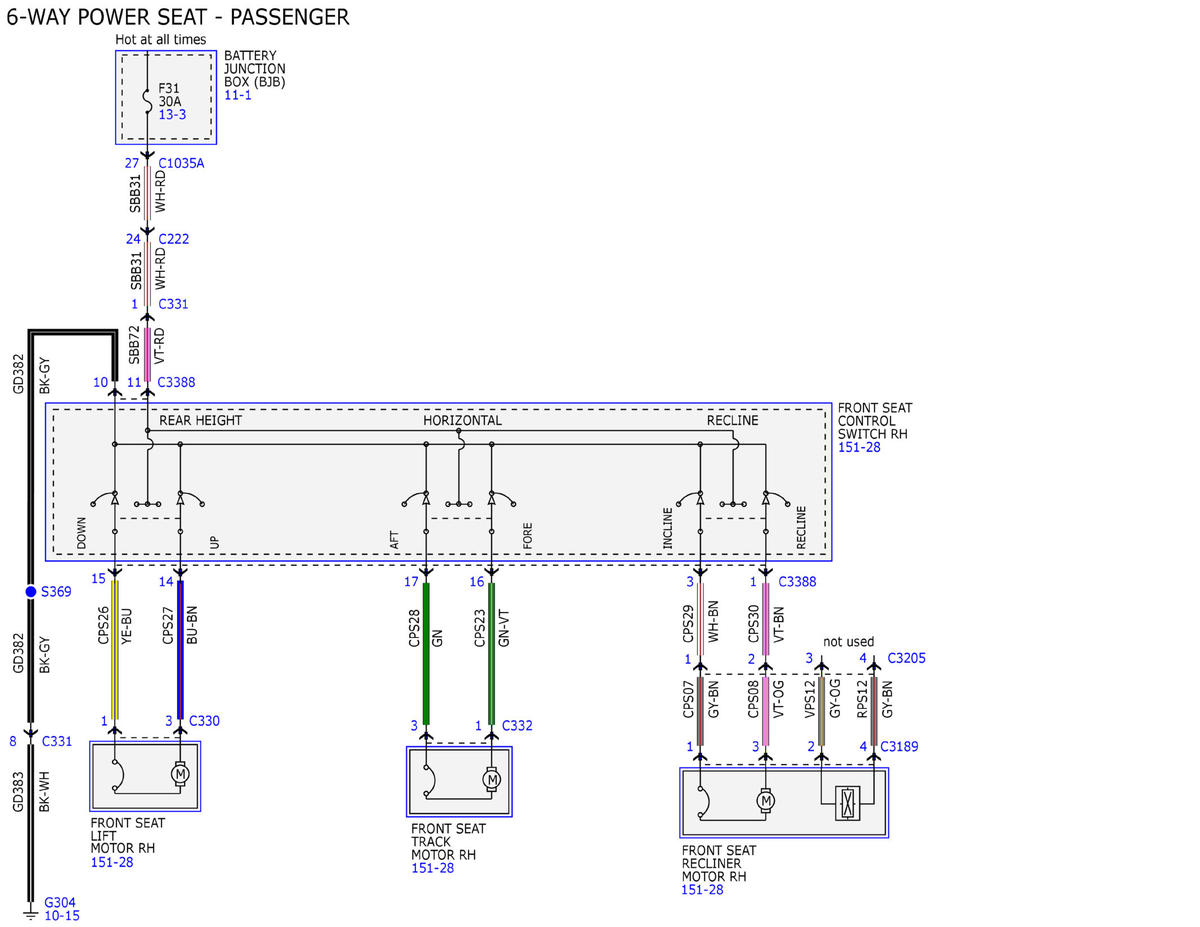

Fig 1: Power Seats Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY

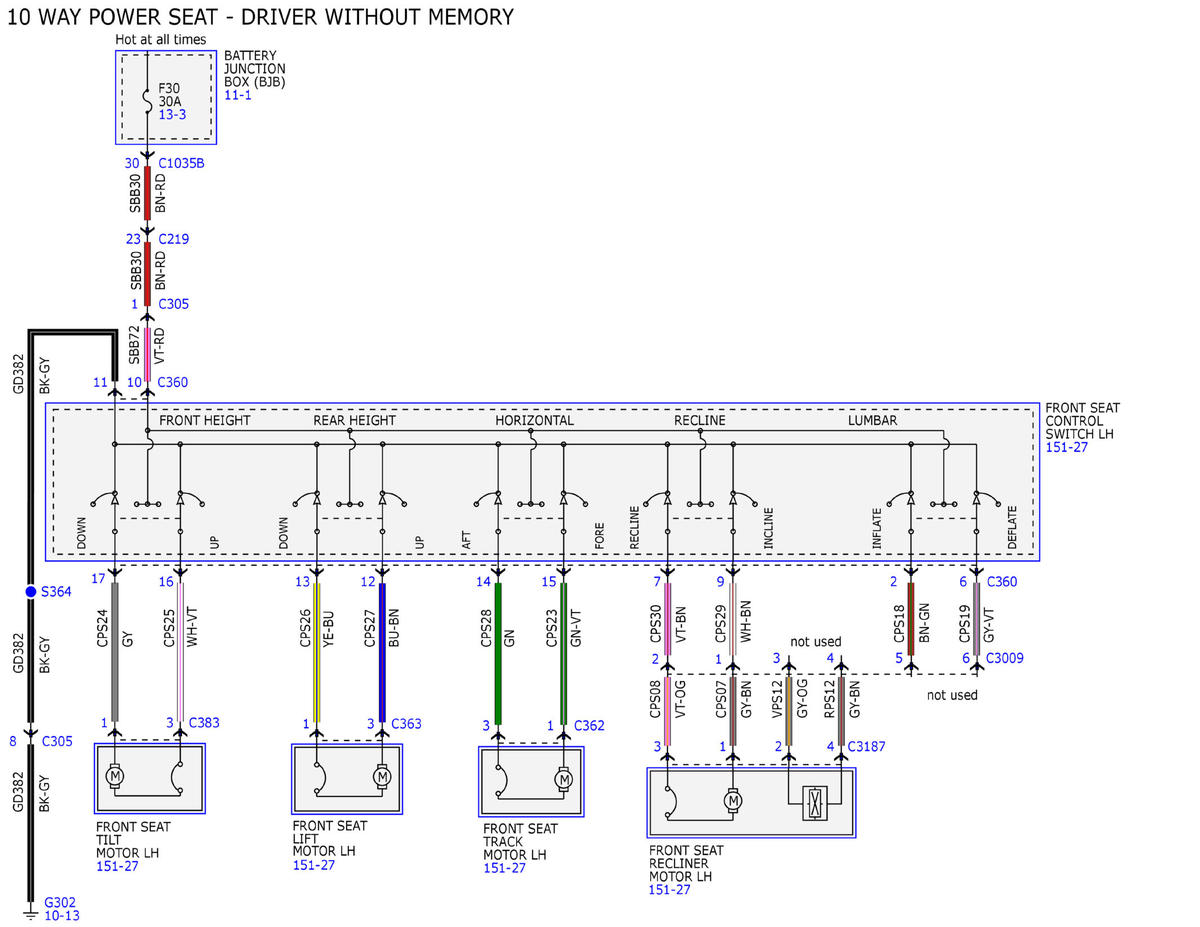

Fig 2: Power Seats Wiring Diagram (2 of 2)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
