Power Liftgate

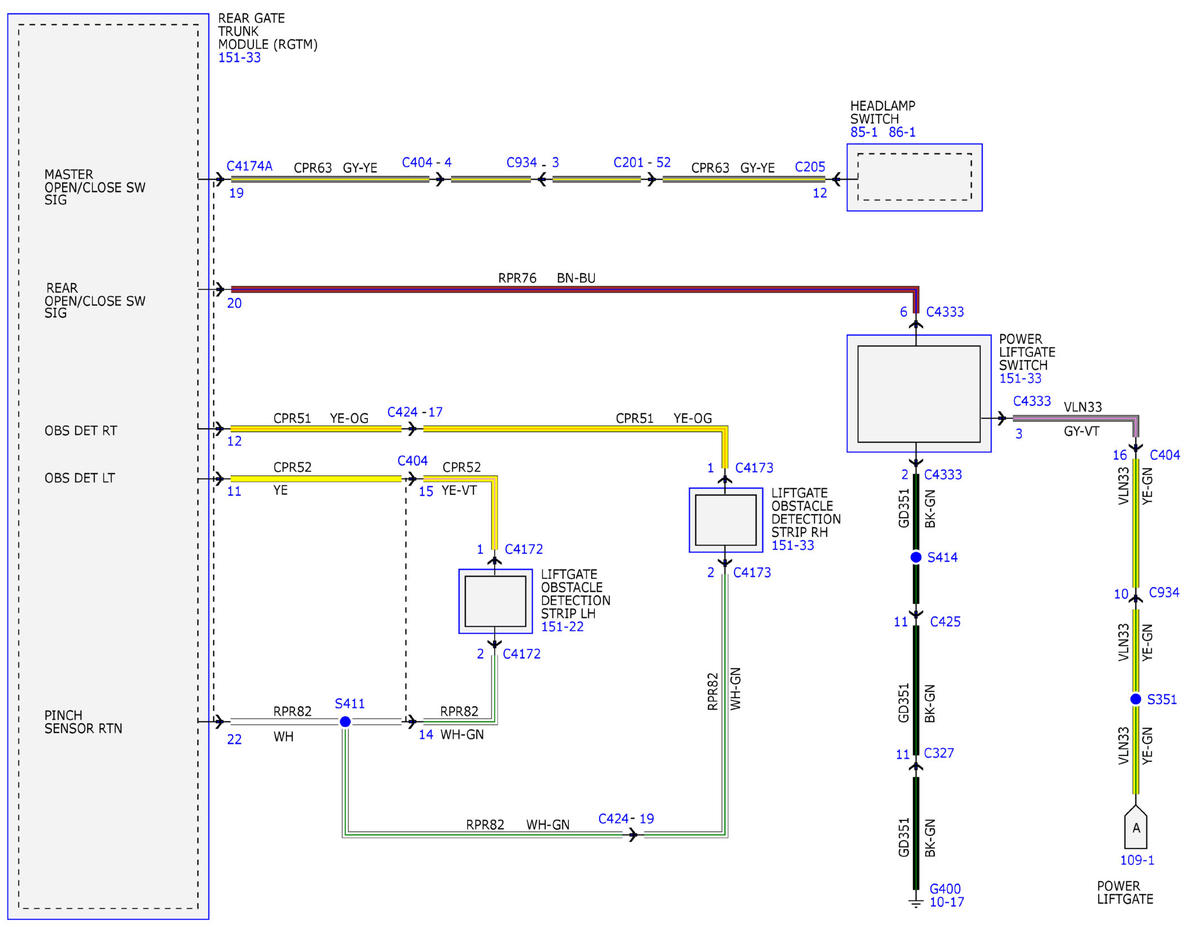

Fig 1: Power Liftgate Wiring Diagram (1 of 5)
GFDWR91709Courtesy of FORD MOTOR COMPANY

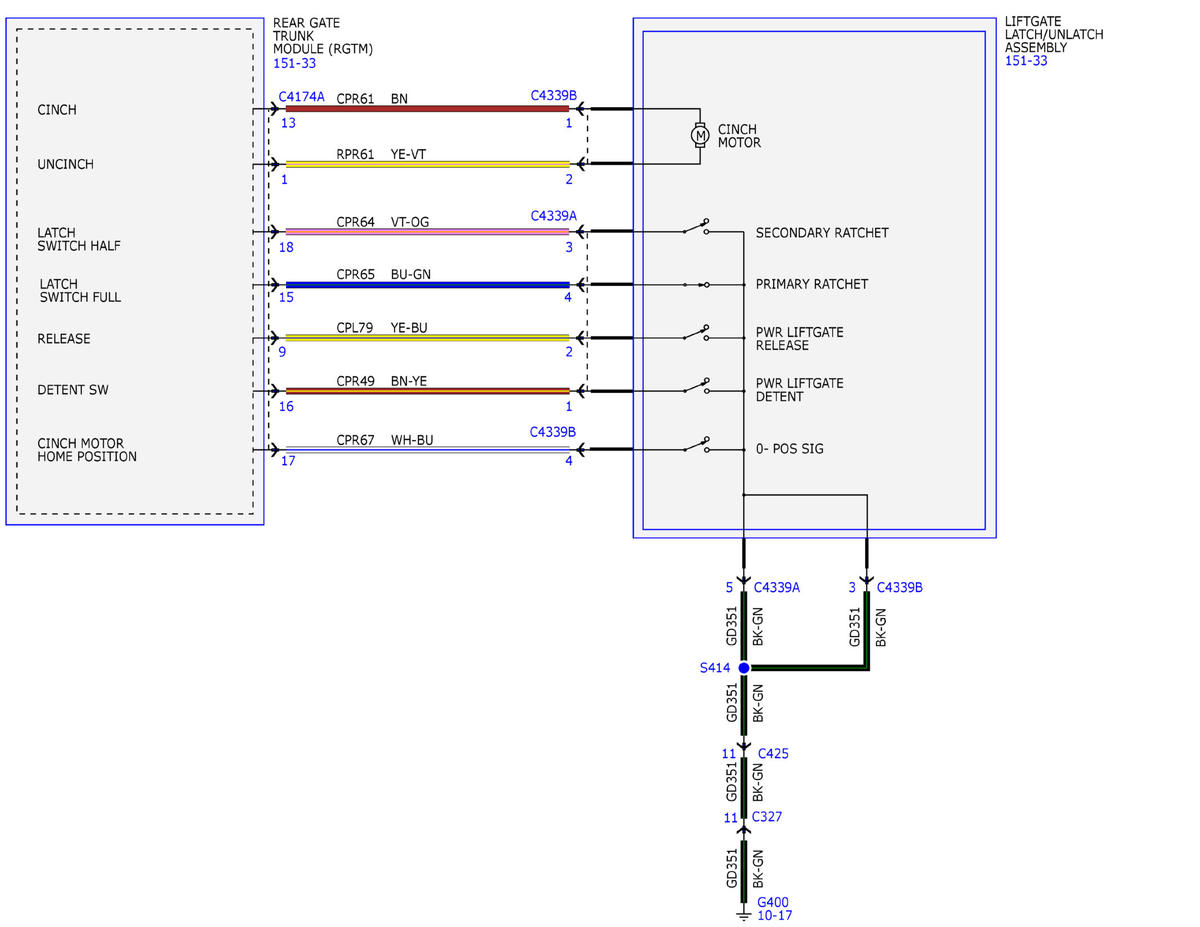

Fig 2: Power Liftgate Wiring Diagram (2 of 5)
GFDWR91710Courtesy of FORD MOTOR COMPANY

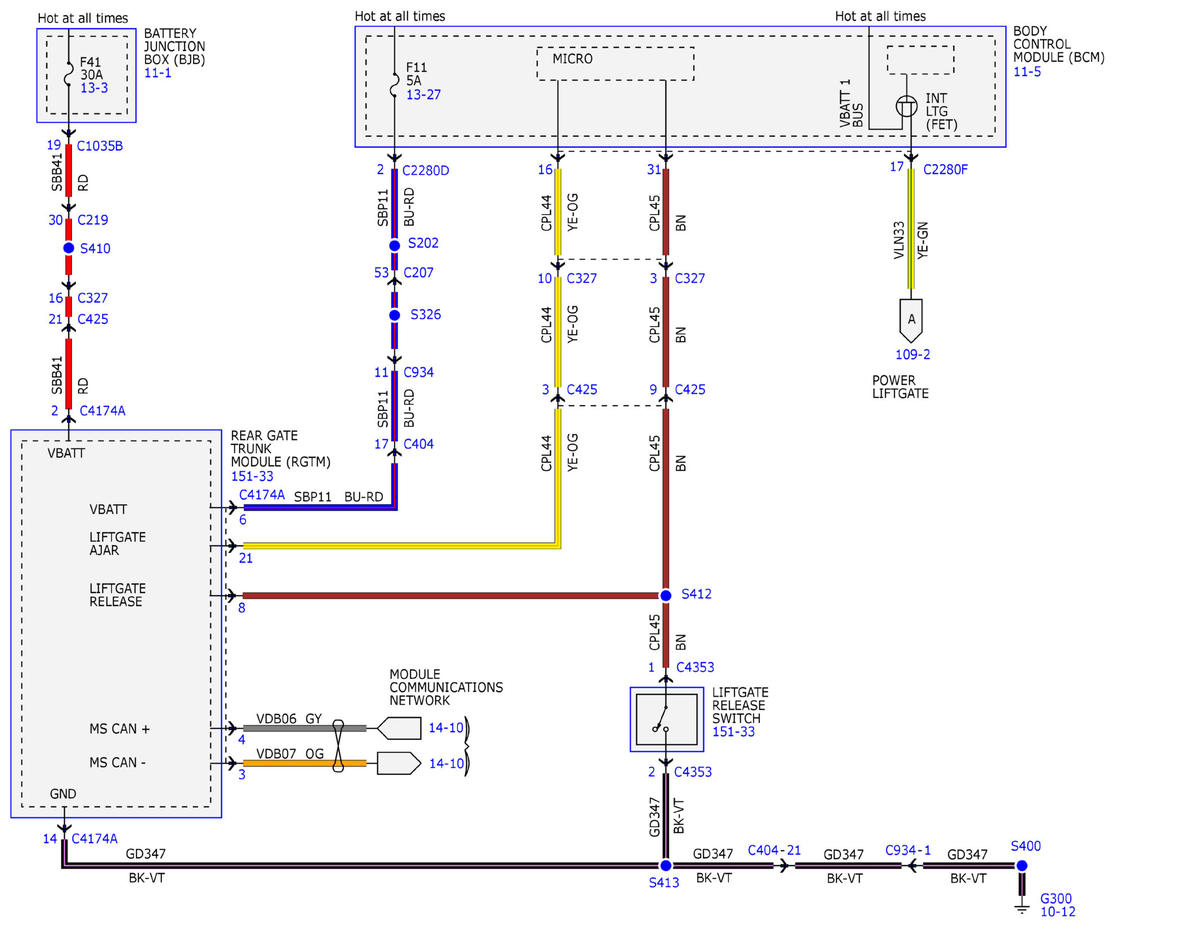

Fig 3: Power Liftgate Wiring Diagram (3 of 5)
GFDWR91711Courtesy of FORD MOTOR COMPANY

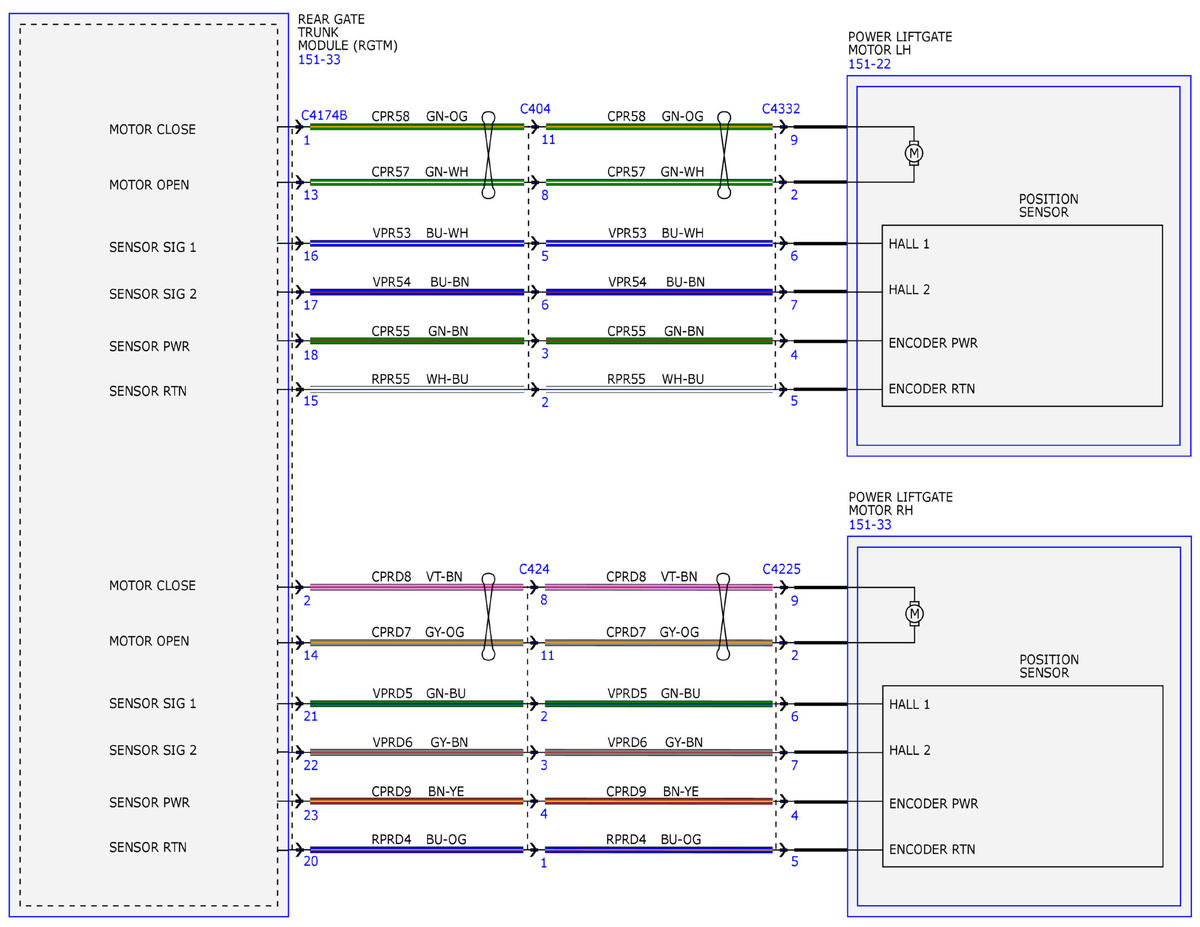

Fig 4: Power Liftgate Wiring Diagram (4 of 5)
GFDWR91712Courtesy of FORD MOTOR COMPANY

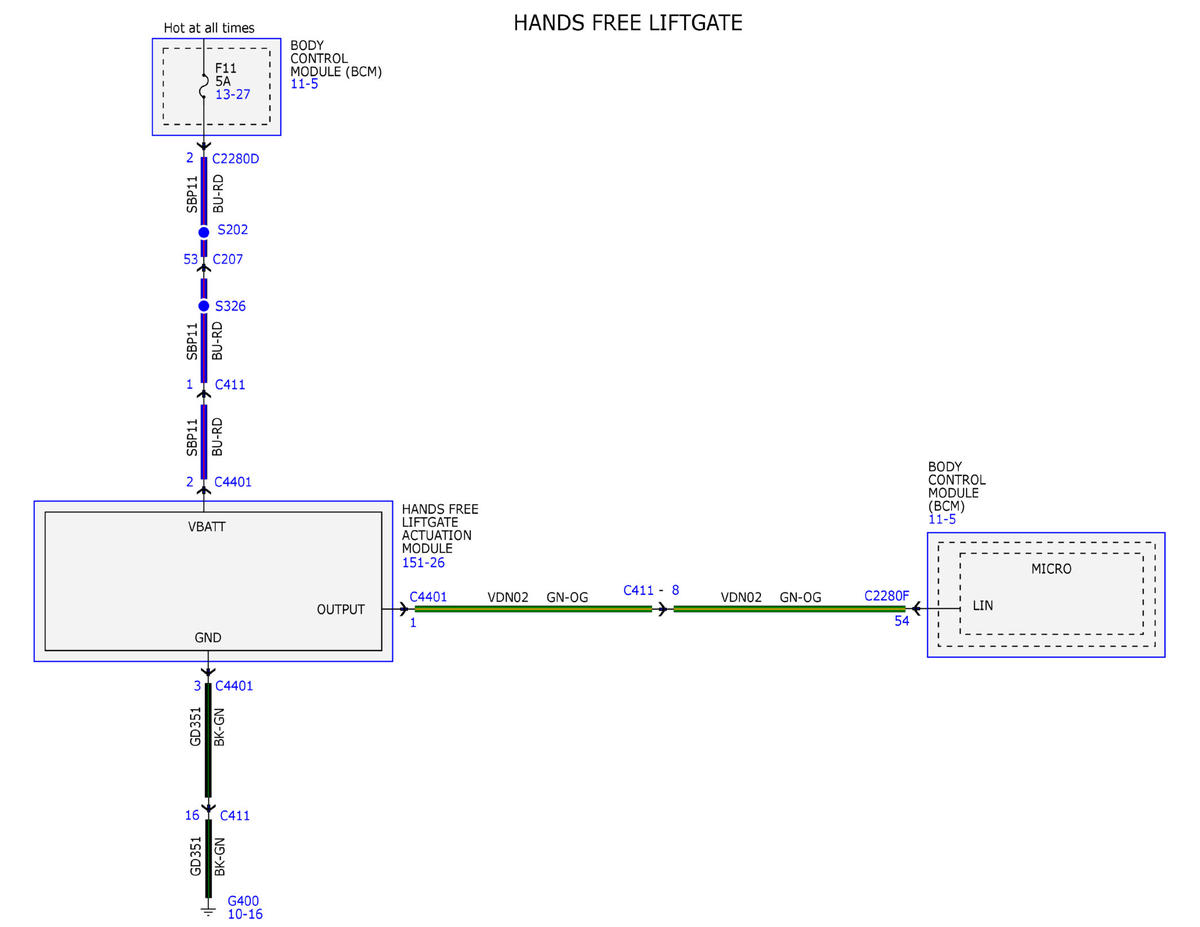

Fig 5: Power Liftgate Wiring Diagram (5 of 5)
GFDWR91713Courtesy of FORD MOTOR COMPANY
