Power Distribution/BCM

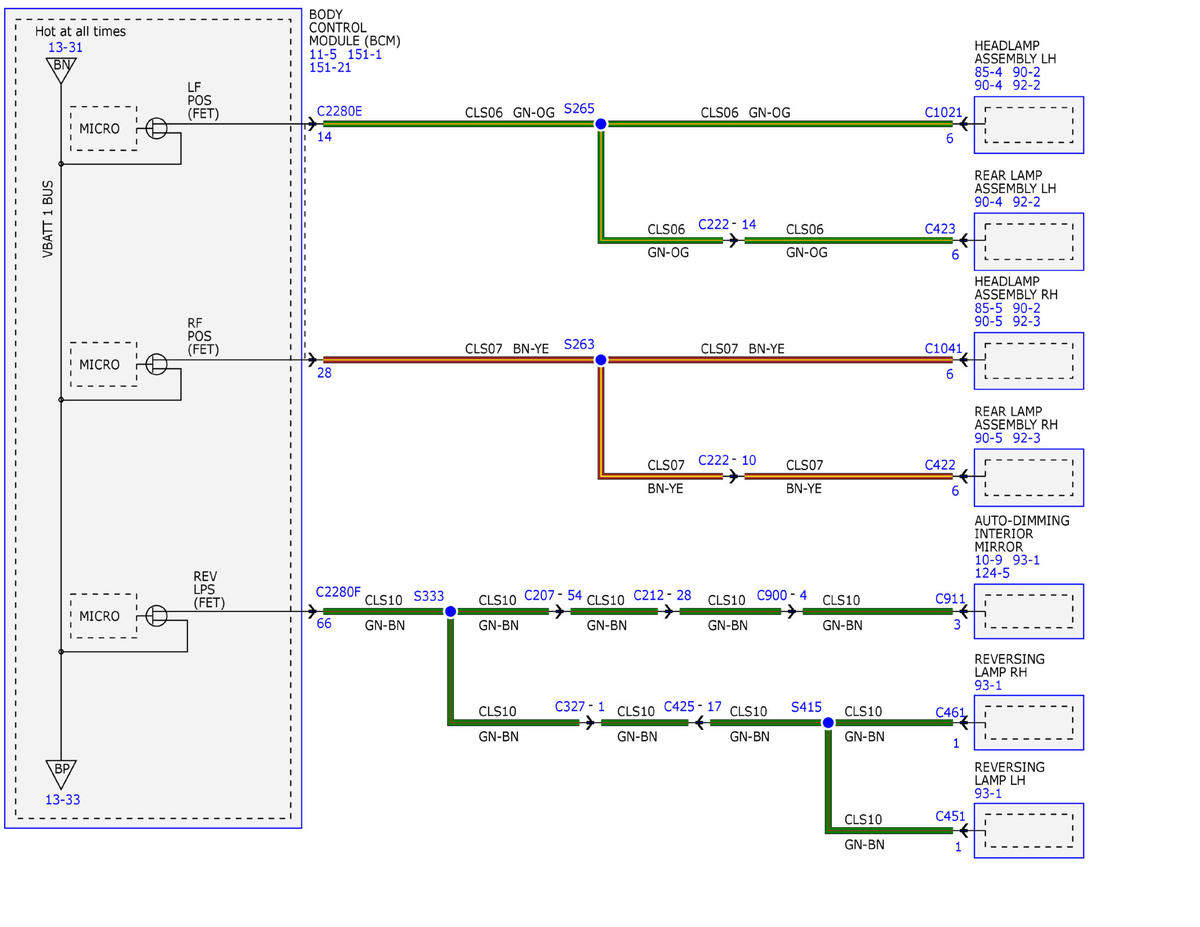

Fig 1: Power Distribution/BCM Wiring Diagram (1 of 44)

GFDWR91662

Courtesy of FORD MOTOR COMPANY

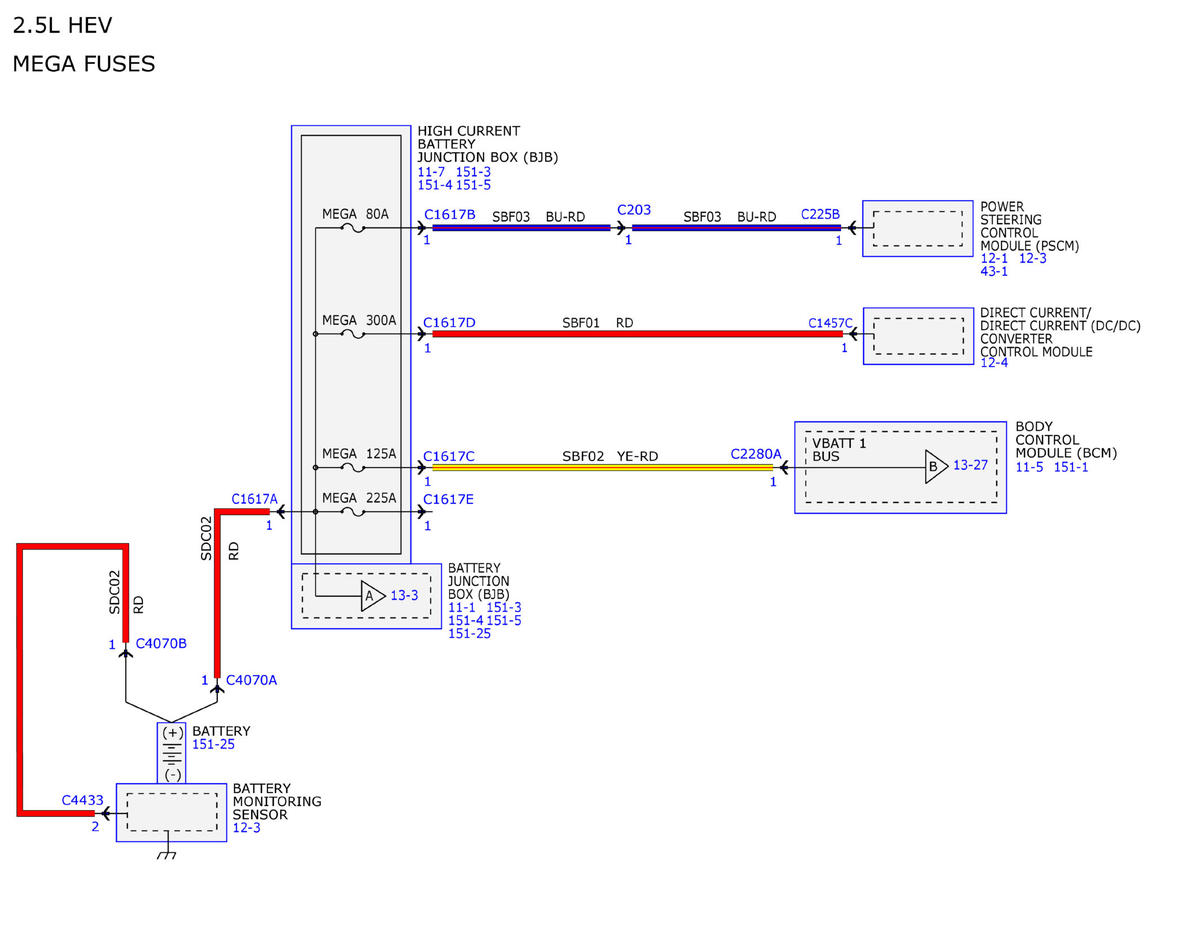

Fig 2: Power Distribution/BCM Wiring Diagram (2 of 44)

GFDWR91663

Courtesy of FORD MOTOR COMPANY

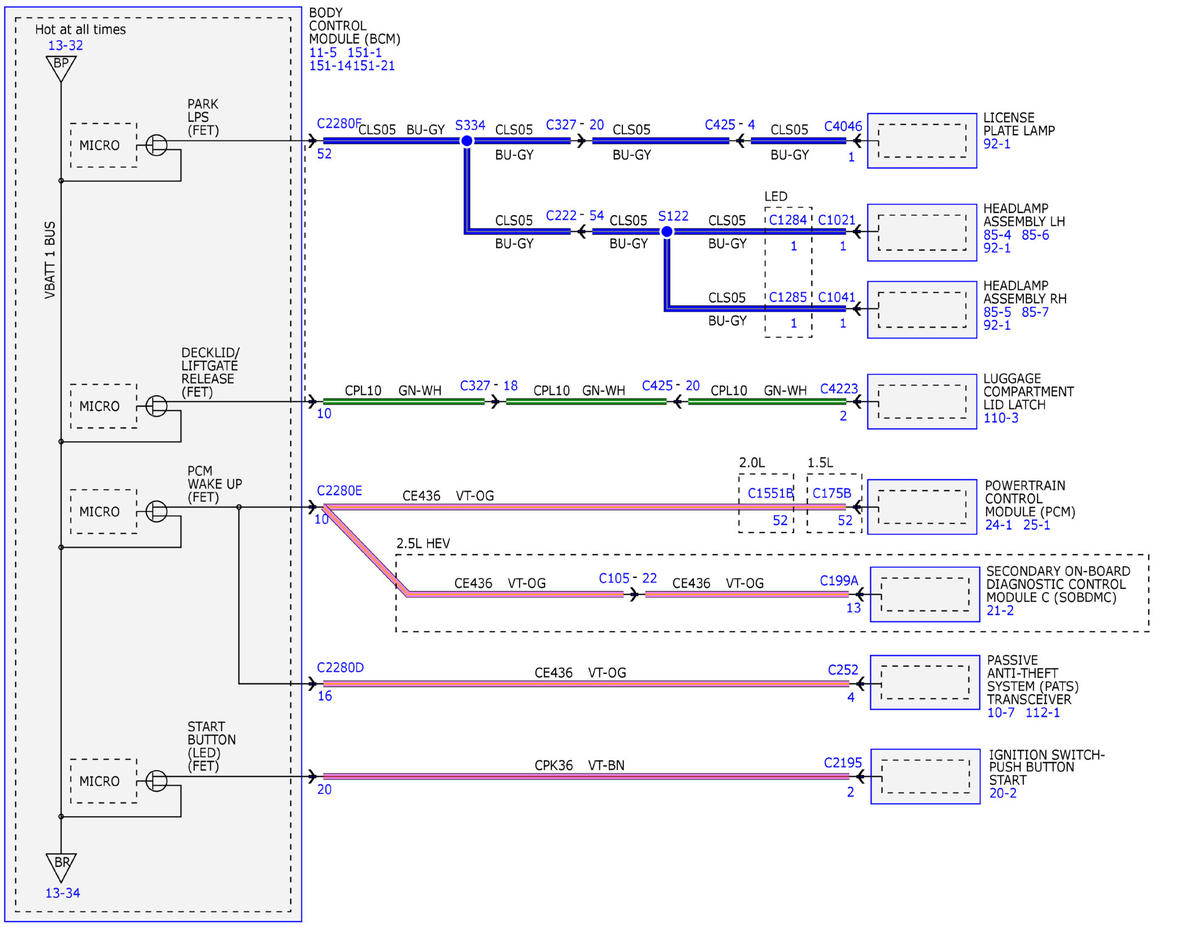

Fig 3: Power Distribution/BCM Wiring Diagram (3 of 44)

GFDWR91664

Courtesy of FORD MOTOR COMPANY

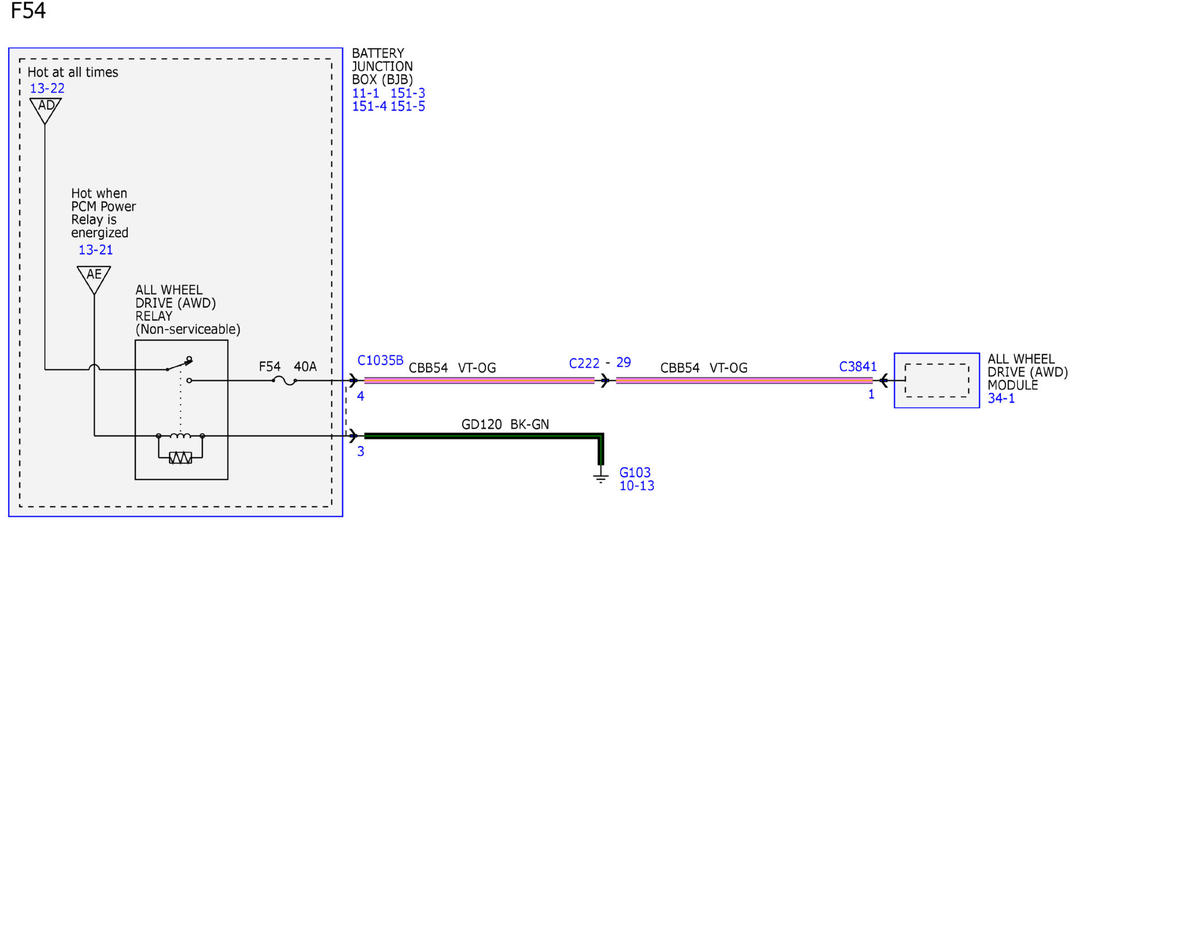

Fig 4: Power Distribution/BCM Wiring Diagram (4 of 44)

GFDWR91665

Courtesy of FORD MOTOR COMPANY

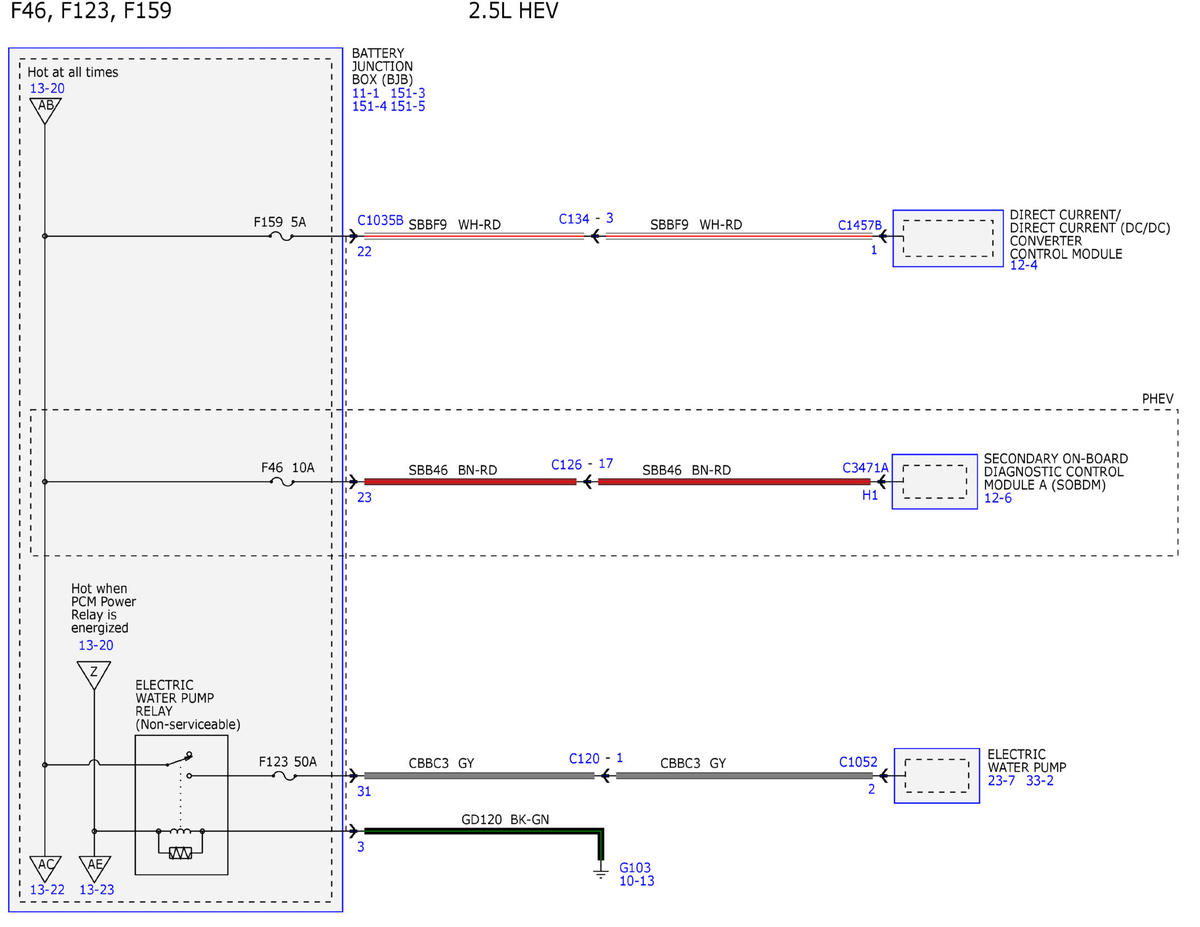

Fig 5: Power Distribution/BCM Wiring Diagram (5 of 44)

GFDWR91666

Courtesy of FORD MOTOR COMPANY

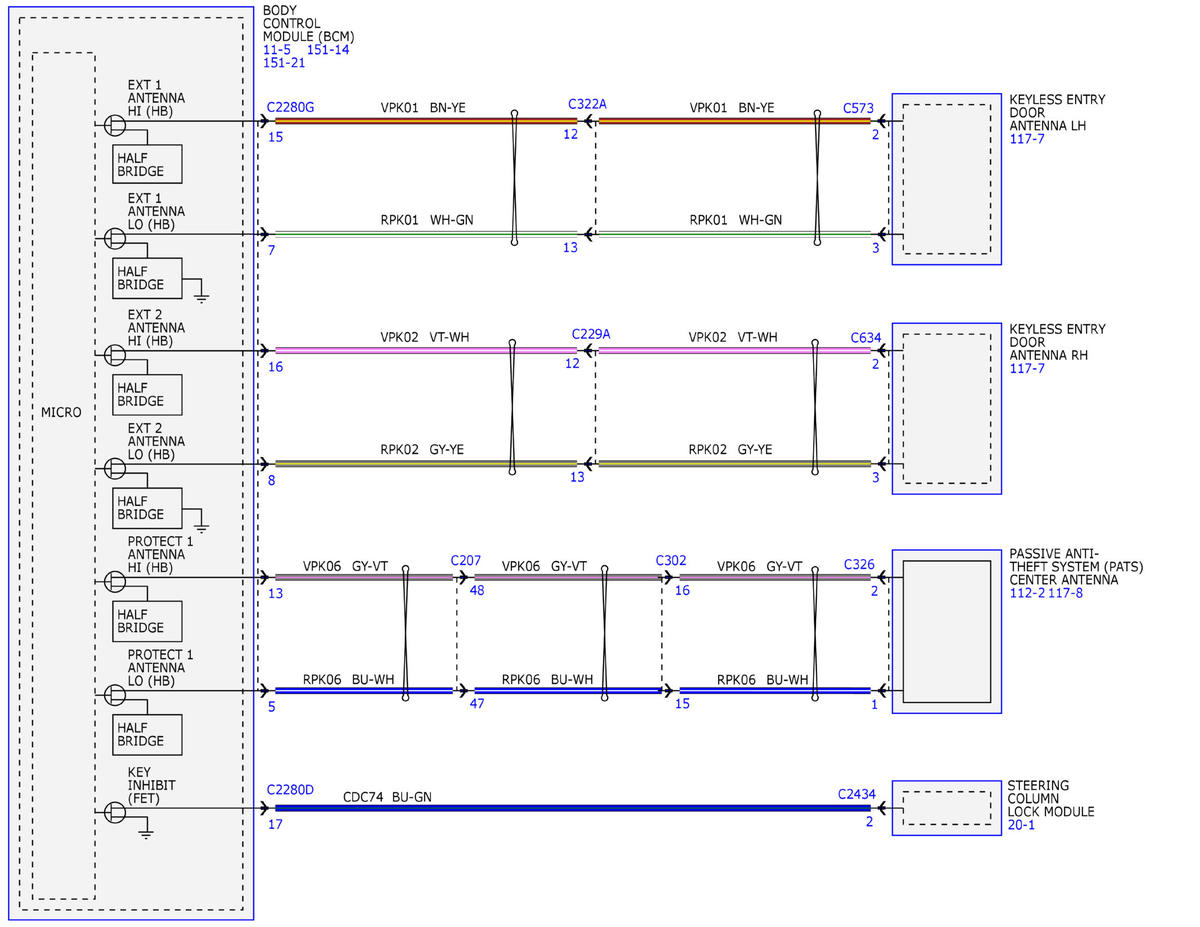

Fig 6: Power Distribution/BCM Wiring Diagram (6 of 44)

GFDWR91667

Courtesy of FORD MOTOR COMPANY

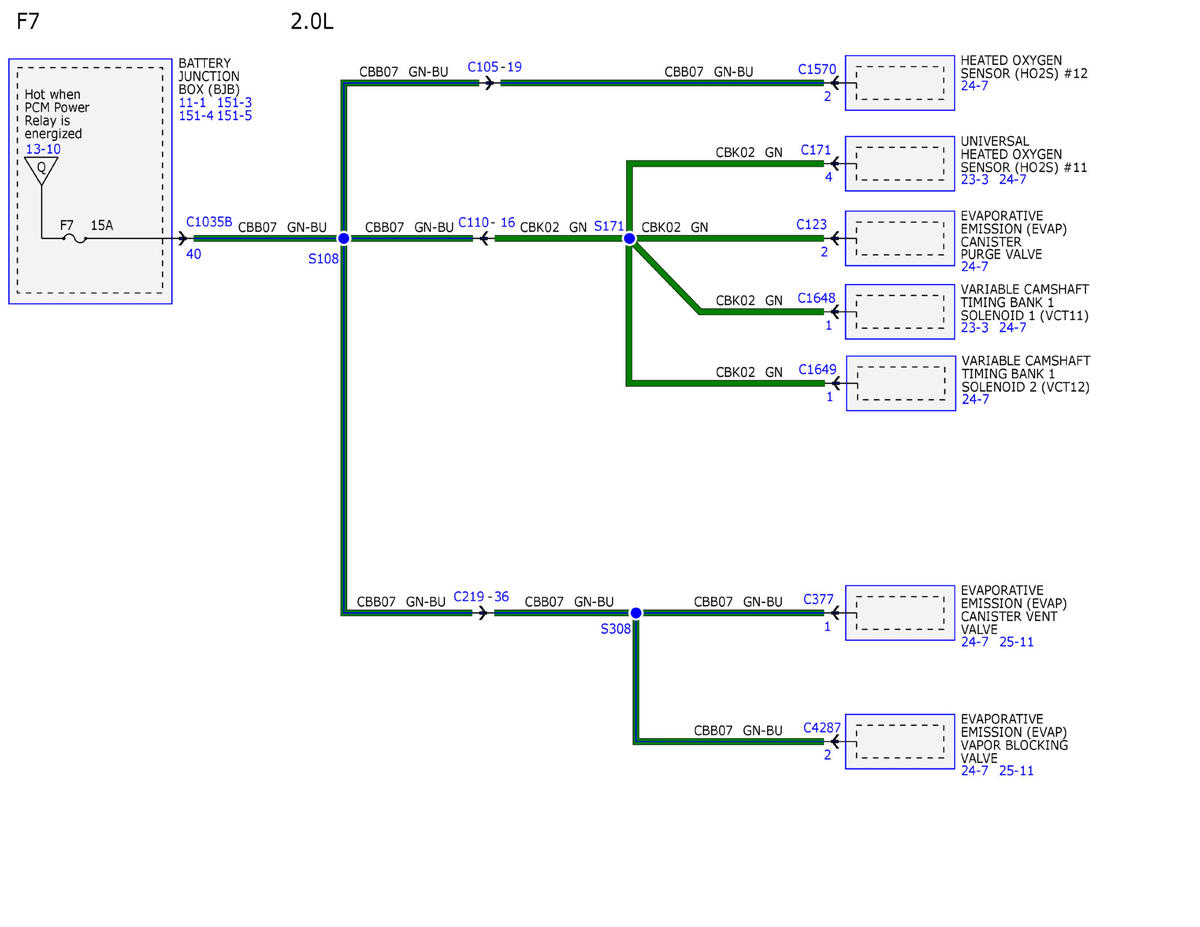

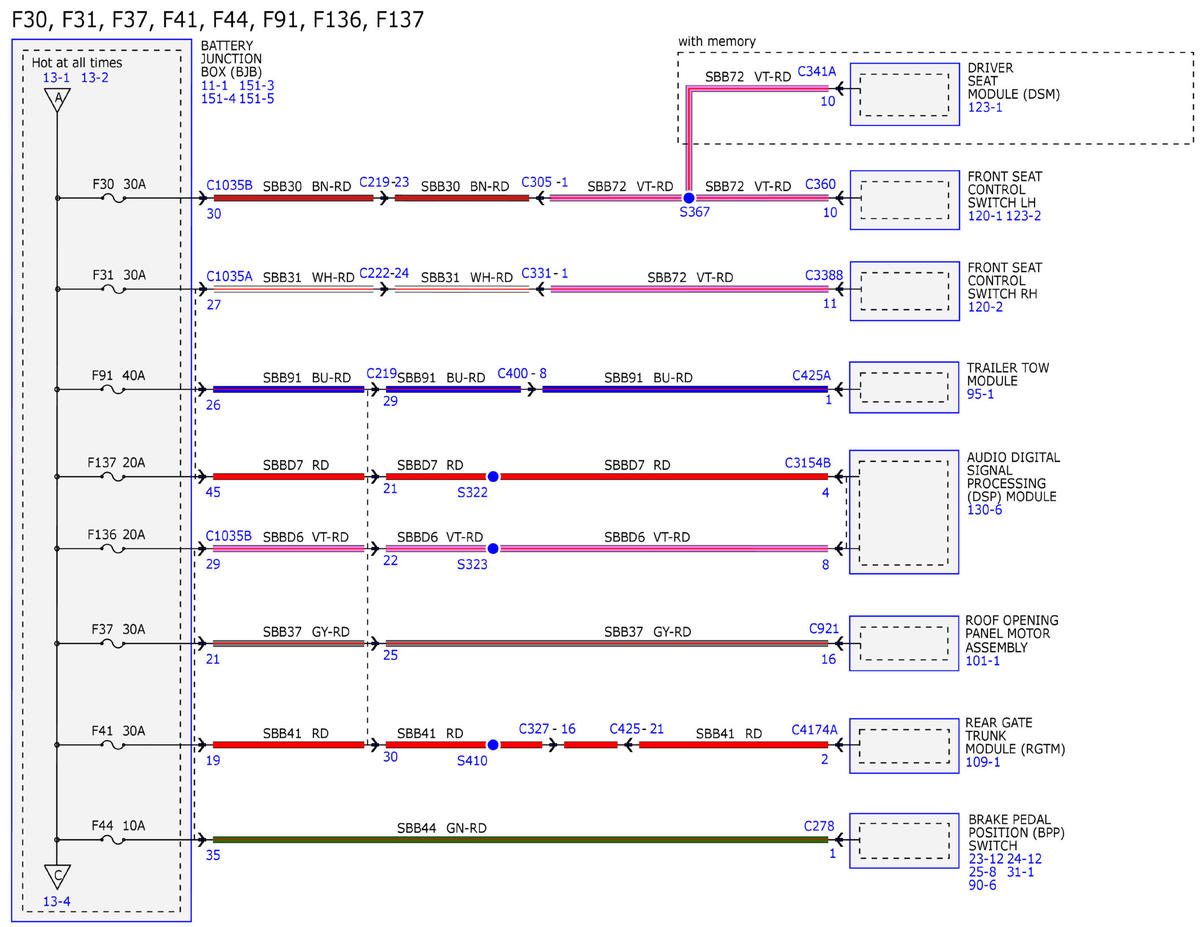

Fig 7: Power Distribution/BCM Wiring Diagram (7 of 44)

GFDWR91668

Courtesy of FORD MOTOR COMPANY

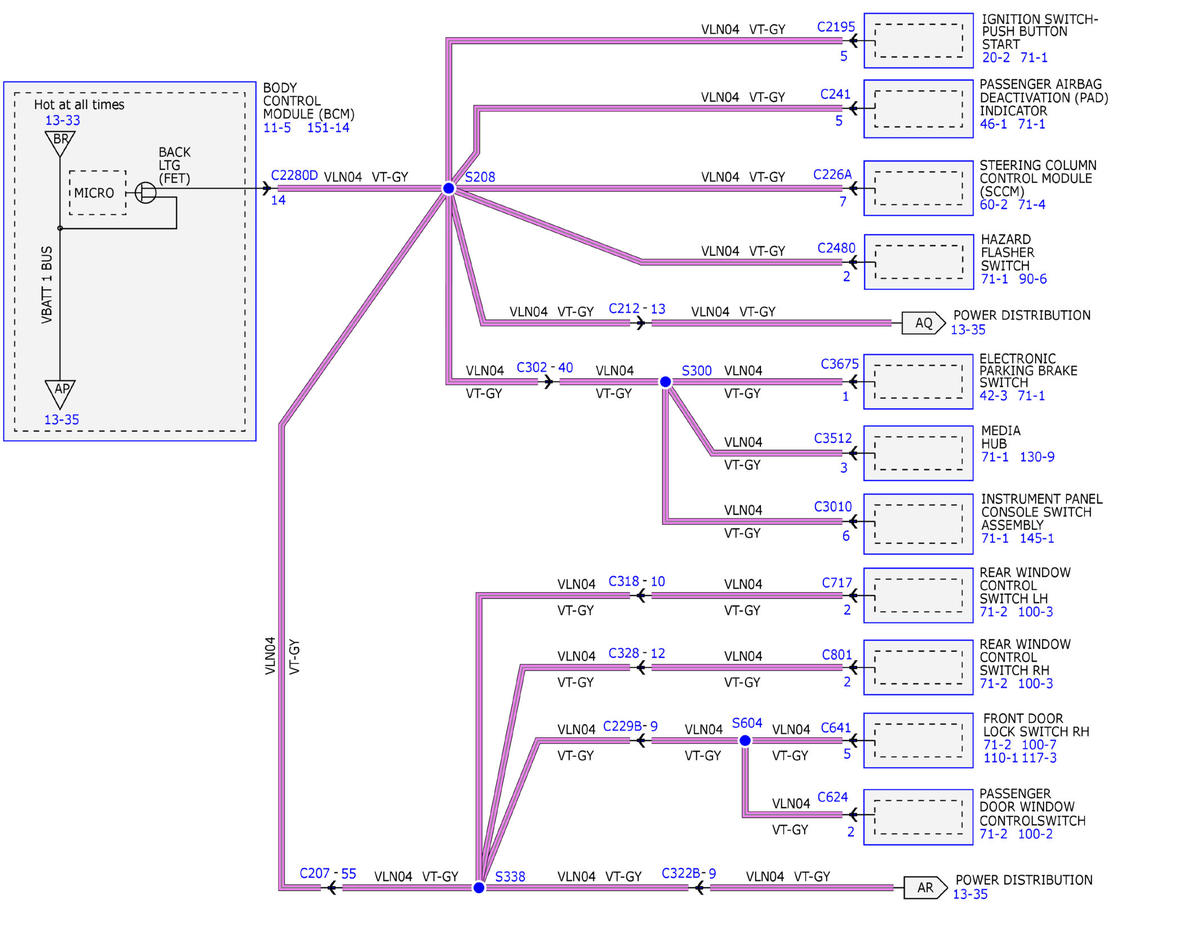

Fig 8: Power Distribution/BCM Wiring Diagram (8 of 44)

GFDWR91669

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Distribution/BCM Wiring Diagram (9 of 44)

GFDWR91670

Courtesy of FORD MOTOR COMPANY

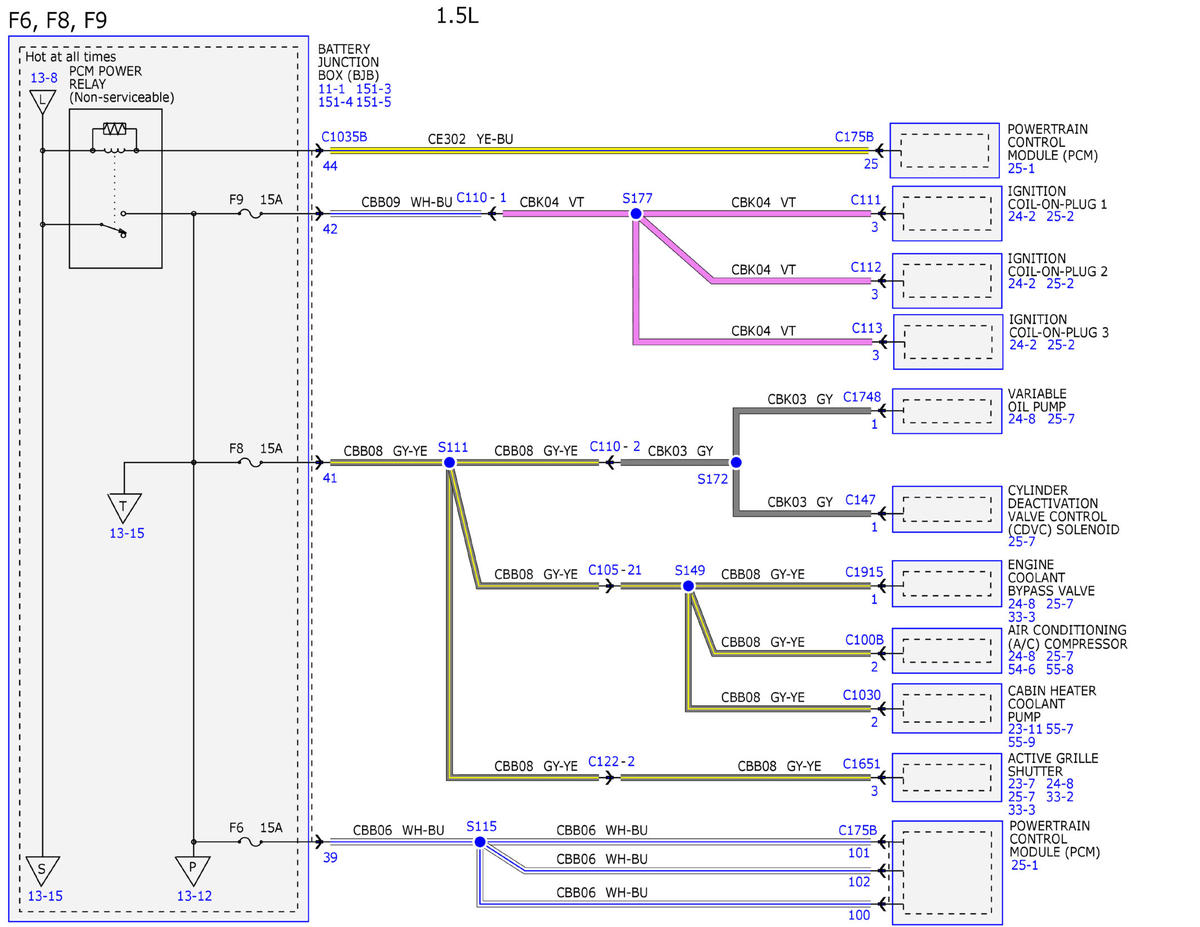

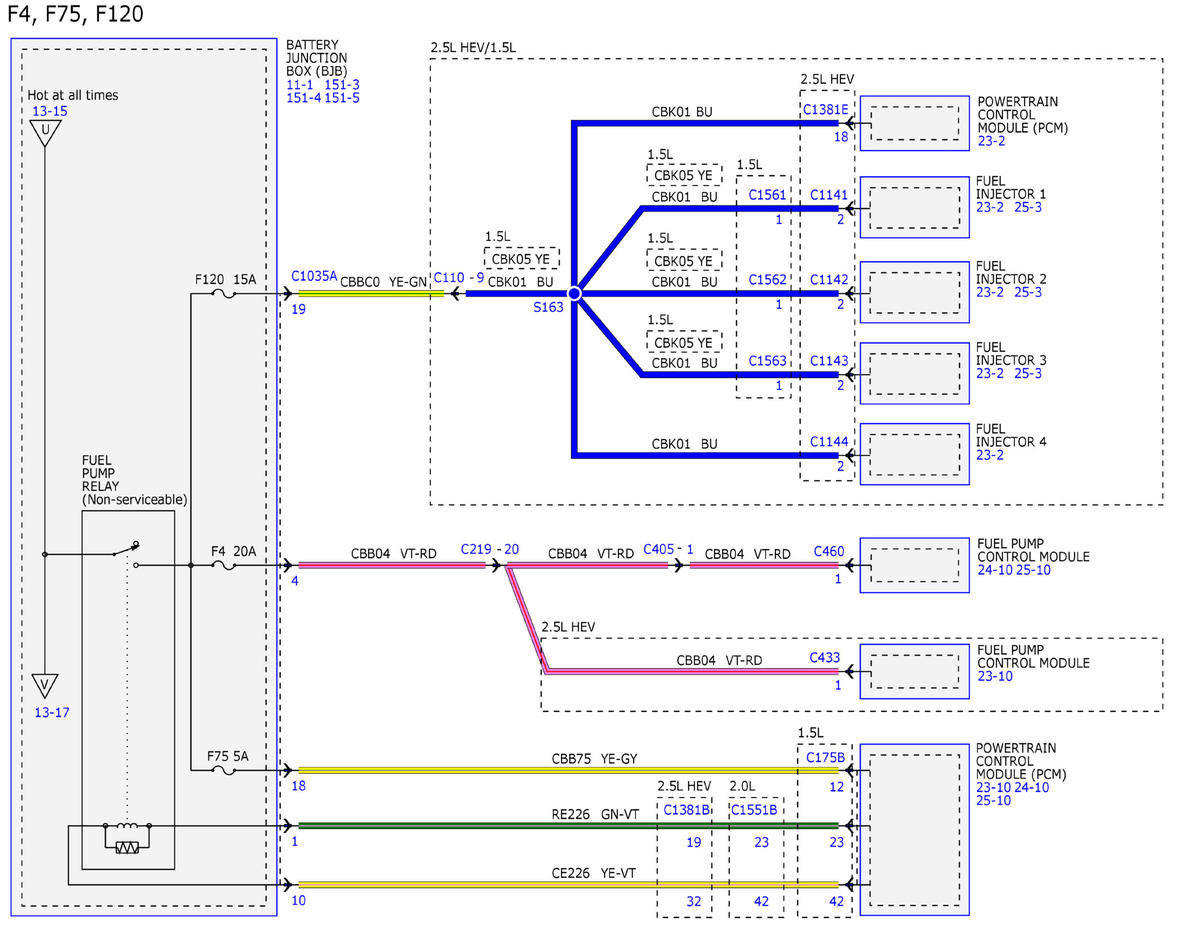

Fig 10: Power Distribution/BCM Wiring Diagram (10 of 44)

GFDWR91671

Courtesy of FORD MOTOR COMPANY

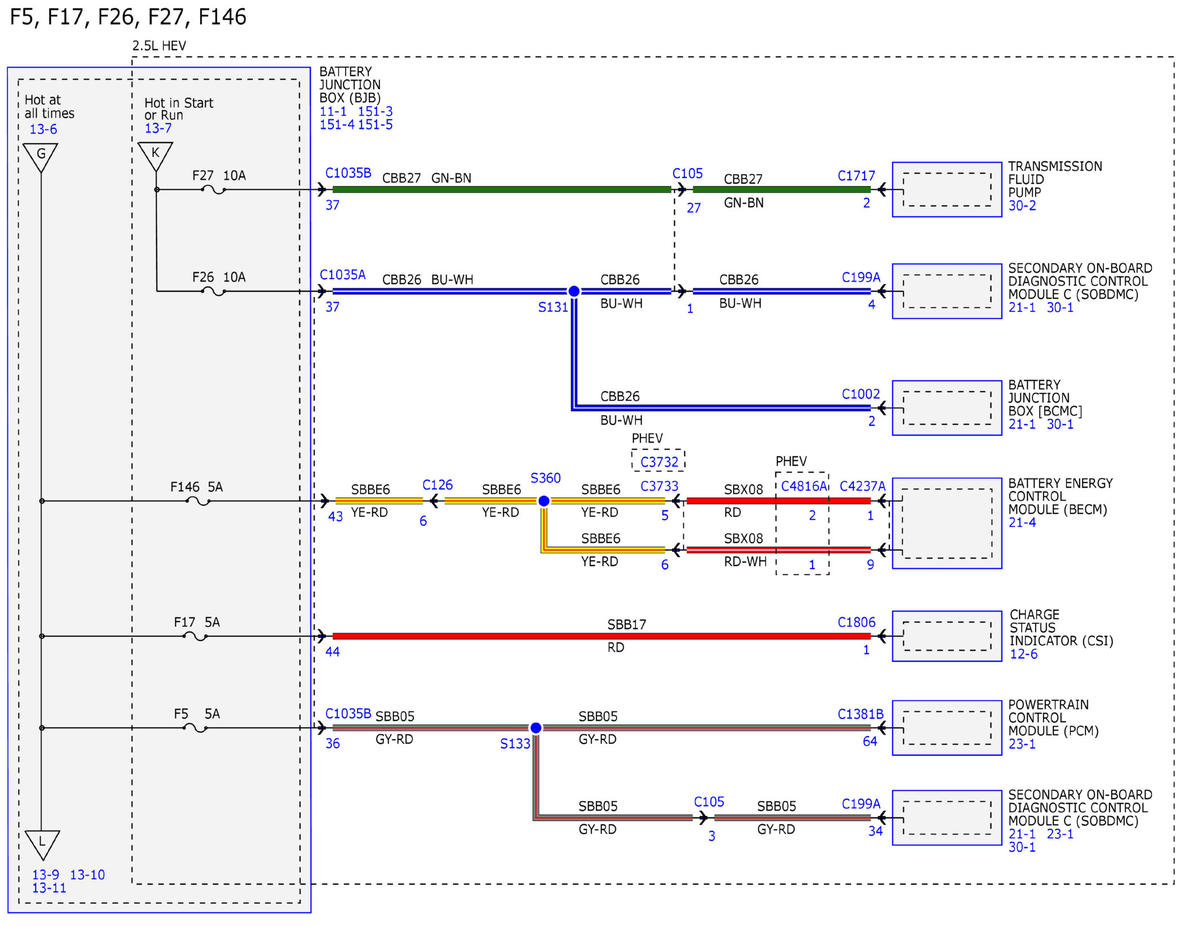

Fig 11: Power Distribution/BCM Wiring Diagram (11 of 44)

GFDWR91672

Courtesy of FORD MOTOR COMPANY

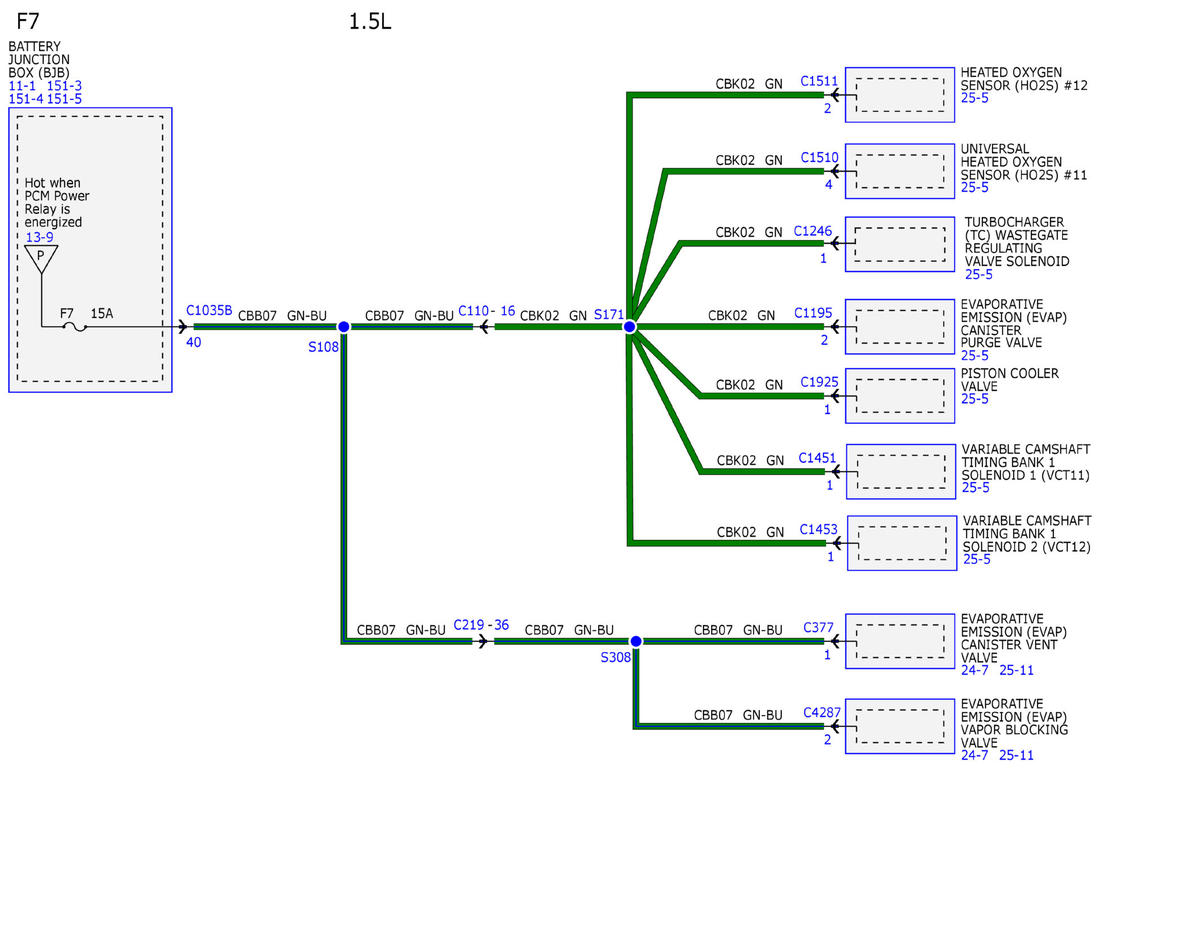

Fig 12: Power Distribution/BCM Wiring Diagram (12 of 44)

GFDWR91673

Courtesy of FORD MOTOR COMPANY

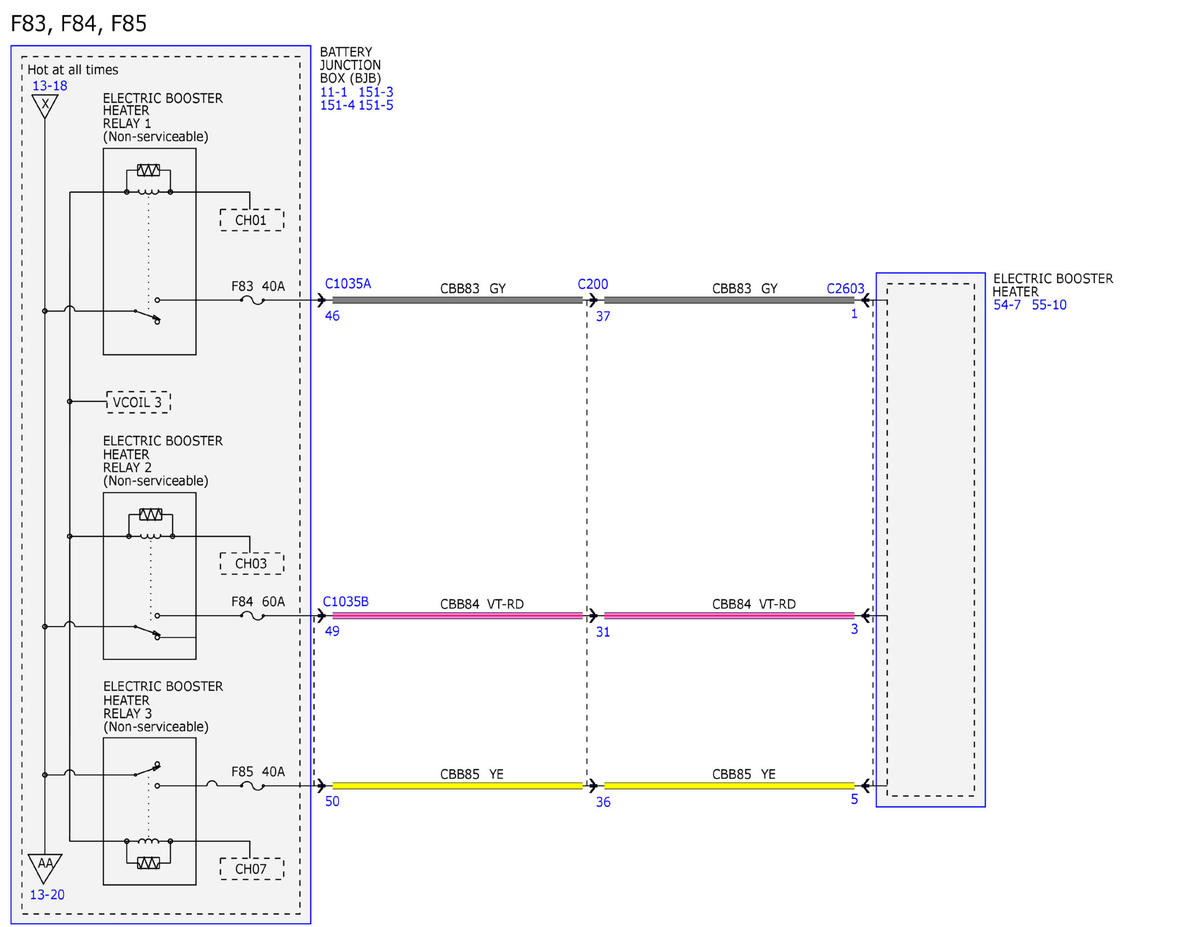

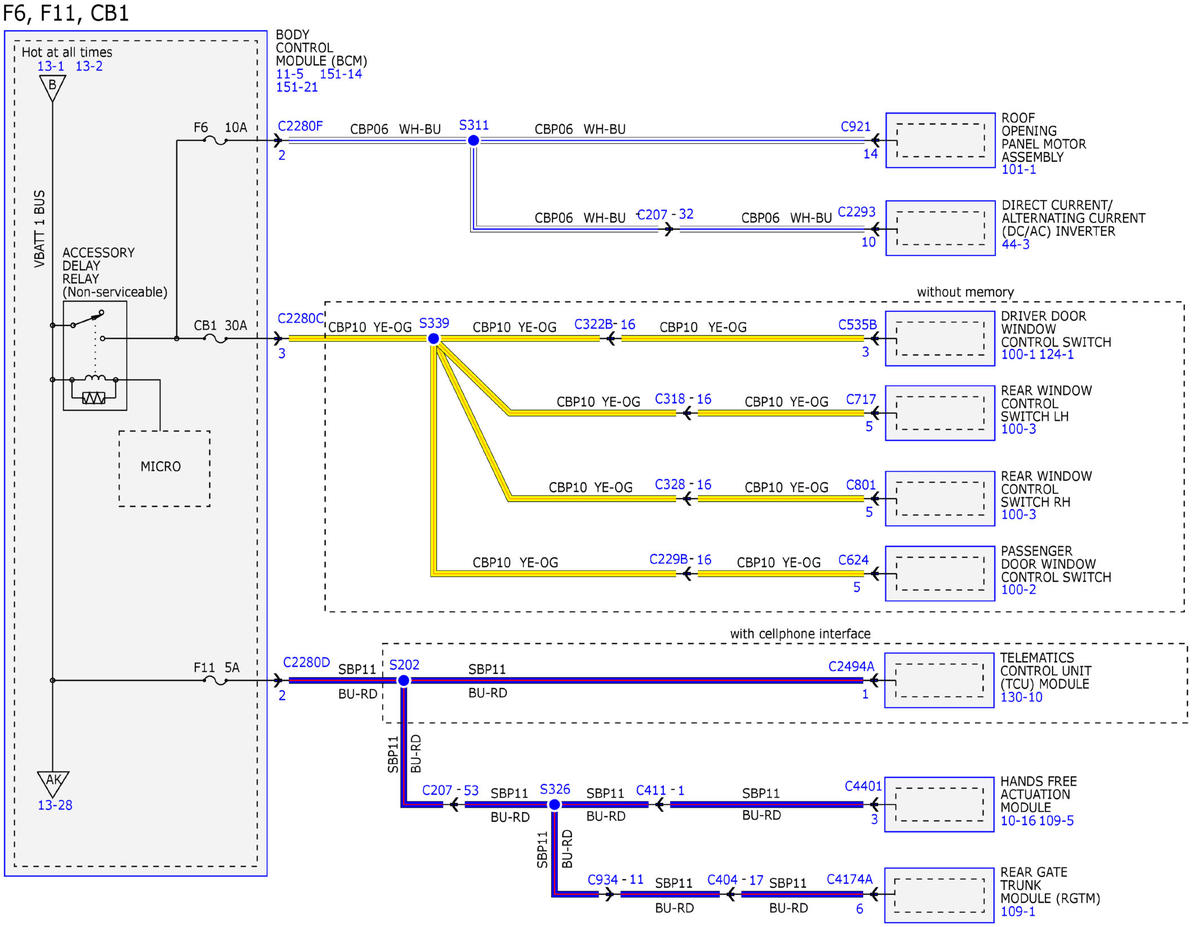

Fig 13: Power Distribution/BCM Wiring Diagram (13 of 44)

GFDWR91674

Courtesy of FORD MOTOR COMPANY

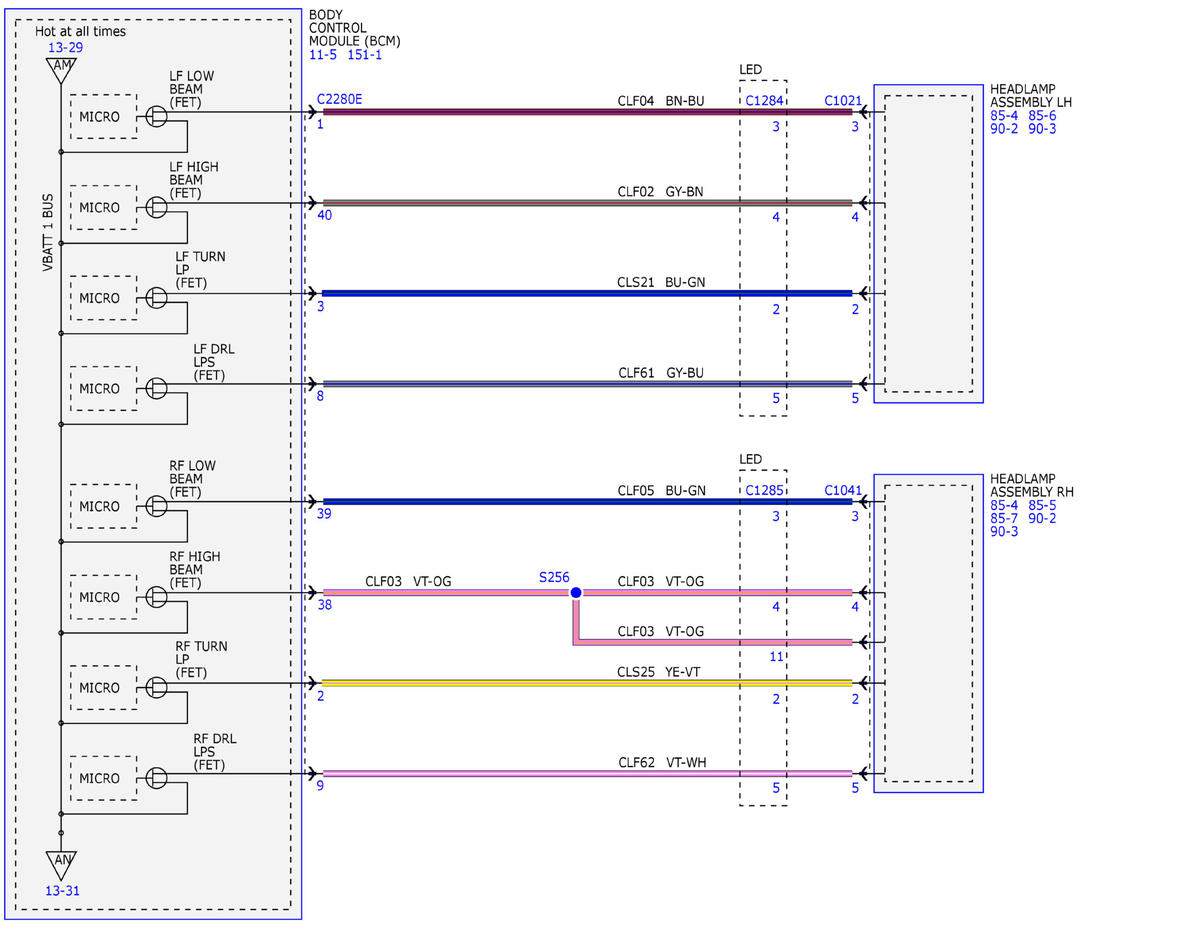

Fig 14: Power Distribution/BCM Wiring Diagram (14 of 44)

GFDWR91675

Courtesy of FORD MOTOR COMPANY

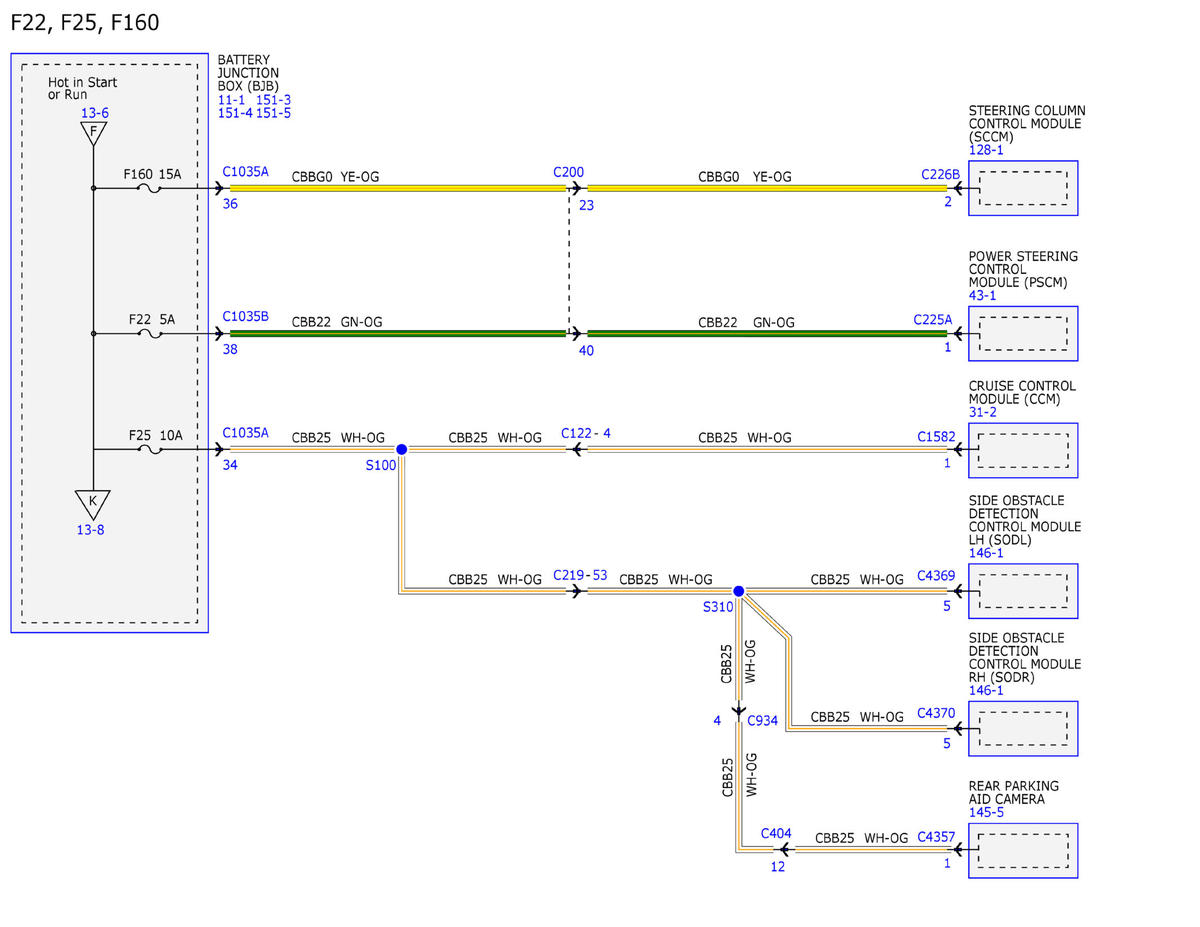

Fig 15: Power Distribution/BCM Wiring Diagram (15 of 44)

GFDWR91676

Courtesy of FORD MOTOR COMPANY

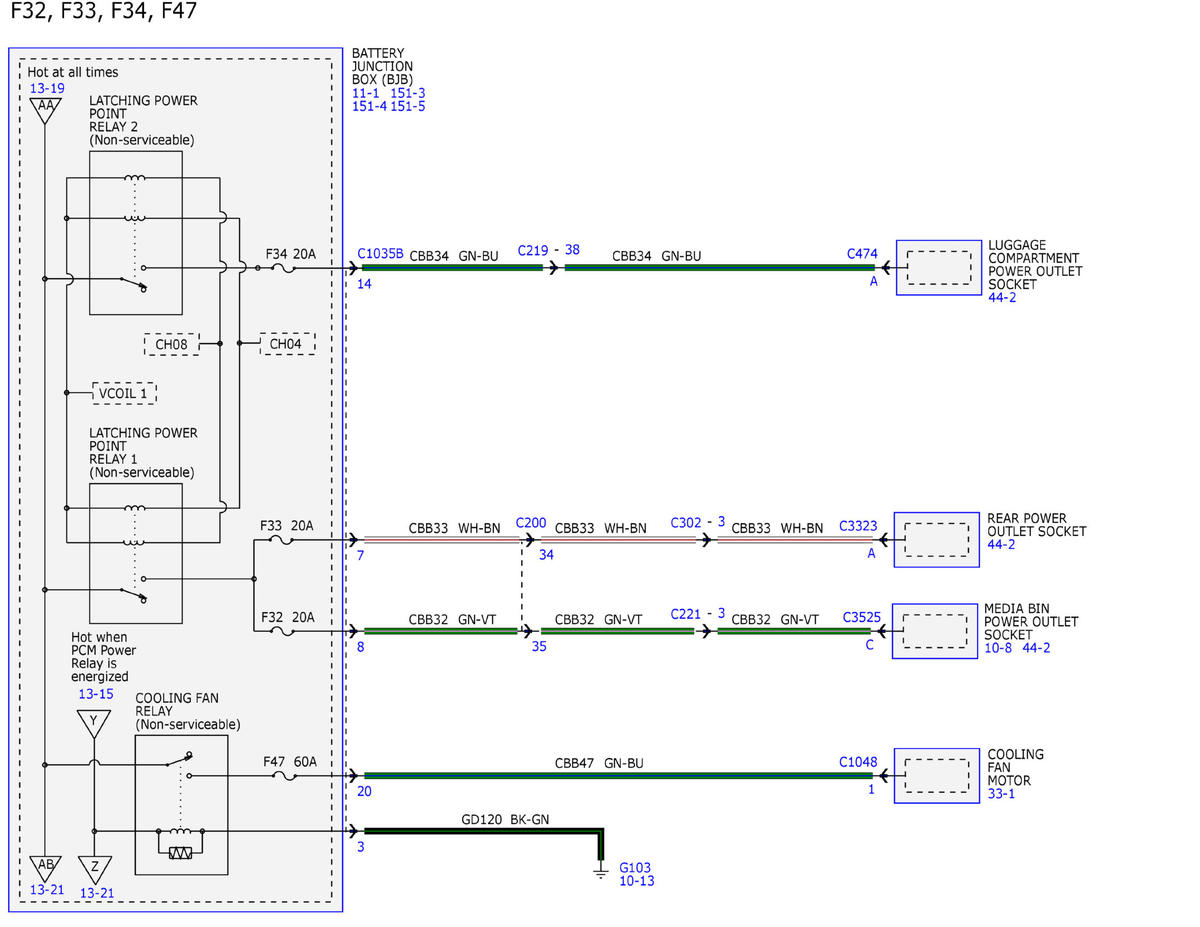

Fig 16: Power Distribution/BCM Wiring Diagram (16 of 44)

GFDWR91677

Courtesy of FORD MOTOR COMPANY

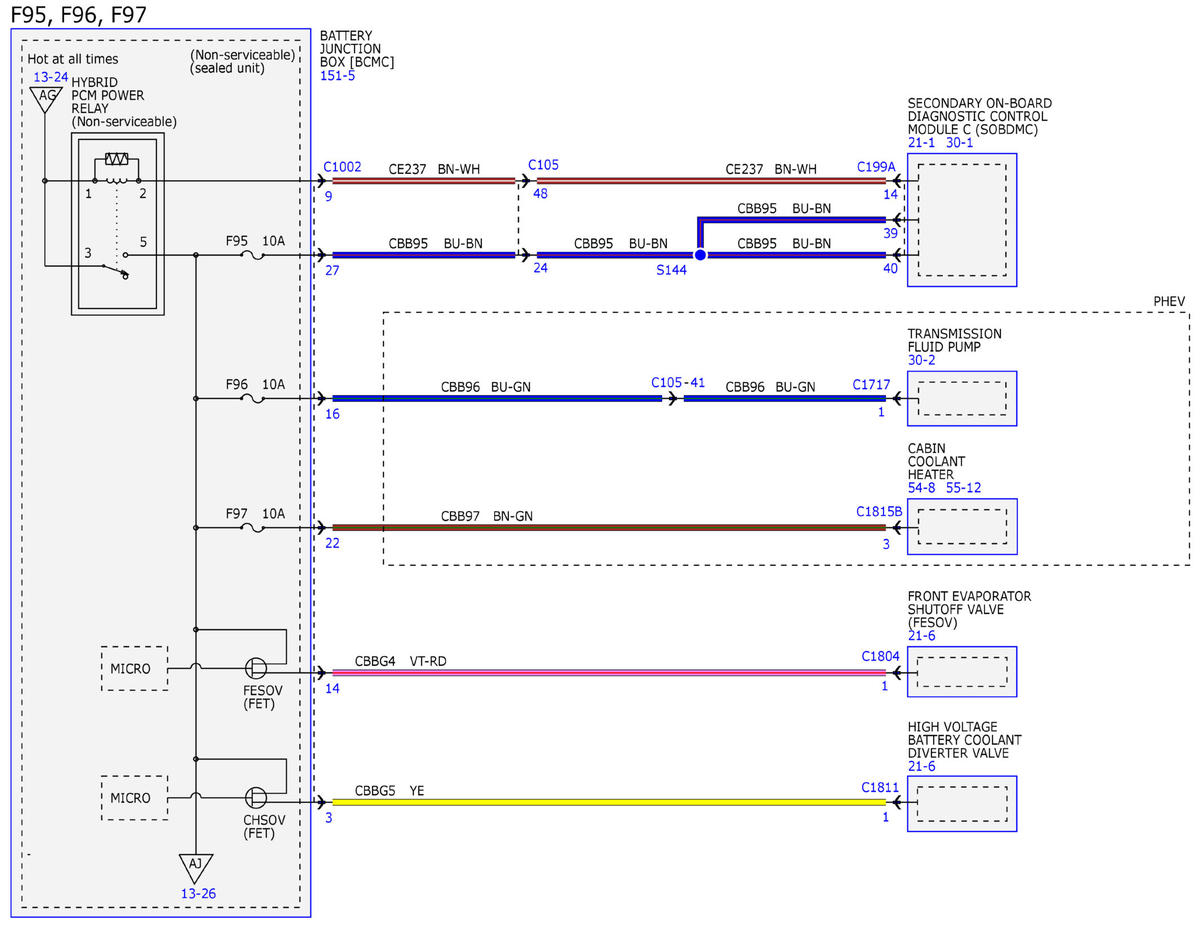

Fig 17: Power Distribution/BCM Wiring Diagram (17 of 44)

GFDWR91678

Courtesy of FORD MOTOR COMPANY

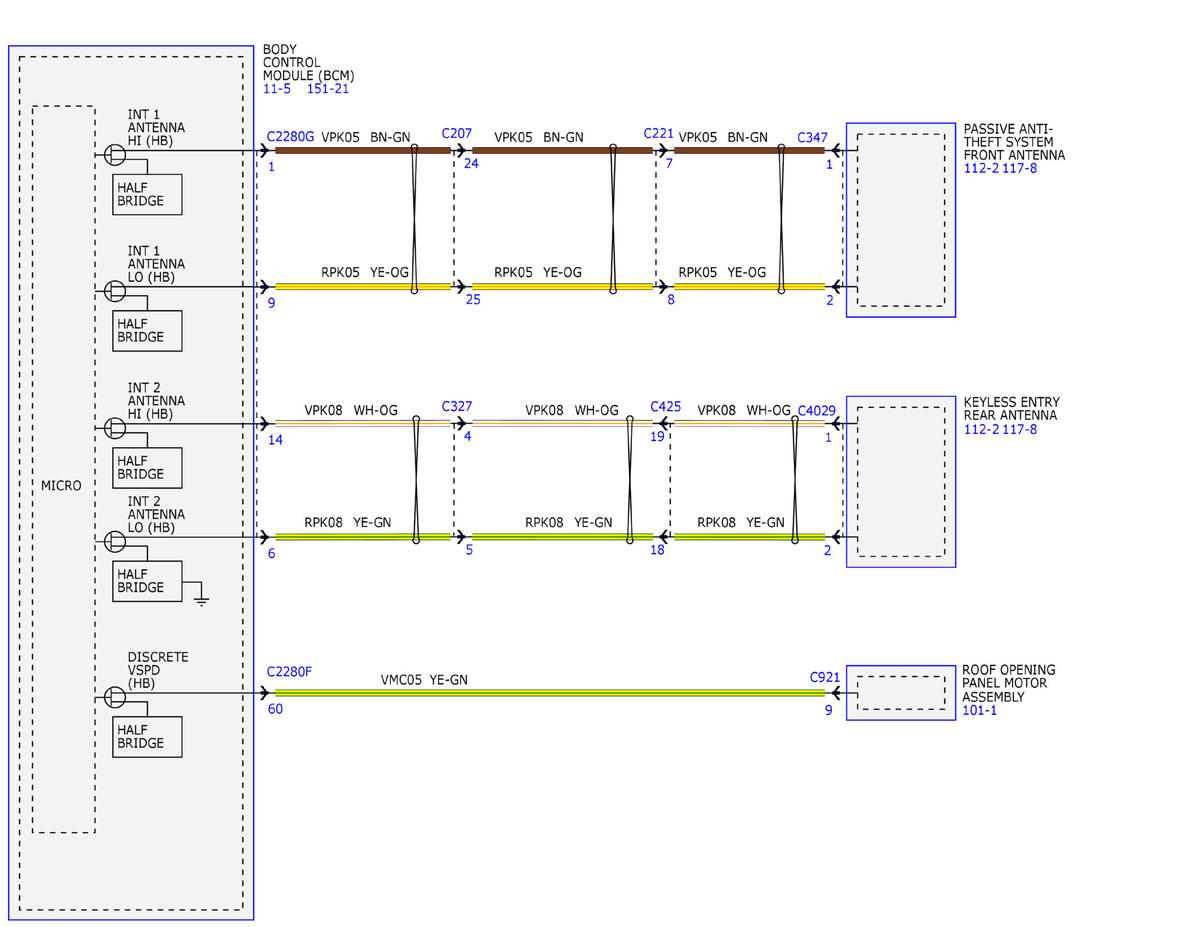

Fig 18: Power Distribution/BCM Wiring Diagram (18 of 44)

GFDWR91679

Courtesy of FORD MOTOR COMPANY

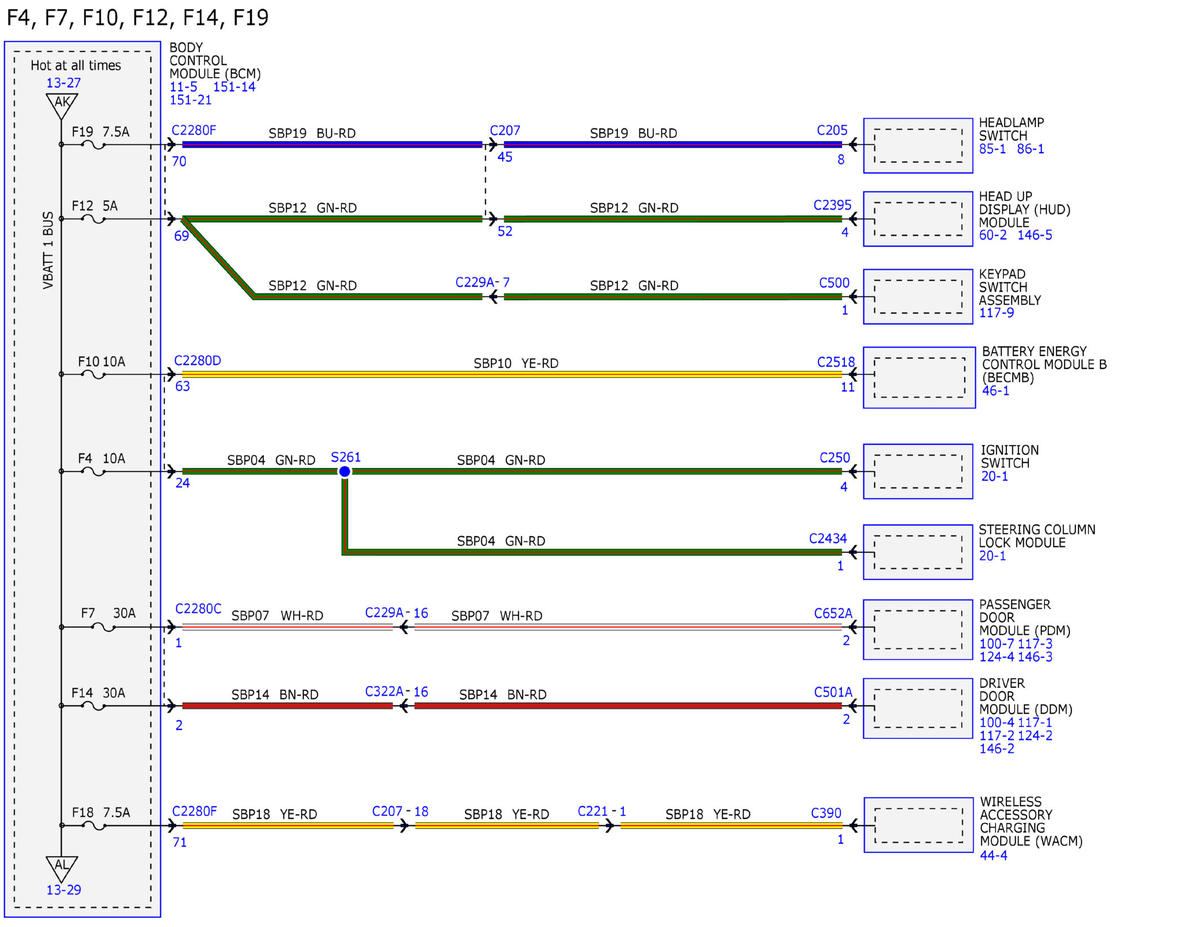

Fig 19: Power Distribution/BCM Wiring Diagram (19 of 44)

GFDWR91680

Courtesy of FORD MOTOR COMPANY

Fig 20: Power Distribution/BCM Wiring Diagram (20 of 44)

GFDWR91681

Courtesy of FORD MOTOR COMPANY

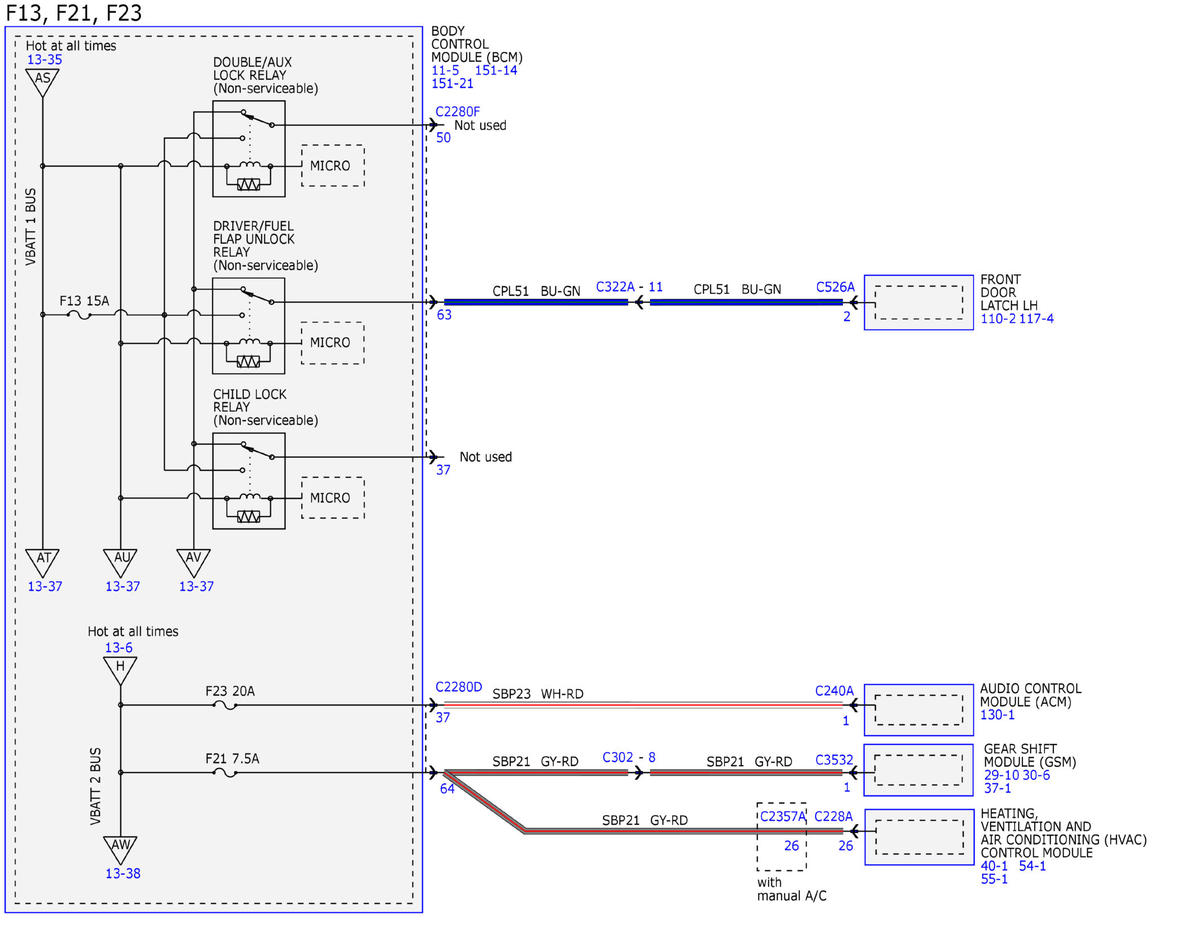

Fig 21: Power Distribution/BCM Wiring Diagram (21 of 44)

GFDWR91682

Courtesy of FORD MOTOR COMPANY

Fig 22: Power Distribution/BCM Wiring Diagram (22 of 44)

GFDWR91683

Courtesy of FORD MOTOR COMPANY

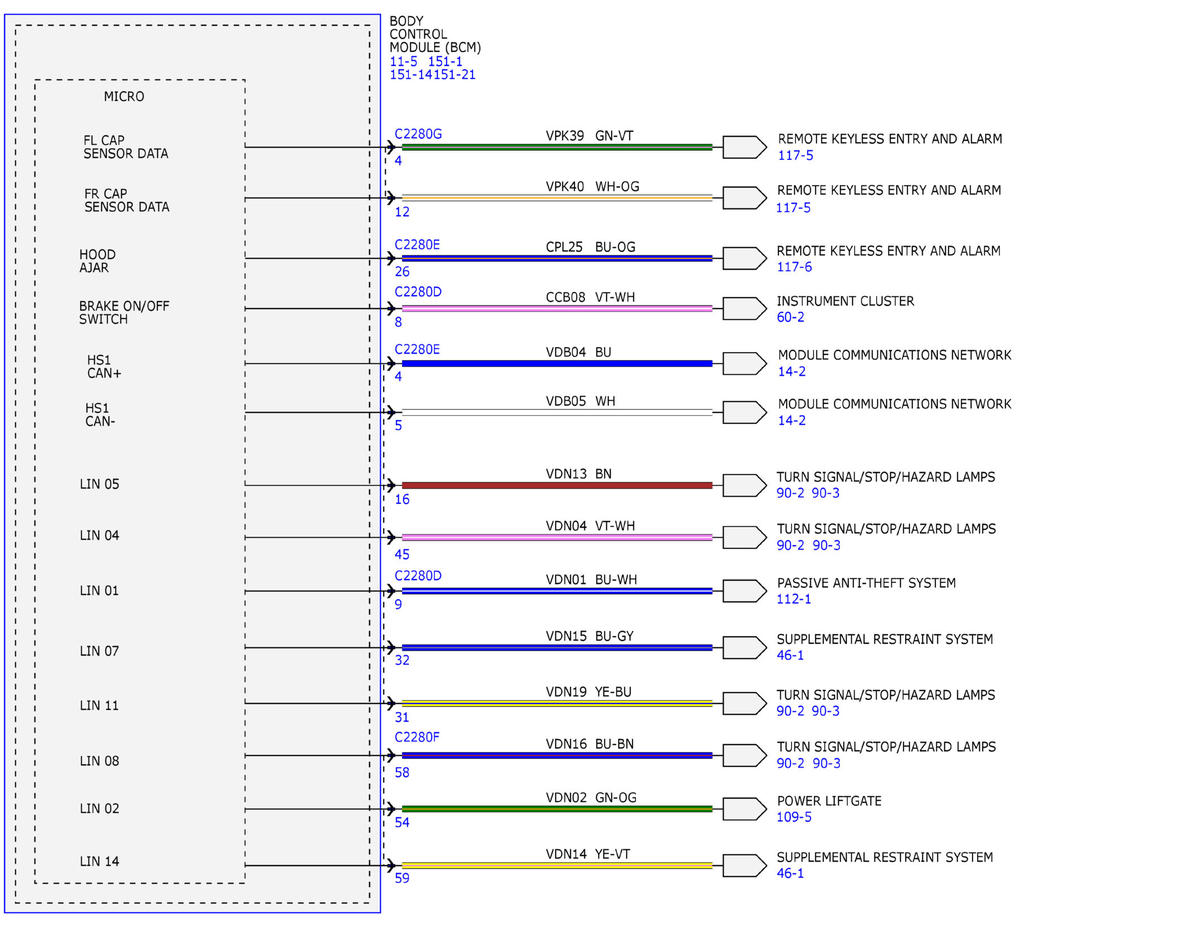

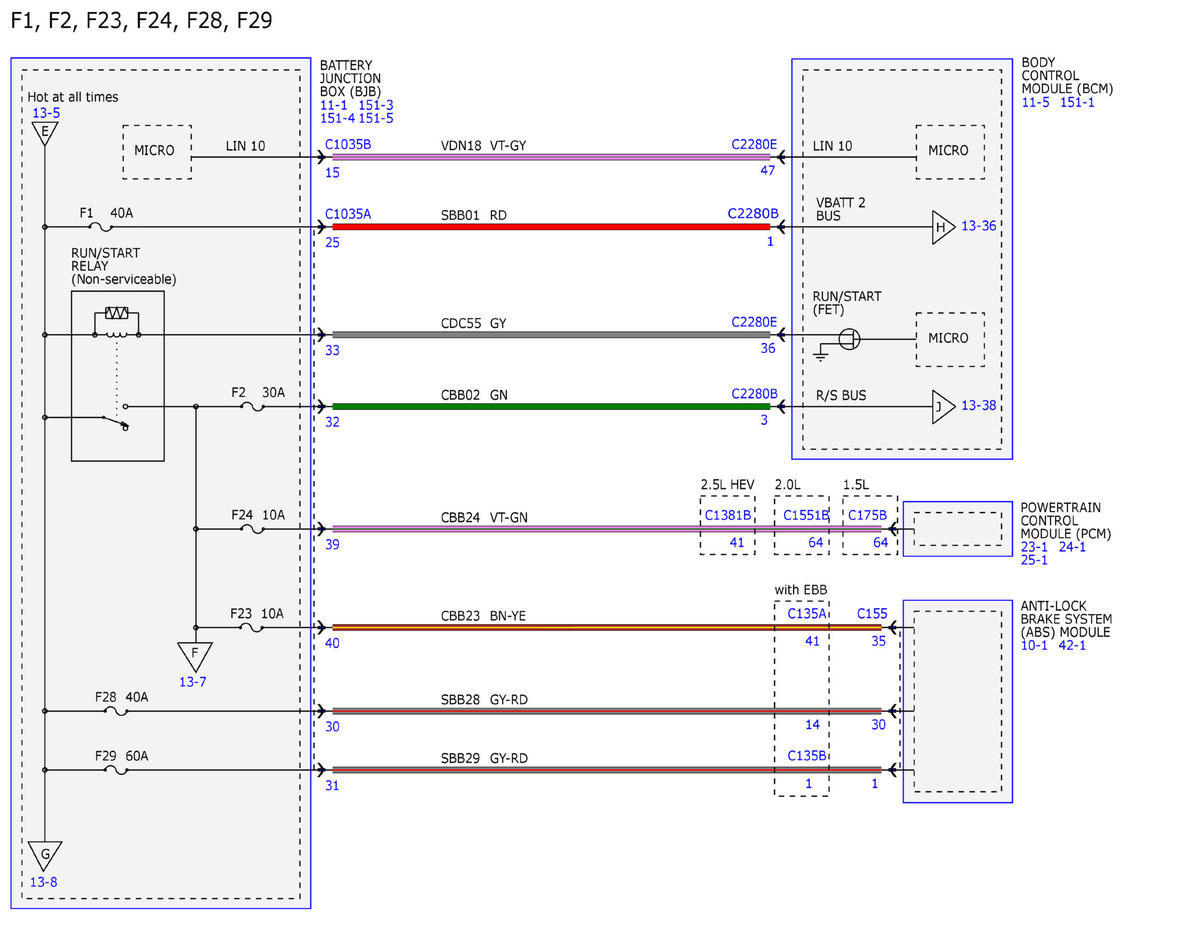

Fig 23: Power Distribution/BCM Wiring Diagram (23 of 44)

GFDWR91684

Courtesy of FORD MOTOR COMPANY

Fig 24: Power Distribution/BCM Wiring Diagram (24 of 44)

GFDWR91685

Courtesy of FORD MOTOR COMPANY

Fig 25: Power Distribution/BCM Wiring Diagram (25 of 44)

GFDWR91686

Courtesy of FORD MOTOR COMPANY

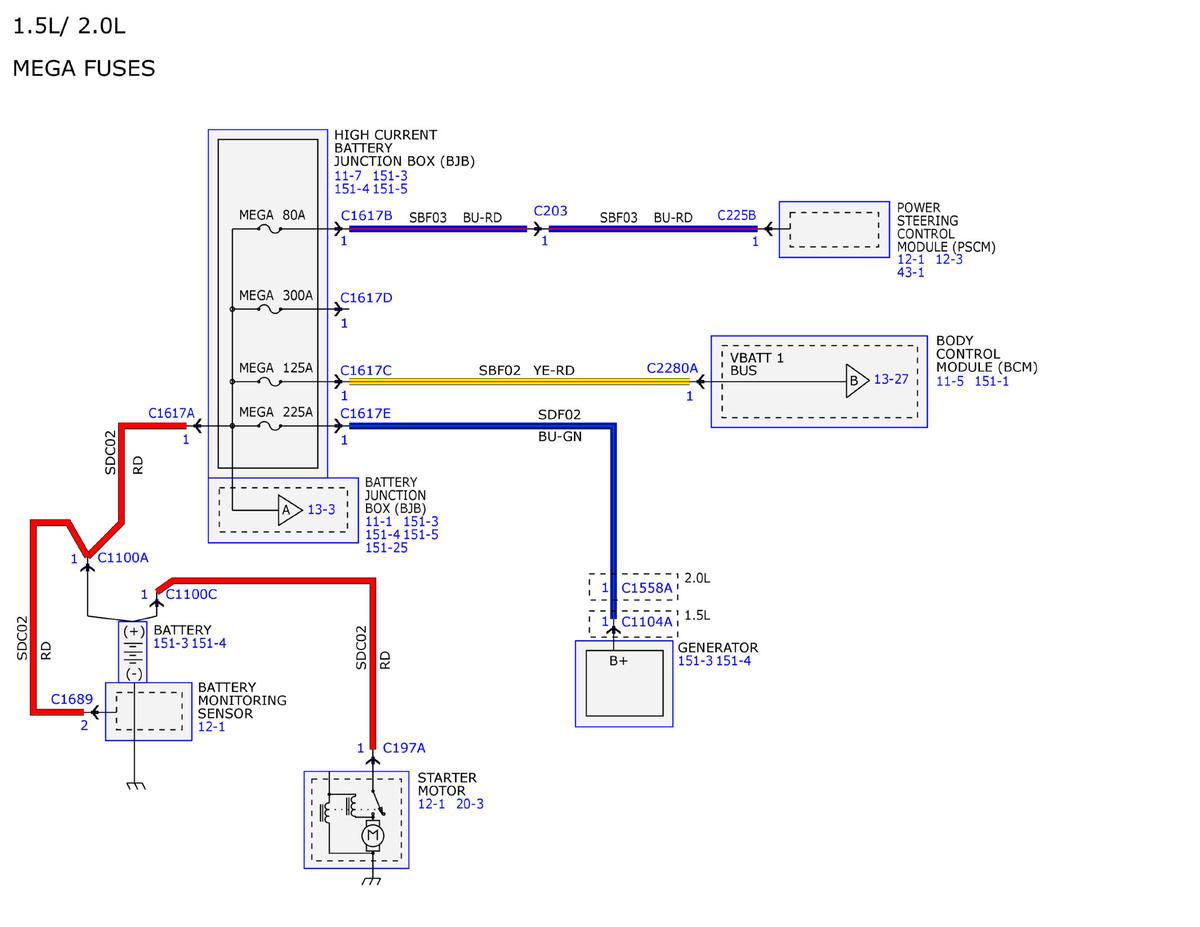

Fig 26: Power Distribution/BCM Wiring Diagram (26 of 44)

GFDWR91687

Courtesy of FORD MOTOR COMPANY

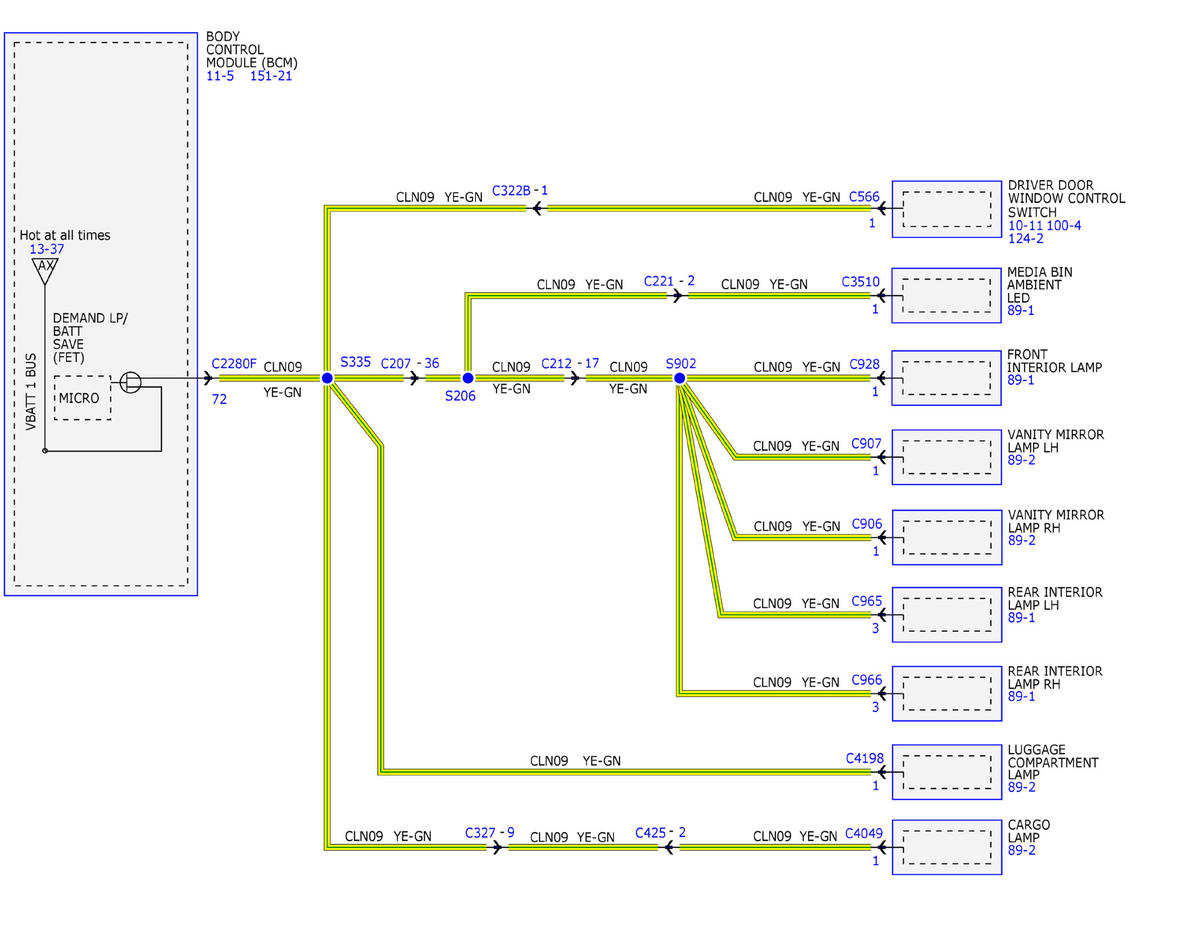

Fig 27: Power Distribution/BCM Wiring Diagram (27 of 44)

GFDWR91688

Courtesy of FORD MOTOR COMPANY

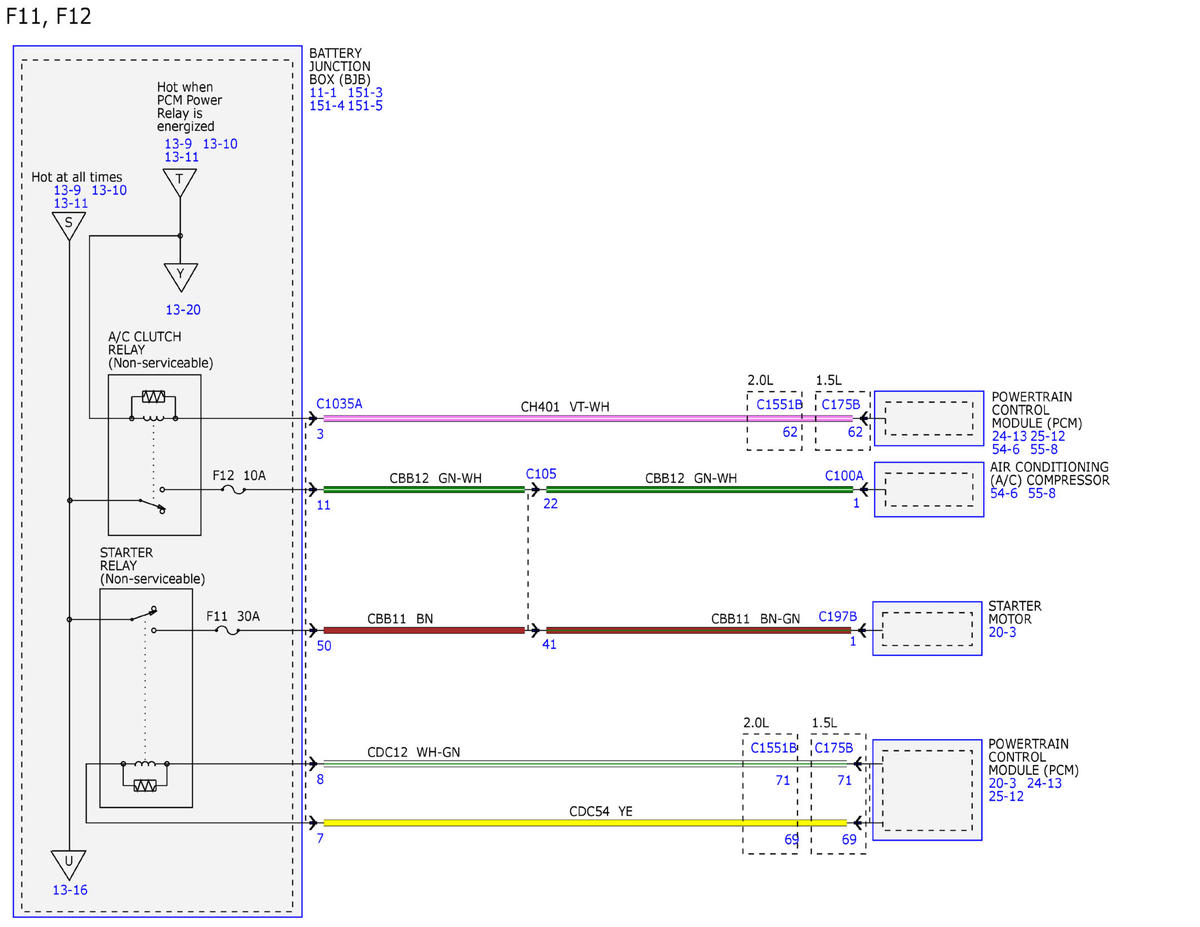

Fig 28: Power Distribution/BCM Wiring Diagram (28 of 44)

GFDWR91689

Courtesy of FORD MOTOR COMPANY

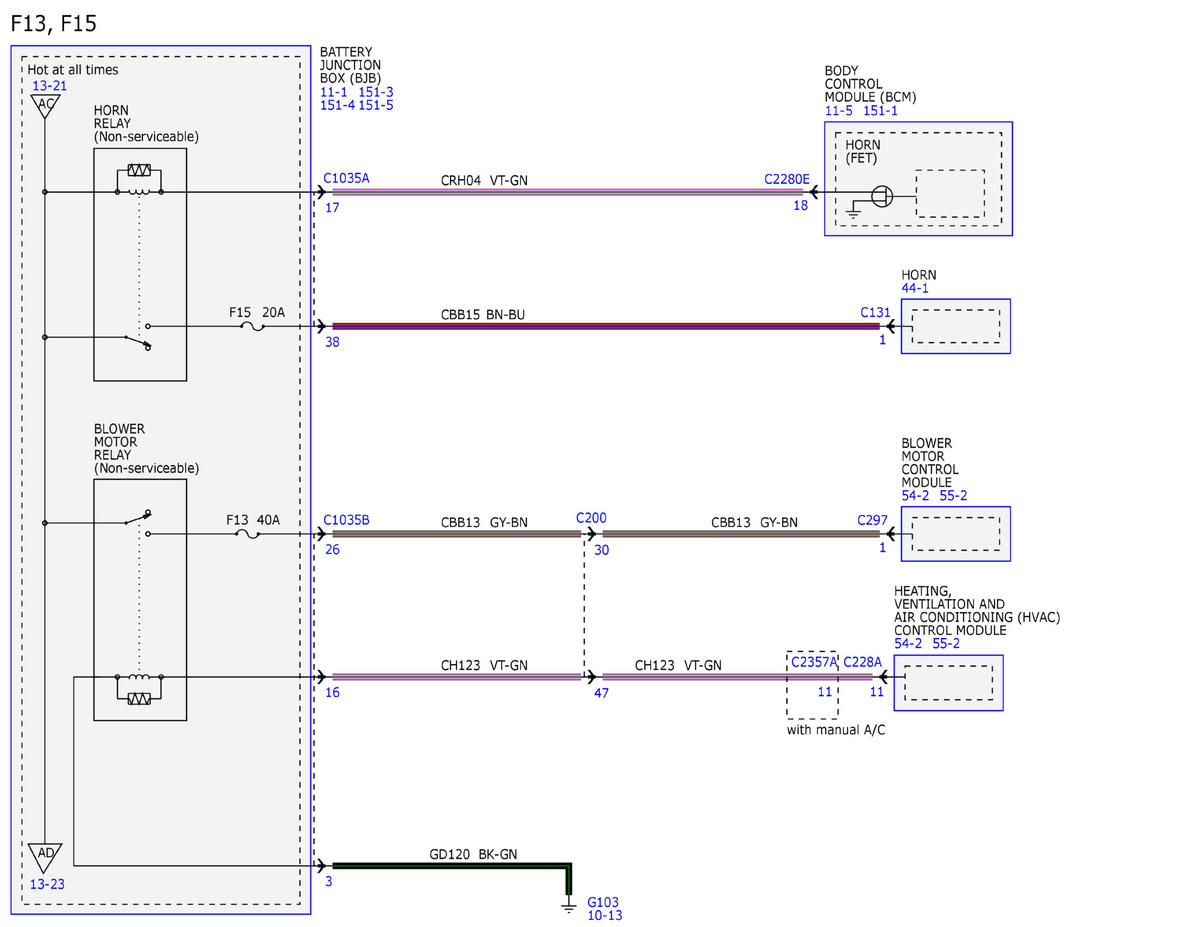

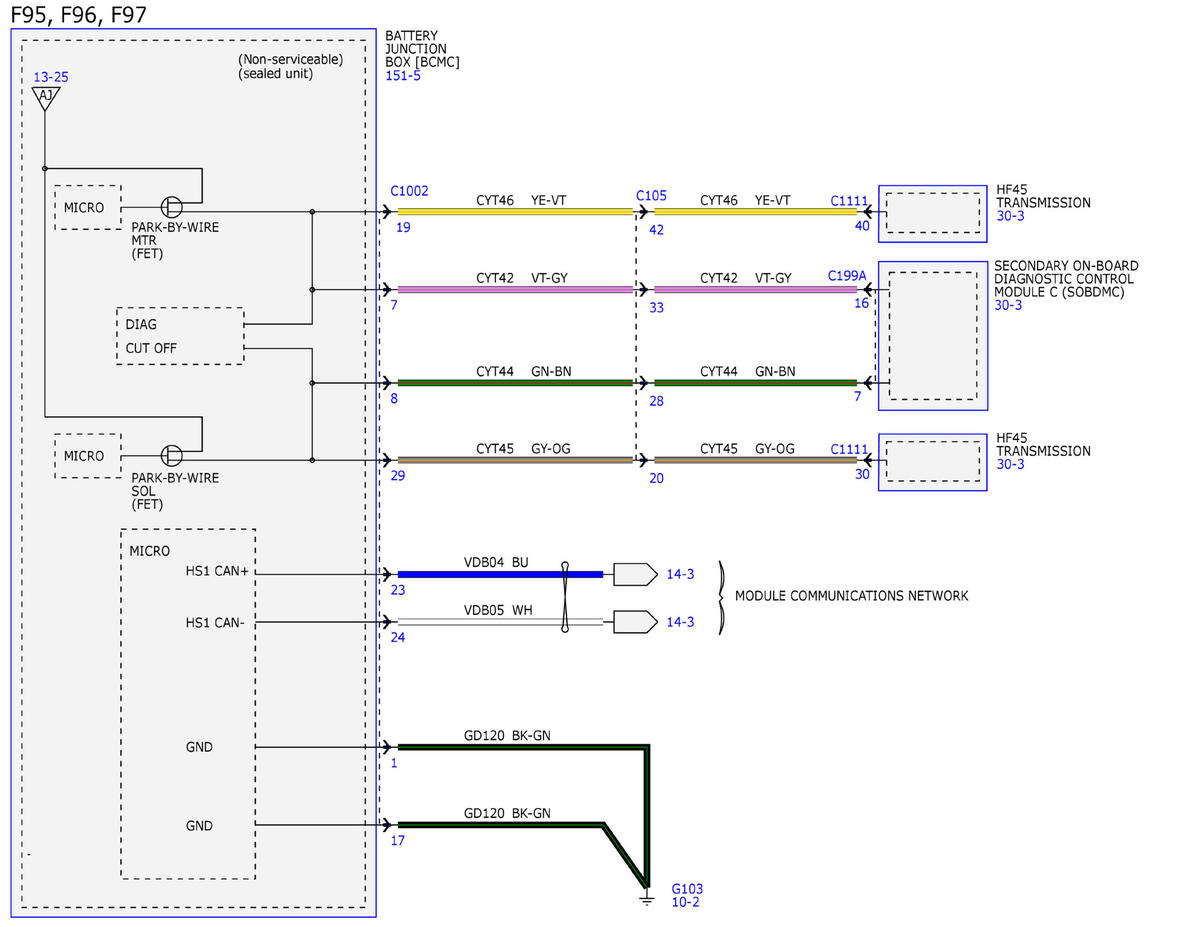

Fig 29: Power Distribution/BCM Wiring Diagram (29 of 44)

GFDWR91690

Courtesy of FORD MOTOR COMPANY

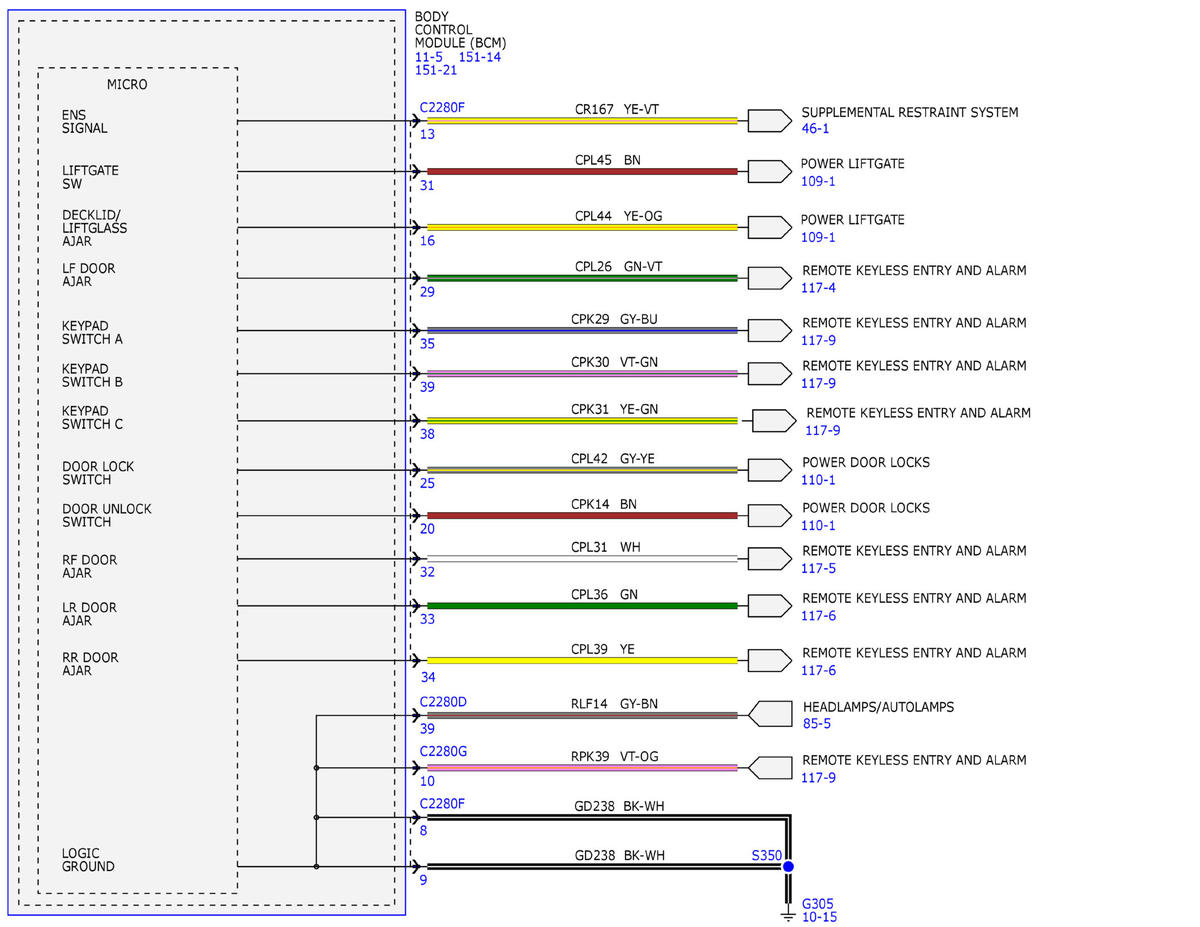

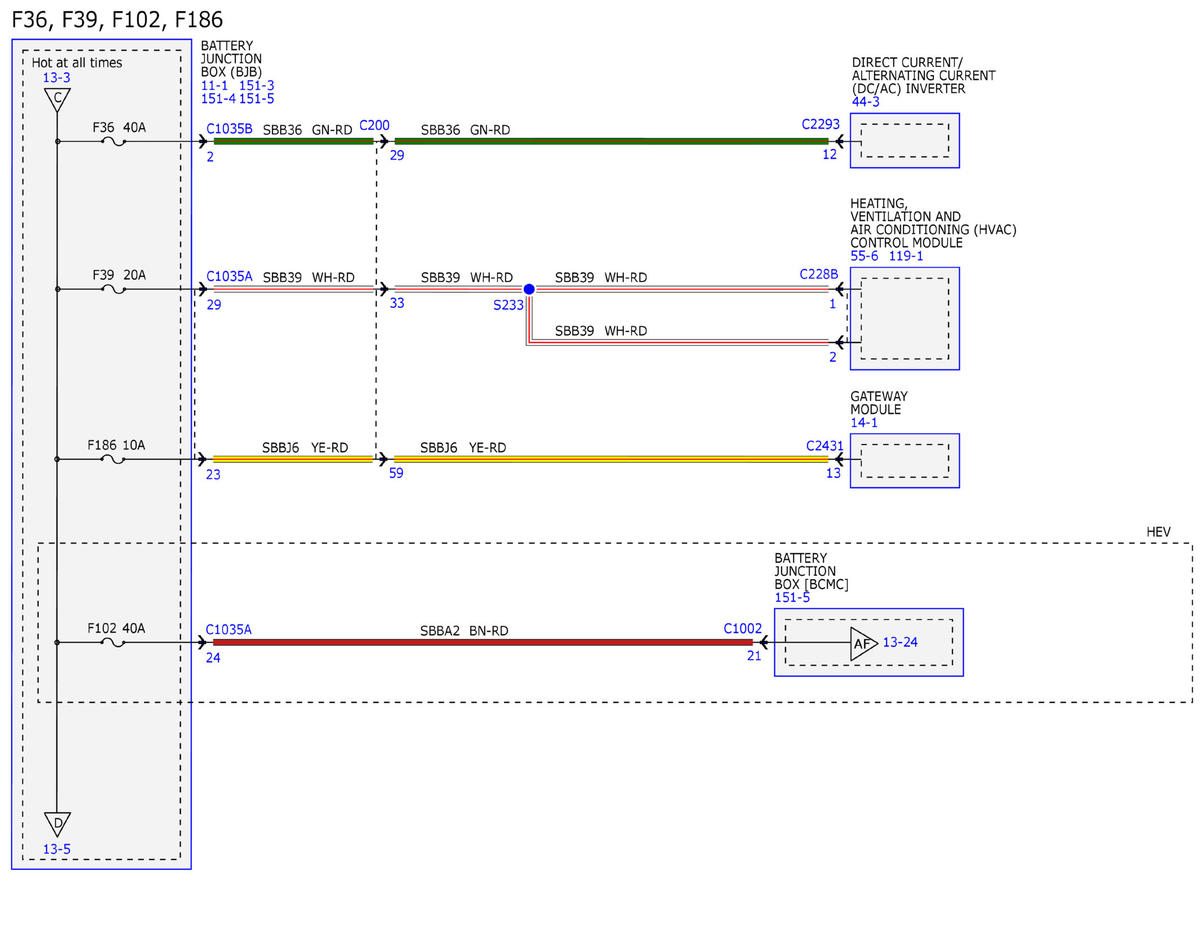

Fig 30: Power Distribution/BCM Wiring Diagram (30 of 44)

GFDWR91691

Courtesy of FORD MOTOR COMPANY

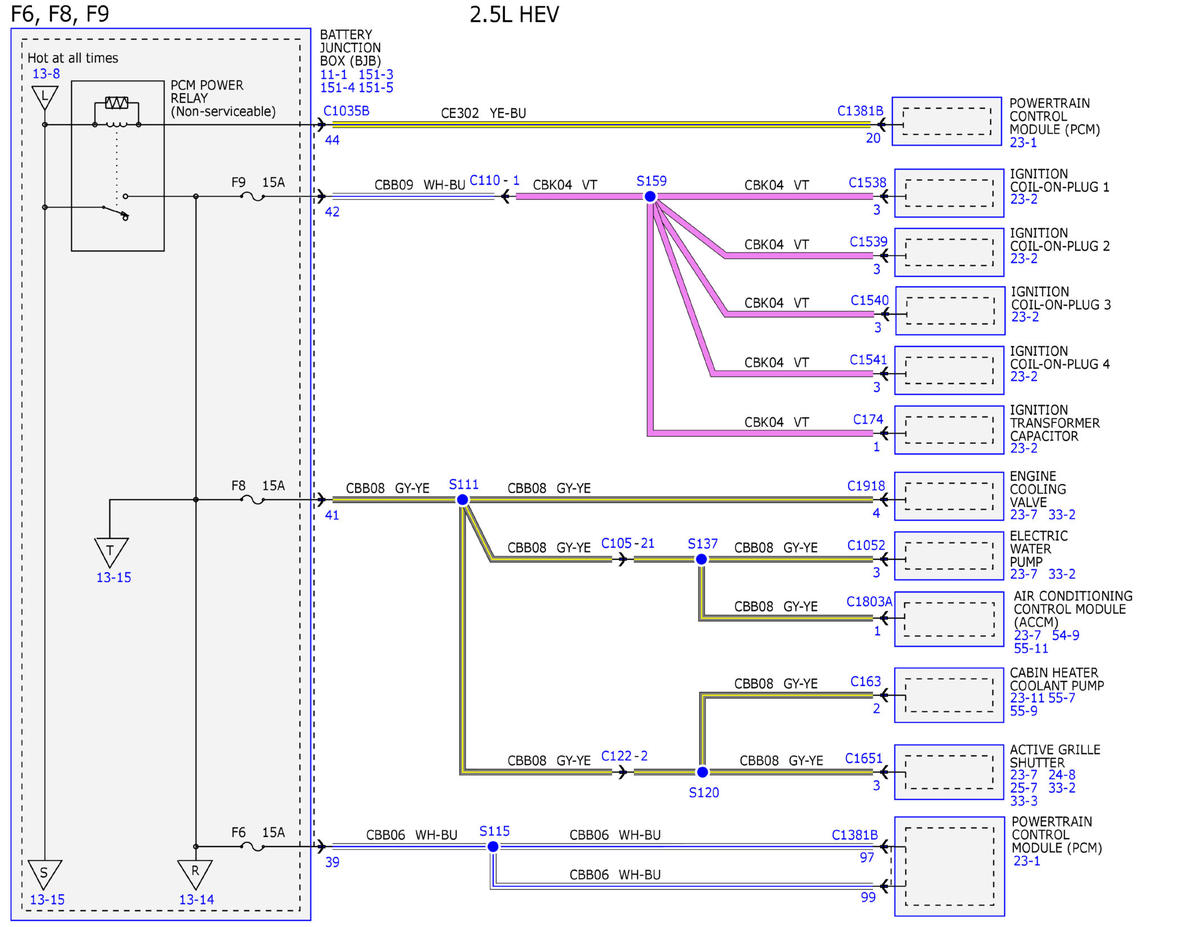

Fig 31: Power Distribution/BCM Wiring Diagram (31 of 44)

GFDWR91692

Courtesy of FORD MOTOR COMPANY

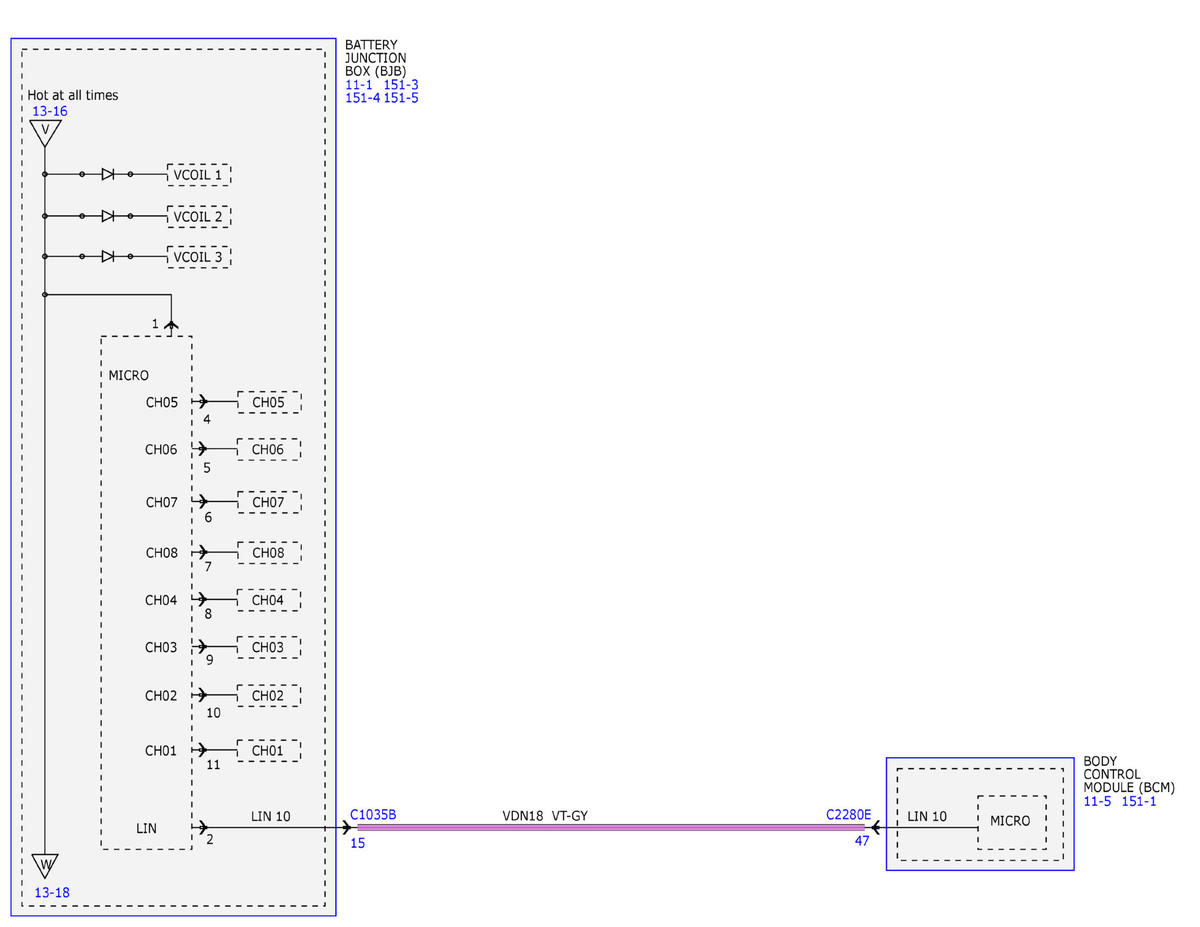

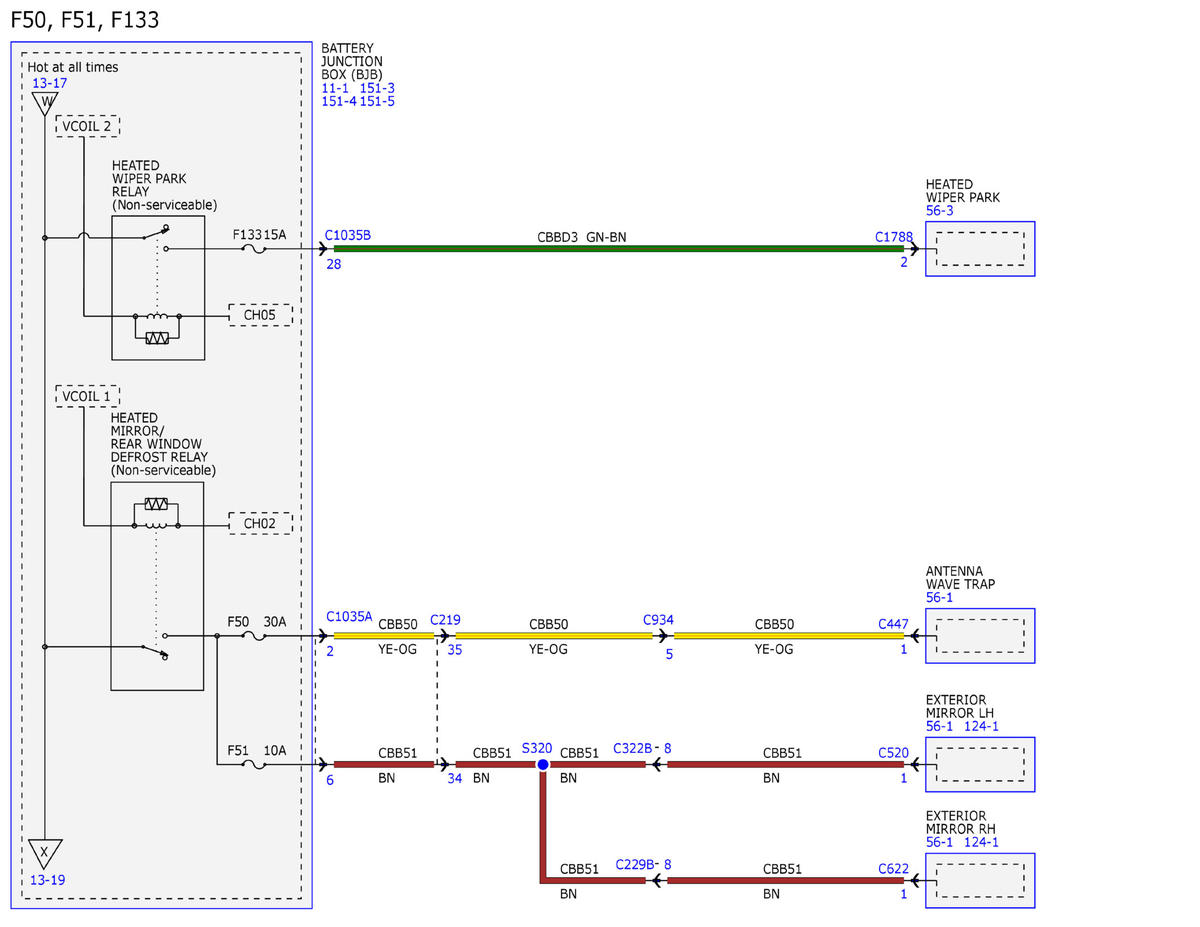

Fig 32: Power Distribution/BCM Wiring Diagram (32 of 44)

GFDWR91693

Courtesy of FORD MOTOR COMPANY

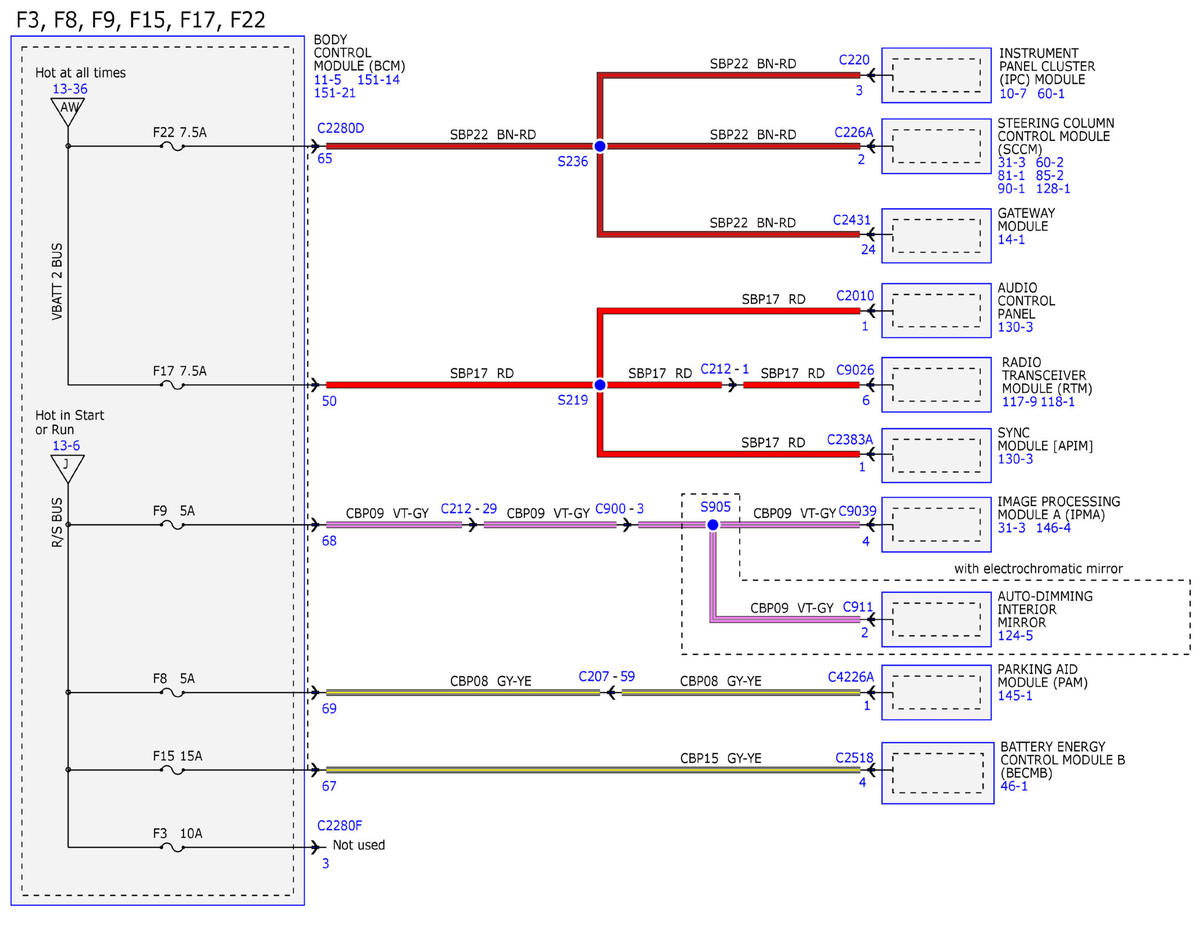

Fig 33: Power Distribution/BCM Wiring Diagram (33 of 44)

GFDWR91694

Courtesy of FORD MOTOR COMPANY

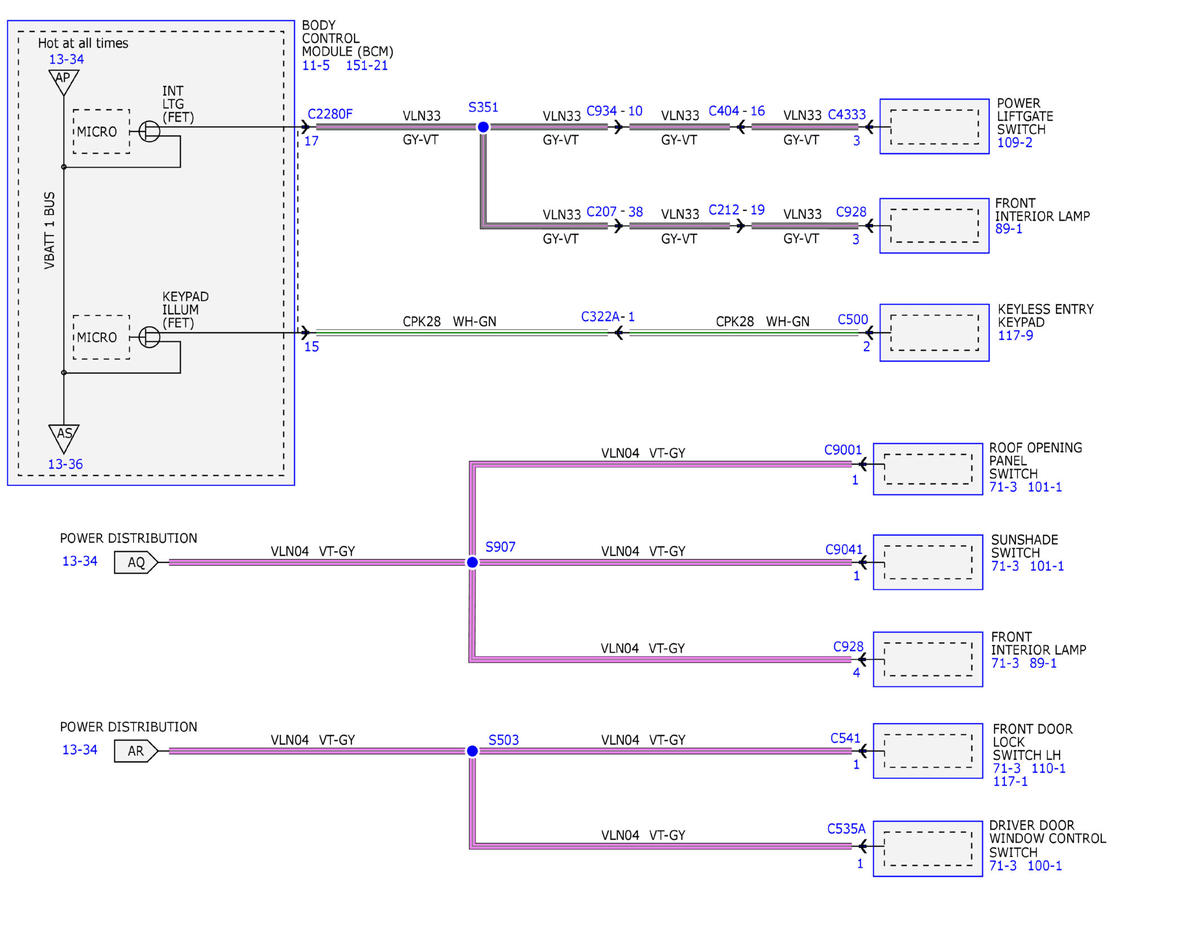

Fig 34: Power Distribution/BCM Wiring Diagram (34 of 44)

GFDWR91695

Courtesy of FORD MOTOR COMPANY

Fig 35: Power Distribution/BCM Wiring Diagram (35 of 44)

GFDWR91696

Courtesy of FORD MOTOR COMPANY

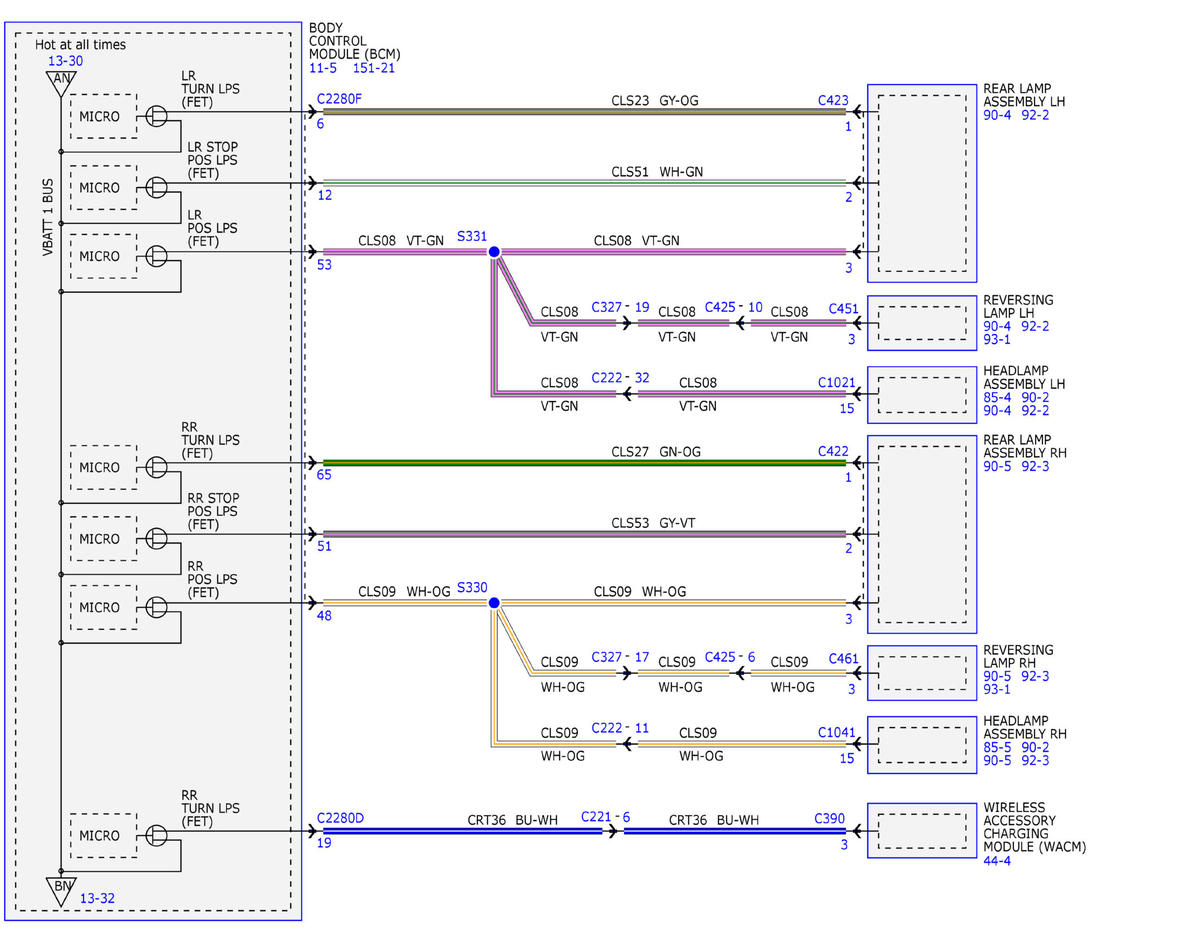

Fig 36: Power Distribution/BCM Wiring Diagram (36 of 44)

GFDWR91697

Courtesy of FORD MOTOR COMPANY

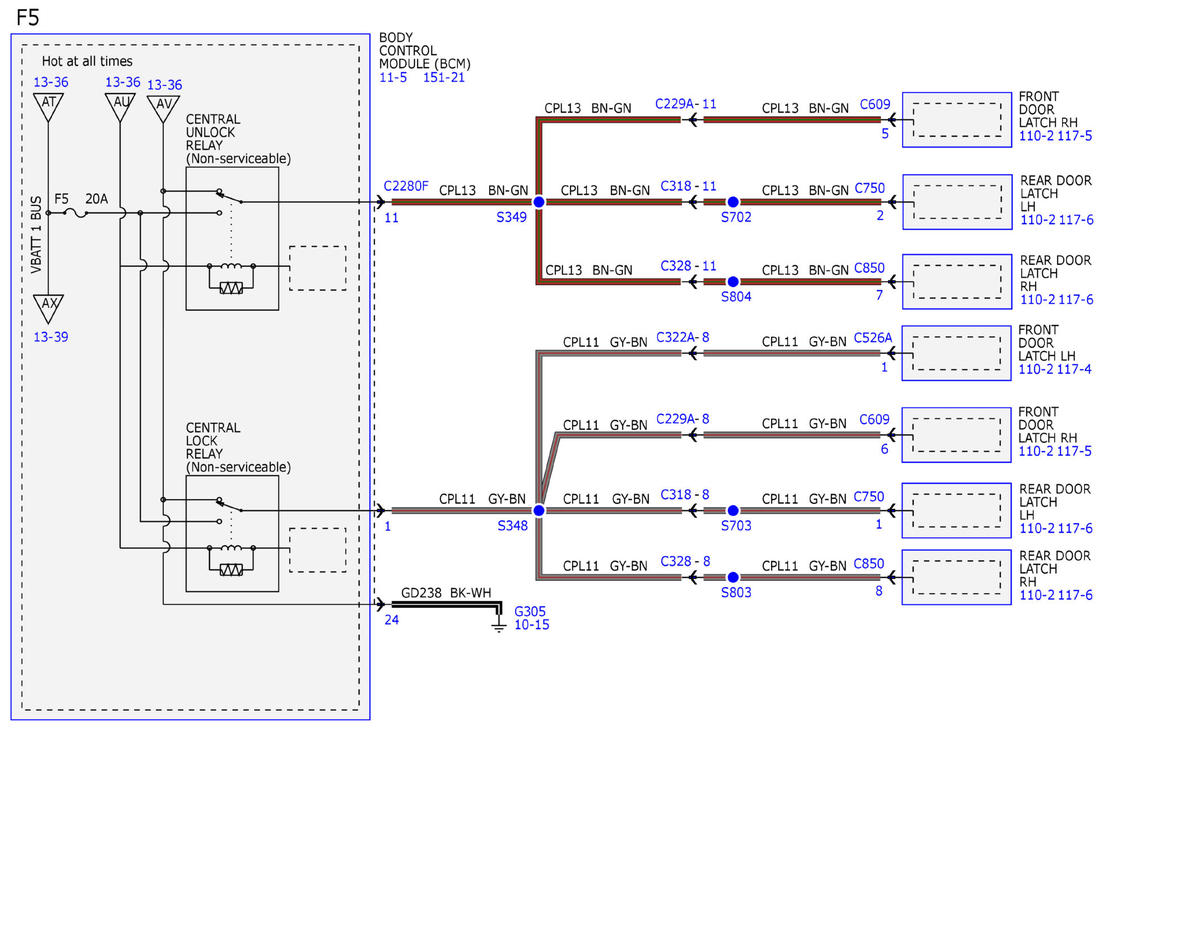

Fig 37: Power Distribution/BCM Wiring Diagram (37 of 44)

GFDWR91698

Courtesy of FORD MOTOR COMPANY

Fig 38: Power Distribution/BCM Wiring Diagram (38 of 44)

GFDWR91699

Courtesy of FORD MOTOR COMPANY

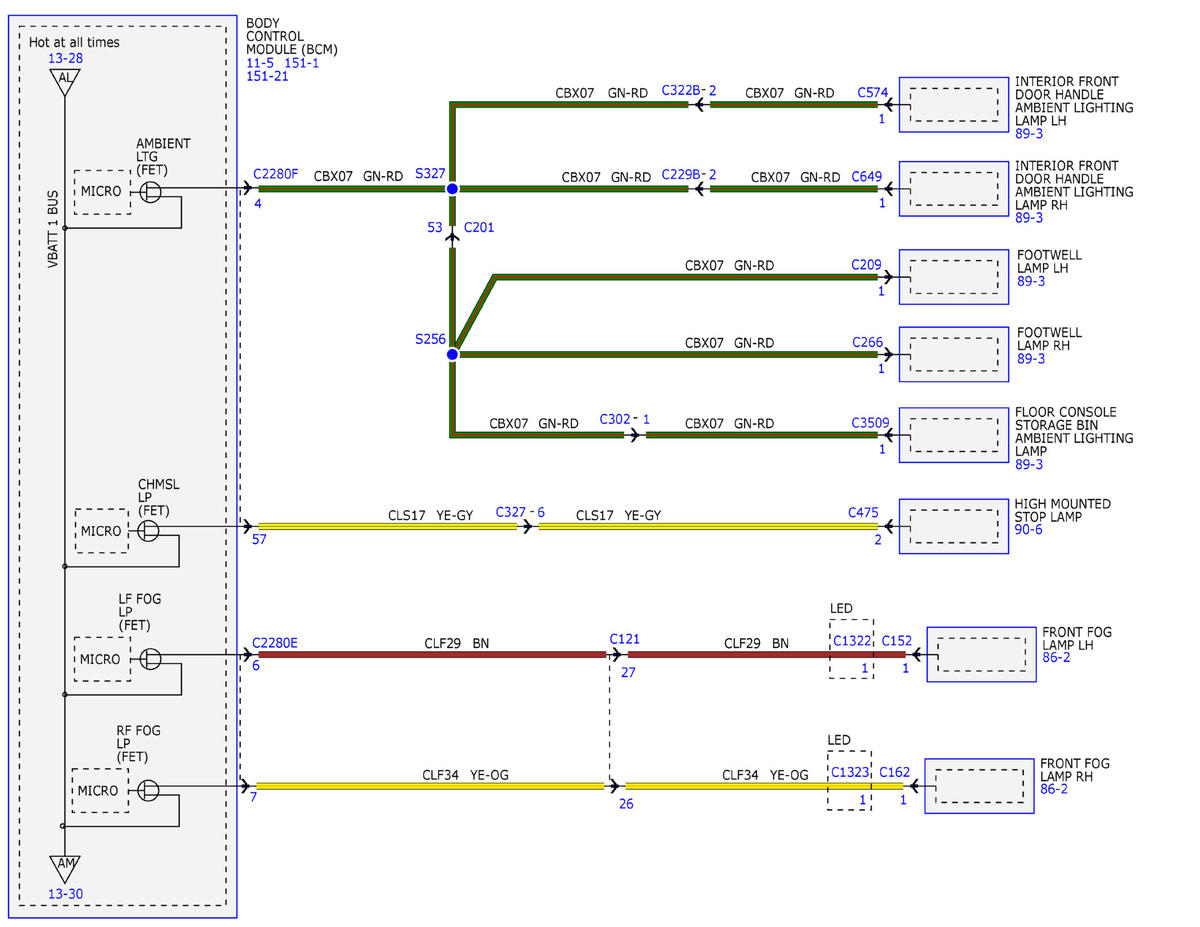

Fig 39: Power Distribution/BCM Wiring Diagram (39 of 44)

GFDWR91700

Courtesy of FORD MOTOR COMPANY

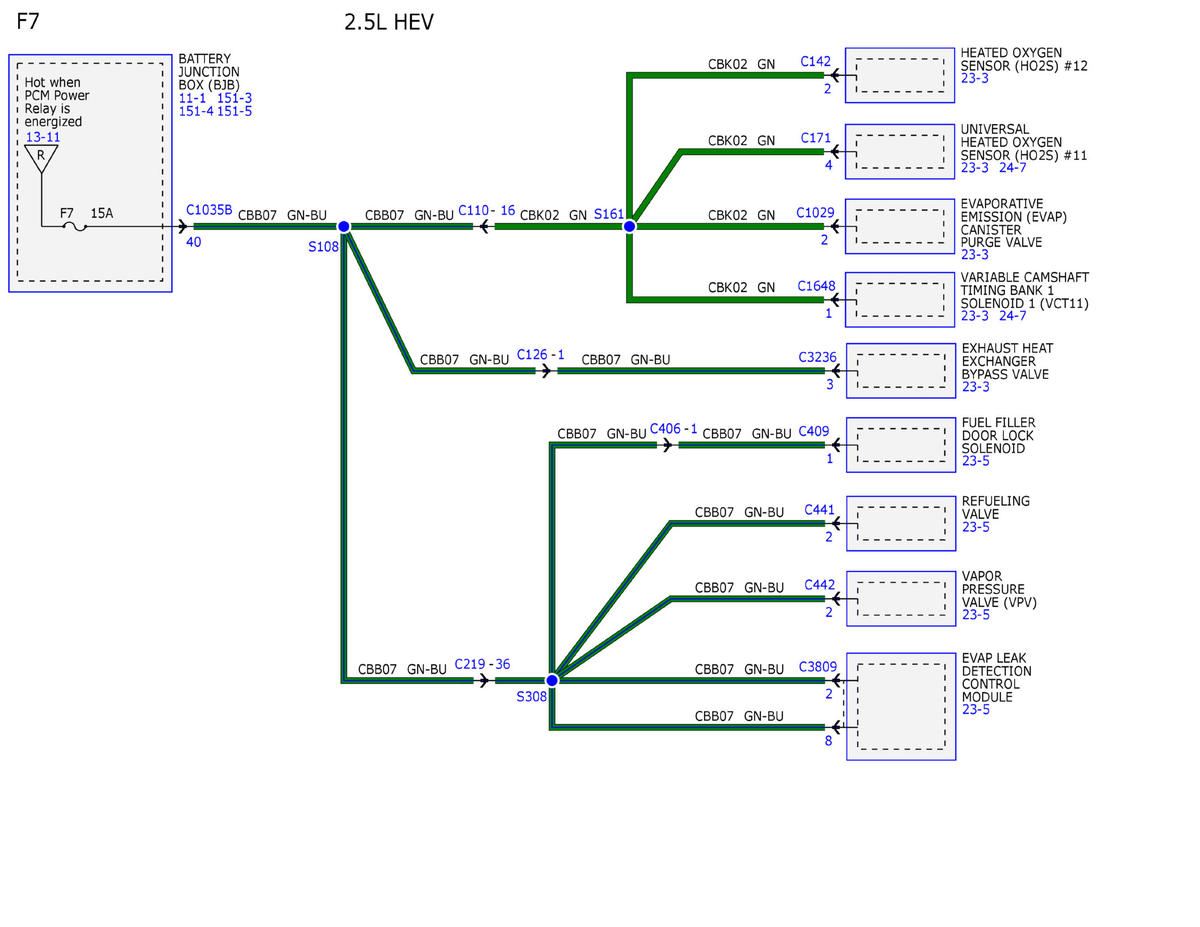

Fig 40: Power Distribution/BCM Wiring Diagram (40 of 44)

GFDWR91701

Courtesy of FORD MOTOR COMPANY

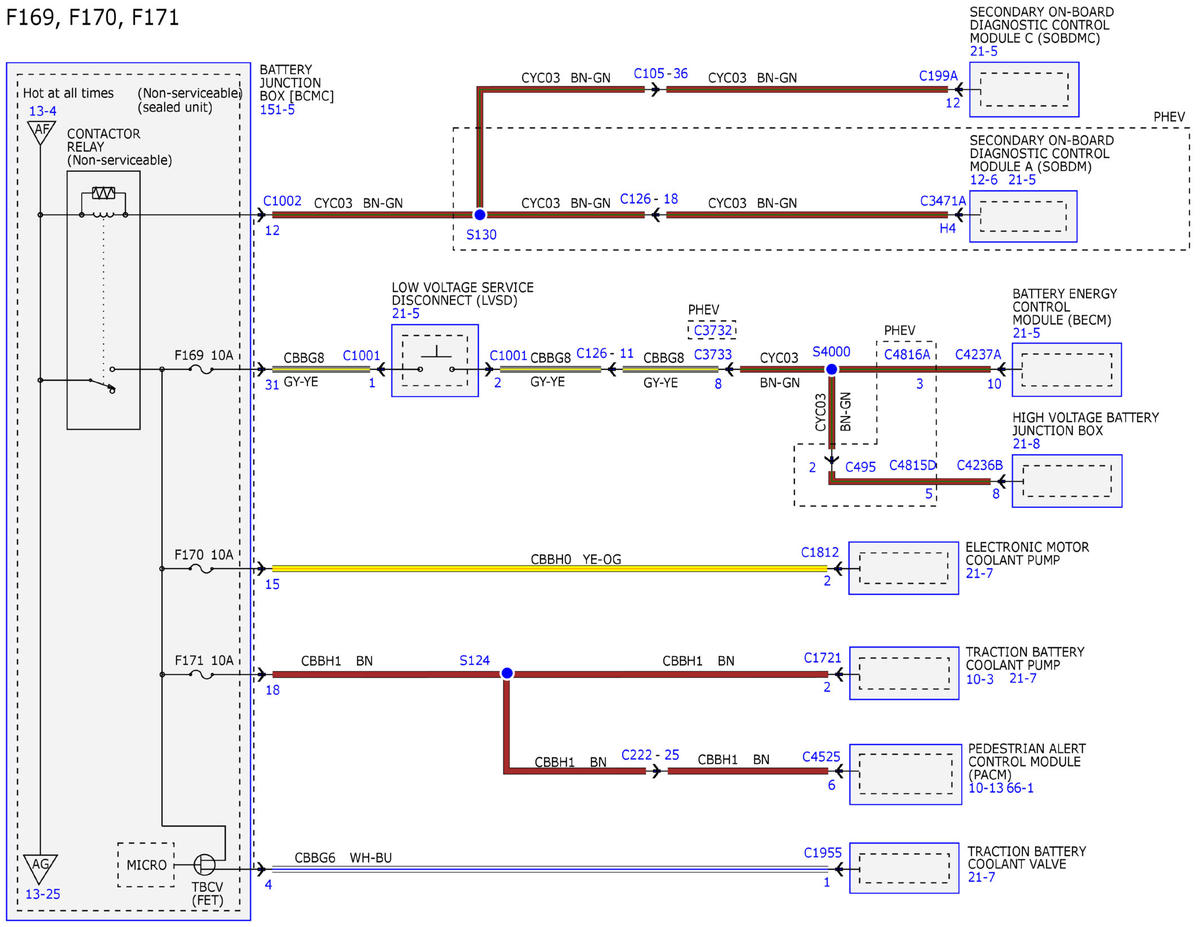

Fig 41: Power Distribution/BCM Wiring Diagram (41 of 44)

GFDWR91702

Courtesy of FORD MOTOR COMPANY

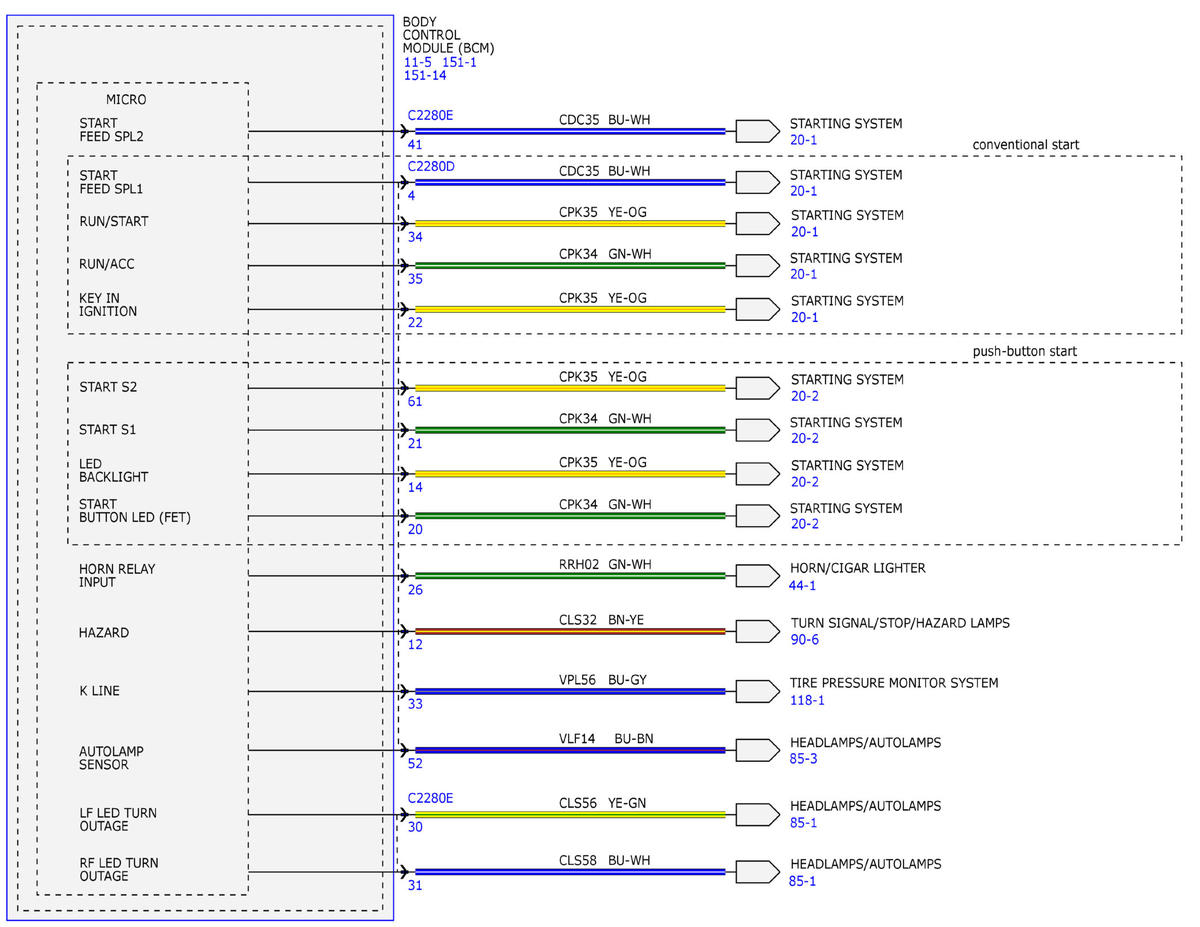

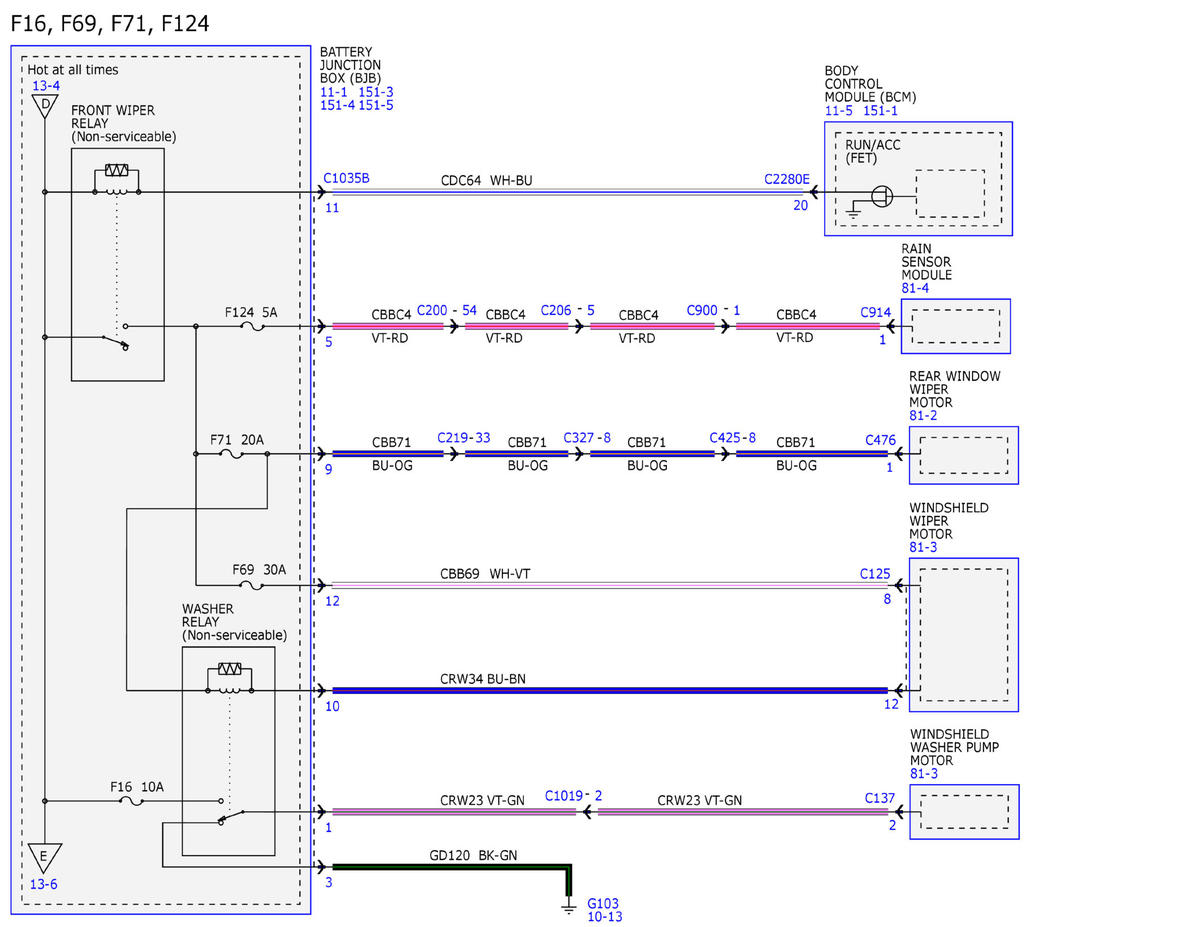

Fig 42: Power Distribution/BCM Wiring Diagram (42 of 44)

GFDWR91703

Courtesy of FORD MOTOR COMPANY

Fig 43: Power Distribution/BCM Wiring Diagram (43 of 44)

GFDWR91704

Courtesy of FORD MOTOR COMPANY

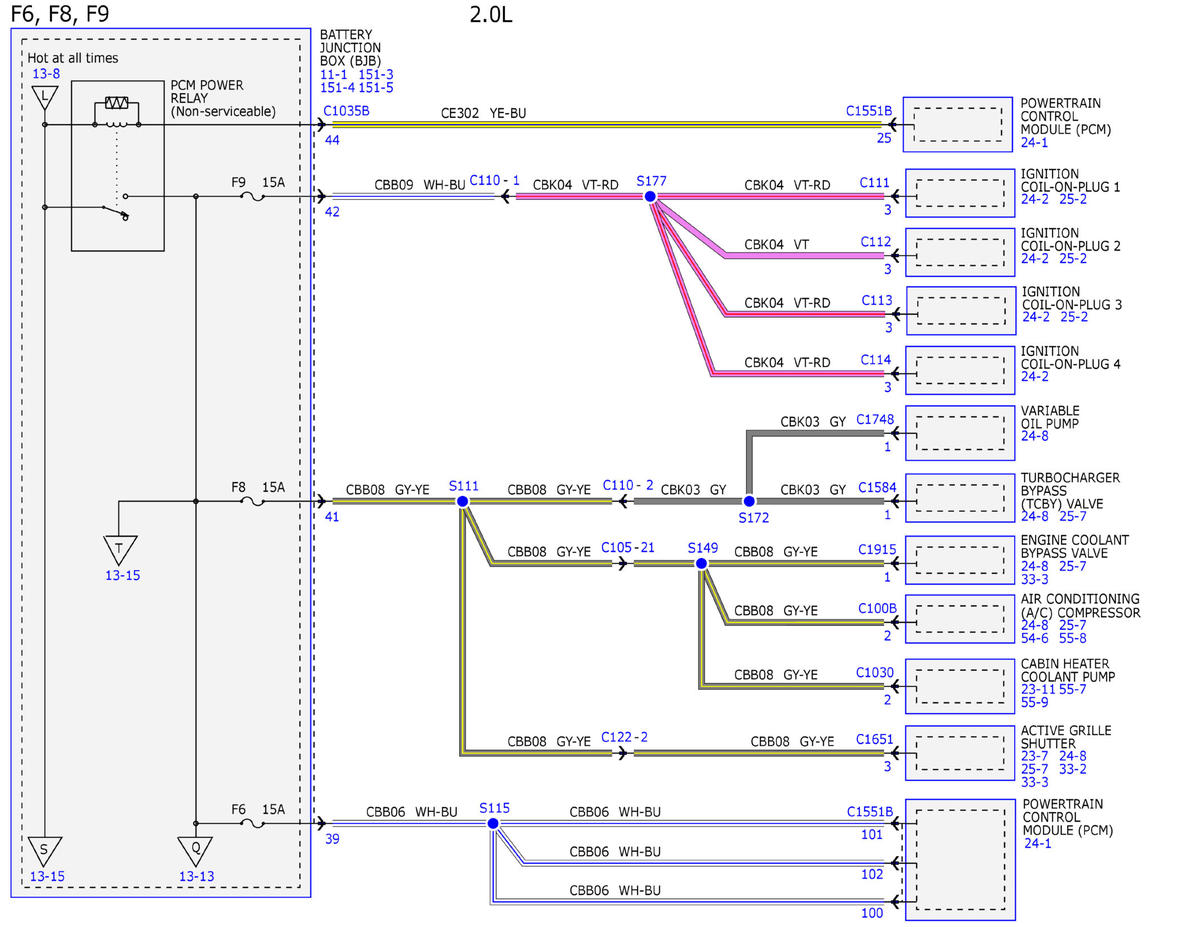

Fig 44: Power Distribution/BCM Wiring Diagram (44 of 44)

GFDWR91705

Courtesy of FORD MOTOR COMPANY
