Memory Seats

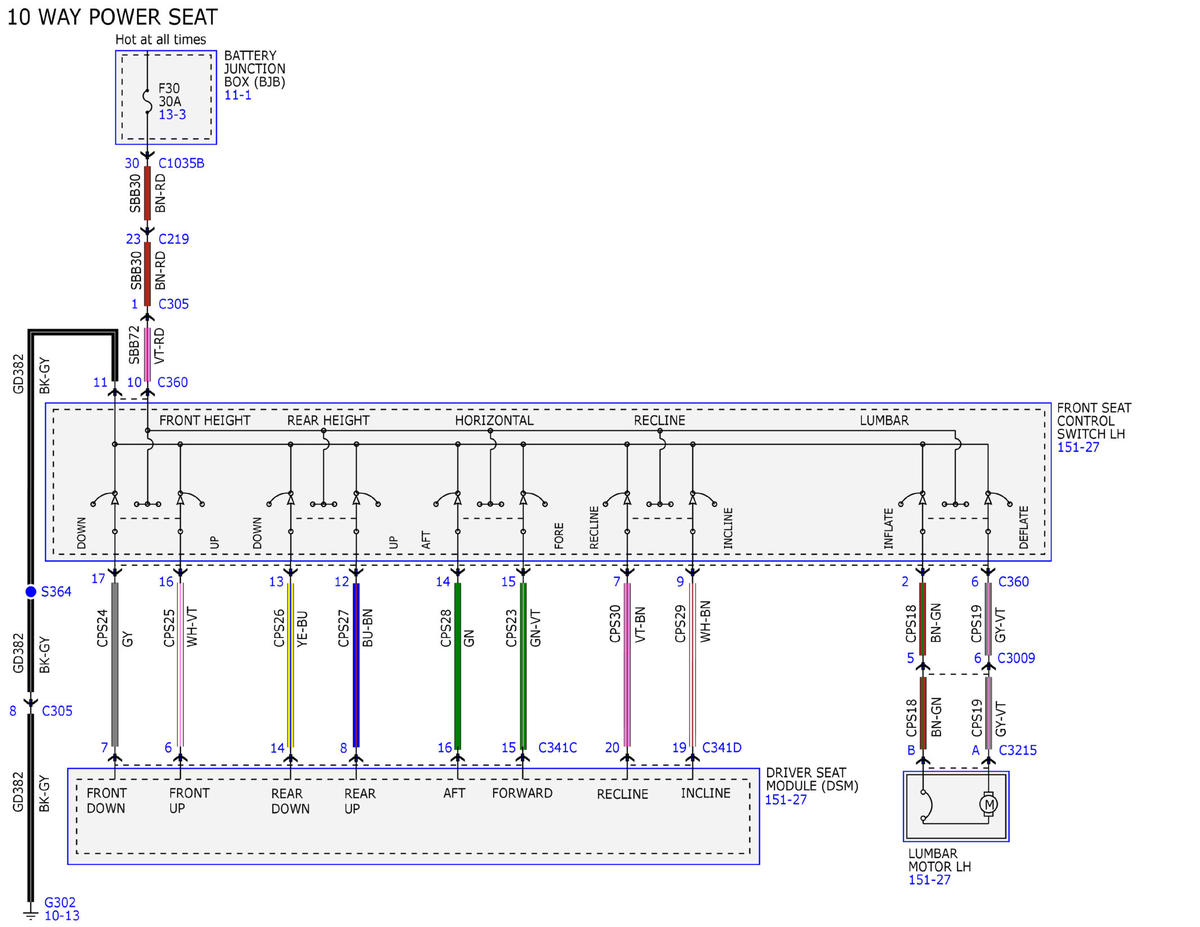

Fig 1: Memory Seats Wiring Diagram (1 of 4)
GFDWR91634Courtesy of FORD MOTOR COMPANY
Fig 2: Memory Seats Wiring Diagram (2 of 4)
GFDWR91635Courtesy of FORD MOTOR COMPANY

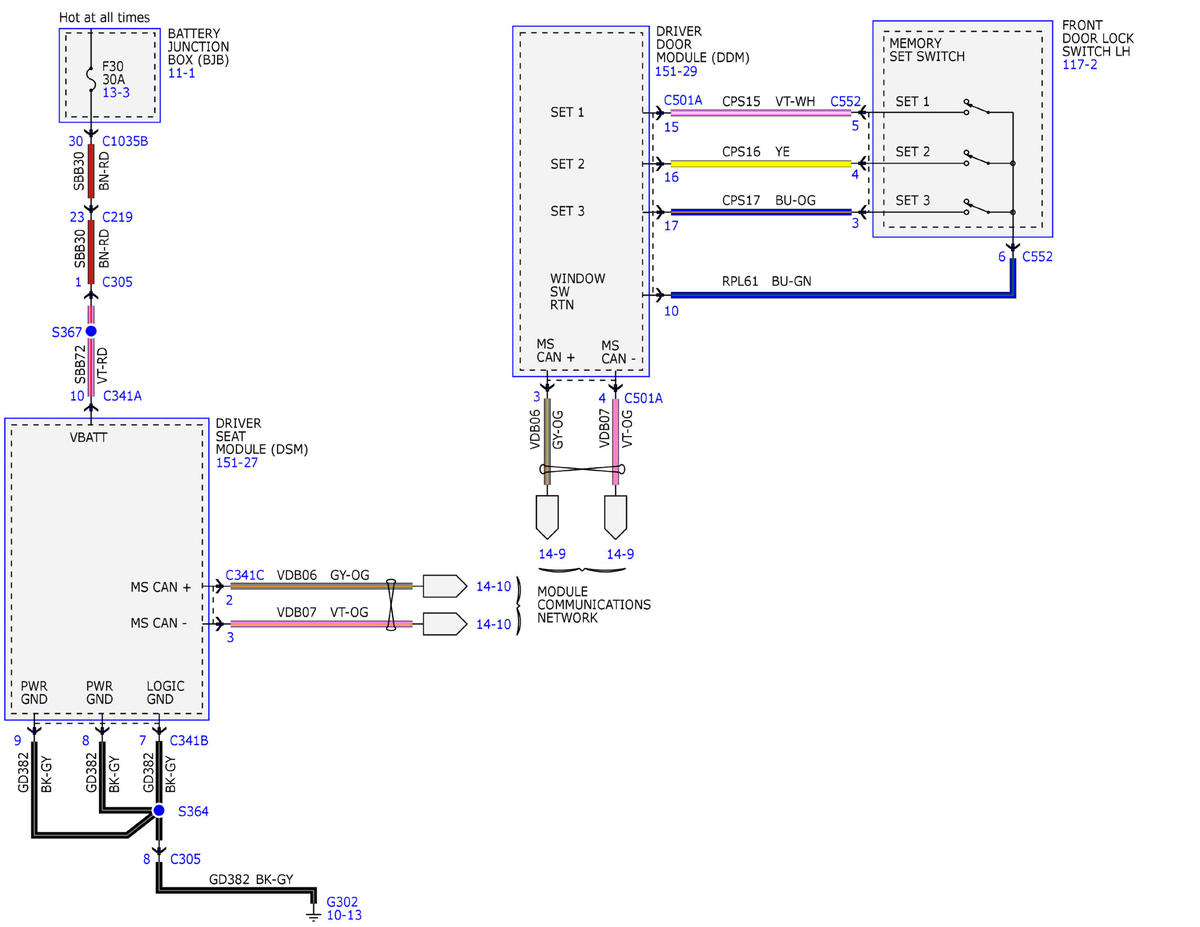

Fig 3: Memory Seats Wiring Diagram (3 of 4)
GFDWR91636Courtesy of FORD MOTOR COMPANY

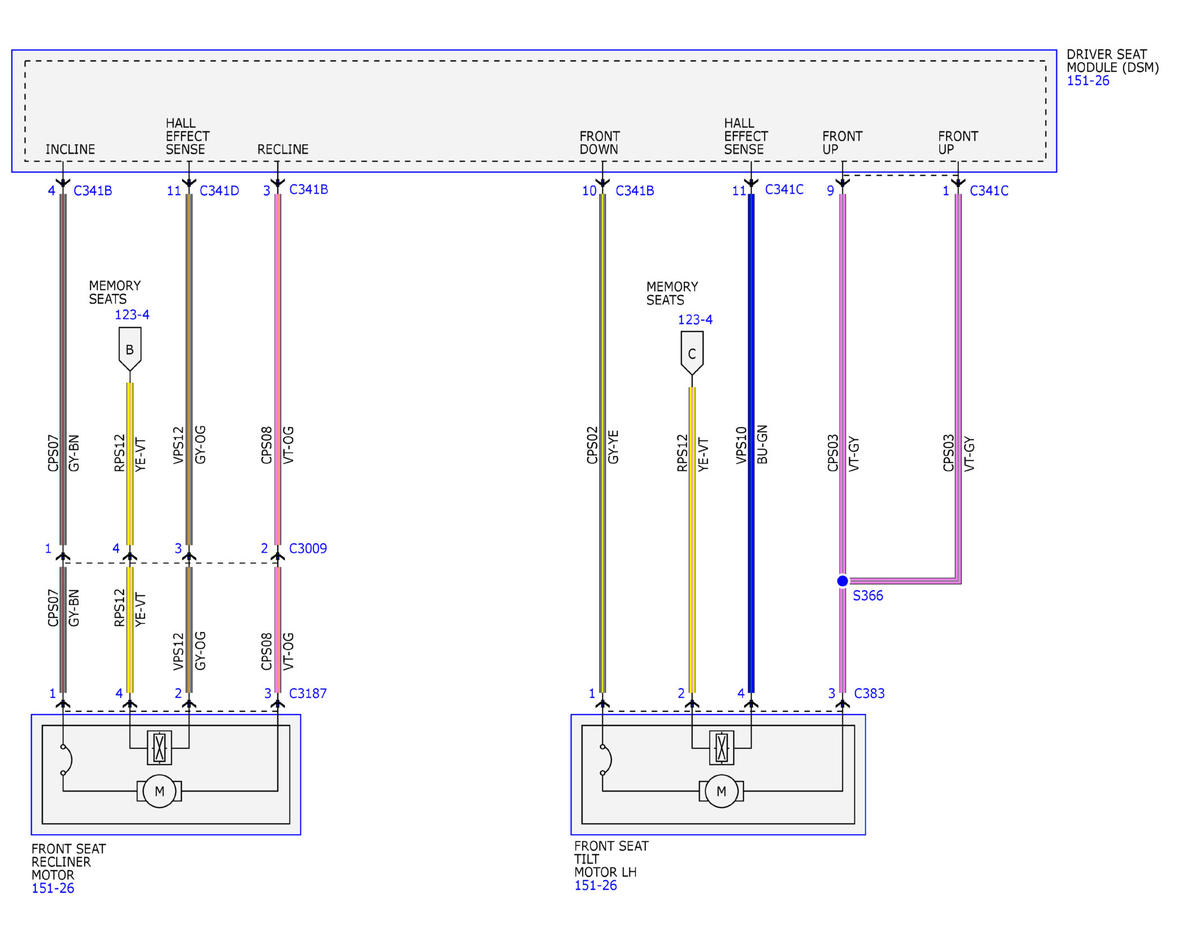

Fig 4: Memory Seats Wiring Diagram (4 of 4)
GFDWR91637Courtesy of FORD MOTOR COMPANY
