Manual Climate Control System

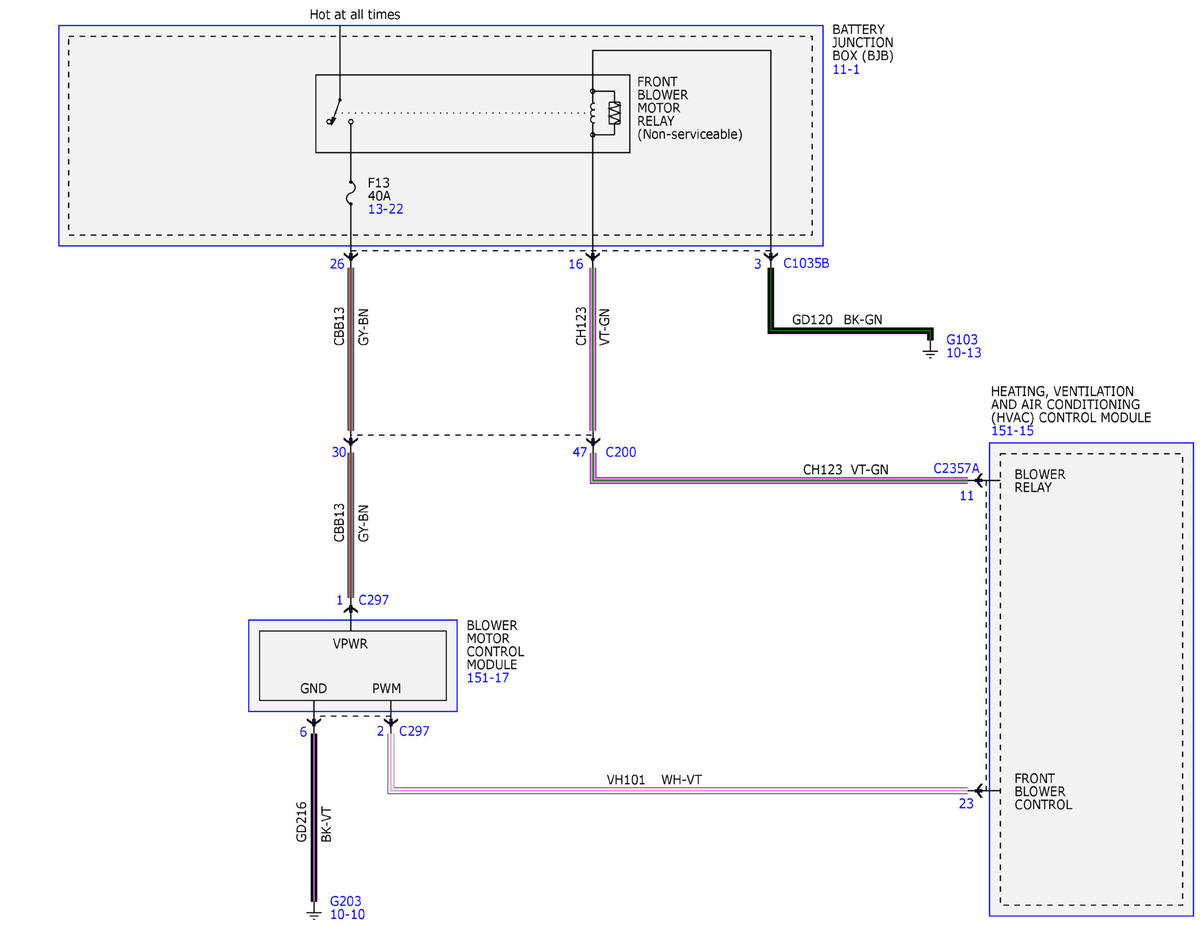

Fig 1: Manual Climate Control System Wiring Diagram (1 of 11)
GFDWR91623Courtesy of FORD MOTOR COMPANY

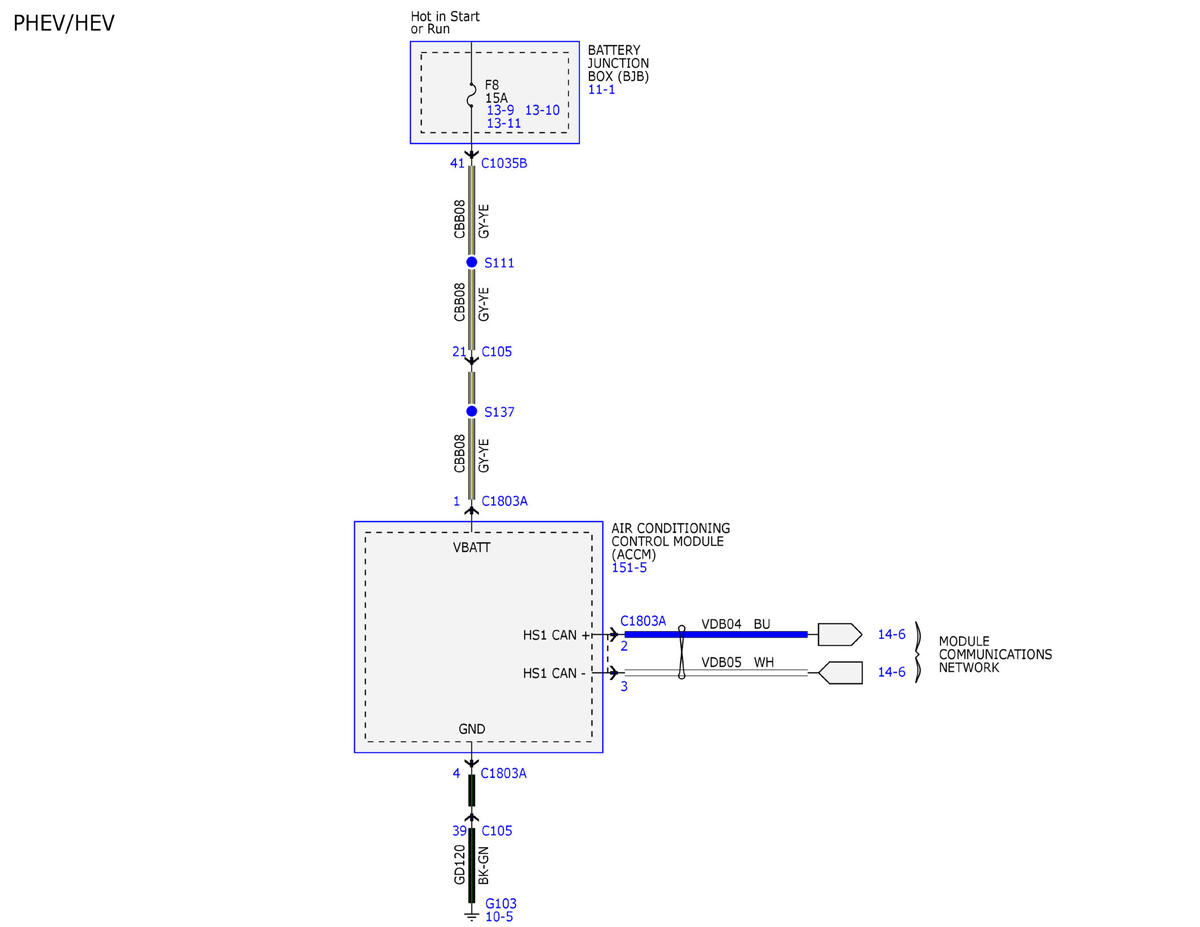

Fig 2: Manual Climate Control System Wiring Diagram (2 of 11)
GFDWR91624Courtesy of FORD MOTOR COMPANY

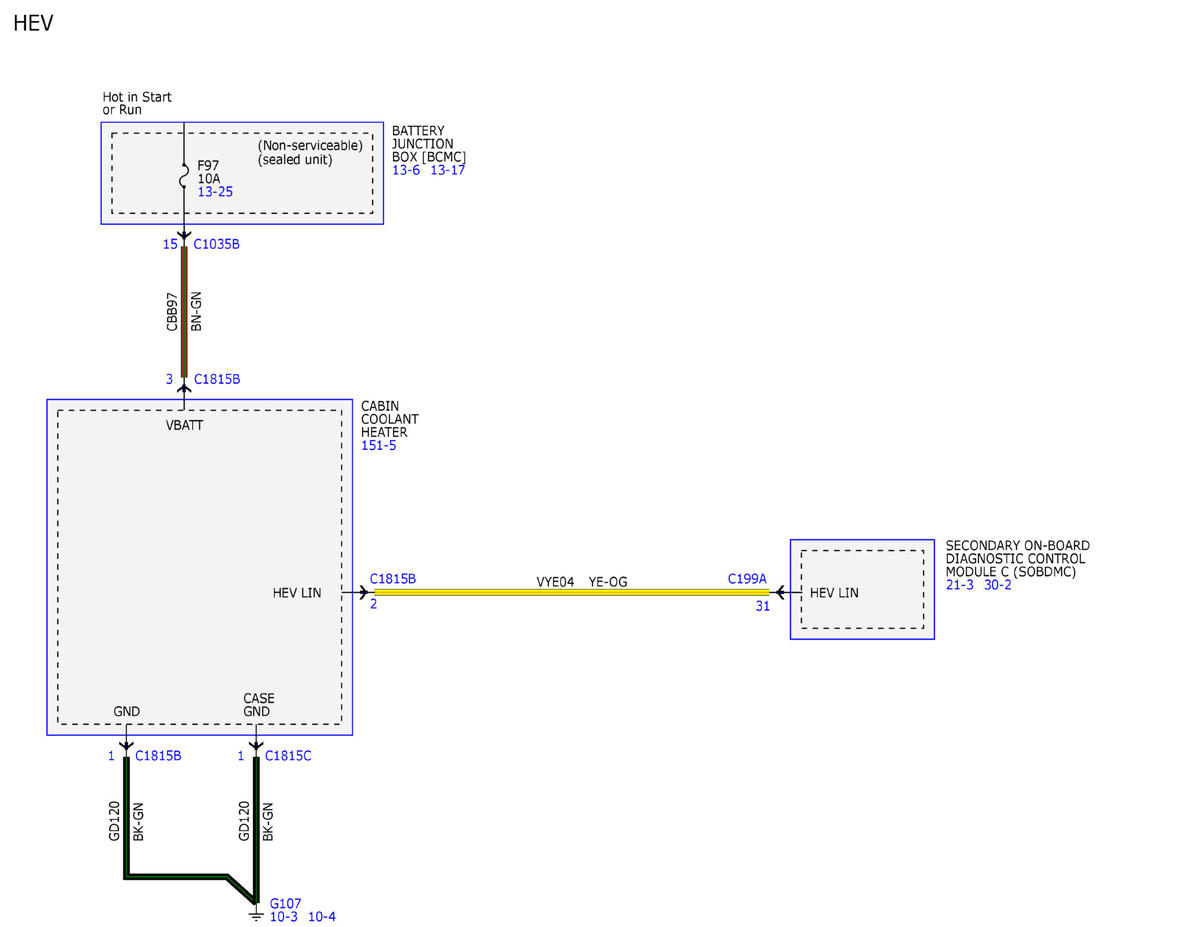

Fig 3: Manual Climate Control System Wiring Diagram (3 of 11)
GFDWR91625Courtesy of FORD MOTOR COMPANY

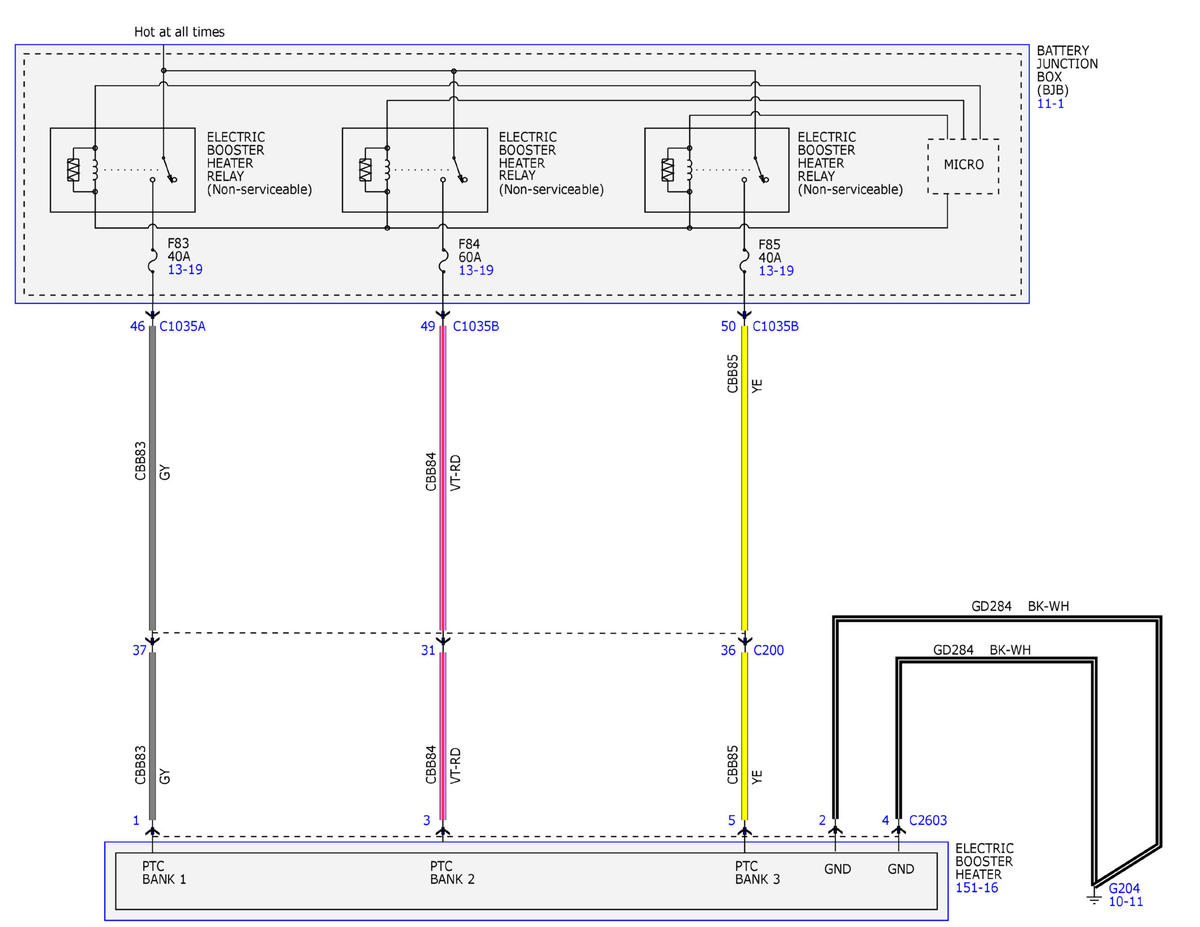

Fig 4: Manual Climate Control System Wiring Diagram (4 of 11)
GFDWR91626Courtesy of FORD MOTOR COMPANY

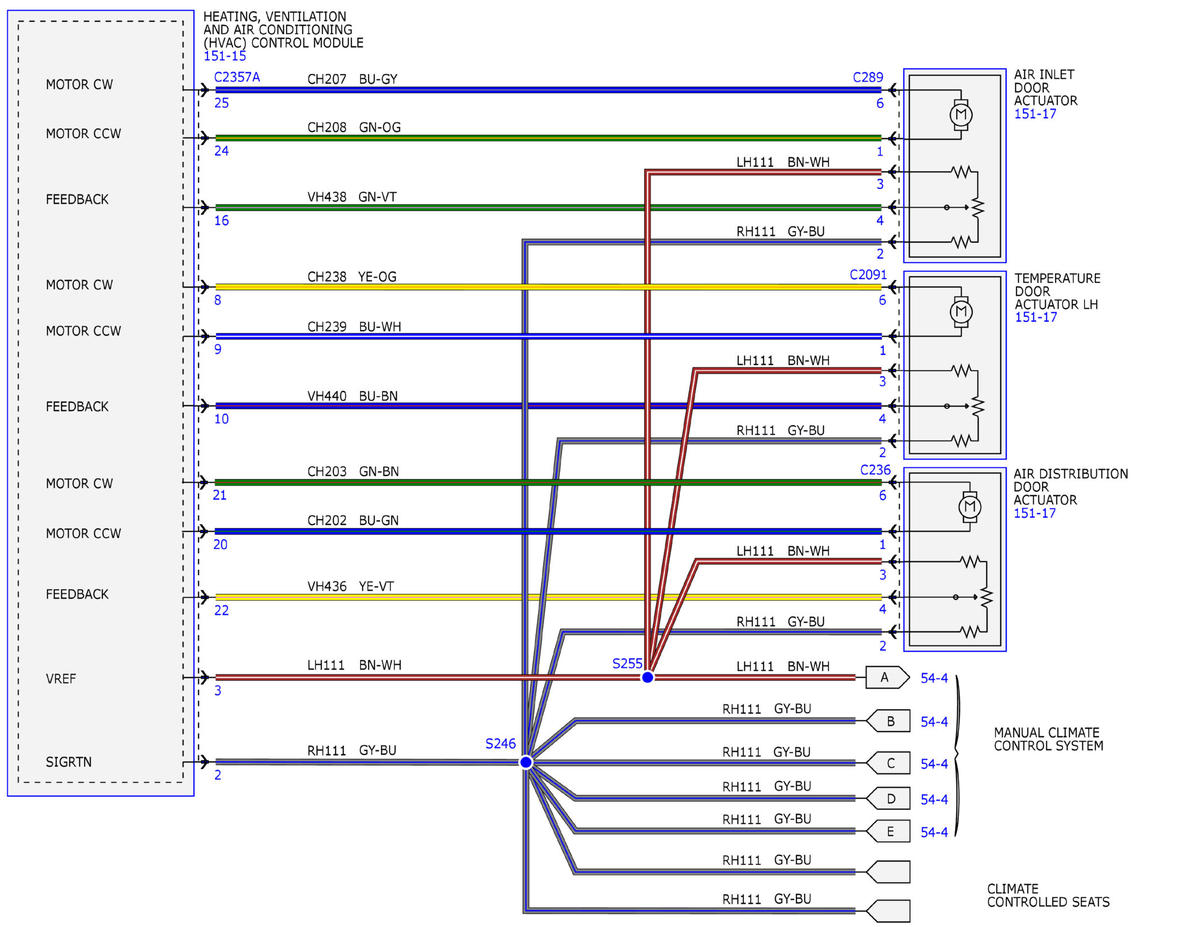

Fig 5: Manual Climate Control System Wiring Diagram (5 of 11)
GFDWR91627Courtesy of FORD MOTOR COMPANY

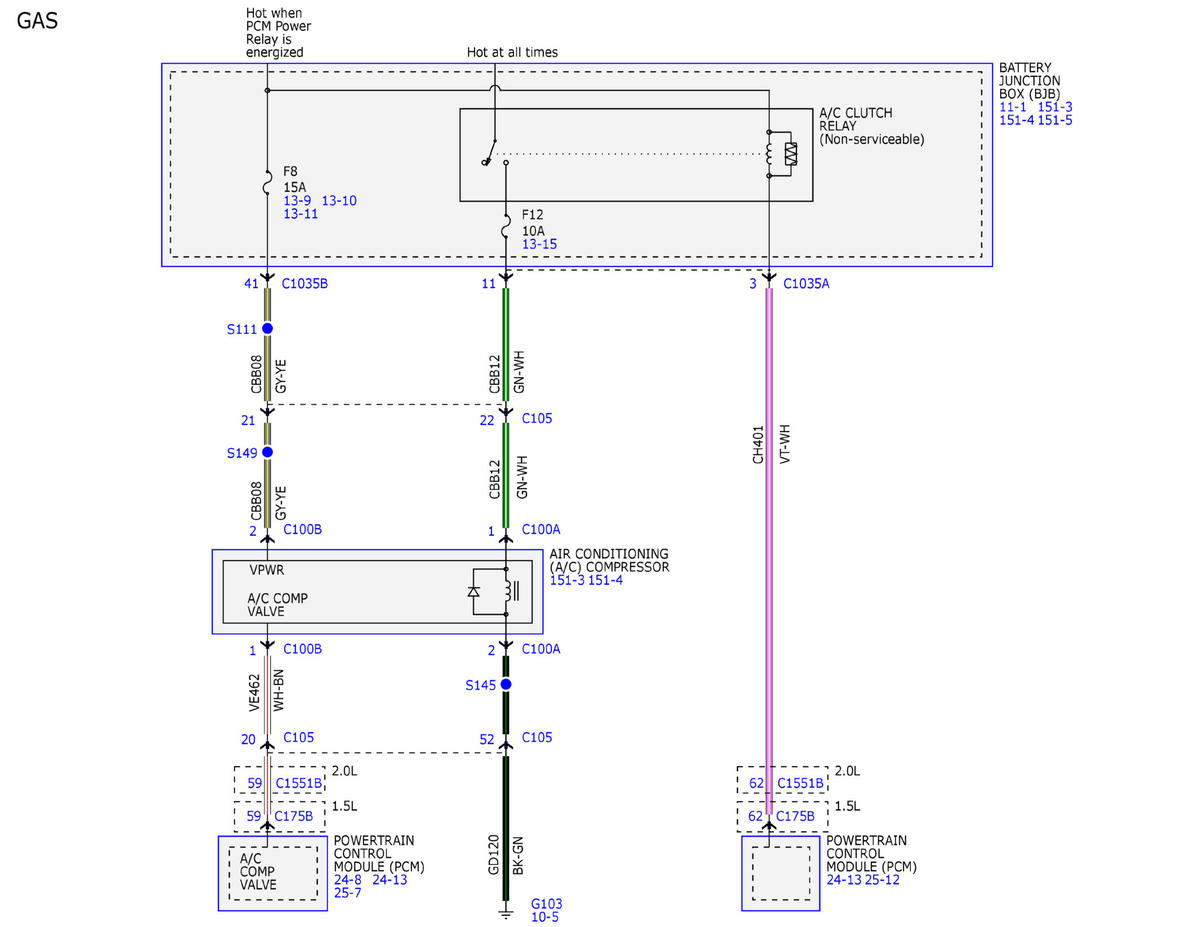

Fig 6: Manual Climate Control System Wiring Diagram (6 of 11)
GFDWR91628Courtesy of FORD MOTOR COMPANY

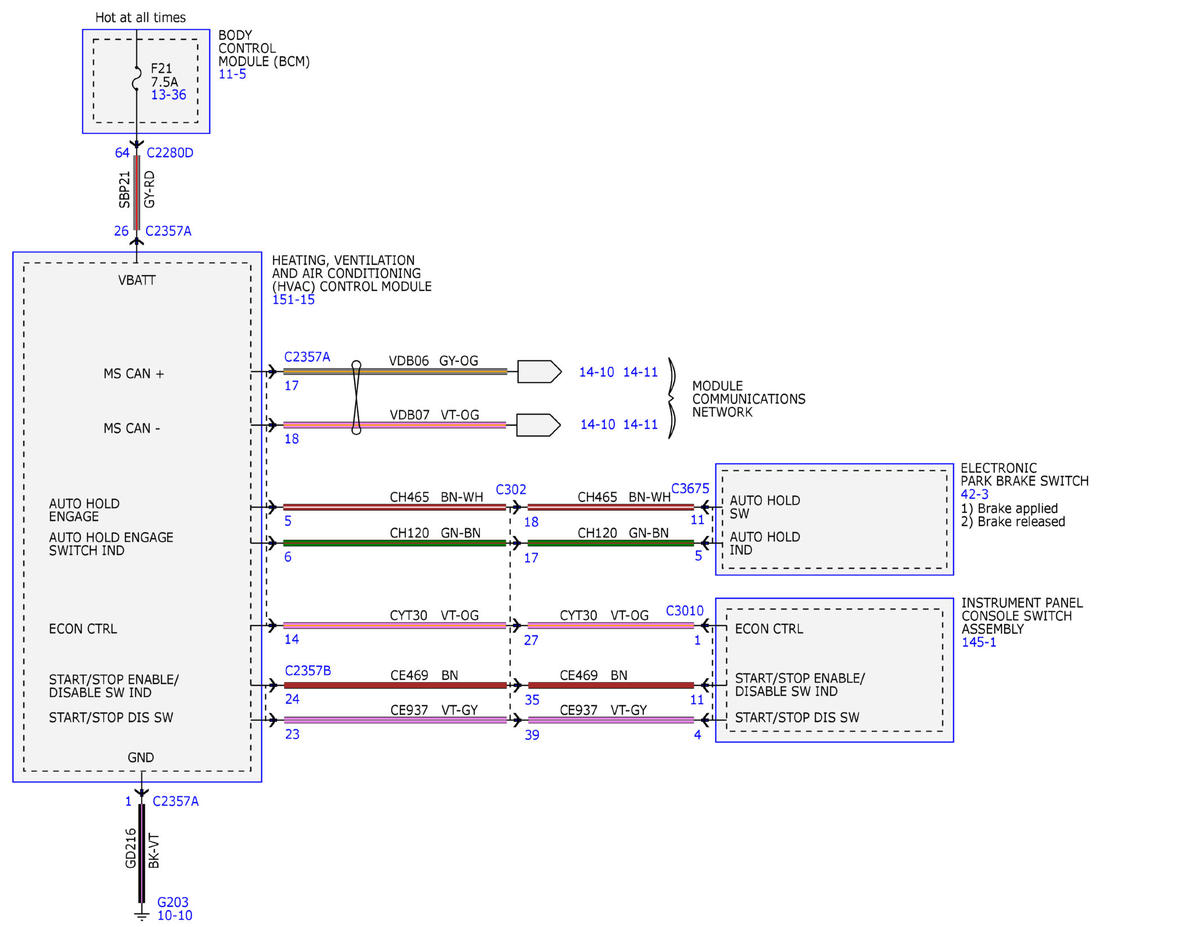

Fig 7: Manual Climate Control System Wiring Diagram (7 of 11)
GFDWR91629Courtesy of FORD MOTOR COMPANY

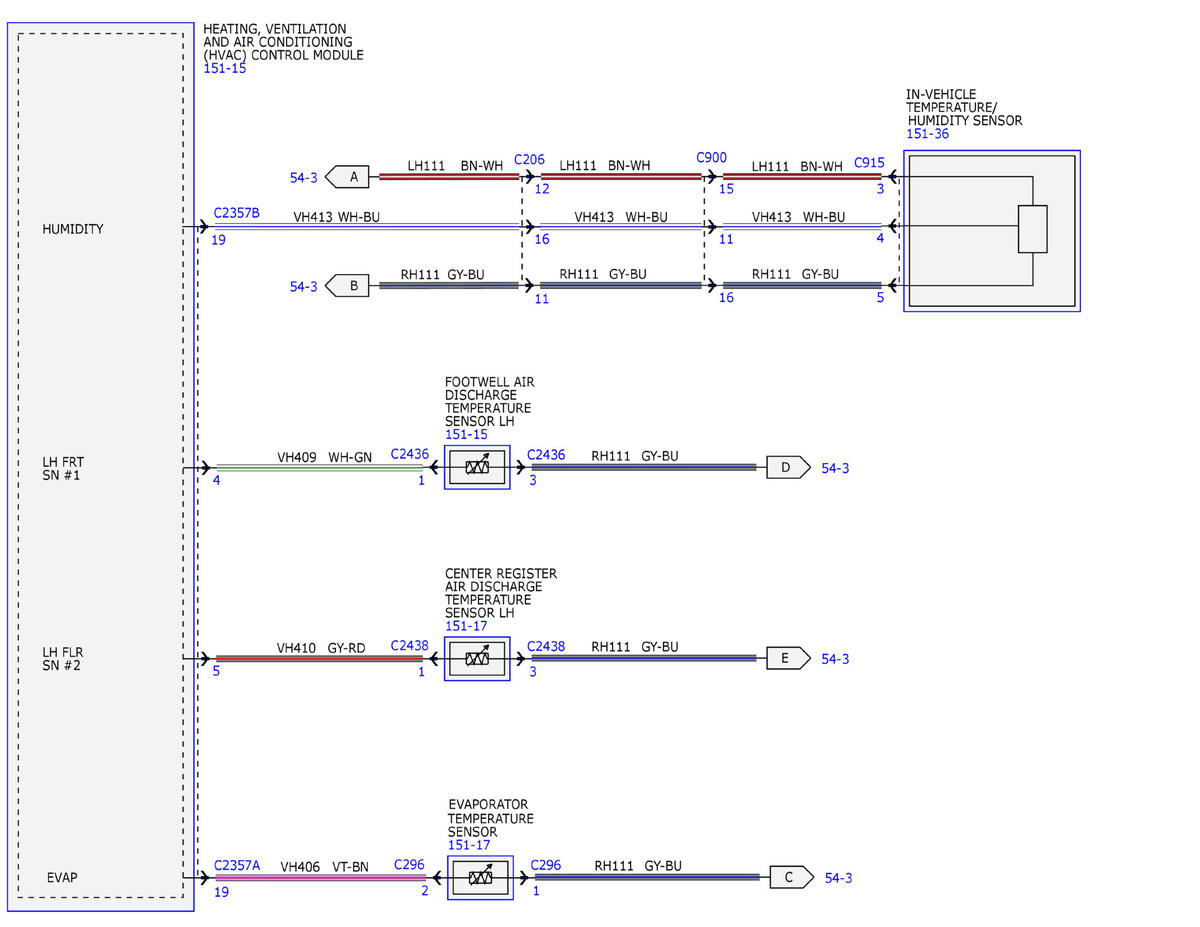

Fig 8: Manual Climate Control System Wiring Diagram (8 of 11)
GFDWR91630Courtesy of FORD MOTOR COMPANY

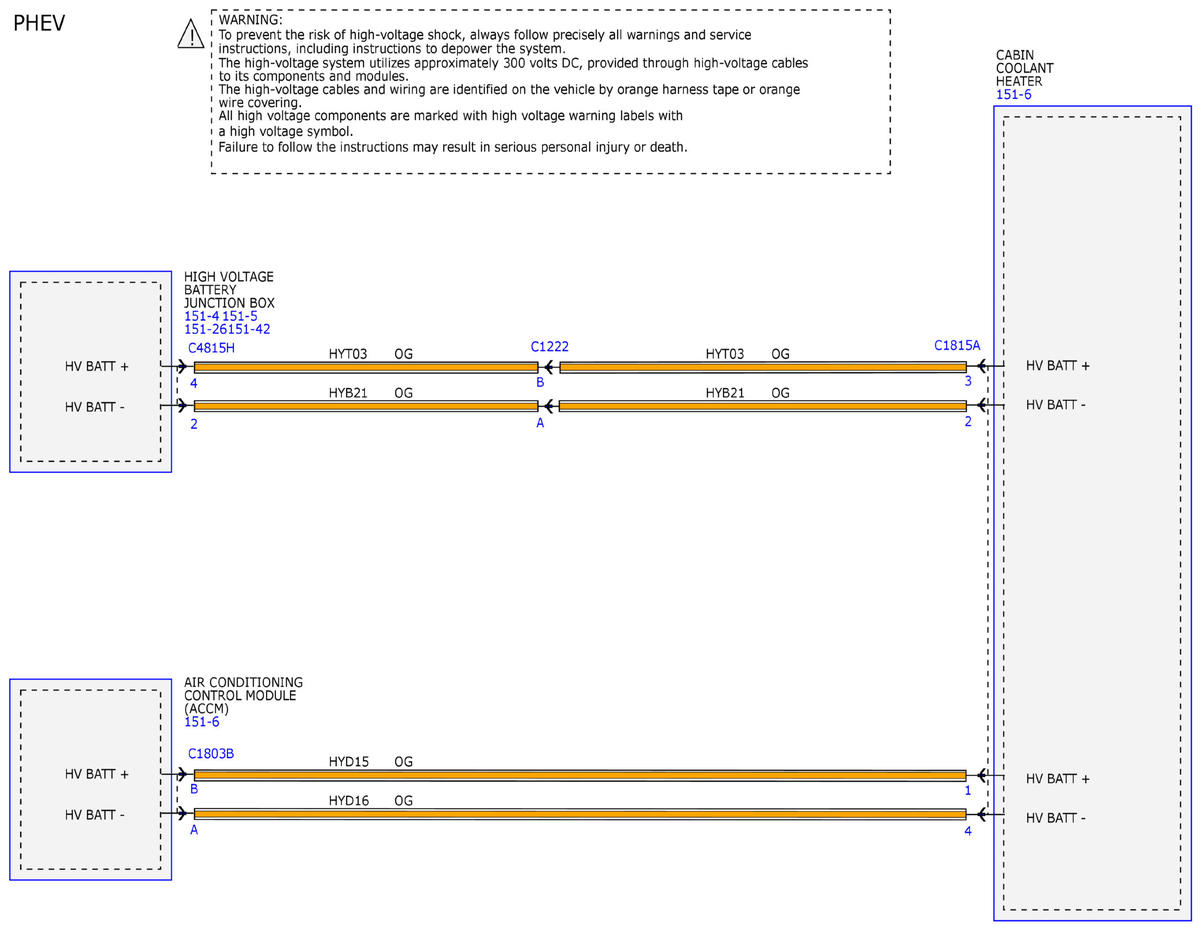

Fig 9: Manual Climate Control System Wiring Diagram (9 of 11)
GFDWR91631Courtesy of FORD MOTOR COMPANY

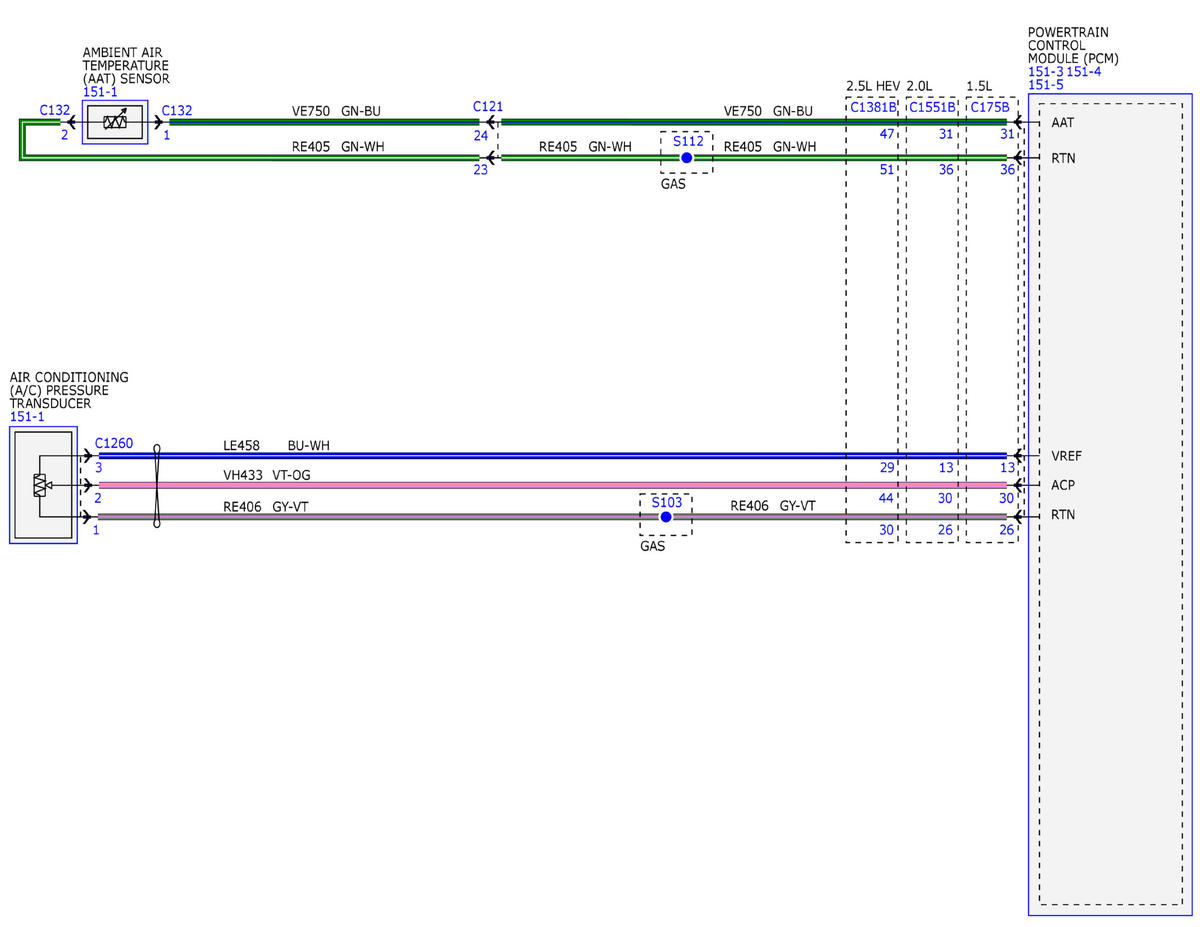

Fig 10: Manual Climate Control System Wiring Diagram (10 of 11)
GFDWR91632Courtesy of FORD MOTOR COMPANY

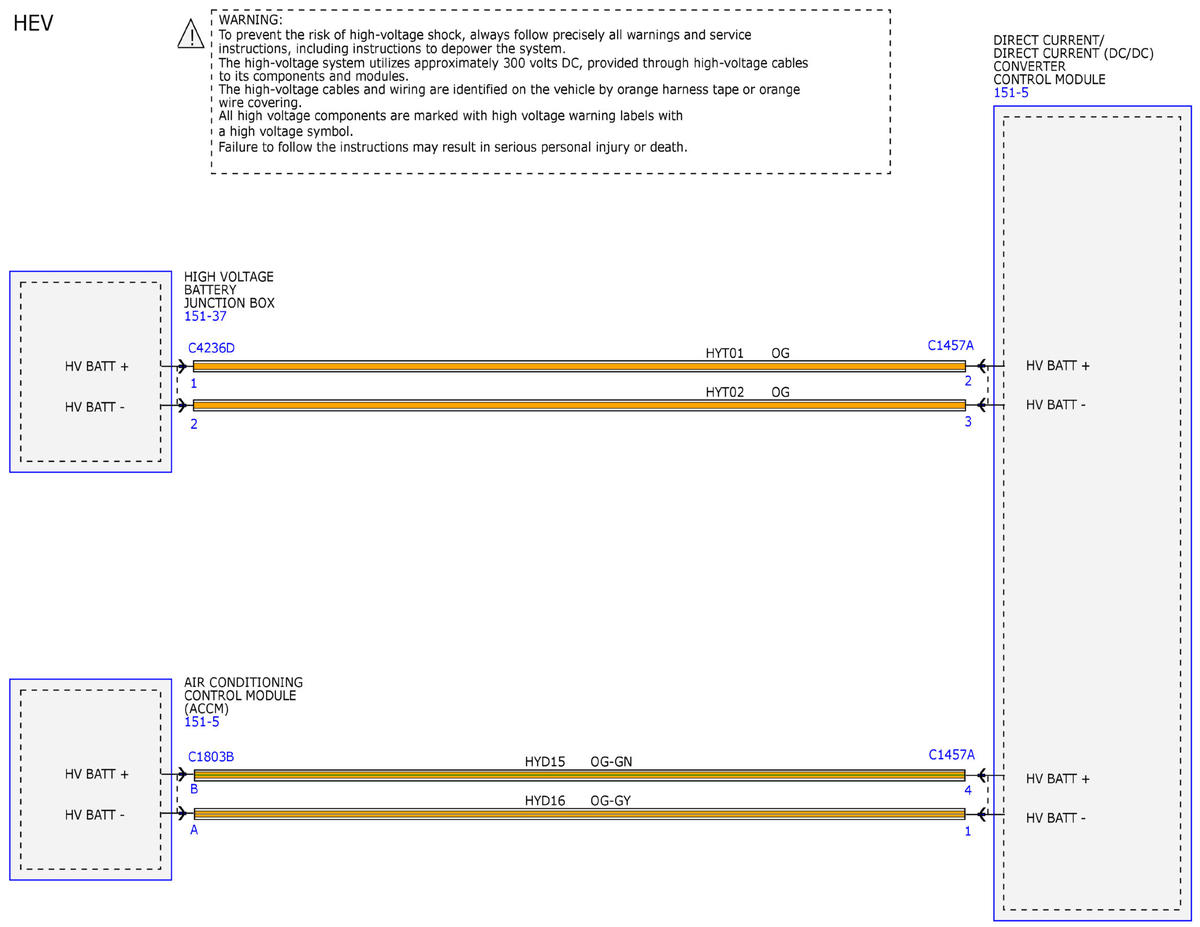

Fig 11: Manual Climate Control System Wiring Diagram (11 of 11)
GFDWR91633Courtesy of FORD MOTOR COMPANY
