Cruise Control

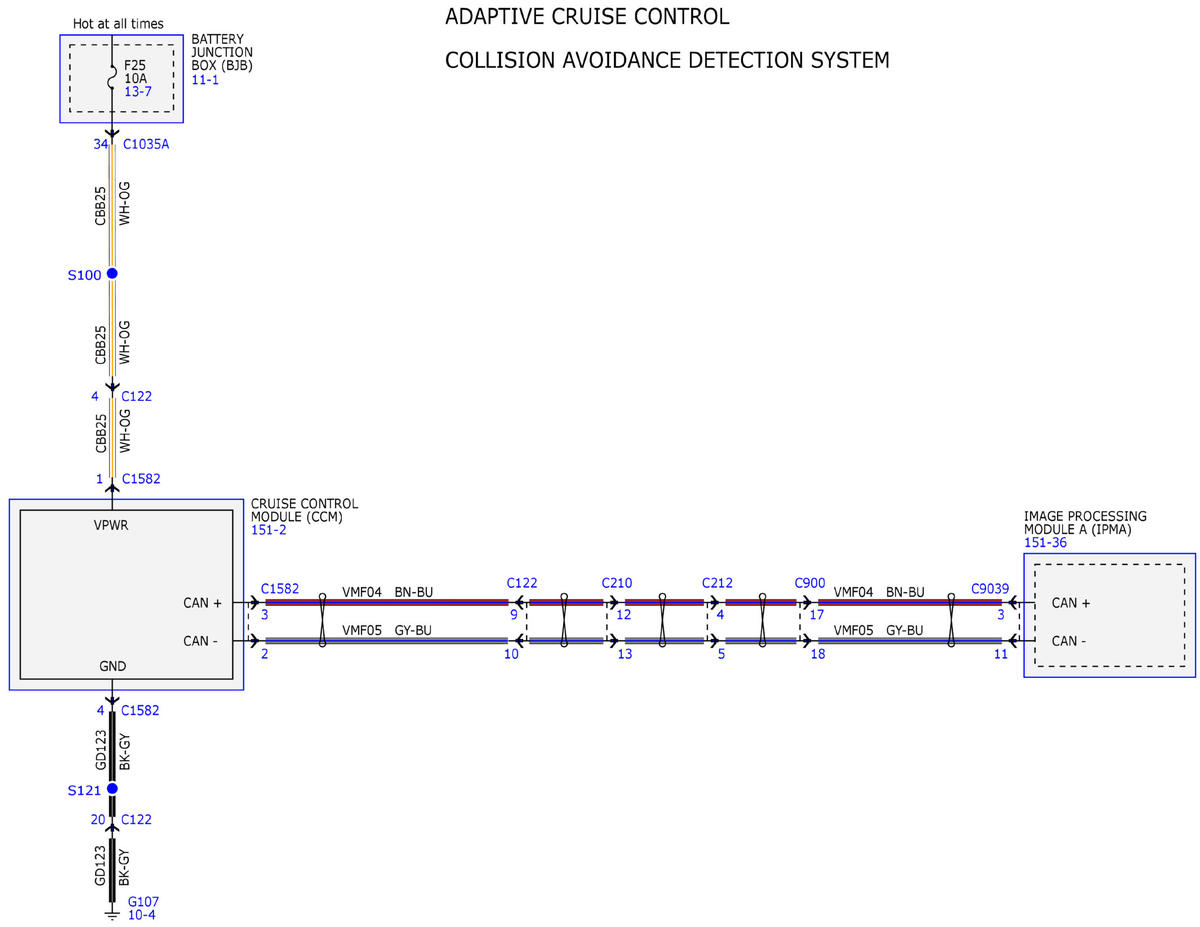

Fig 1: Cruise Control Wiring Diagram (1 of 5)
GFDWR91540Courtesy of FORD MOTOR COMPANY

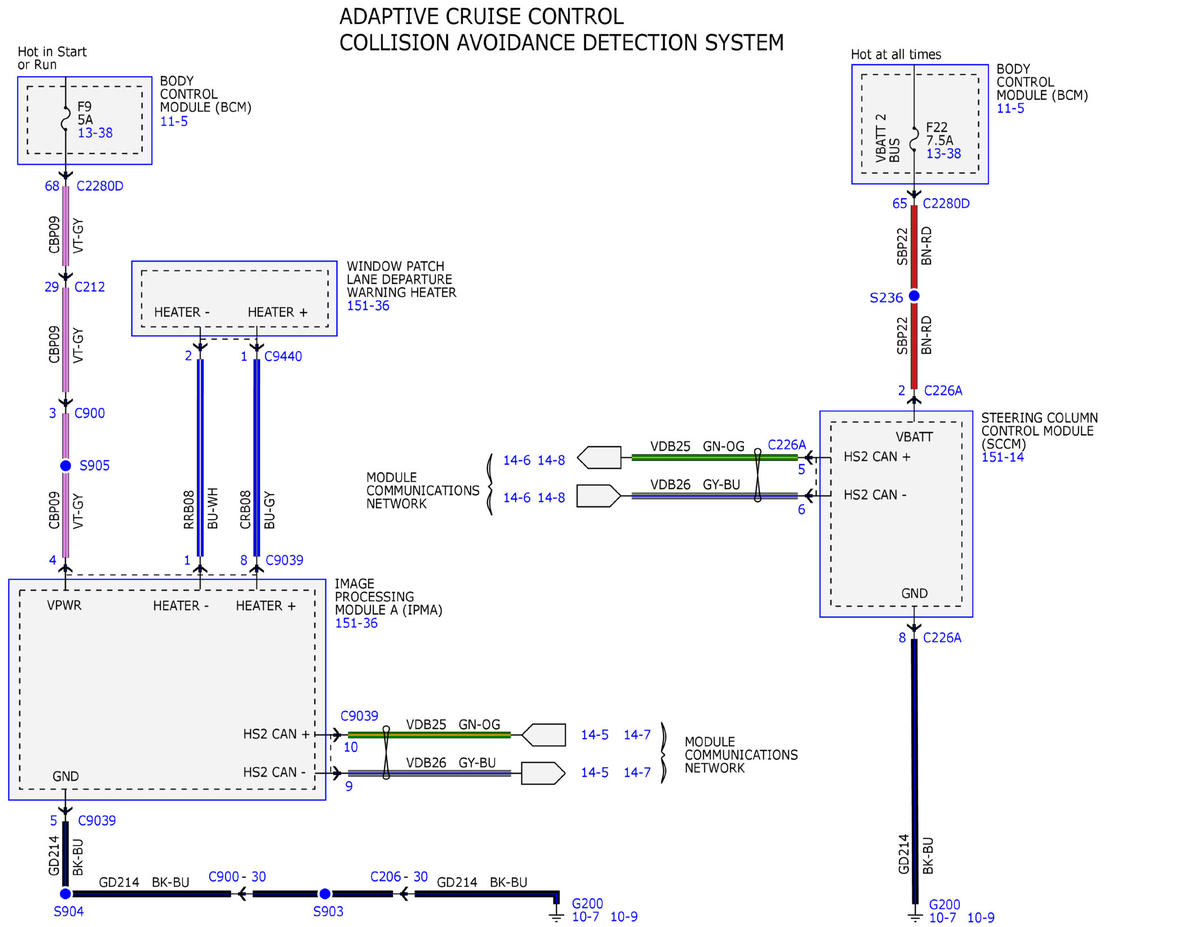

Fig 2: Cruise Control Wiring Diagram (2 of 5)
GFDWR91541Courtesy of FORD MOTOR COMPANY

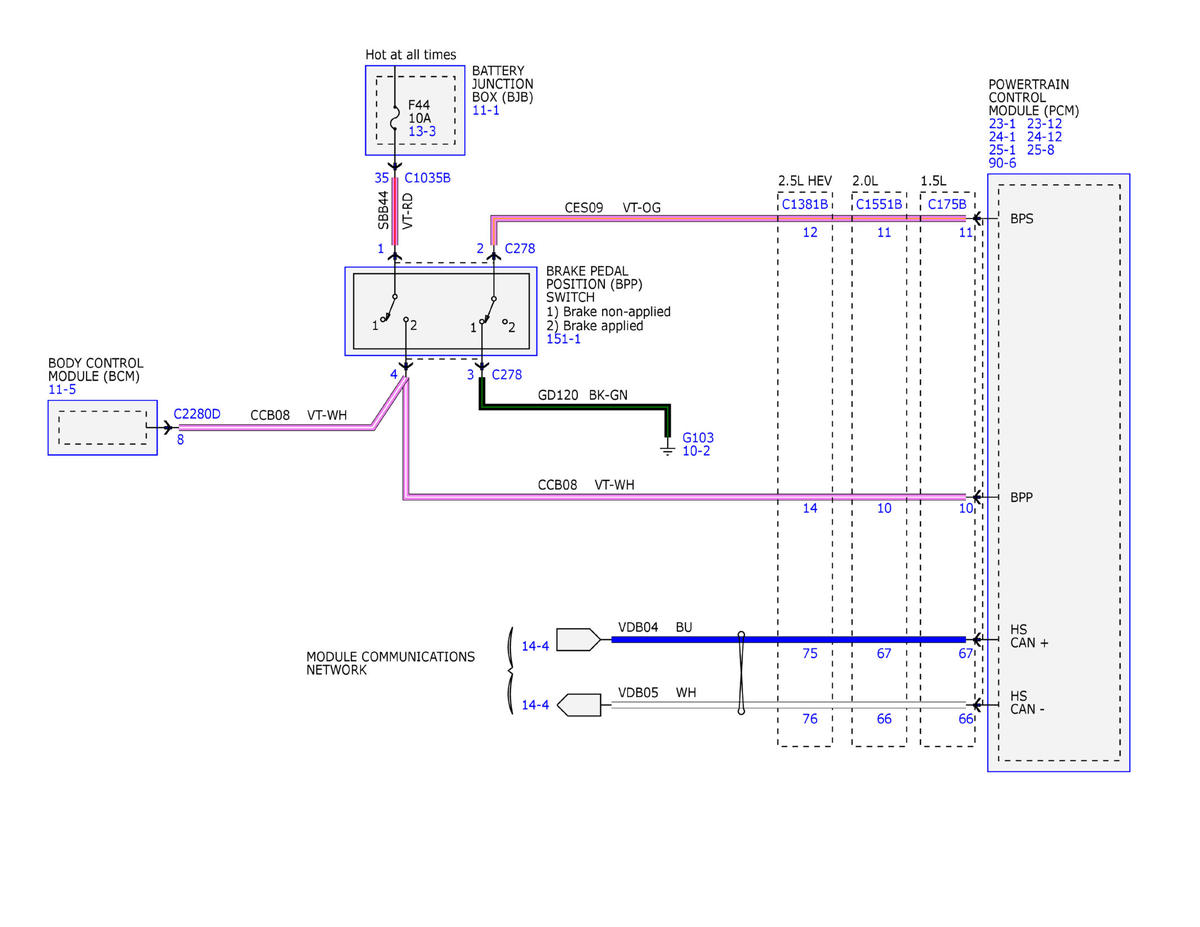

Fig 3: Cruise Control Wiring Diagram (3 of 5)
GFDWR91542Courtesy of FORD MOTOR COMPANY

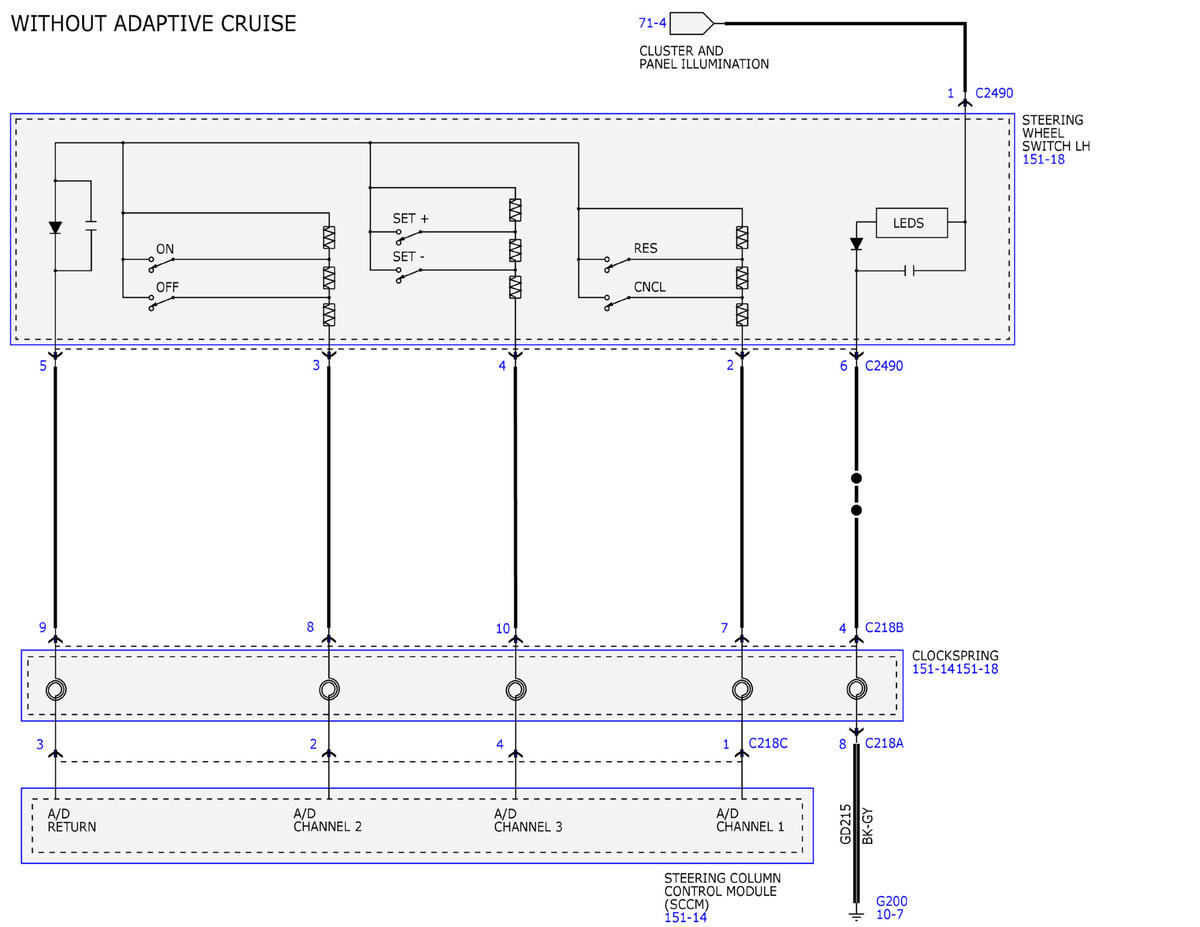

Fig 4: Cruise Control Wiring Diagram (4 of 5)
GFDWR91543Courtesy of FORD MOTOR COMPANY

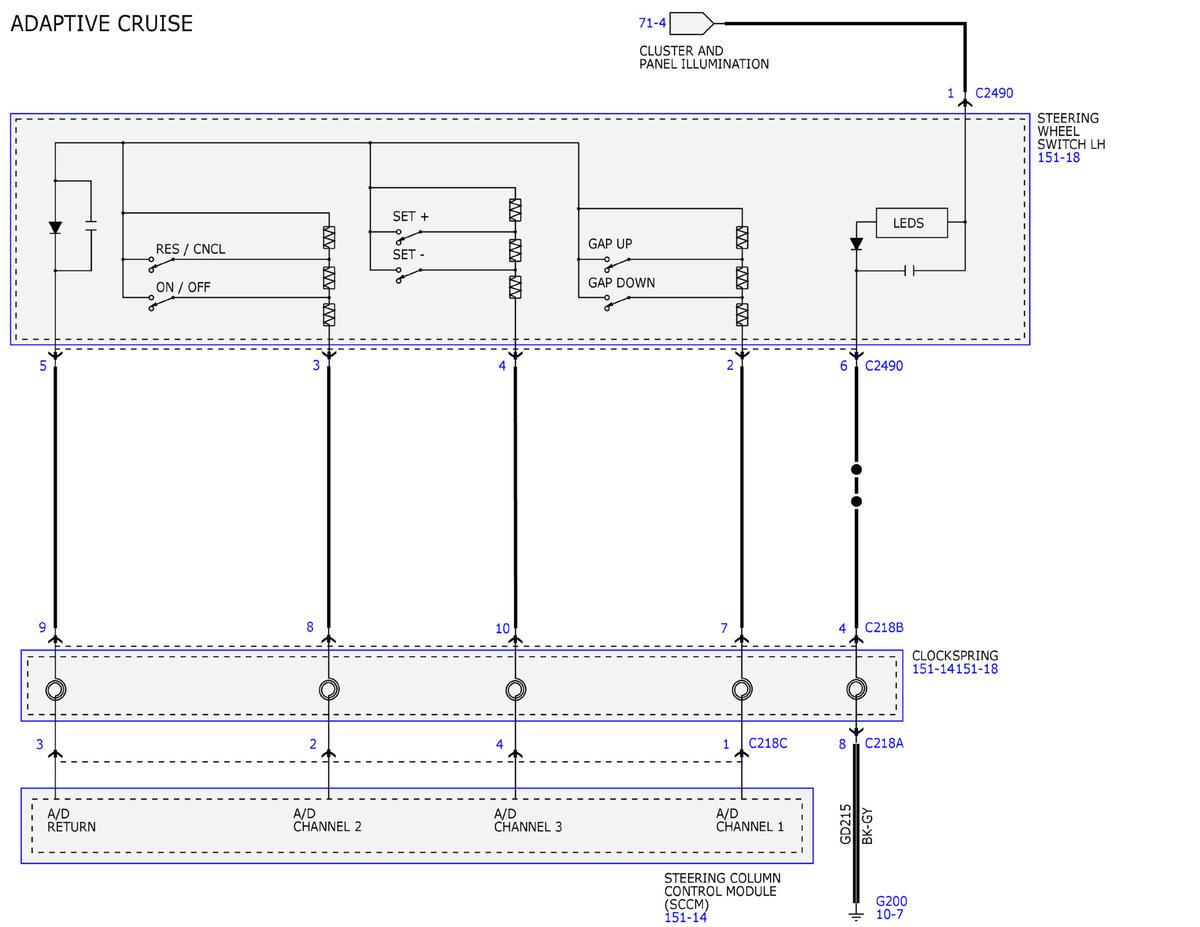

Fig 5: Cruise Control Wiring Diagram (5 of 5)
GFDWR91544Courtesy of FORD MOTOR COMPANY
